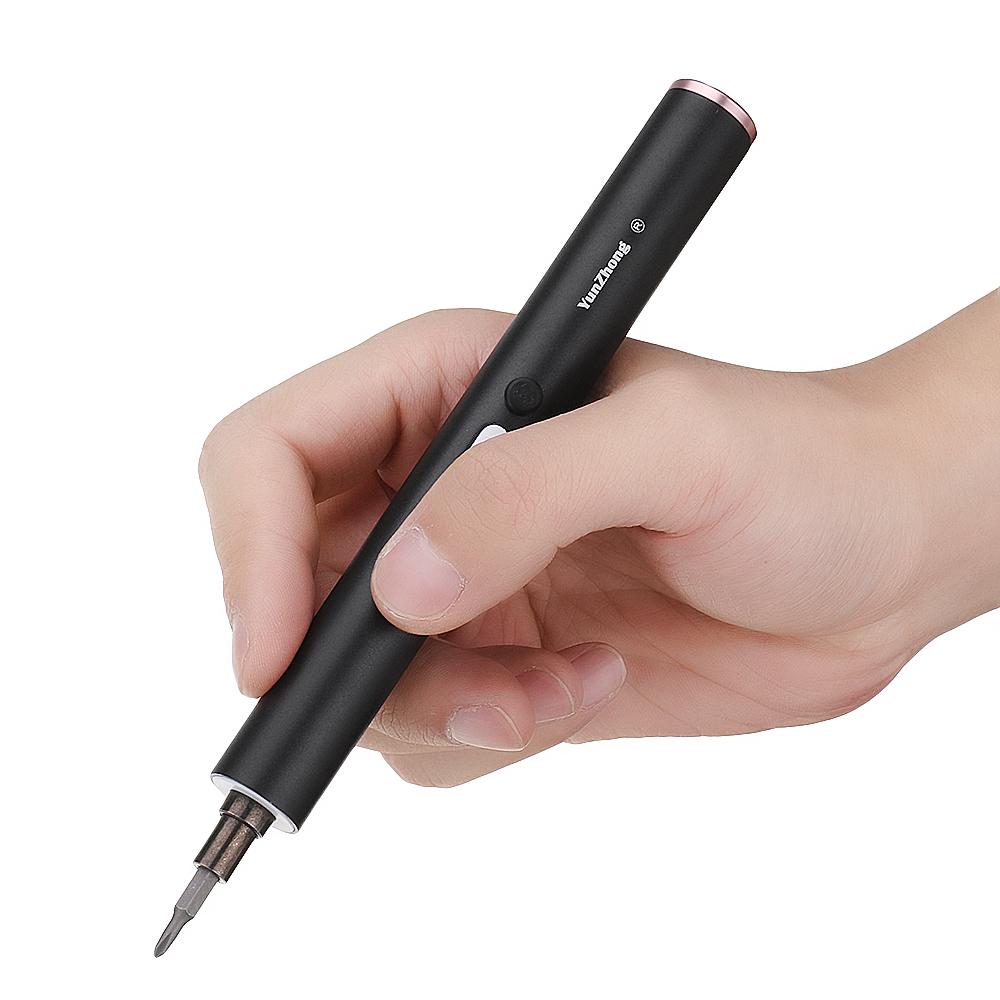

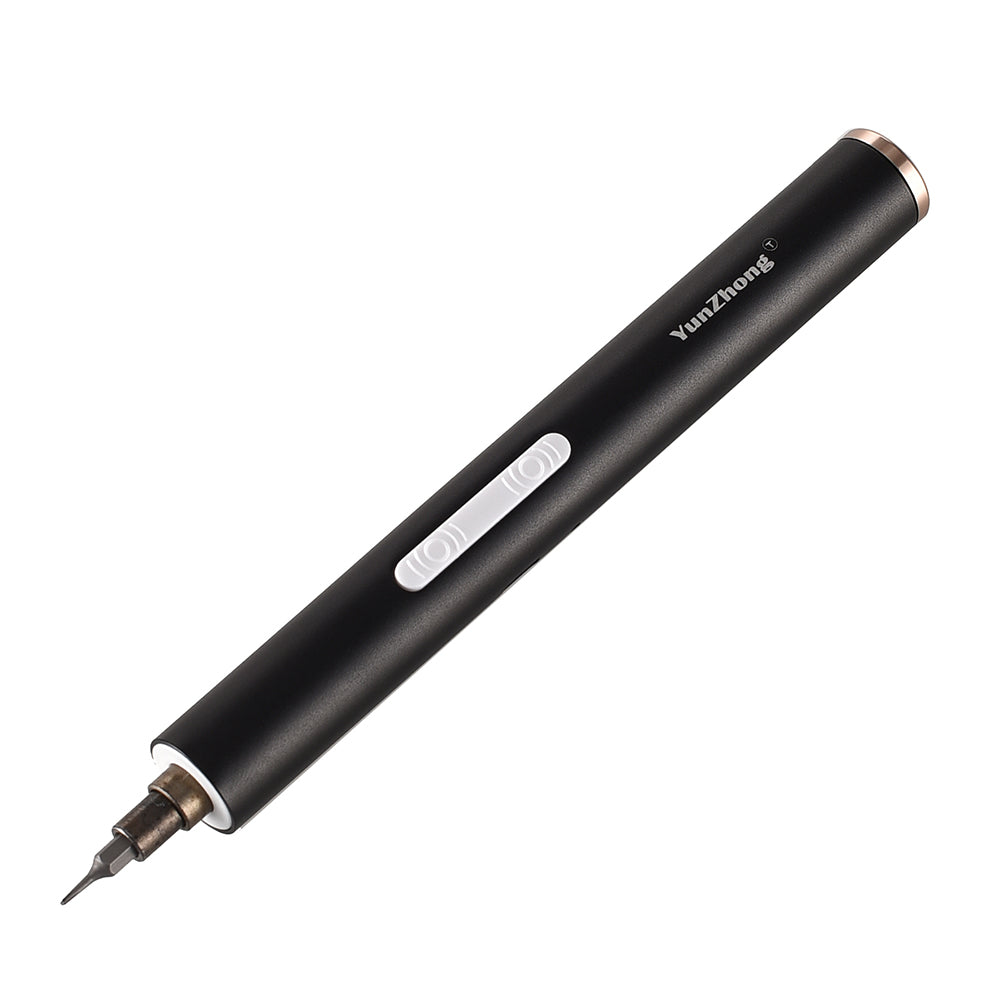

Yunzhong 028A Mini Electric Screw Driver

Yunzhong charging electric screwdriver
Main Features:
A magnetic flexible screw pad, for well collecting bits and screws temporarily
-Portable and convenient screwdriver for mobile, laptop, toy, camera, PC, watch, instrument, home electronics etc
Main engine Model GSD-Electric screwdriver -028A Model 028B
Mainframe size 18*165mm weighs about 75g
Batch Type international Standard 4mm General batch
Power supply rechargeable Lithium Battery Power supply Model 14500 3.7v 800MA
Duration 2 hours
Charging time 60 minutes
Torque range electric 028A 0.16NM028B 0.3NM. Manual 3NM
Idle speed 028A 160r / min 028B: 165r / min
Standard batch 21PCS

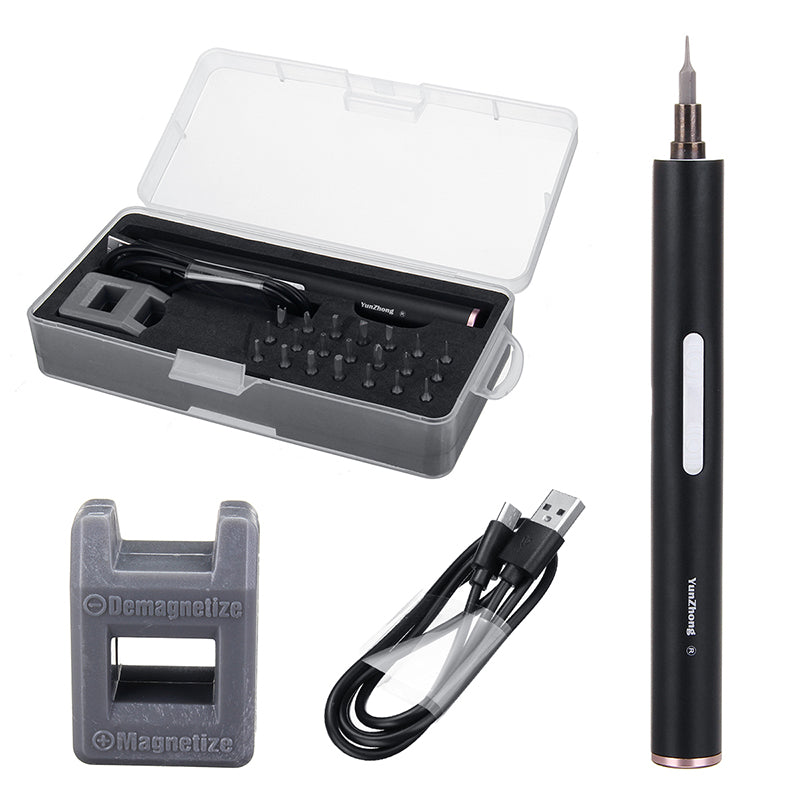

Other configuration V8 long head charging wire plus demagnetizing plate
Lot number

Cross PH000 (Cross 1.5) PH0 (Cross 2.0) PH2 (Cross 5.0)
Hyphen 1.0mm 2.0mm 3.0mm
Six star shape T5 , T6 , T8 , T8
Five star shape P2 (five-star 0.8) P5 (five-star 1.2) P6 (five-star 1.5)
Square SQ0
Triangle: 3.0 Triangle: 3.0
Y Y2.5
U U3.0
Hexagonal Ｈ1.5Ｈ2.0Ｈ2.5Ｈ3.0
Corresponding batch head roughly detaching range:
Five-Star 0.8: remove the bottom five-star screw of the iPhone (4，4s,5,5s,5c,6,6plus,7,7plus8,8plus,X)
Five Star 1.2: remove the bottom five-star screw of the .MacBook Pro
PH000 ( also the cross) 1.5: remove all phone cross screws.
PH0 ( also the cross) 2.0 : Remove notebook bottom cross and toy cross usage .
PH2B ( also the cross)5.0: the desktop computer cross screw.
One word 1.0 / 2.0 / 3.0: remove some digital product hyphen screws.
Hexagonal T 5/ T 6: remove hexagonal screws from some notebooks.
Triangle 3.0/Y2.5 :dismantling small electrical appliances.
Model 028B can be used for model disassembly and repair under no more than 3 NM force.We will find out more about other parts of the machine.
Note:
Hand-to-body design not only can be operated by electric or manual operation, electric and manual can be operated independently, can not operate at the same time.
Manual torsion must not be greater than 3 NM, self-disassembly and maintenance is strictly prohibited.
Please store the electric screwdriver which is not used temporarily outside the scope that babies and children may touch.
Use is strictly prohibited when charging.
When using and replacing battery, please replace the battery made by themanufacturer
