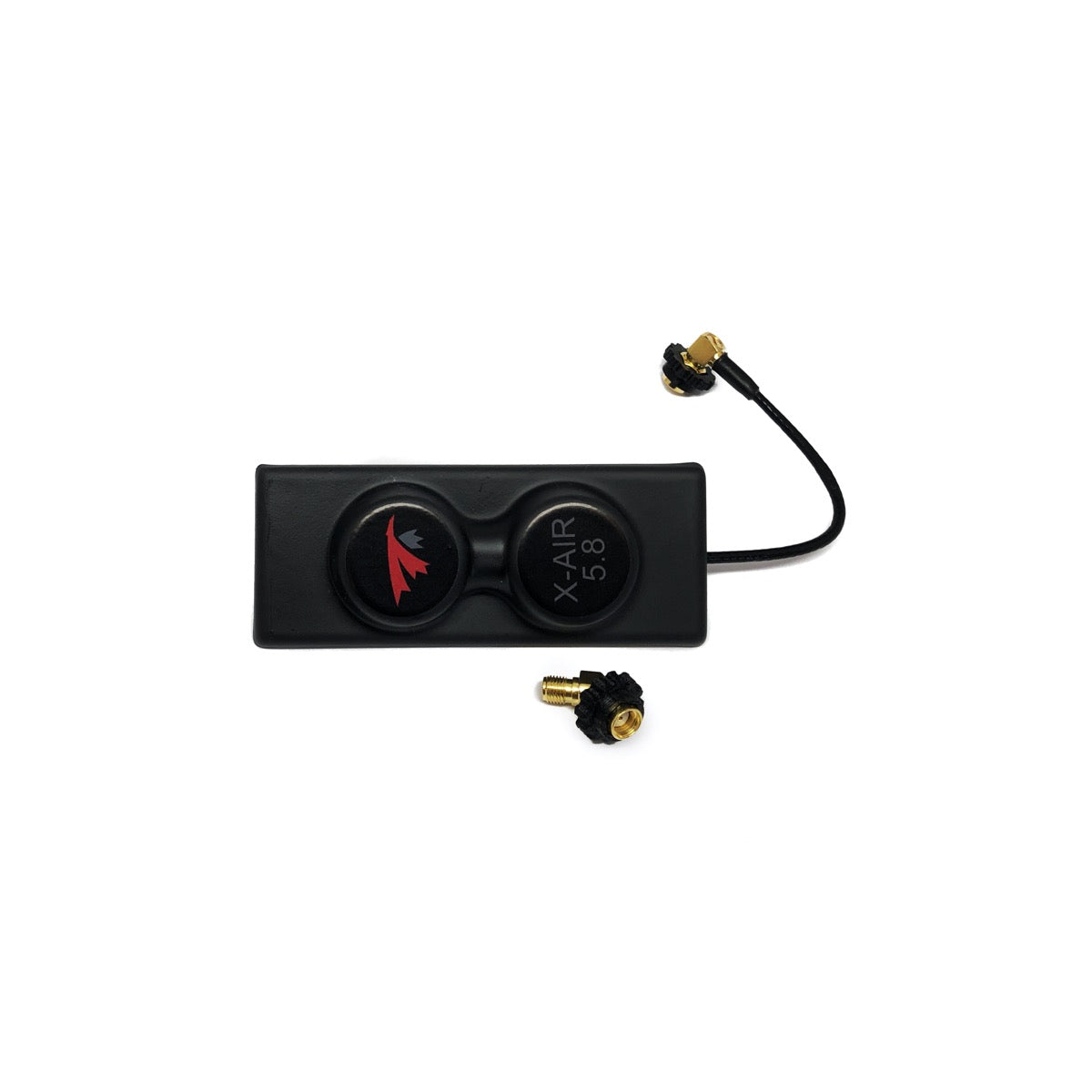

X-AIR 5.8 FOR DJI FPV

DESCRIPTION

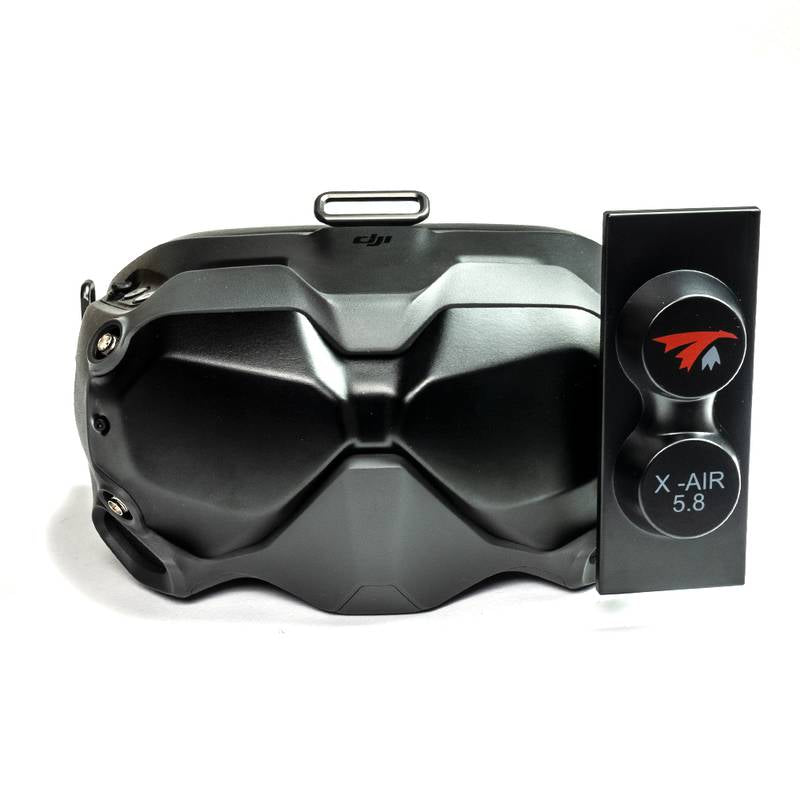

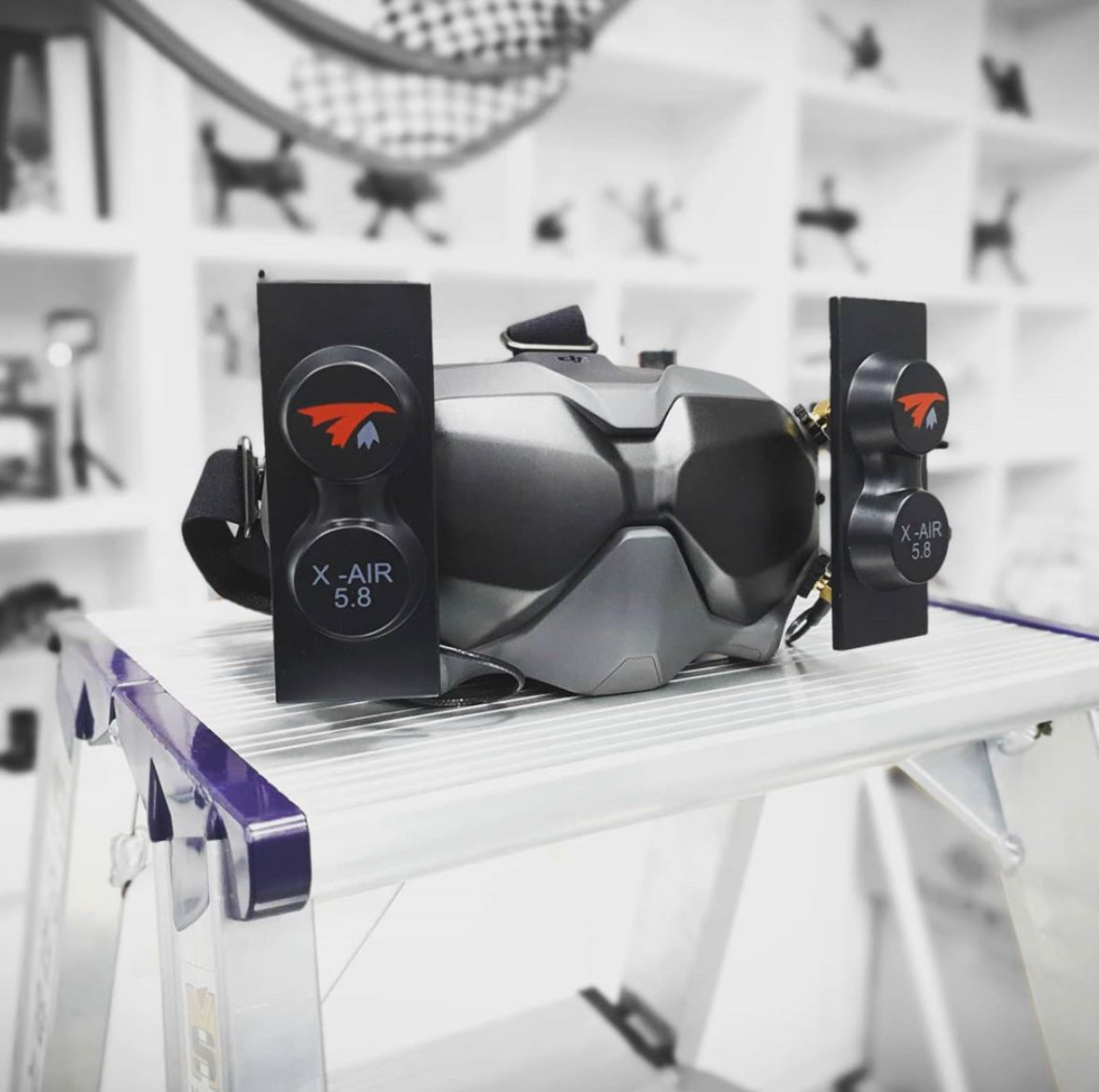

TrueRC did it again with this versatile directional antenna for the DJI FPV goggles. Thx to smart design, you can multiply the range of your system in style. It can be used alone, horizontally, connected to the two top SMA. Or it can be used in pair, flipped vertically and connected to the two SMA on each sides, for maximum video link resilience.

Specs

• Bandwidth: 5.1GHz-6.0GHz
• Gain: 10 dBic
• Beam-width*: 120deg
• Beam-width @-3dB**: 68deg.
• Connector: 2x RP-SMA (direct + cable)
• Dimension: 104mm x 41mm x 30mm
• Weight 25g

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
