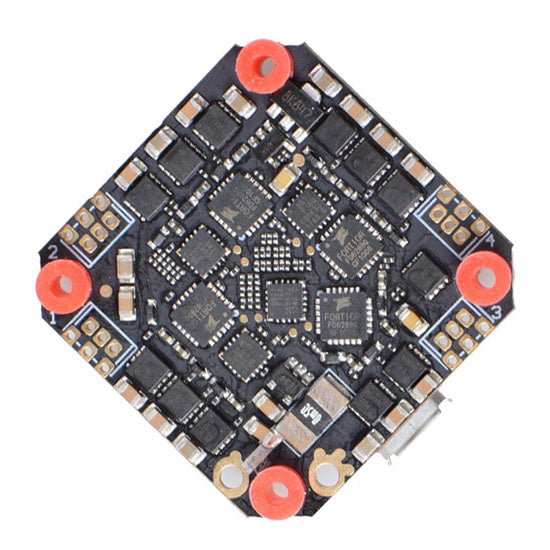

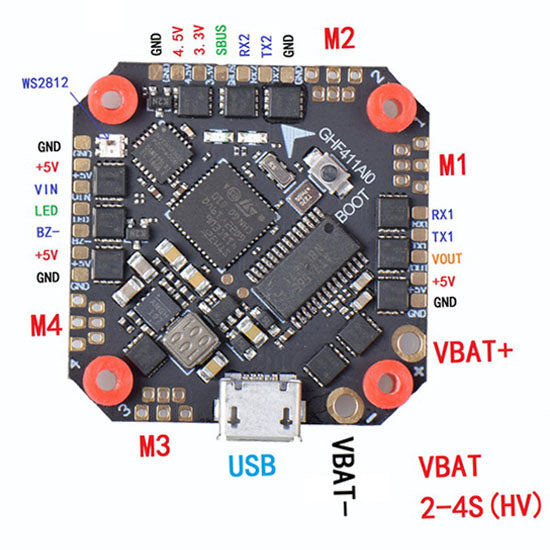

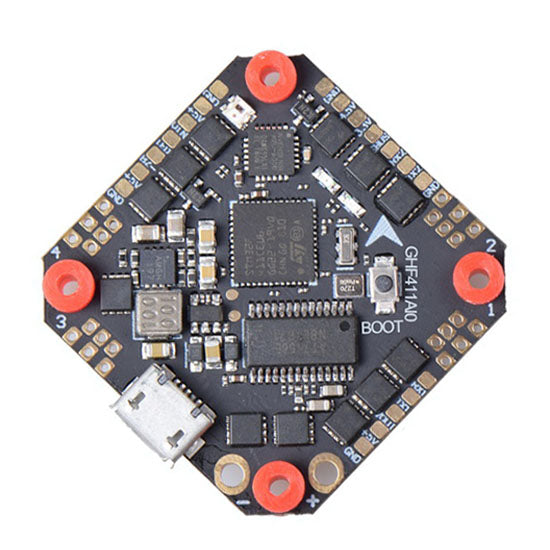

JHEMCU Toothpick AIO F4 Flight Controller 30A 2-4S GHF411

Specification of FC:

• CPU: STM32F411CEU6 (100MHZ)

• MPU: MPU6000 ( SPI)

• Size: 32.5×32.5mm

• Firmware: Betaflight MATEKF411 ( MK41)

• Built-in Betaflight OSD ( AT7456E)

• Mounting Hole: 25.5×25.5mm

• Support WS2812 LED

• Built-in current sensor

• Weight: 6.3g

Specification of ESC:

• Support BLheli / BLHELI_S

• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

• Input voltage: 2S-4S Lipo

• Continuous current: 30A

• Firmware: BLHELI_S

• Motor connector: 1.25mm pin header

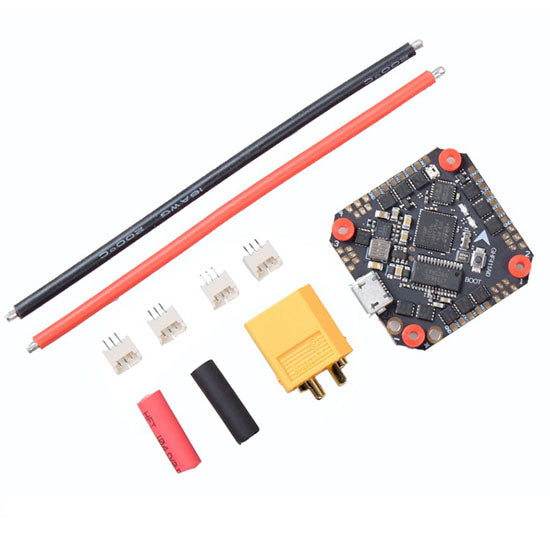

Package Contents:

- 1 * GHF411 F4 30A AIO

- 1 * XT30 Connector

- 4 * Anti-vibration Standoffs

- 4 * Plug Connectors
