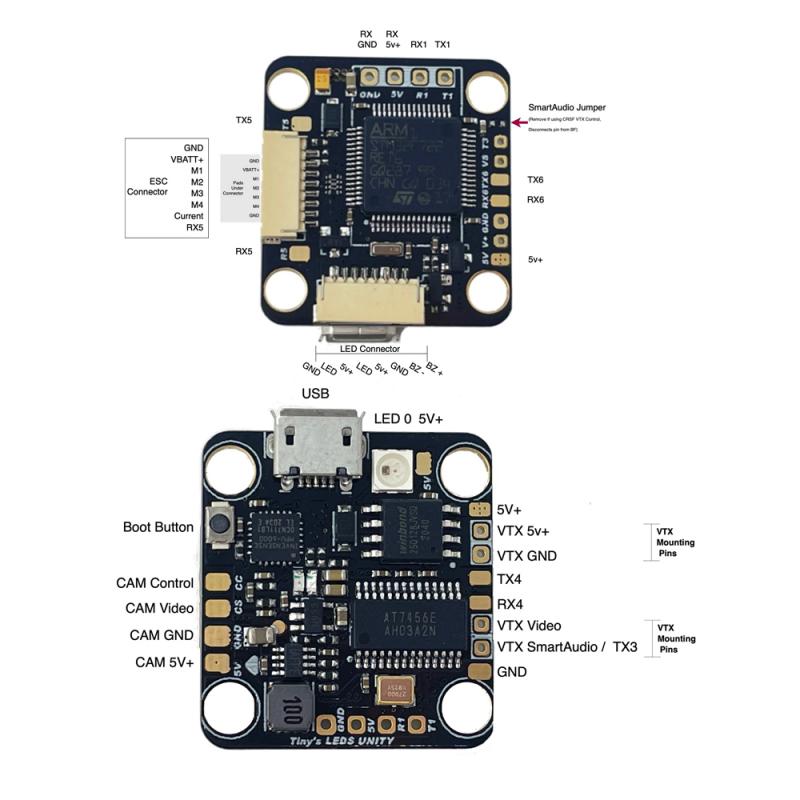

FEATURES:

• MCU: STM32F722RET6 216MHz
• Gyro: MPU6000
• Betaflight OSD
• Up to 6S (28V) direct battery power
• Buzzer pads for external buzzer
• Built in voltage monitoring resistor
• 5V 2A BEC
• Led strip shares 5V with 5V/2A BEC
• 6 UARTS
• UART 3 TX: VTX Smart Audio
• UART 1 RX/TX Receiver pins
• Built in camera control pin with resistor and capacitor
• 5 Full UARTS with RX AND TX pins
• TX3,RX3 can be used for I2C for external compass
• 5V VTX & CAM power
• 16MB Blackbox flash chip
• RealPit VTX pit mode switch
• ESC Connector pads below connector
• M4 Can be selected either led_strip signal or M4 signal for RPM filtering
• LED on board for Status or other functions
• 20x20 Mounting 25x25mm Board Size

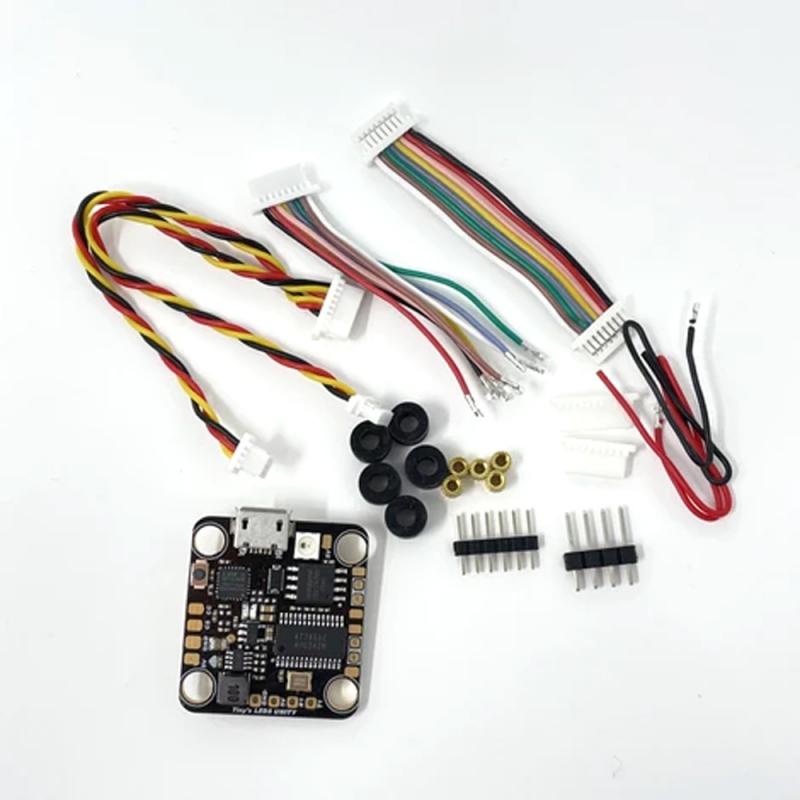

CONTENTS:

• 1x Tiny's LEDs Unity 20x20 FC
• 1x Wiring harness for Aikon PIN32 ESC
• 1x Wiring harness with un-pinned connector. (Build your own easily)
• 1x 8 pin ESC connector
• 1x 10 pin ESC connector
• 5x Mounting Gummies
• 5x M2 Reducer mount.(Slide Gummies over)
• 1x Set of 2.54mm pins (RX)
• 1x Set of 2.0mm Pins (VTX)
• 1x Tiny's LEDs Sticker :)
