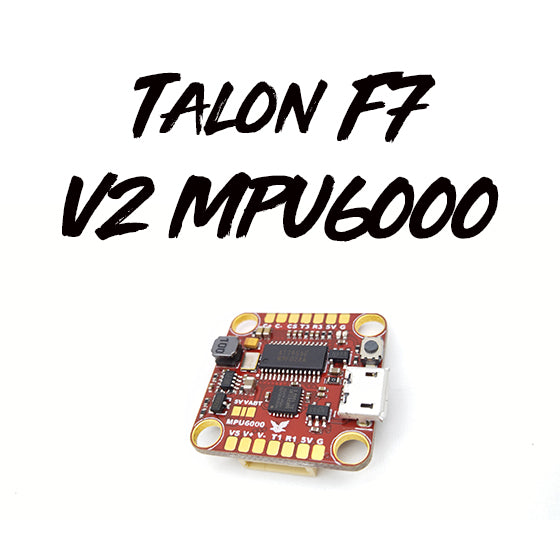

Talon F7 V2 MPU6000 20X20 Flight Controller
Talon F7 V2 MPU6000 20X20 Flight Controller
Regular price
Rs. 2,925.46
Sale price
Rs. 2,925.46
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
Share this product
SKU: OJ03459
- For Betaflight 4.2 or later, youll need to enter this into CLI set pinio_box = 40
20 X 20 mounting hole with true 25mm board dimensions- MCU: STM32F722RET6 216MH
- Proven noise free MPU6000
- Buily in Betaflight OSD
- Up to 8S (36V) direct battery power
- Buzzer pads for external buzzer
- Built in voltage monitoring resistor
- 5V 2A BEC
- Dedicated LDO for Gyro, noise free gyro power
- Dedicated LDO for OSD, cleaner OSD signal
- Led strip shares 5V with 5V/2A BEC
- 6 UARTS: UART1, UART2, UART3, UART4, UART5, UART6
- Built in camera control pin with resistor and capacitor
- 5 Full UARTS with RX AND TX pins
- Logical pin layout for cleanest build possible
- 8 pin 4 IN 1 ESC plug
- Remapable LED pad for additional motor output
- TX3,RX3 can be used for I2C for external compass
- 5V, VBAT selectable VTX and CAM power
- 16M Blackbox flash chip
- No flicker VTX pit mode switch (positive switch)
- M4 Can be selected either led_strip signal or M4 signal for RPM filtering
Please use user1 for Pit Switch Mode Switch
For the Legacy Clracingf7 target you will need to do the following:
Resource MOTOR 6 NoneSaveFor latest BF updates use these CLI commands for PitSwitch
Setting up Pit Mode:
TOP LAYOUTBOTTOM LAYOUT - To get 5V to your VTX please go to the mode tab in Betaflight and setup a mode switch for vtx_pit
- Resource pinio 1 A14 Set pinio_box = 40 Save
- Resource MOTOR 4 C08
- To get Motor 4 to work please use the CLI command below using Betaflight V4.0.4. A custom hex is coming soon for 3.5.7 and 4.0.4.
- Official Betaflight Target: TalonF7V2
- Save
- resource pinio 1 A14,
