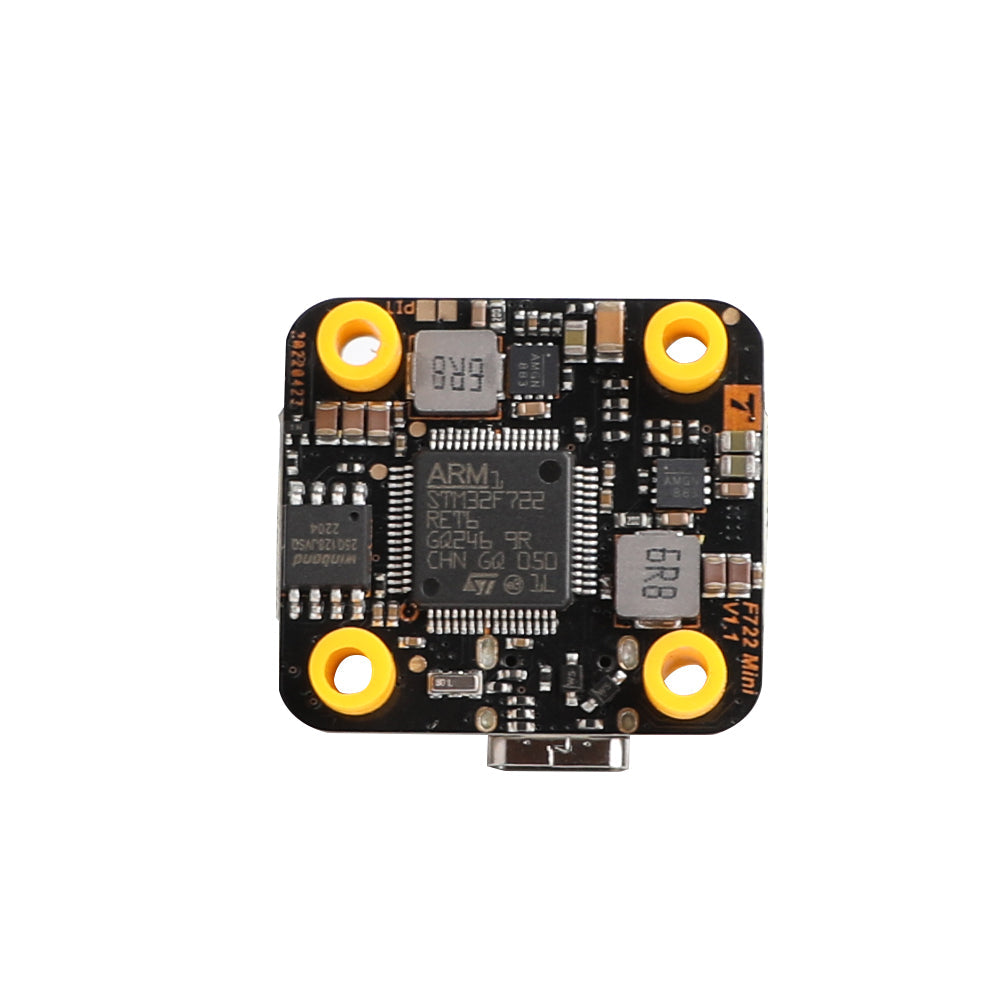

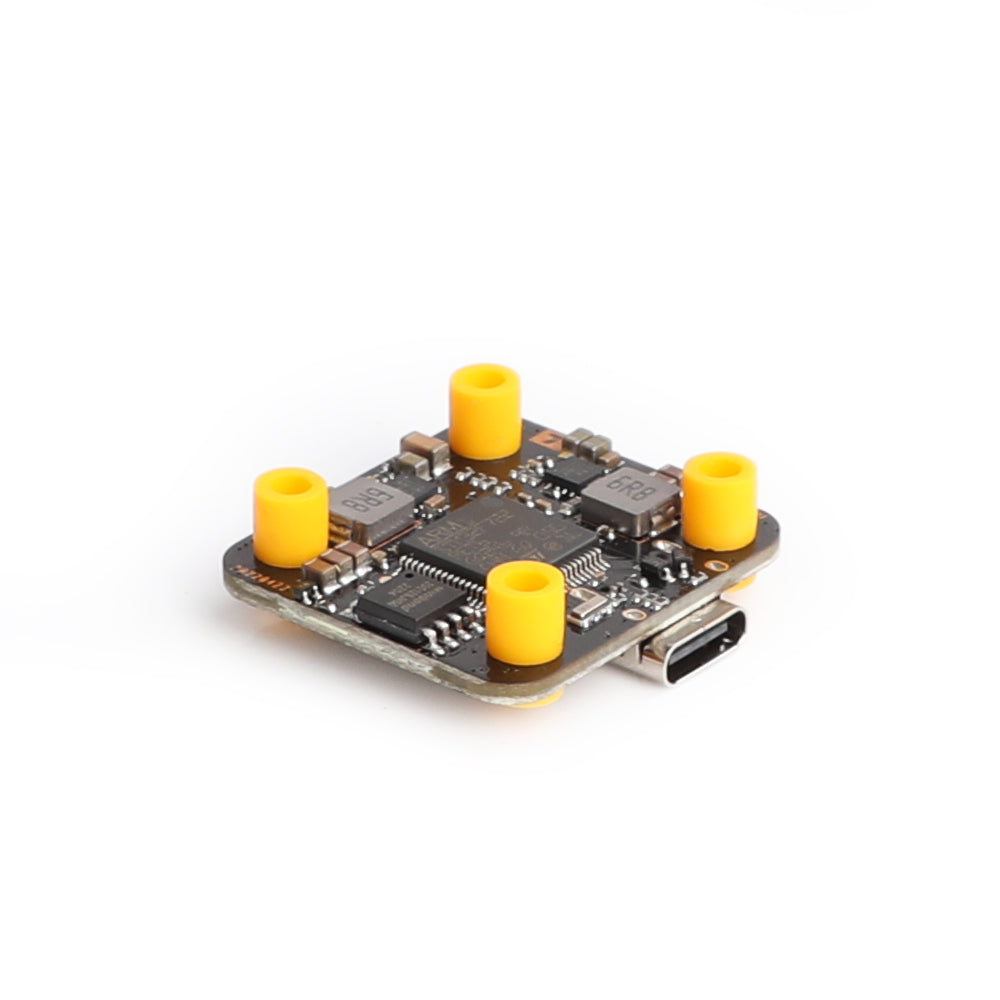

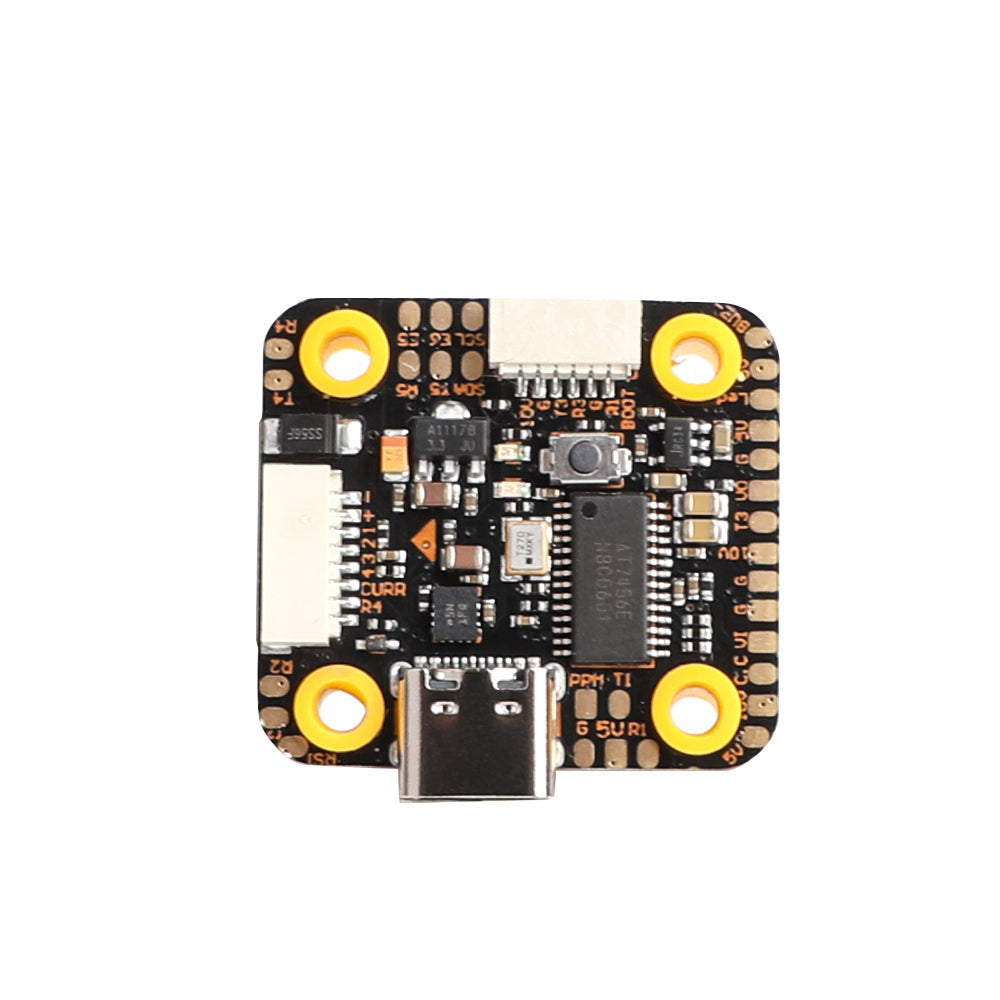

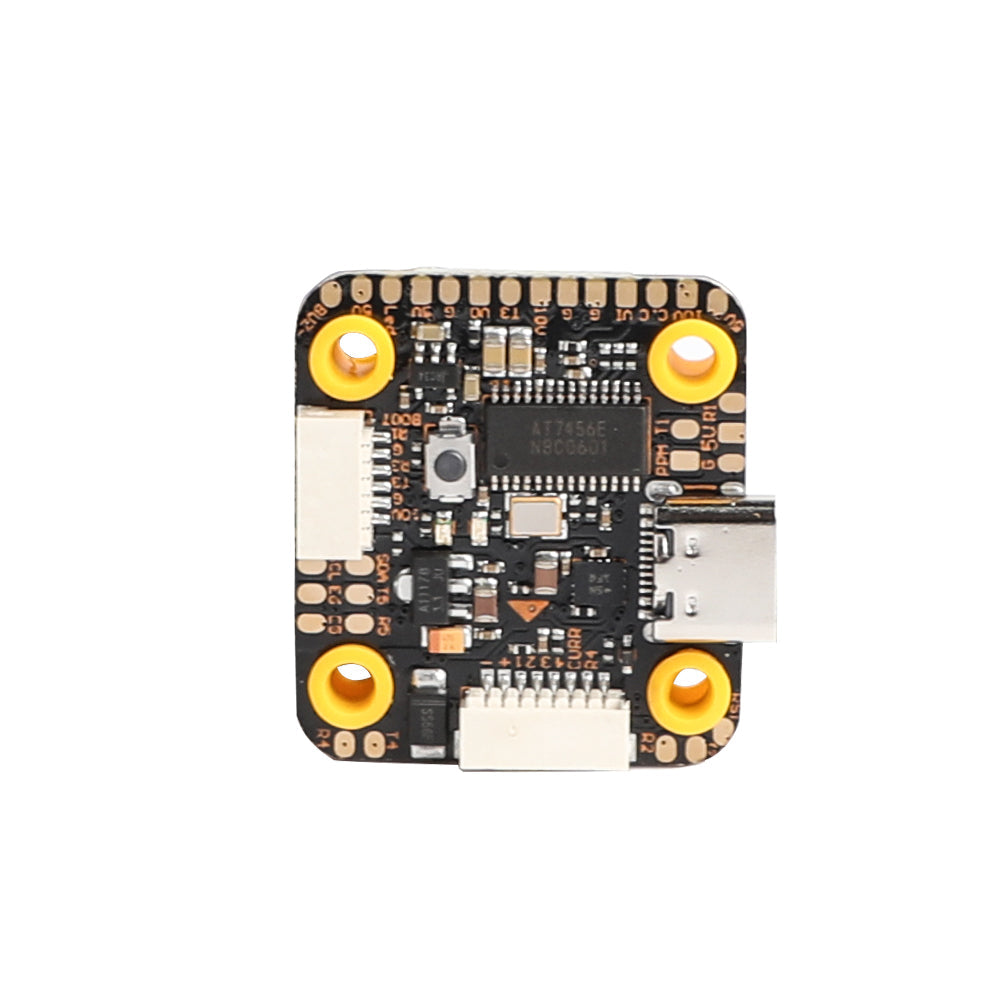

T-MOTOR MINI F7 (HD+OSD+VTX SWITCH) - 20X20MM

T-Motor's MINI F7 HD Flight Controller! Enjoy the fast processing High Speed F722 and pair it with the T-Motor F45 ESC for a smooth, powerful flying experience. 41% smaller and 33% less weight! Dual BEC plug and play compatible with DJI HD VTX!

Check out the full stack sold together here! (Mini F7+F45A) and all our T-Motor Products!

SPECIFICATIONS:

• MCU: STMF722
• Gyro: BMI270
• Memory: 16M
• Input Voltage: 12v-25.2v (3-6S)
• BEC: 5V/2A, 10V/3A
• Mounting Holes: 20x20mm
• Weight: 5.1g
• Firmware Target: TMOTORF7 (STM32F7X2)

PACKAGE INCLUDES:

• 1 x T-Motor Mini F7 (HD+OSD+VTX SWITCH) - 20x20mm

WIRING DIAGRAM:
