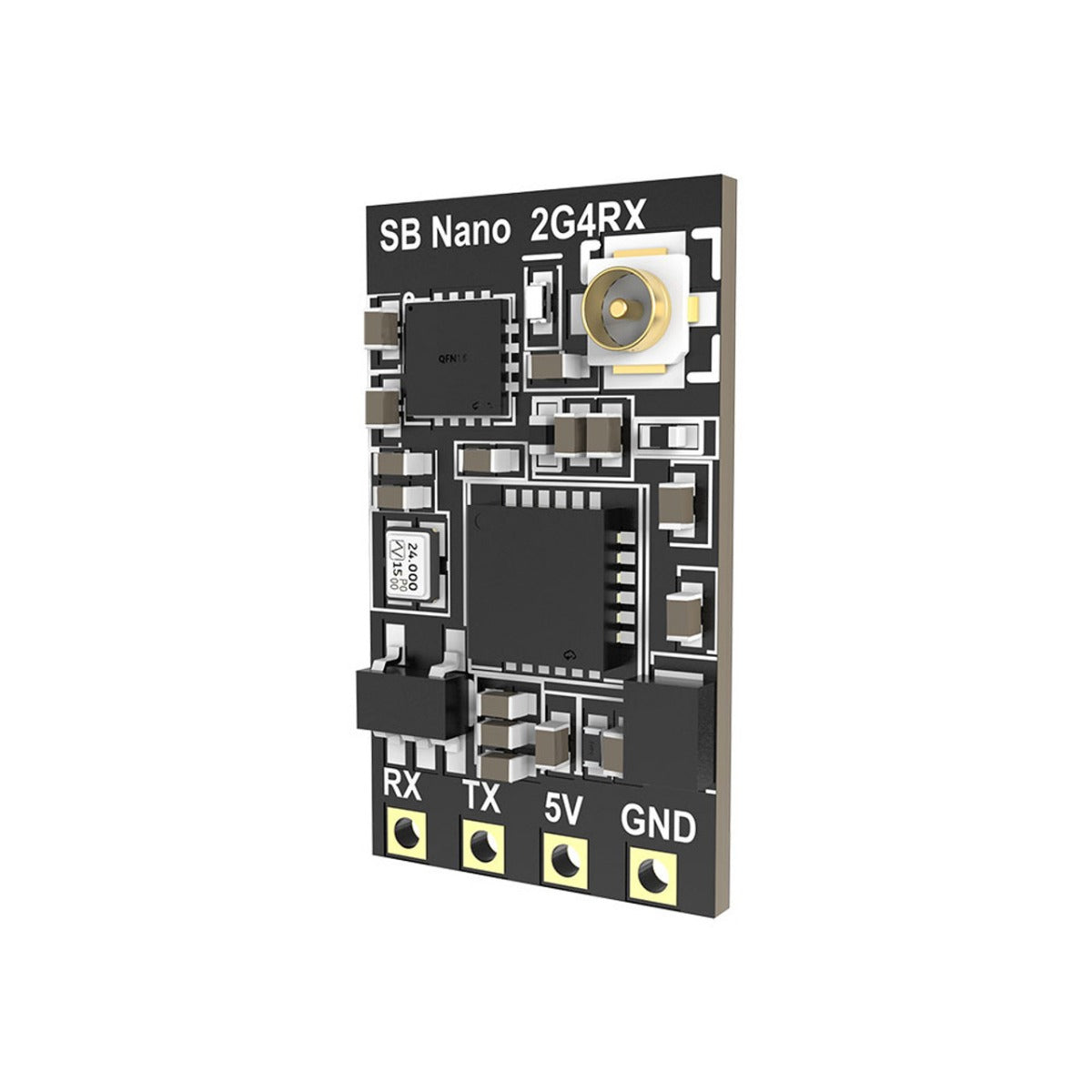

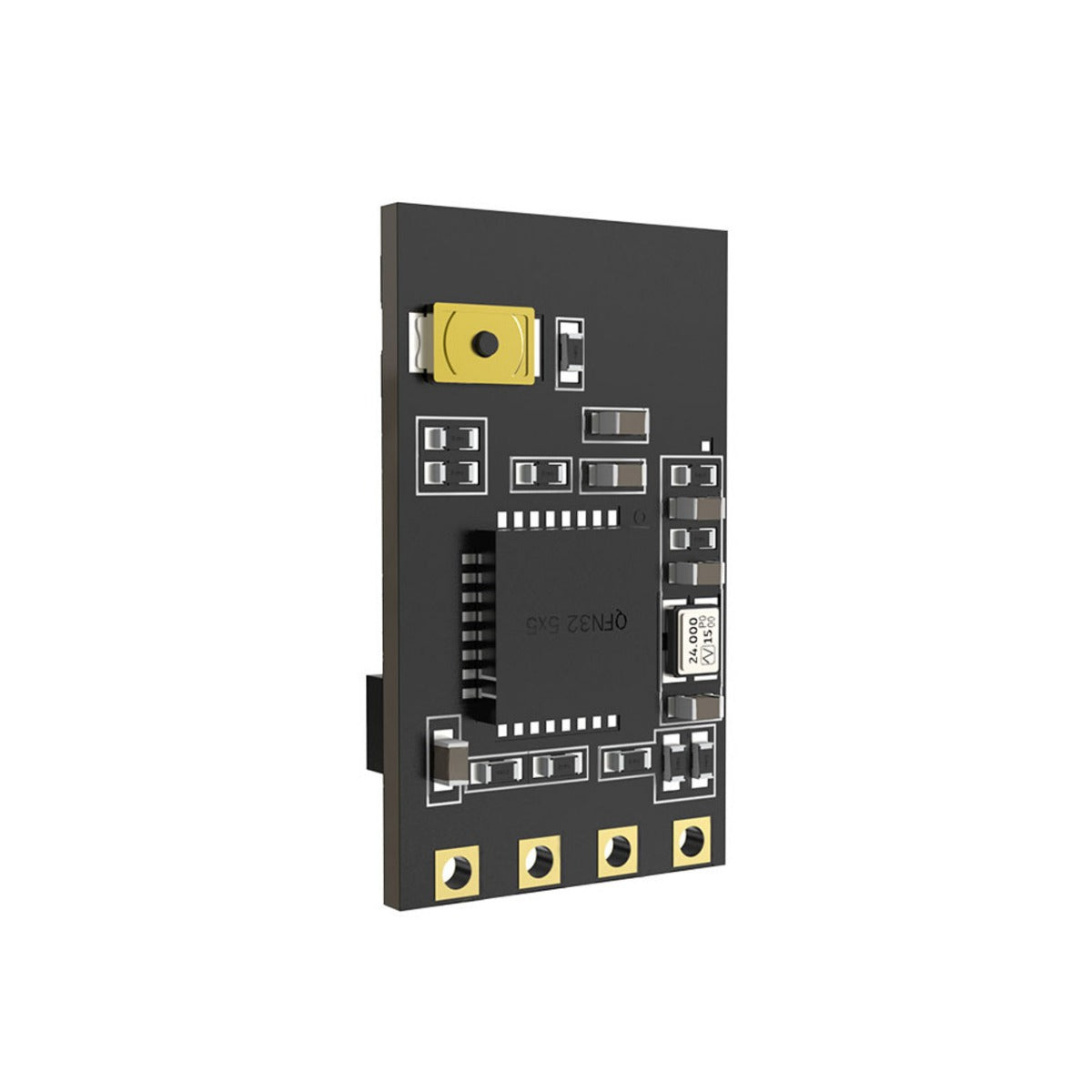

SpeedyBee Nano 2.4GHz ExpressLRS Receiver with TCXO
SpeedyBee Nano 2.4GHz ExpressLRS Receiver with TCXO
Regular price
Rs. 979.00
Sale price
Rs. 979.00
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
Share this product
SKU: 5352
Specifications
| Model | SpeedyBee Nano 2.4GHz RX |
| Name | ExpressLRS Receiver |
| Frequency | 2.4Ghz |
| Antenna | T-antenna (56*82mm, 0.6g) |

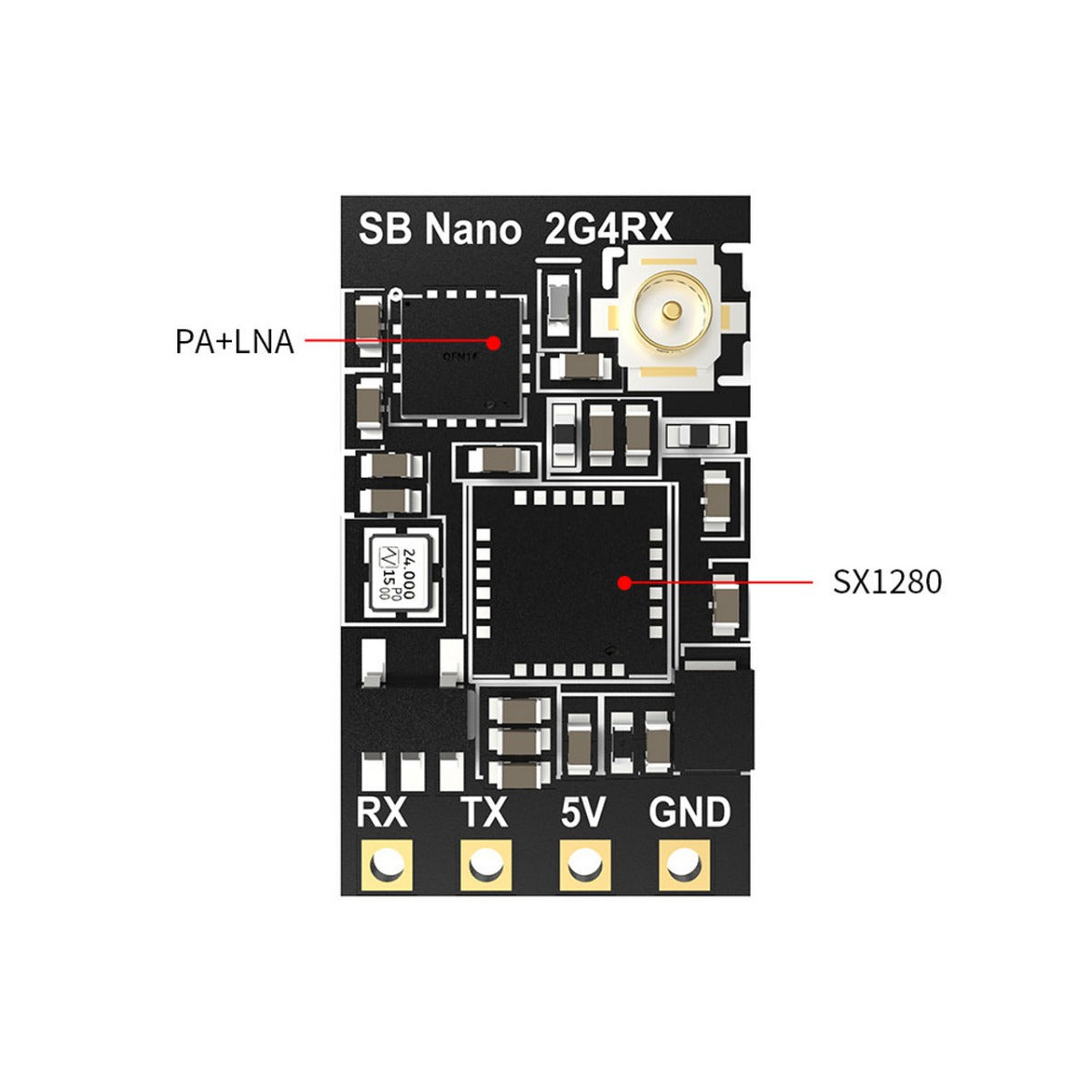

| Chip | SX1281+ESP8285 |
| Power | 100mW (Measured around 170mW) |
| Input voltage | 5V |
| Antenna connector | IPEX1 |
| Weight | 0.7 gram(without antenna) |
| Dimension | 10.4mm*18.4mm |
| Default Firmware | SpeedyBee Nano 2.4GHz RX 3.4.3 |
Specifications

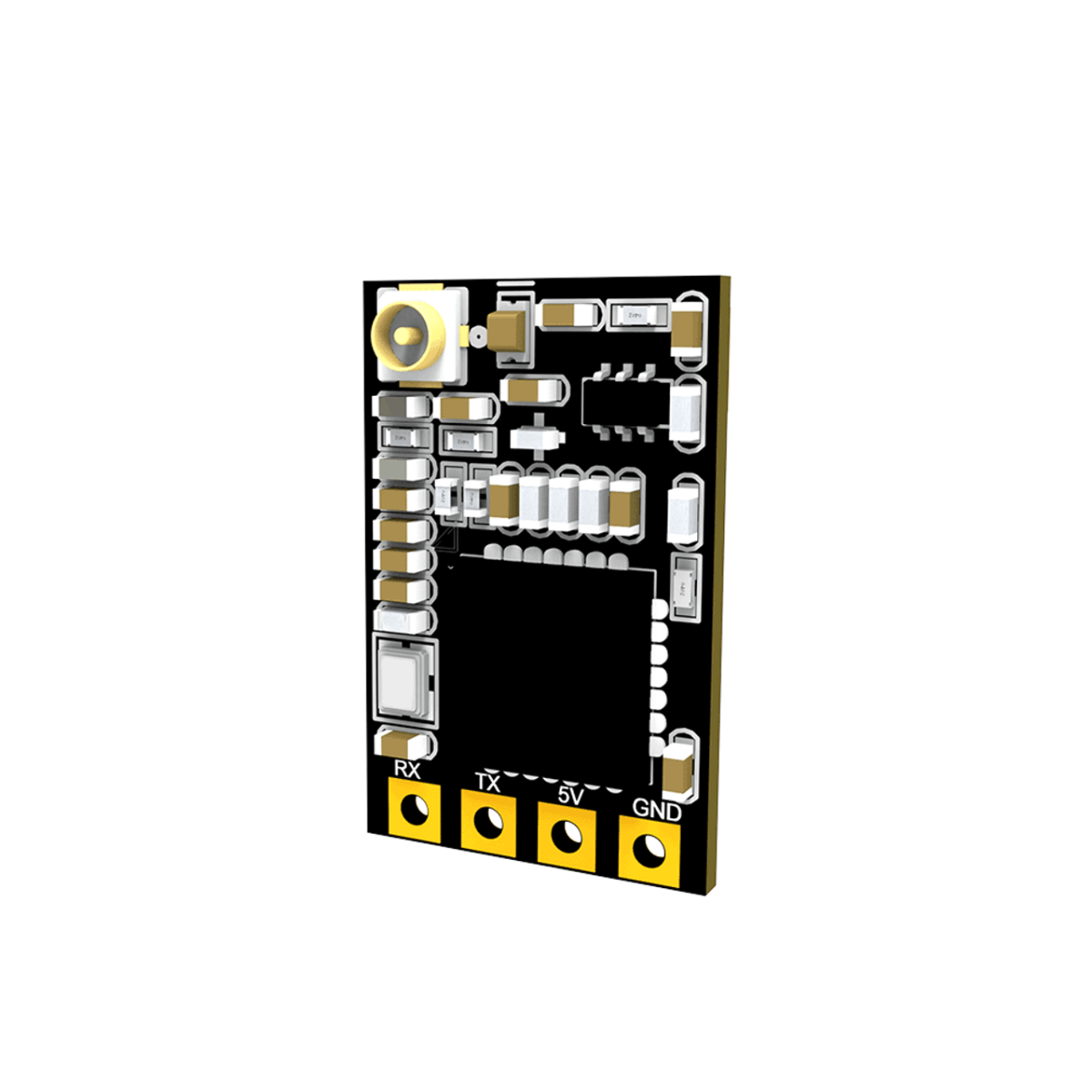

| Model | SpeedyBee Nano 915MHz RX |
| Name | ExpressLRS 915MHz Receiver |
| Frequency | 915MHz |
| Antenna | T-antenna (138*104mm, 3g) |

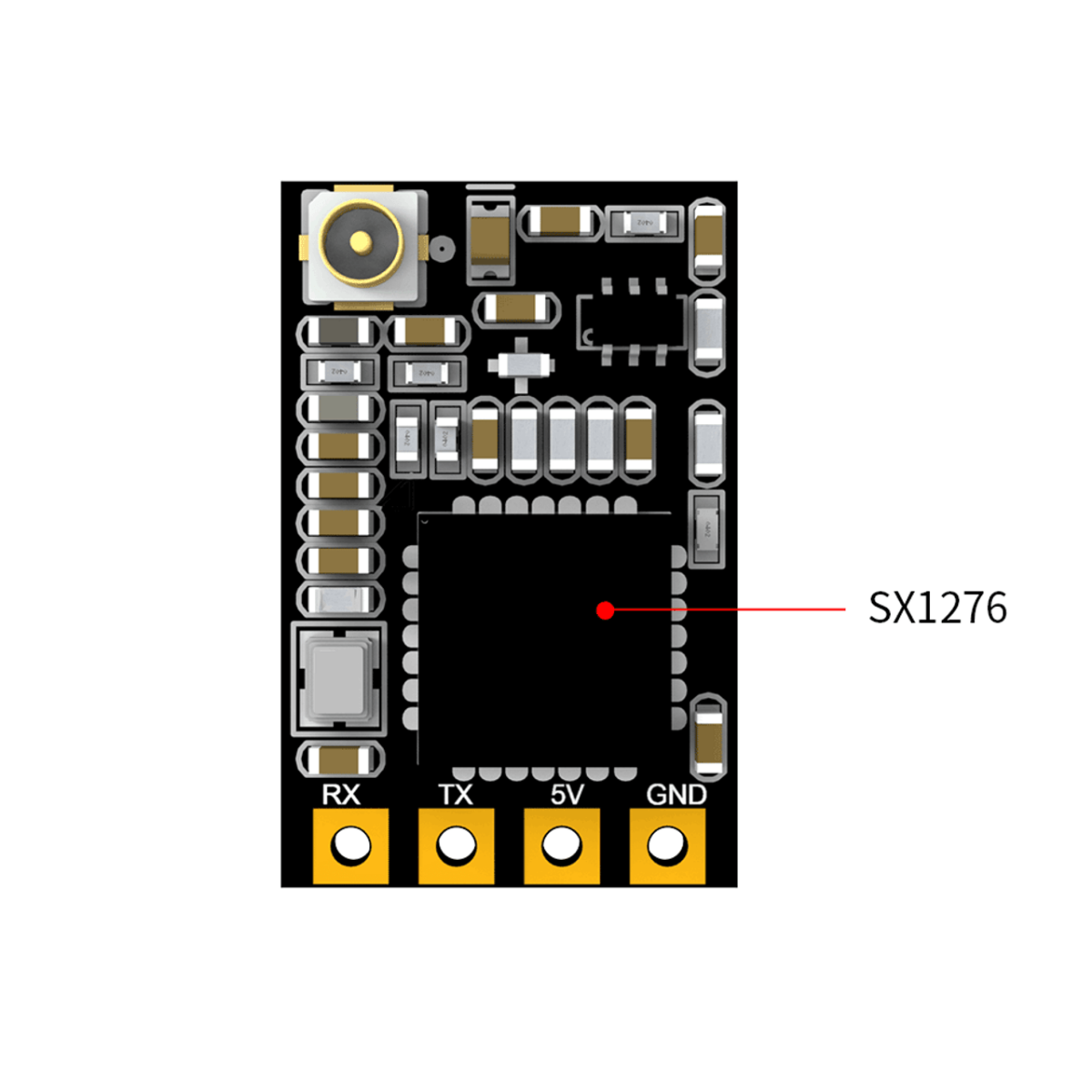

| Chip | SX1276+ESP8285 |
| Power | 50mW |
| Input voltage | 5V |
| Antenna connector | IPEX1 |
| Weight | 0.7 gram(without antenna) |
| Dimension | 11mm*17mm |
| Default Firmware | SpeedyBee Nano 915MHz RX 3.4.2 |
Light indicator
| Double red blinking | binding |
| Slow red blinking | powering up but unlinked, no packages received from the transmitter |
| Solid red | receiver is connected, with signal received |
| Fast red flashing | Wi-Fi is turned on, and updating via Wi-Fi is available |
PS.
| To turn on Wi-Fi, wait for 60 seconds after powering on or long press button for 3 seconds |
| Quick to cut off the power 3 times, it enters the binding mode |
