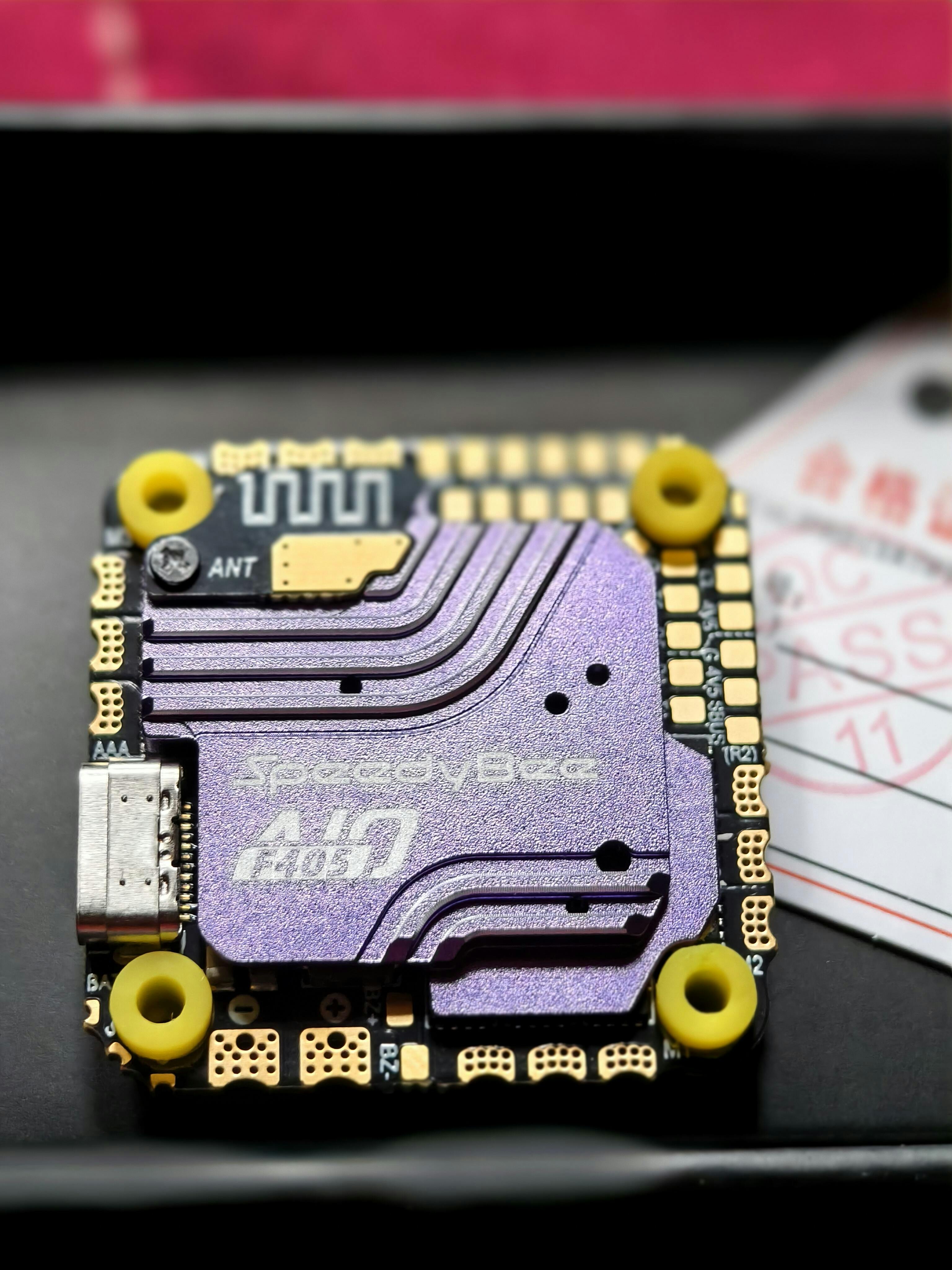

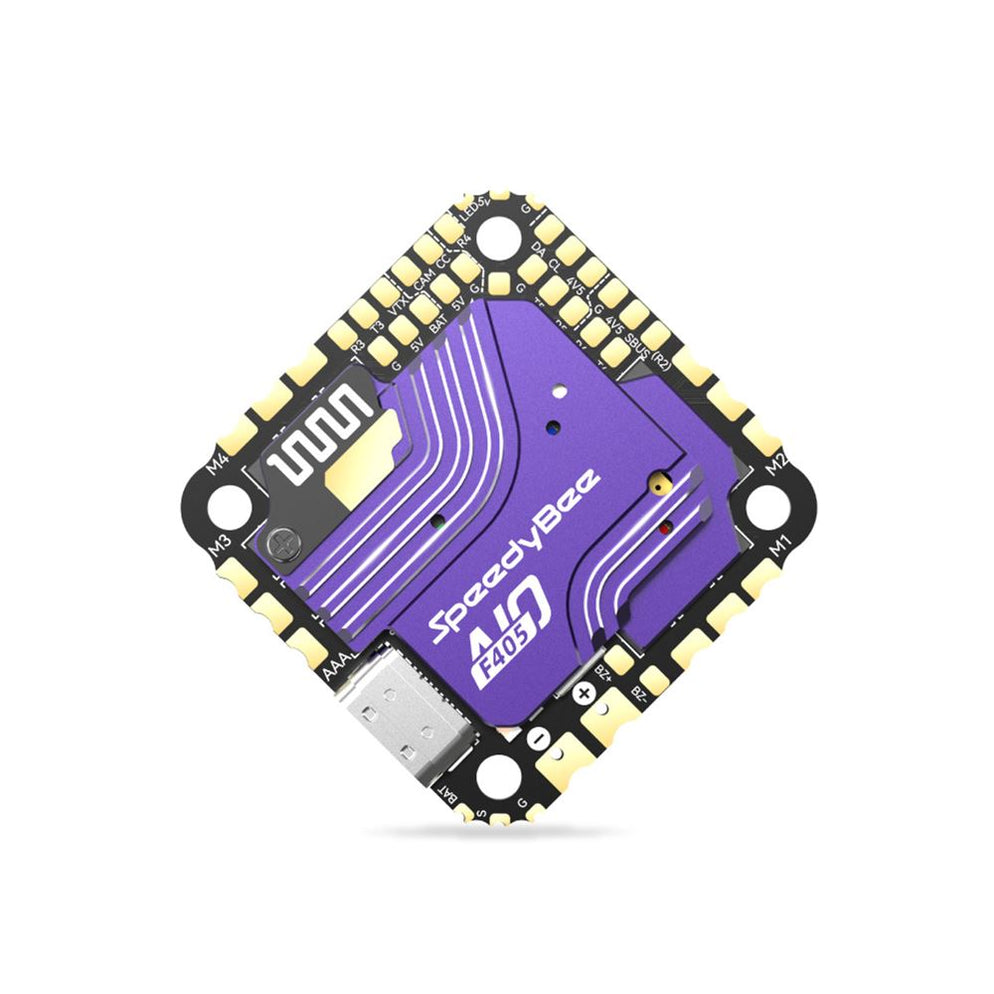

SpeedyBee F405 40A Bluejay 3–6S AIO Flight Controller & ESC (25.5x25.5mm)

The SpeedyBee F405 40A Bluejay AIO Flight Controller & ESC is a compact and powerful solution for FPV drone enthusiasts. Designed with a 25.5x25.5mm mounting pattern, this all-in-one board integrates a flight controller and a 40A ESC, supporting 3–6S LiPo batteries. Pre-installed with Bluejay firmware, it ensures smooth and efficient motor control.

Key Features:

• MCU: STM32F405
• Gyro: ICM-42688P
• USB Port: Type-C
• Barometer: SPA06-003
• Bluetooth: BLE 2.0 for wireless configuration
• Blackbox: 8MB onboard flash memory
• DJI Compatibility: Supports 6-pin direct insertion and soldering
• Input Voltage: 3S–6S LiPo
• ESC Firmware: Bluejay JH-40 48kHz
• Continuous Current: 40A; Burst: 45A (10s)
• Mounting Pattern: 25.5x25.5mm
• Dimensions: 33x33x8mm
• Weight: 13.6g

This AIO board is perfect for 3.5" to 5" cinewhoops and lightweight quads, offering a seamless integration and reliable performance.
