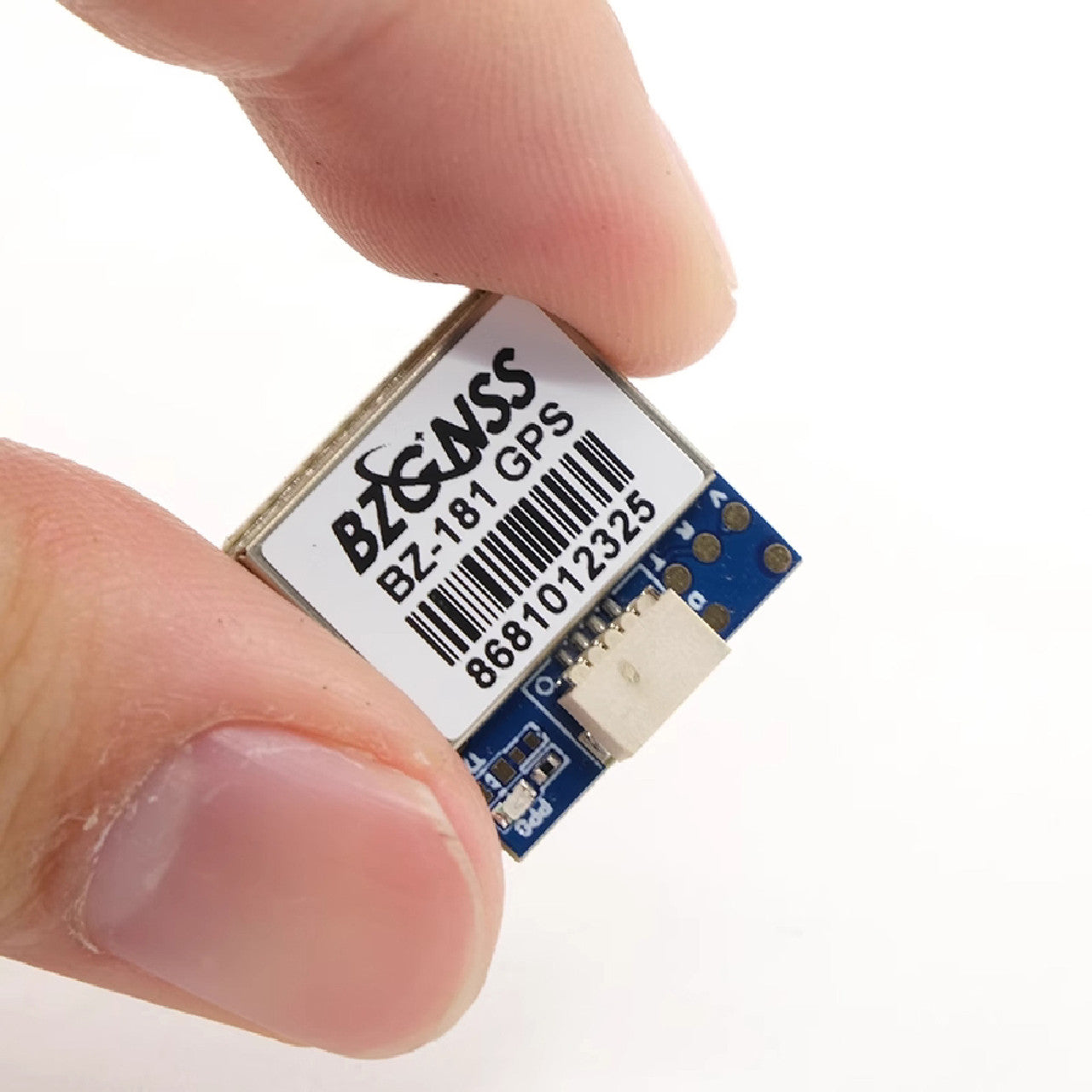

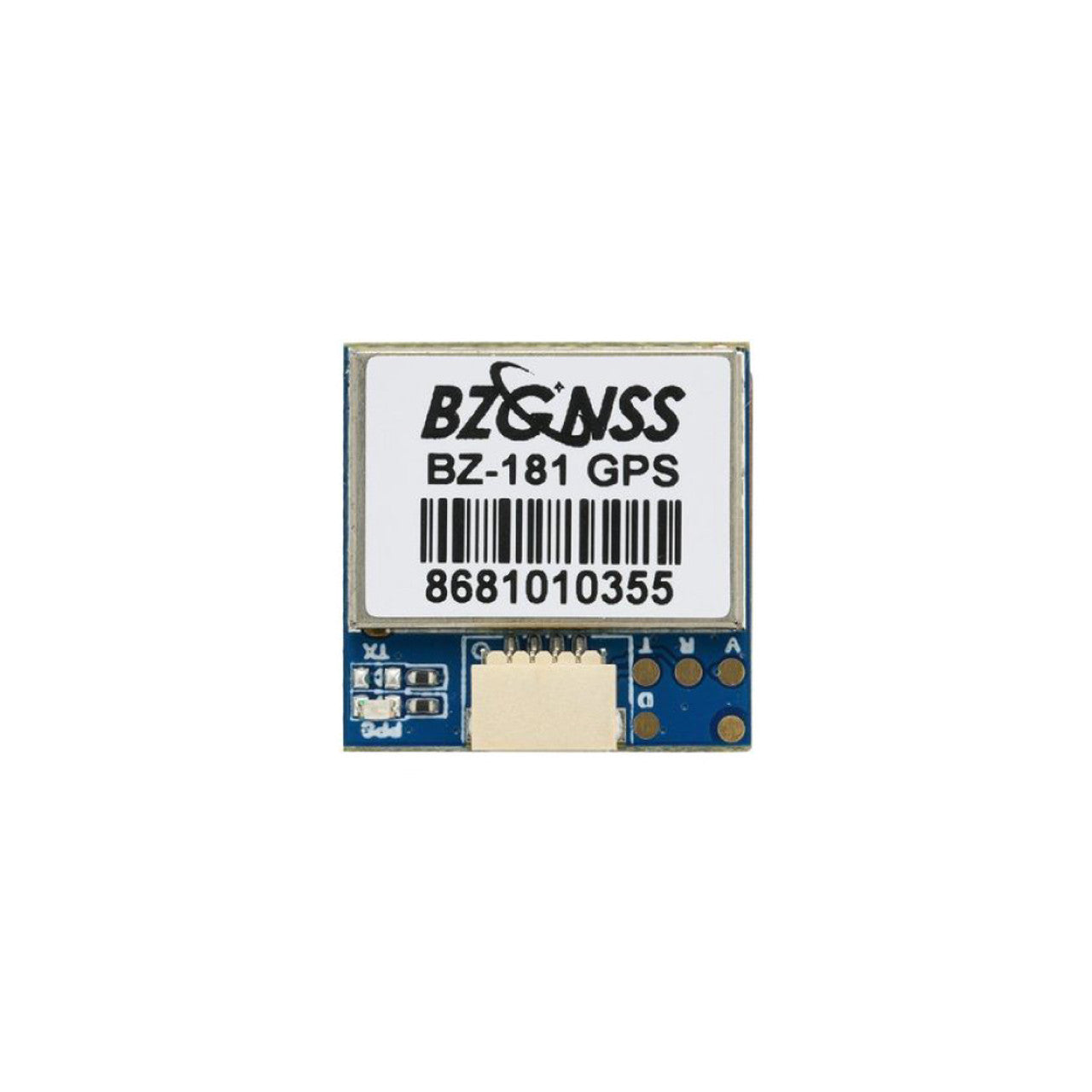

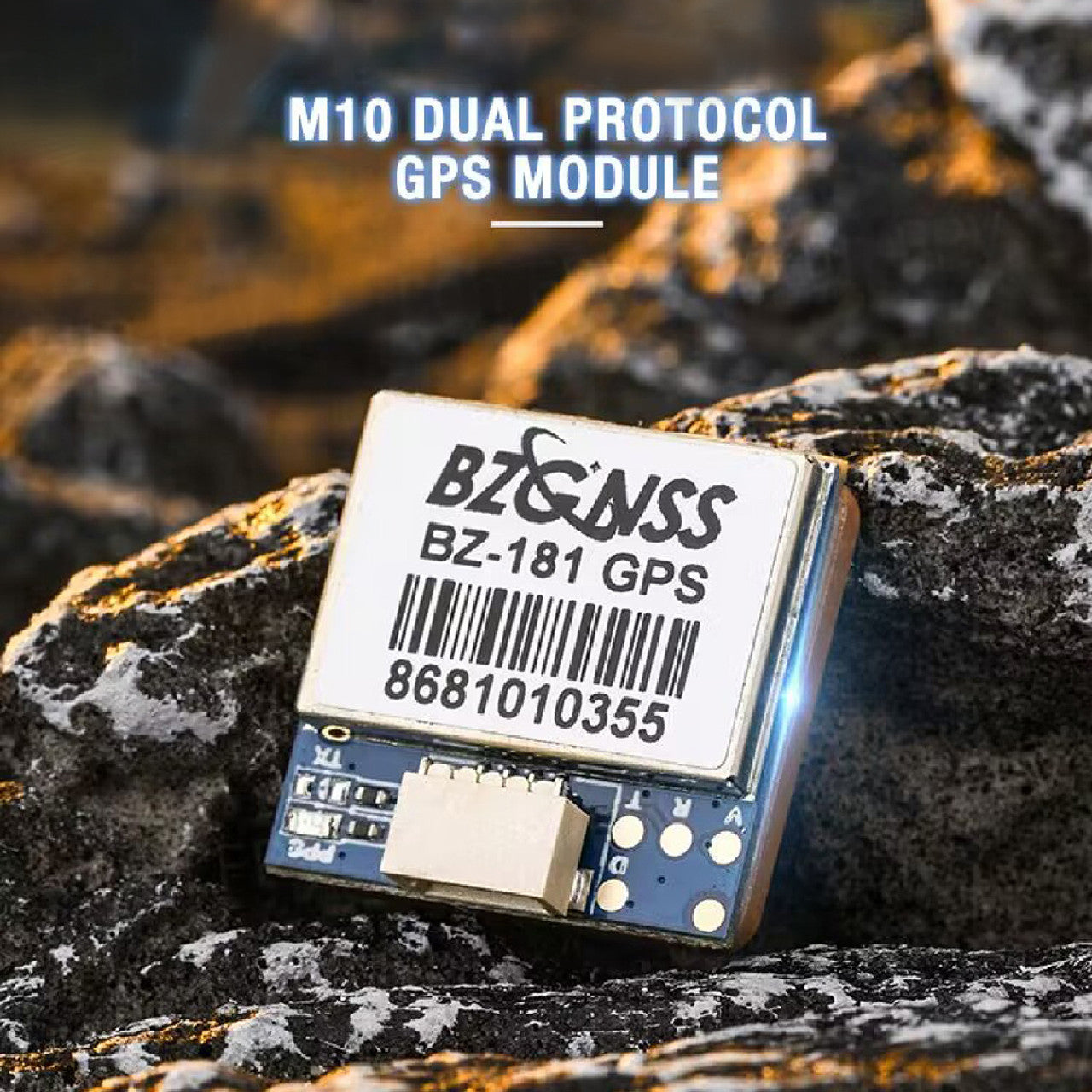

SpeedyBee BZ GNSS GPS Module (BZ-181)

SpeedyBee BZ GNSS GPS Module (BZ-181) is a compact, high-performance GPS unit built for FPV drones and multirotors. With support for multiple global navigation satellite systems (GNSS), this module offers fast satellite lock, improved positional accuracy, and excellent reliability—making it perfect for both racing and long-range builds.

Key Features:

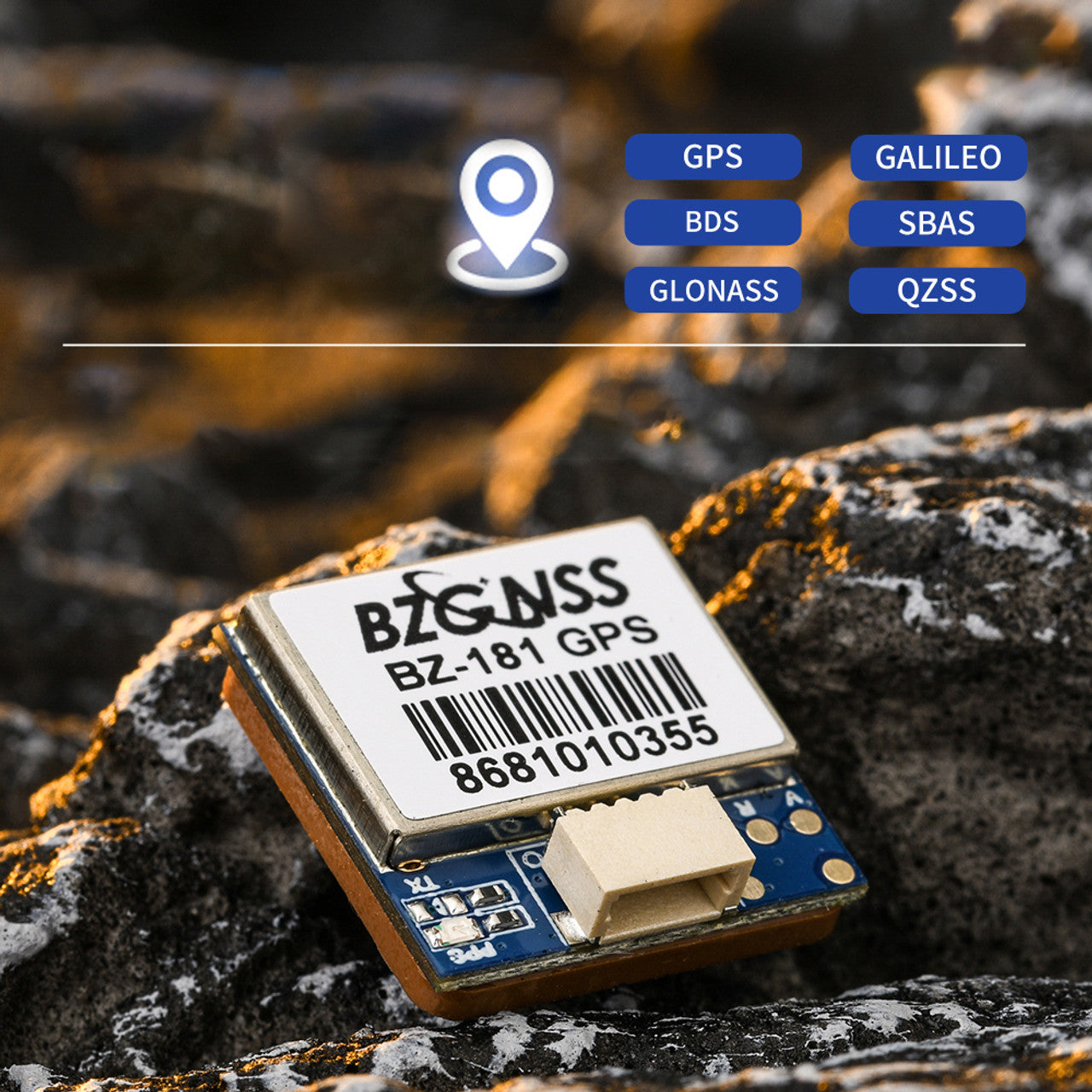

• Supports GPS, GLONASS, Galileo, and BeiDou

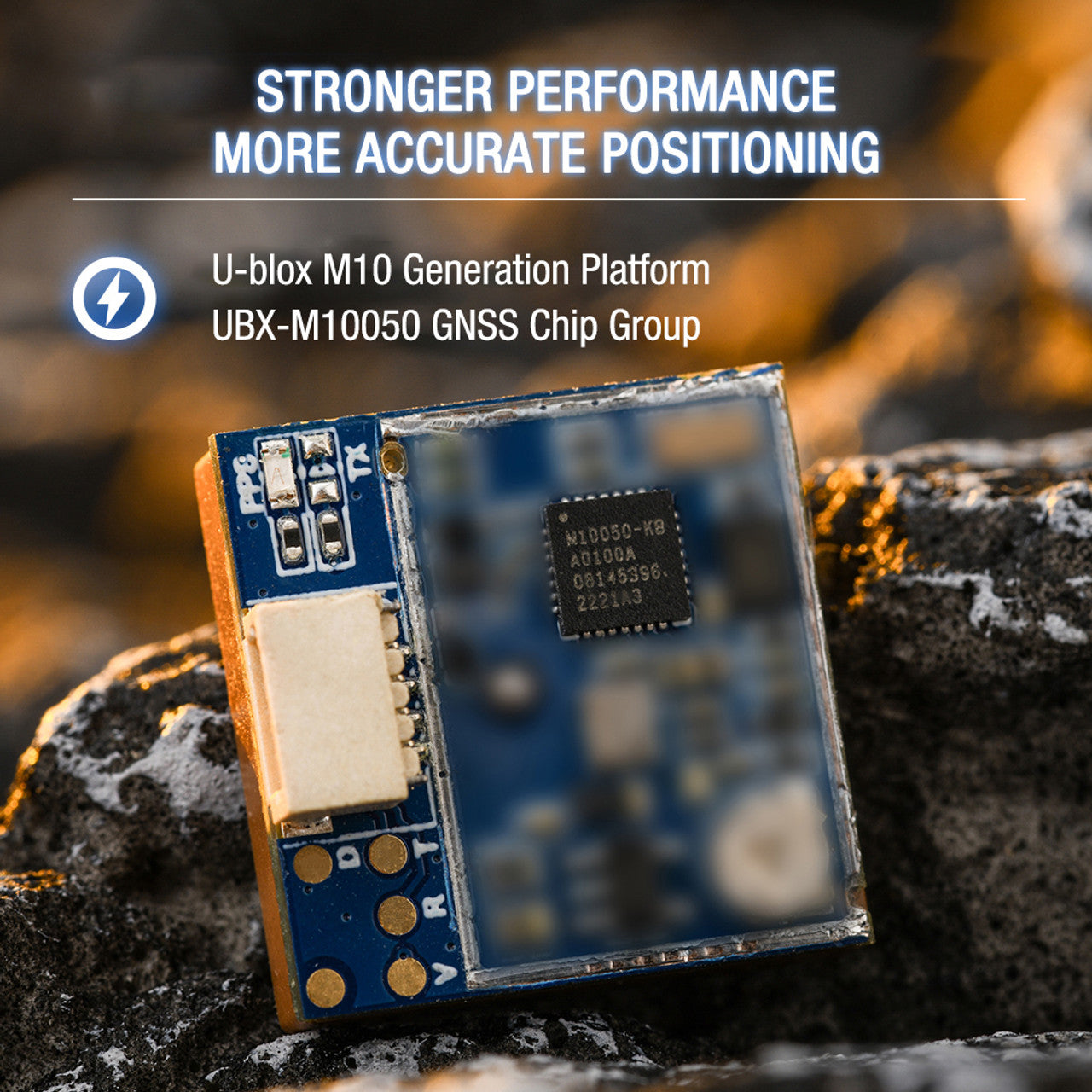

• High-sensitivity UBLOX M10 chipset
• Integrated QMC5883L compass for enhanced navigation
• Compact size and lightweight design
• LED indicators for GPS status
• Plug-and-play with Betaflight and INAV

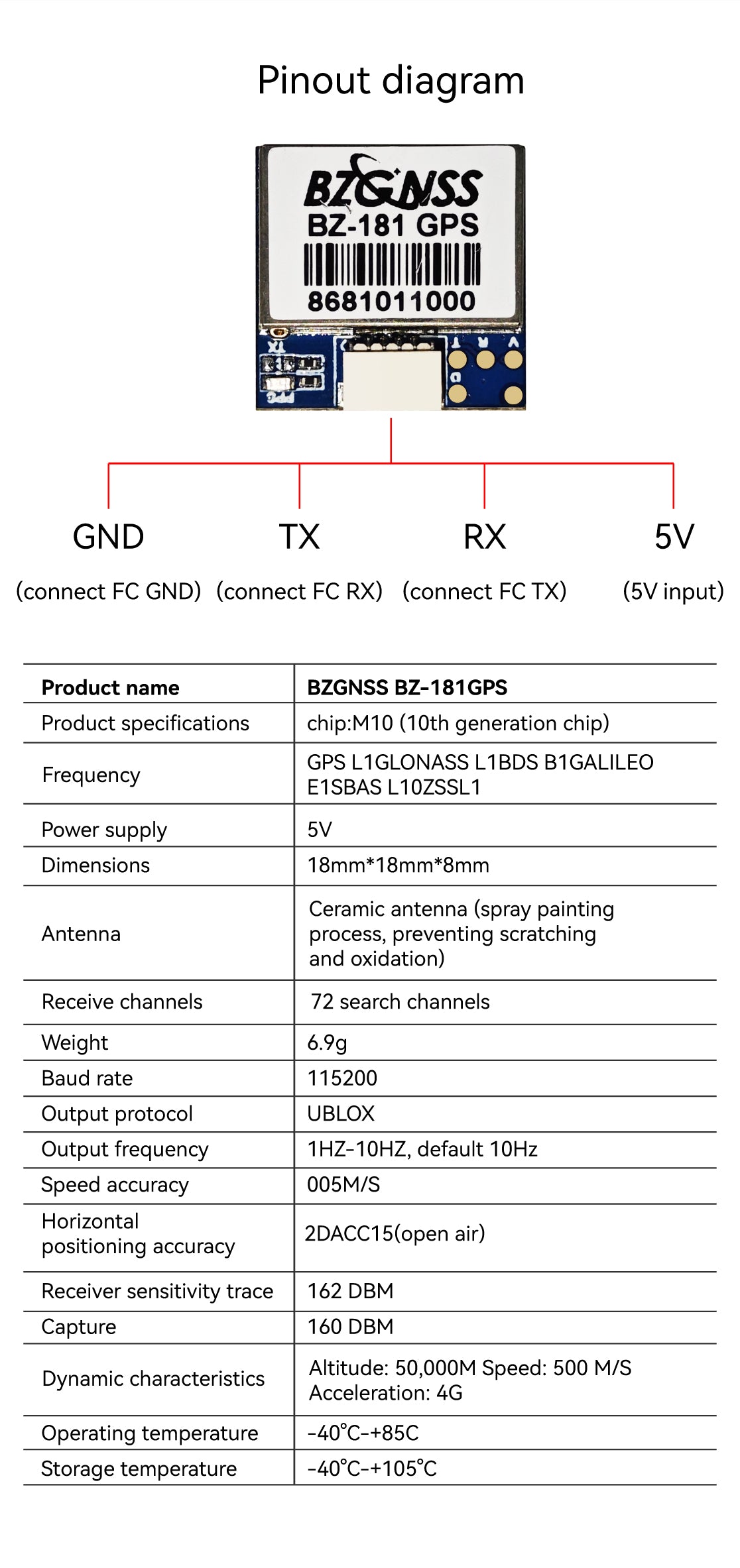

Specifications:

• Model: BZ-181
• Chipset: UBLOX M10 GNSS + QMC5883L compass
• Satellite Systems: GPS, GLONASS, Galileo, BeiDou

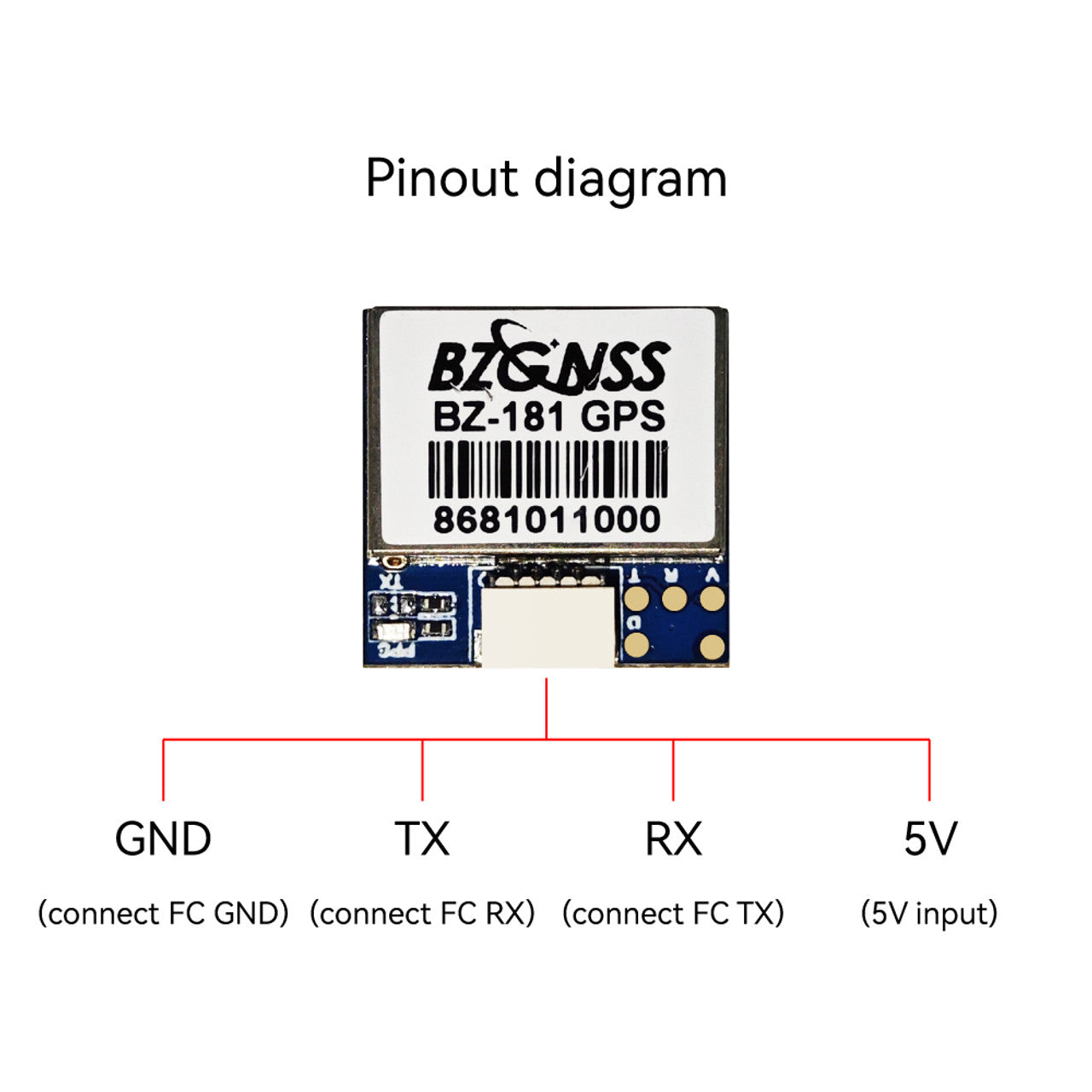

• Connector: JST 6-pin (1.0mm pitch)
• Voltage Input: 5V
• Dimensions: ~22.5mm x 22.5mm
• Weight: ~7.8g

Includes:

• 1 x SpeedyBee BZ GNSS GPS Module (BZ-181)
• 1 x 6-pin to 6-pin GPS cable

Reliable positioning for serious FPV pilots — perfect for GPS rescue mode and long-range flights.
