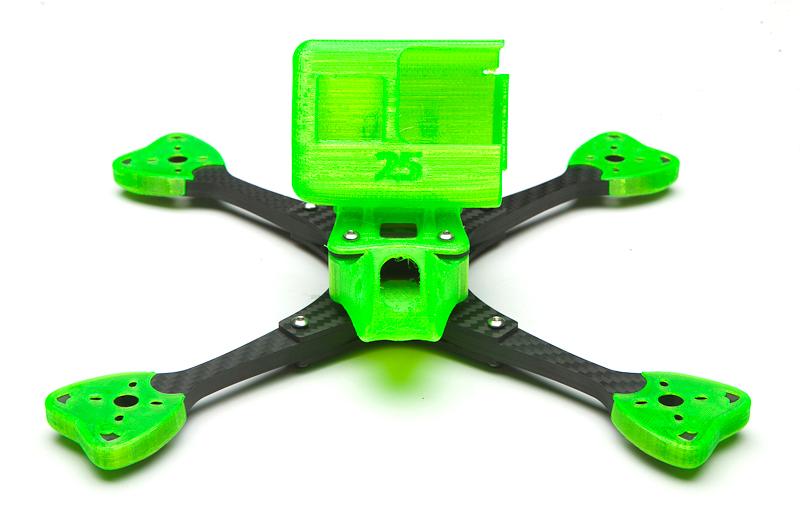

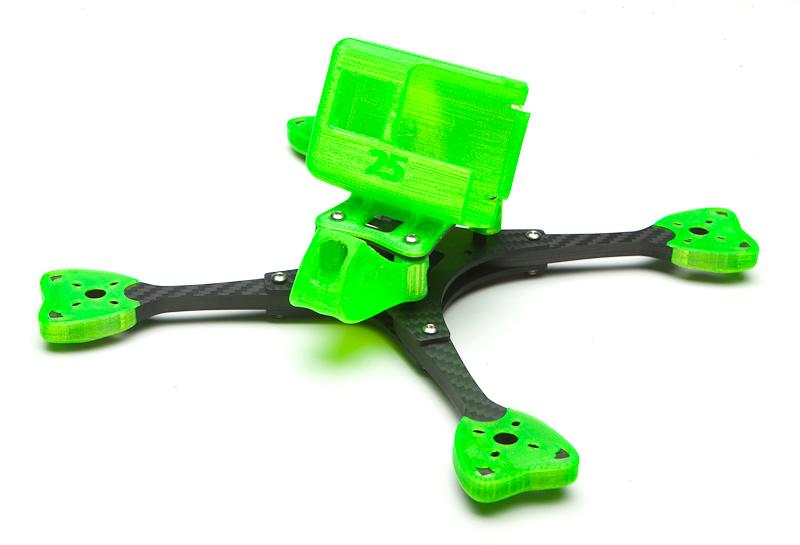

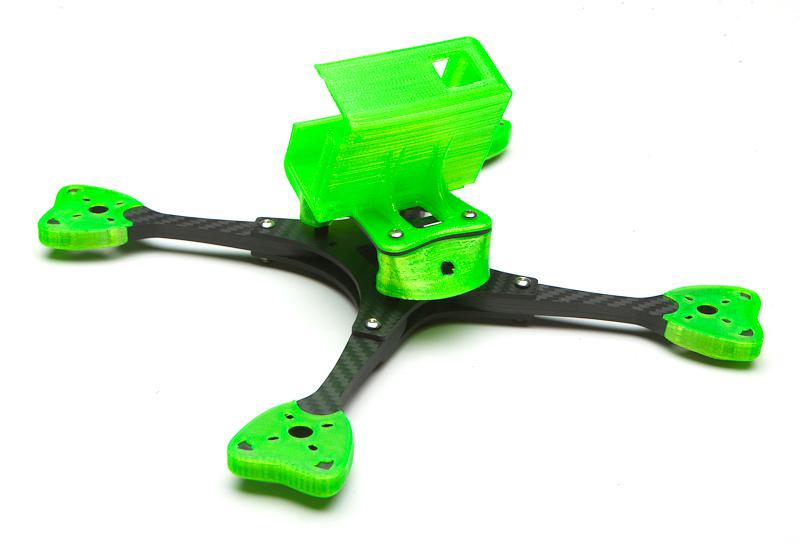

SHENDRONES GORDO 5X

Gordo 5X is a 220mm true X frame for 5" props. It was designed for Nurk as a freestyle frame, but you can race it as a top or bottom battery mount.

Arms are 6mm thick and taper from 12 to 8mm wide. Body plates are 2mm, top plate is 1.5mm. Stack height is 20mm, pods are 15mm tall so you can source shorter standoffs if you can build lower.

FPV cam tilt range is 30-60, for micro cams with either 2.1 or 2.3 lenses. Tail pod options are either SMA or Ufl-axii, the SMA option is recommended for racers for quick RH/LH antenna swaps.

Motor softmounts/armguards are included in the kit.

Frame weight with armguards is 119g.
