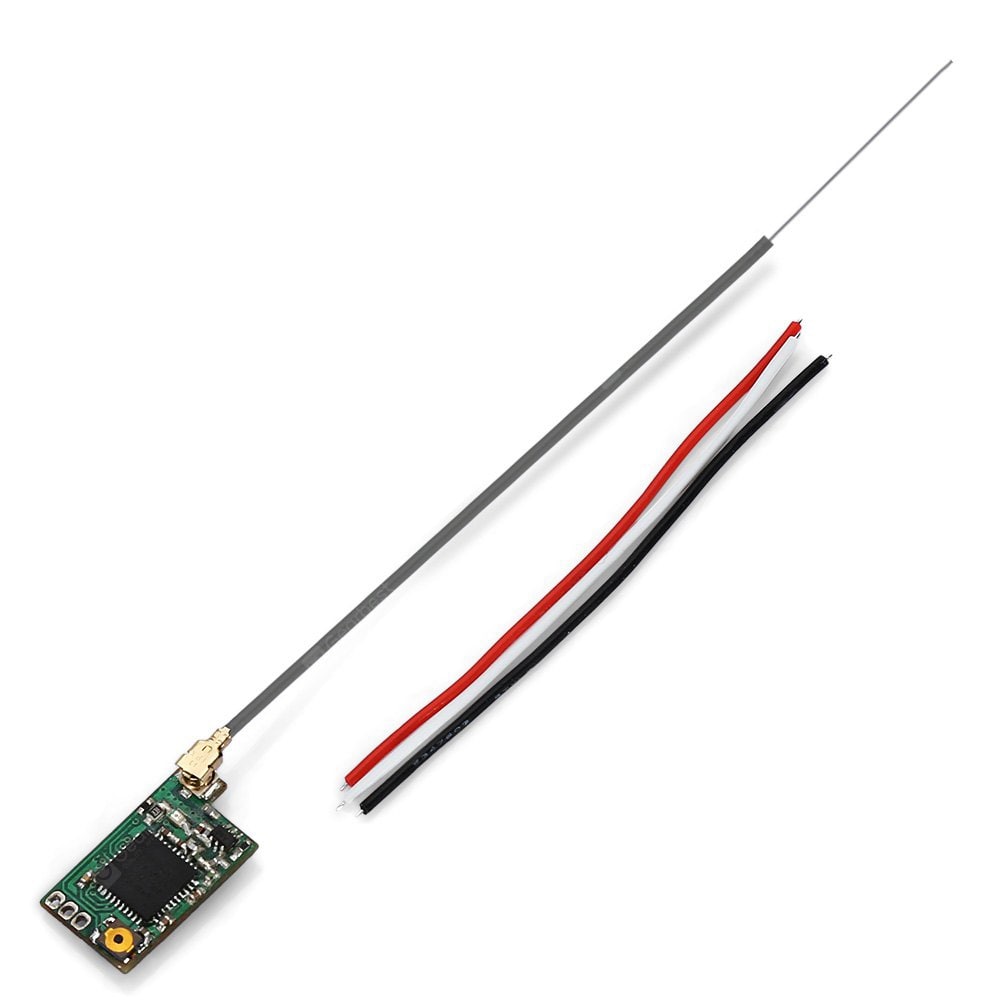

S801S 2.4GHz 8CH Micro SBUS Receiver

Main Features:
● Extremely light and tiny 2.4GHz 8-channel SBUS signal output micro receiver
● Features the low latency and high sensitivity, as well as the fast response
● Compatible with DSM2 / DSMX transmitters for indoor and outdoor multirotors

Specifications:
Frequency range: 2.403 - 2.479GHz
Number of channels: up to 8 ( 4 to 8 )
Output signal: SBUS
Bandwidth: 500 - 876KHz
Sensitivity: -110dBm
Input voltage: 3.0 - 3.6V
Operating current: 30mA
Response time: 22ms / 11ms
Latency: less than 15ms
Receive distance: 300 - 500m
Antenna length: about 10cm
Size: 10 x 16 x 1mm ( excluding protrusion part )
Compatibility: DSMX / DSM2 transmitters

Click here to download the wiring diagram.
