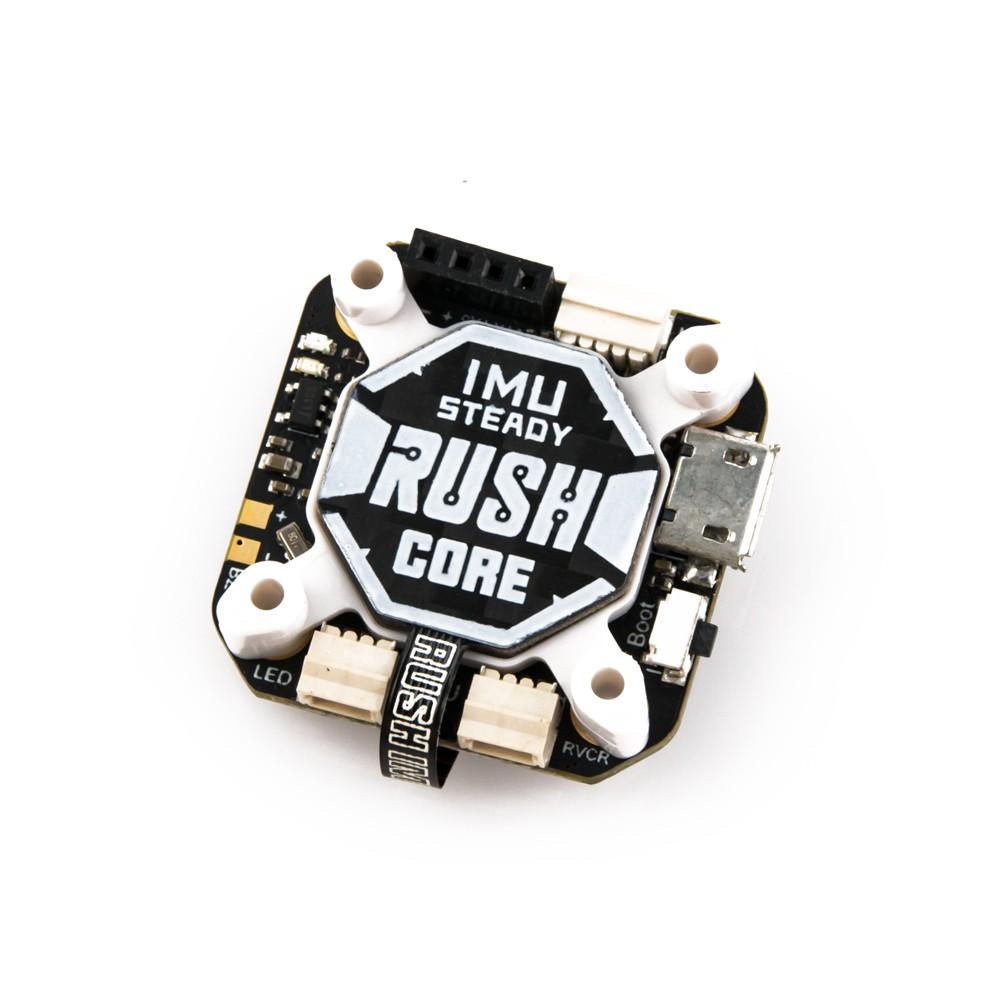

RUSHFPV F7 CORE 20X20 FLIGHT CONTROLLER

A powerful, and capable F7 Flight Controller by RUSHFPV,
used in their stack! Use as a replacement or as your FC!
We also carry the stack with this flight controller,
the 4 in 1 ESC,
and the replacement stack VTX as well!

Check out our other Flight Controllers and the rest of our RushFPV Products!

SPECIFICATIONS:

• Firmware: RUSHCORE7 (BETAFLIGHT)
• FC Programming: Supported
• Programming via: Betaflight configurator or Others
• Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300/600/1200, Proshot1000 and etc.
• Compatible with (Trabsmitter): PPM, Spektrum1024/2048, SBUS, SYMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.
• OSD: Built-in, NTSC/PAL Supported
• MCU: STM32F722RET6 @216MHz
• BLACKBOX: Built-in ,16MB
• Voltage Monitoring: Supported
• Current Monitoring: Supported
• External Buzzer: Supported
• LED Control: Supported
• BEC: 5V@2A
• USB Port: MicroUSB
• Size: 28x29mm
• Weight: 5.6g
• Applications: 110-260mm FPV Drone

PACKAGE INCLUDES:

• 1 x RUSHFPV RUSH CORE 7 Flight Controller



WIRING DIAGRAM:
