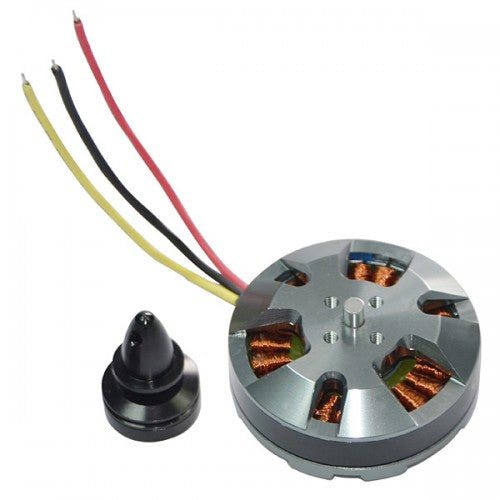

rcm5006 350KV Brushless Motor

Specifications:

KV: 350

Idle current @ 10.0V: 0.3A

Configuration: 24N28P

No. of cells(Lipo): 3-6S

Stator diameter: 40mm

Max. continuous current(A) 60S: 20A

Stator length: 6mm

Max. continuous power (W) 60S: 400W

Shaft diameter: M6

Max. efficiency: ＞84%

Motor dimension(Dia*L): 48* 24mm

Internal resistance: 0.280ohms

Recommend Speed controller: 25A

Weight: 133g

Tested with 25A ESC:

Prop Volts(V) Amps(A) Watt(W) Thrust(g) Thrust(oz) Efficiency(g/W) Efficiency(oz/W)
13*6.5 22.2 7.1 157.62 1340 47.27 8.50 0.30
13*4 22.2 6.6 146.52 1220 43.03 8.33 0.29
14*7 18.5 7.8 144.3 1300 45.86 9.01 0.32
14*7 22.2 10 222 1800 63.49 8.11 0.29
