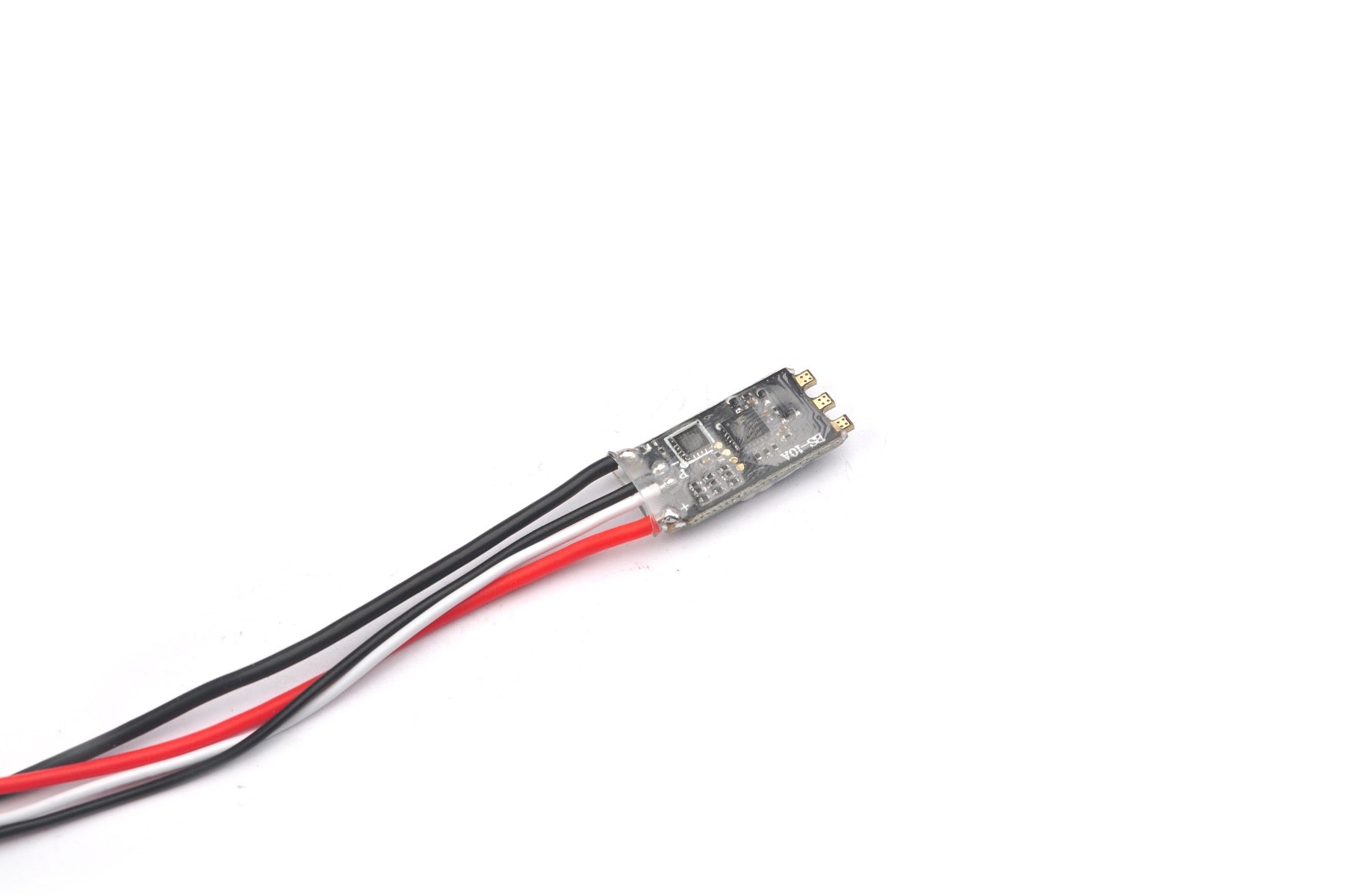

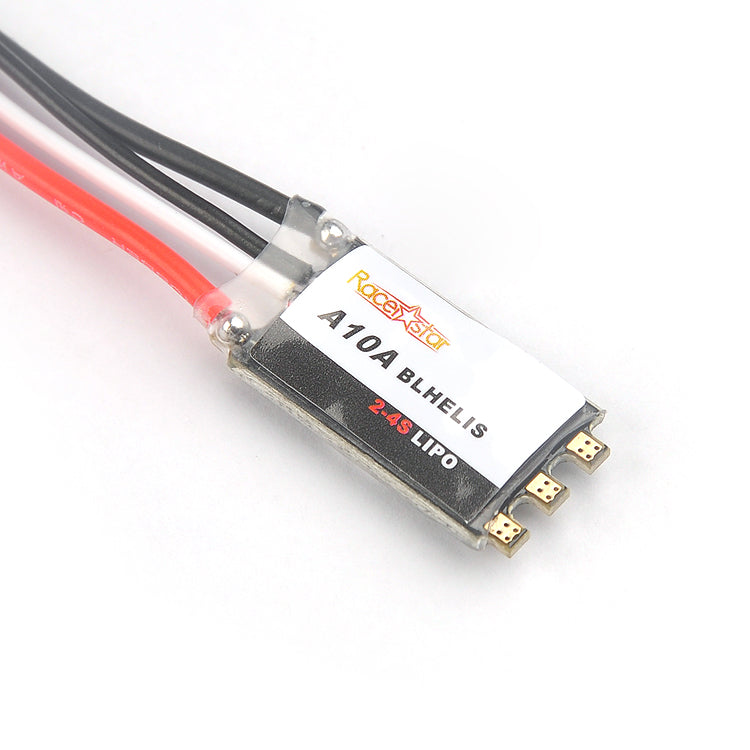

Racerstar A10A 10A ESC 2-4S

Description:

Brand Name: Racerstar

Item name: A10A Blheli_s ESC

Model: A10A

Con.Current: 10A

Peak Current(10s): 15A

Input Voltage: 2S-4S

BEC: No

Programming: YES

Cleanflihg/ Betaflight pass-through ready

Firmware: Blheli_S 16.5

Net Weight: only 1.2g (Not include wire)

Size: 22*12mm

Welded: no, this it the unwelded version.

Features:

Chips on EFM8BB21F16, 48MHZ Greatest.

BLHeli_S is designed for superior performance in FPV Racing, and uses hardware generated motor pwm for smooth throttle response and silent operation.

Small size combined with light weight for easy installation.

The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us) and D-shot.

The input signal is automatically detected by the ESC upon power up.

All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.

The code supports features to prevent sync loss. There are tune-able parameters that can make the code run well even in the most demanding situations, although default settings will work.

Excellently in normal operating environments.

The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost crafts.

Package included:

1 x A10A Blheli_s ESC
