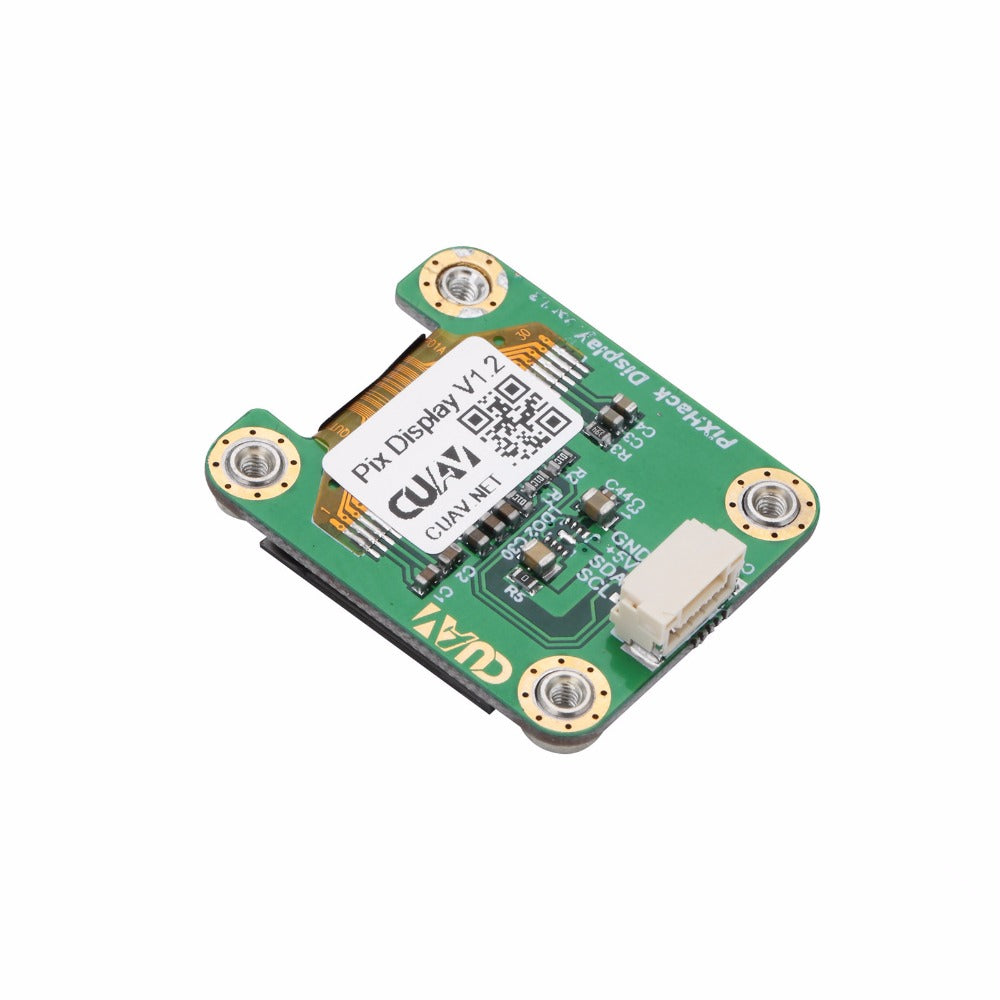

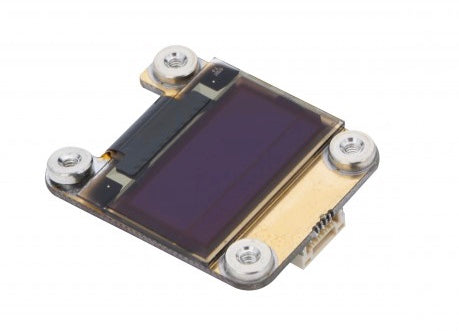

PIX DISPLAY I2C OLED MONITOR
PIX DISPLAY I2C OLED MONITOR
Regular price
Rs. 1,150.00
Sale price
Rs. 1,150.00
Regular price
Tax included.
Shipping calculated at checkout.
Share this product
SKU: F81859
Description:
Screen resolution: 128*64
Screen material: OLED
Screen color: Yellow and blue
Data interface: I2C 4Lines
Operating voltage: 3.3-5V
Operating temperature; -10--+60°
Size of fixed hole: 25.76x20.2mm
Hole size: 2.4mm
Size:32.3x26.7x9mm
Weight:5g
Feature:
Light weight and good work.
Package included:
1 x I2C OLED Monitor
1 x Cable
Screen resolution: 128*64
Screen material: OLED
Screen color: Yellow and blue
Data interface: I2C 4Lines
Operating voltage: 3.3-5V
Operating temperature; -10--+60°
Size of fixed hole: 25.76x20.2mm
Hole size: 2.4mm
Size:32.3x26.7x9mm
Weight:5g
Feature:
Light weight and good work.
Package included:
1 x I2C OLED Monitor
1 x Cable
How to use:
CUAV PIX_DISPLA will be inserted into the I2C control parts extended port will carry on the power; flight control will automatically identify the display accessories in self-test will display information if not show, please try NIF_DISPLAY TYPE type to 1 (type ssd1306), the power on again
After opening the OLED display, the status headlamp will be deactivated and not blinking
CUAV PIX DISPLAY Open hole fixed dimension drawing
