ODINE 5.8

DESCRIPTION

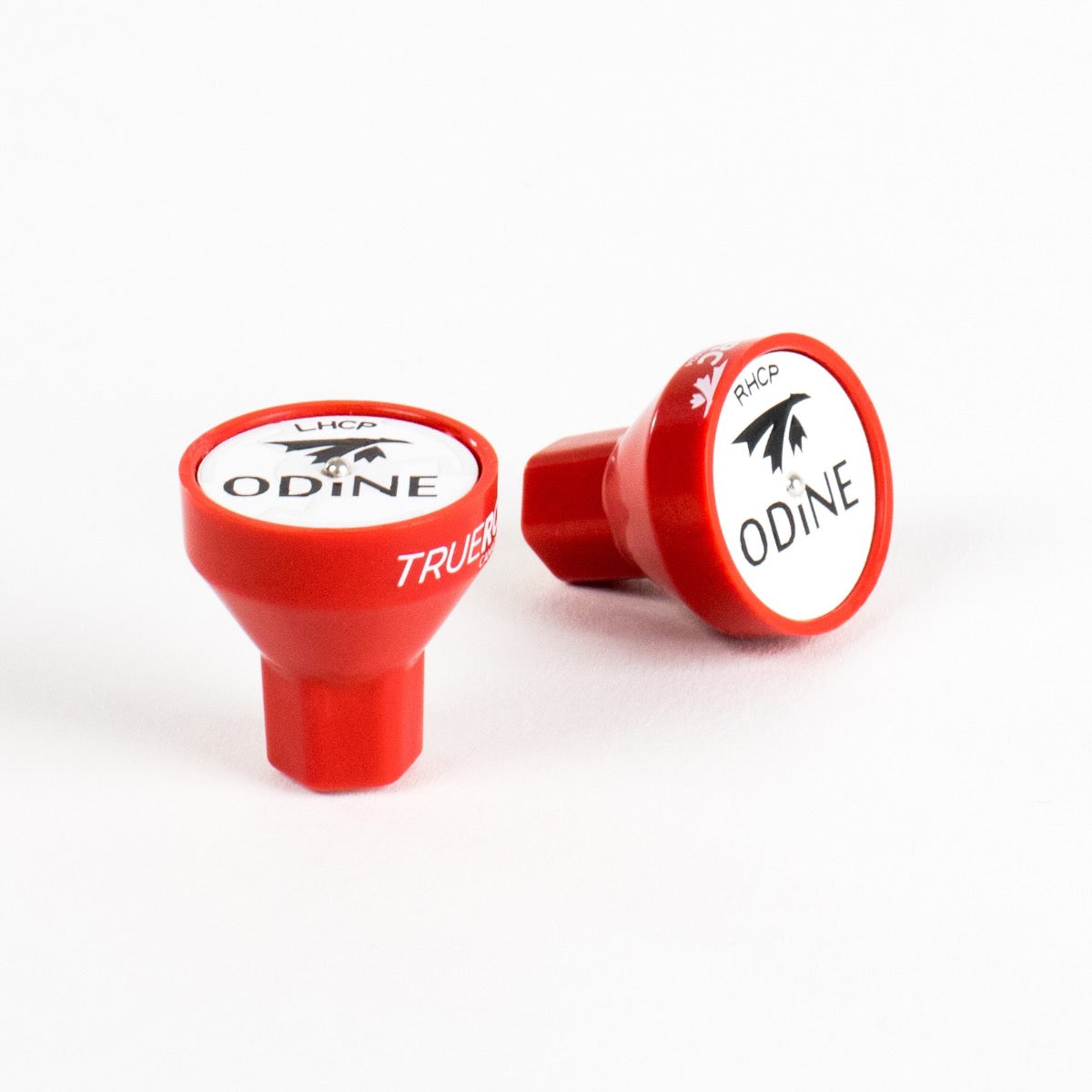

The ODiNE stem from the Pagoda, but we re-engineered it into a much more compact antenna and maximized efficiency. Its strong polycarbonate case is also an inherent part of the RF design. The microwave-grade pcbs and their shell work together to bring all the performances we know of the pagoda, in a neat stubby form factor.

SPEC:

• Bandwidth: 5.6GHz-6.0GHz

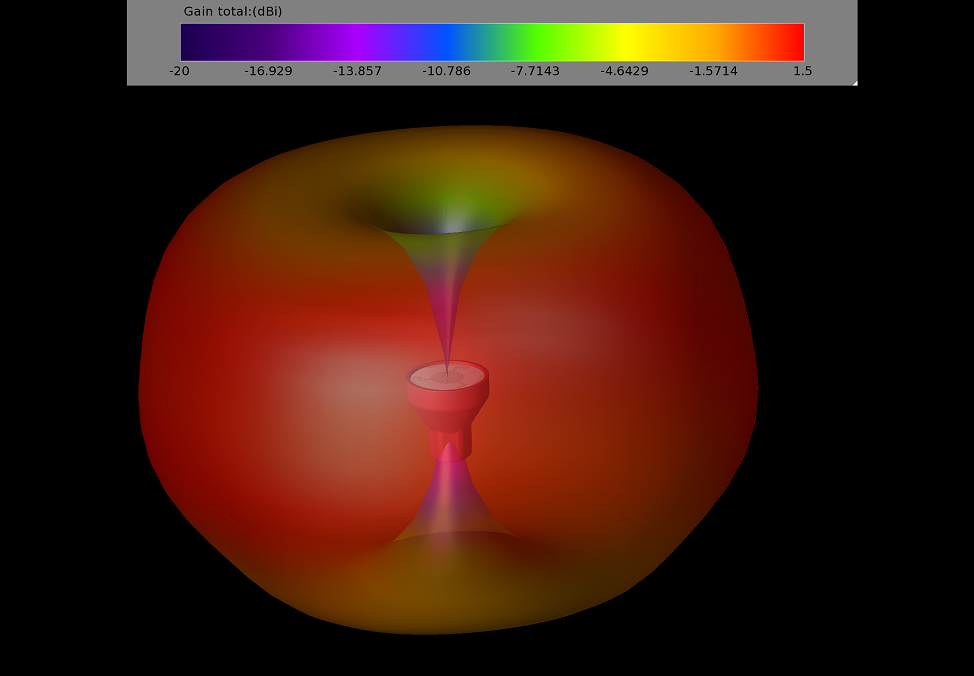

• Gain: 1.5dBic
• Radiation efficiency: 98%
• Weight: 5.4g
• Dimensions: D:23mm H:24mm
• Connector: SMA
