MATEKSYS FLIGHT CONTROLLER F405-WSE

MATEKSYS FLIGHT CONTROLLER F405-WSE

Rs. 6,537.83
Rs. 6,537.83
Tax included. Shipping calculated at checkout.

Out of stock

Ask a question

The fields marked * are required.

SKU: 4209

FC SPECIFICATIONS

  • MCU: 168MHz STM32F405RGT6 1MB Flash
  • IMU: MPU6000 (SPI1)
  • Baro: DPS310 (I2C1)
  • OSD: AT7456E (SPI2)
  • Blackbox: MicroSD socket (SPI3)
  • VCP & 6x UARTs,
  • 1x Softserial_Tx option (TX2 pad, INAV)
  • 10x PWM outputs(S1~S9, LED)
  • 2x I2C
  • 3x ADC (voltage, current, RSSI)
  • 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
  • Built in inverter on UART2-RX for SBUS input
  • PPM/UART Shared: UART2-RX
  • 1x SH1.0_6pin connector (4V5/G/TX4/RX4/DA2/CL2) for GPS/compass
  • 1x SH1.0_6pin connector for external USB and buzzer
  • DJI FPV OSD: any spare UART
  • FrskyOSD: any spare UART

POWER

  • 6~30V DC IN (2~6S LiPo)
  • 132A high-precision Current Sense (Scale 250)
  • PDB/Current sense resistor: 60A continuous, 132A burst.
  • BEC 5V 2A for FC & Peripherals
  • BEC Vx 5A for servos, 5V/ 6V option
  • BEC 8V 1.5A for VTX and camera
  • LDO 3.3V 200mA
  • Battery Voltage Sensor: 1k:10k

FC FIRMWARE

  • INAV Target: MATEKF405SE
  • ArduPilot hwdef: MATEKF405WING

PHYSICAL

  • Dimensions: 44 x 29 x 10 mm
  • Mounting: 25 x 25mm, Φ2mm
  • Weight: 20g w/ bottom plate and USB/buzzer adapter

INCLUDING

  • 1x FC F405-WSE
  • 1x USB(Type-C)/Buzzer (Active) Adapter
  • 1x Bottom plate, 44 x 29mm
  • 2x JST-SH-6P to JST-SH-6P cables, 20cm
  • 5x Brass standoffs, M2*4mm
  • 10x screws, M2*3.5mm

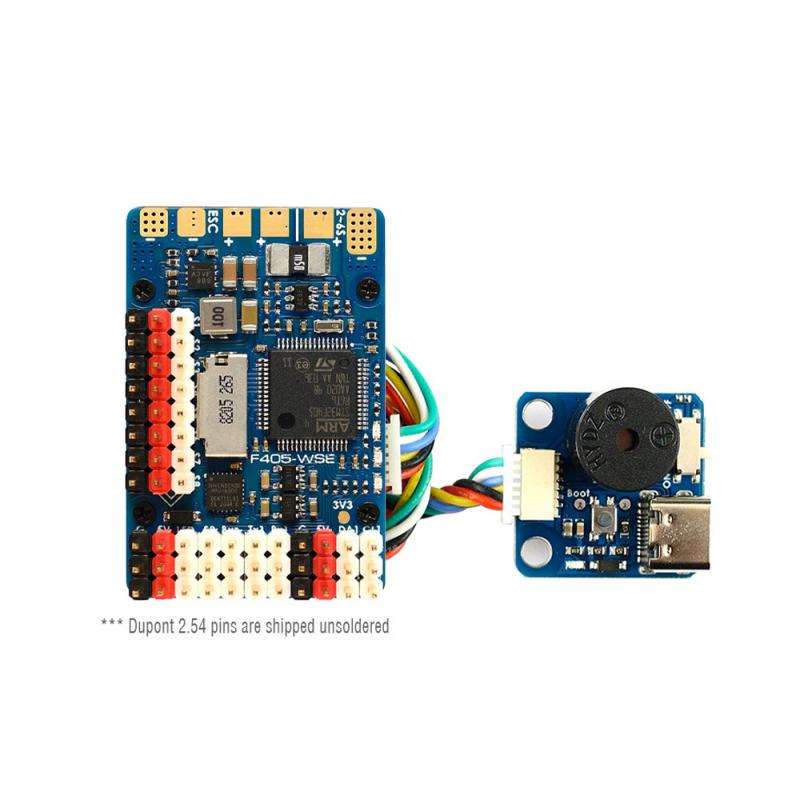

  • Dupont 2.54 pins (Board is shipped unsoldered)

PWM Pad PIN Name TIM INAV Multi-Rotor INAV Plane
S1 PB7 TIM4_CH2 Motor Motor
S2 PB6 TIM4_CH1 Motor Motor
S3 PB0 TIM3_CH3 Motor Servo
S4 PB1 TIM3_CH4 Motor Servo
S5 PC8 TIM8_CH3 Motor Servo
S6 PC9 TIM8_CH4 Motor Servo
S7 PB14 TIM12_CH1 Servo Servo
S8 PB15 TIM12_CH2 Servo Servo
S9 PA8 TIM1_CH1 Servo Servo
LED PA15 TIM2_CH1 2812LED 2812LED
ADC No pad
1K:10K divider builtin
6~30V input		 on board battery voltage INAV Scale 1100
BataFlight Scale 110
No pad
0~3.3V		 on board current sensor Sacle 250
RSSI Pad
0~3.3V		 Analog RSSI
I2C DA2 CL2 I2C2 Magnetometer (HMC5883 /MAG3110 /QMC5883 /IST8310)
DA2 CL2 I2C2 AirSpeed (MS4525)
DA1 CL1 I2C1 OLED 0.96″
DA1 CL1 I2C1 on board Barometer DPS310
UART TX1 RX1 UART1 Spare
TX2 RX2 UART2 Receiver (CrossFire)
RX2 UART2 Receiver (IBUS, Spektrum DSM/SRXL , SUMD)
RX2 Receiver PPM (disable Serial RX on UART2)
Sbus UART2 Receiver SBUS, Built-in inverter on UART2-RX
TX2 Softserial1_TX Frsky SmartPort
TX3 RX3 UART3 Spare
TX4 RX4 UART4 GPS
TX5 RX5 UART5 Spare
TX6 RX6 UART6 Spare
