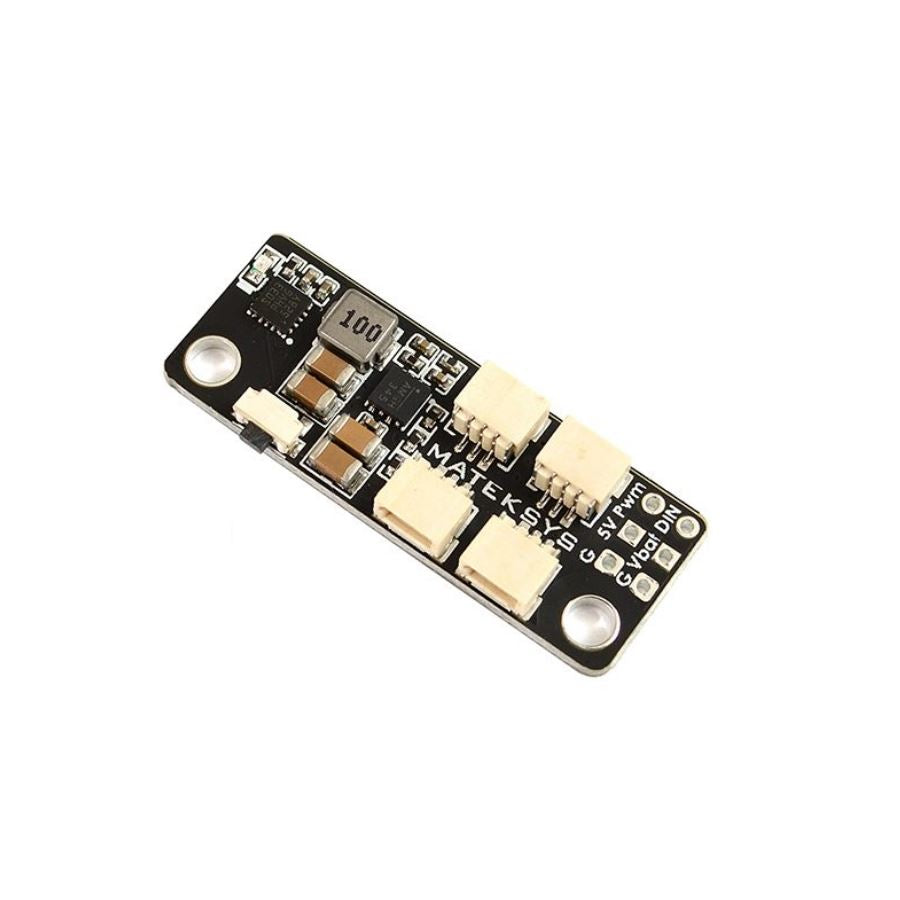

Matek 2812 LED Controller V2

Overview:

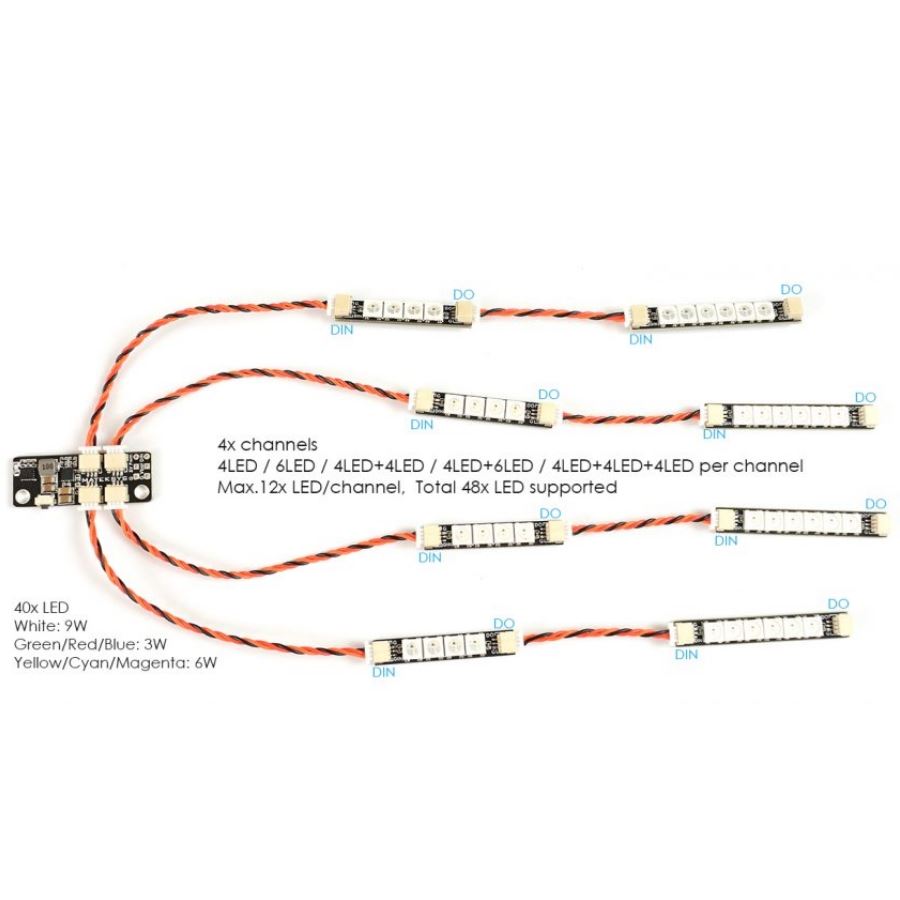

The Matek 2812 LED Controller V2 allows you to chain upto 48 LEDs together via 4 seperate control channels (Max 12 LEDs per channel). The controller is powered from 6-30V (2-6S Lipo) directly, meaning it doesn't need to be powered off the 5V BEC allowing much higher number of LEDs to be used.

Specifications:

- 6-30V In (2-6S Lipo)
- Integrated BEC 5V 2.5A
- 7 Colours, 6 Blinking Styles
- 36x13mm 2.5g
- 30.5mm mounting holes (can stack above flight controller etc).

Includes:
- 1x Matek LED Controller V2

Video showing how to use the Matek LED Controller:
