Sold out
JHEMCU Dual Gyro F7 Flight Controller ACRO
JHEMCU Dual Gyro F7 Flight Controller ACRO
Regular price
Rs. 1,913.51
Sale price
Rs. 1,913.51
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
Share this product
SKU: OH03354

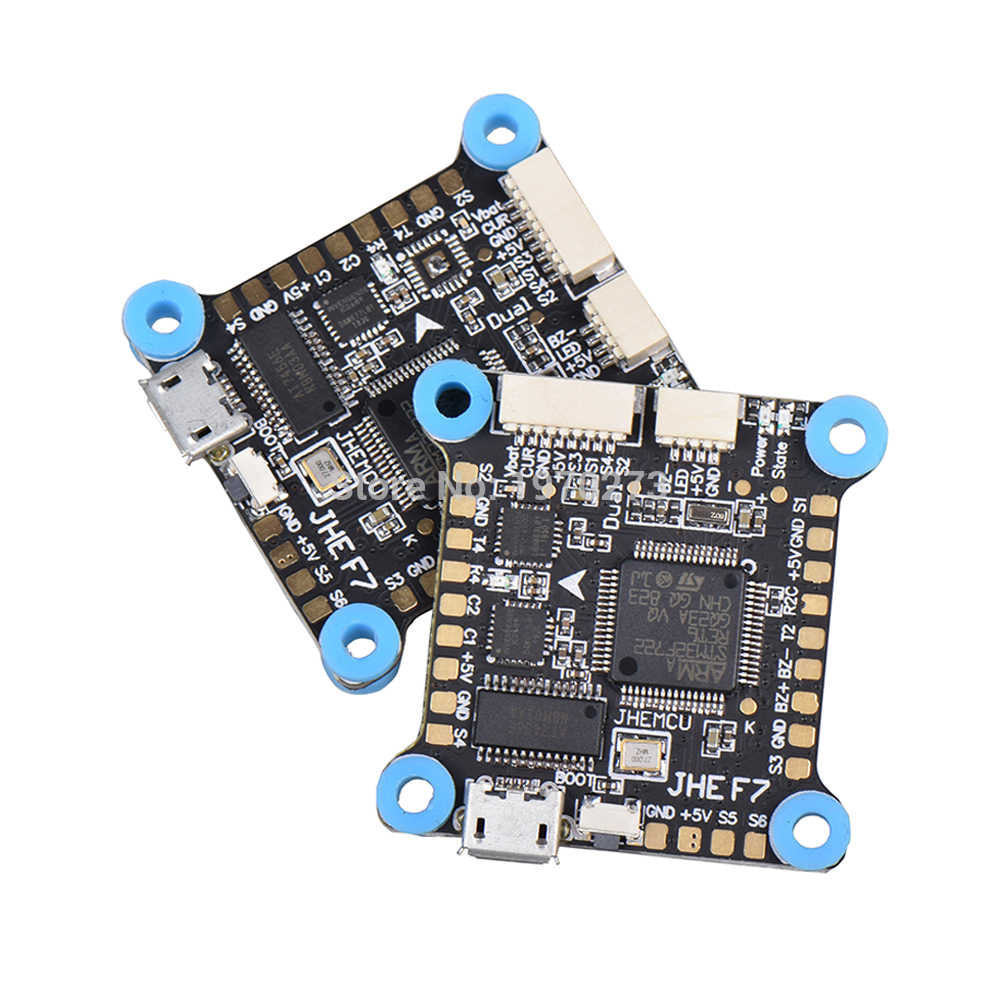

JHEMCU 30.5x30.5mm Dual Gyro F7 Flight Controller AIO OSD 5V 8V BEC & Black Box for RC Drone FPV Racing
Specification:
Brand Name: JHEMCU
Item Name: Dual Gyro F7 Flight Controller AIO OSD BEC

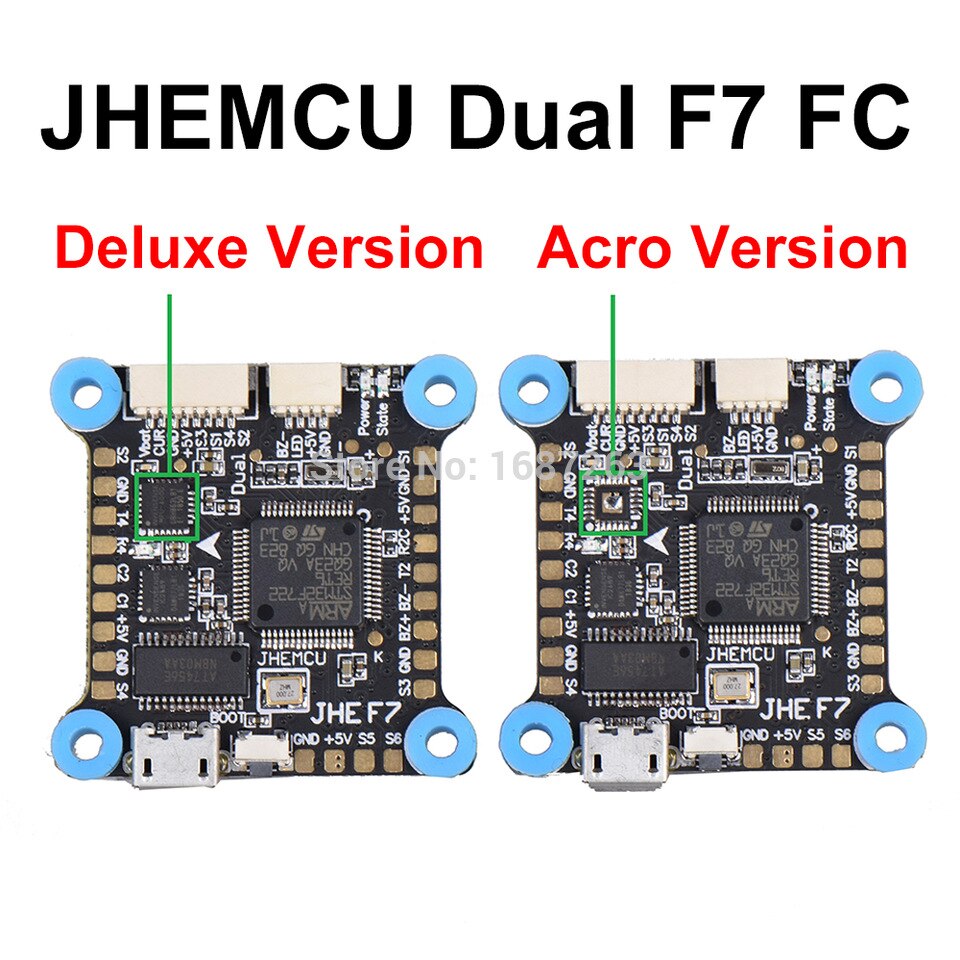

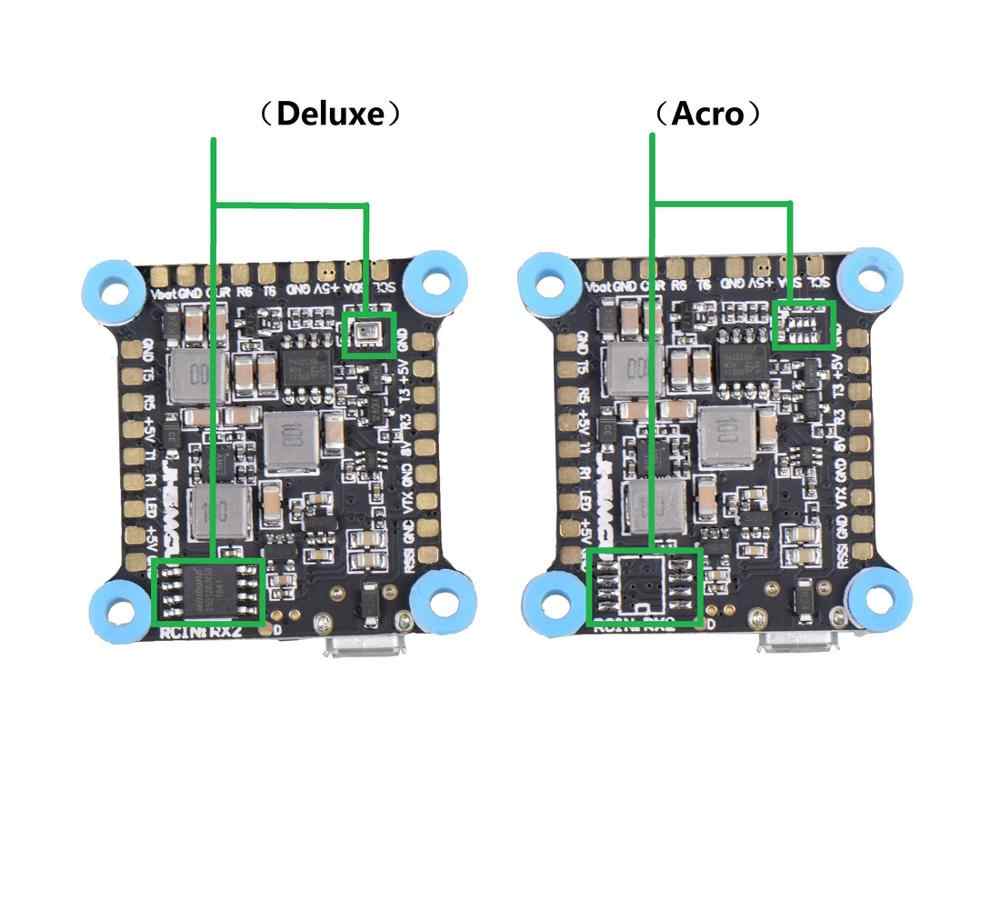

Optional Version: ACRO Version ( Without Barometer & Blackbox & MPU6000)
Input Voltage: 2-6S Lipo
MCU: STM32F722RET6 216MHz
IMU: MPU6000 & ICM20689, Dual Gyros (SPI) ;
Standard Version Don't support MPU6000
Standard Version Don't support MPU6000
Baro: BMP280 ( ONLY Deluxe Version Having)
OSD: AT7456E (SPI)
Blackbox:16MB ( ONLY Deluxe Version Having)
BEC 1 : 5V 2A ( for LED, Buzzer, Receiver etc.)
BEC 2: 8V 3A ( for Camera, VTX, open/close it by USER2)
UART Series: 6 UARTS ( UART1-UART6)
Support Dual Camera Input ( C1, C2 for Video Input; C1 in default, can switch by USER1)
BEC 1 : 5V 2A ( for LED, Buzzer, Receiver etc.)
BEC 2: 8V 3A ( for Camera, VTX, open/close it by USER2)
UART Series: 6 UARTS ( UART1-UART6)
Support Dual Camera Input ( C1, C2 for Video Input; C1 in default, can switch by USER1)
Firemware: BetaFlight
Size: 36x46mm
Mounting Hole: 30.5x30.5mm
Weight: 7.5g
Package Included:
1x F7 Flight Controller Board
4x M3 Anti-vibration Standoff
