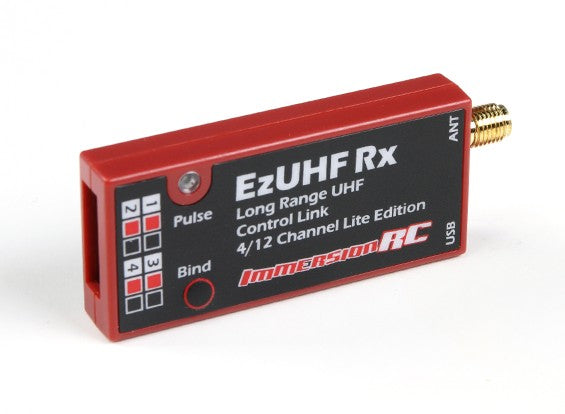

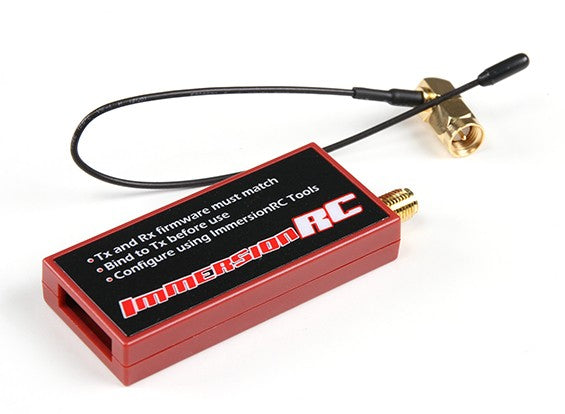

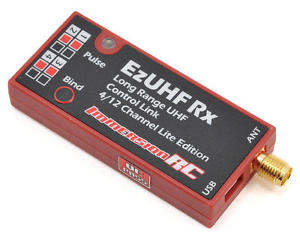

ImmersionRC EzUHF 4 Channel Receiver

ImmersionRC EzUHF 4 Channel Receiver

Rs. 6,900.00
Rs. 6,900.00 Rs. 7,440.00
Tax included. Shipping calculated at checkout.

Ask a question

The fields marked * are required.

SKU: A81475

Features:
 Reliable FHSS Link (Frequency Hopping, Spread Spectrum)
 -112dBm Sensitivty
 SAW filtered input, eliminates nearby high-power video Tx interference
 Multicopter mode, emits up to 12 channels of PPM on a chosen channel
 4 standard servo connectors
 USB port for future upgrades



Built-in Spectrum Analyzer

The only commercial LRS to include this essential feature; a built-in Spectrum Analyzer. This essential tool may be used to ensure that a model emits no interfering emissions on the UHF band, which could reduce range.

Plug in a standard USB cable, install the free ImmersionRC Tools, and create charts of power emitted on the UHF spectrum.



Arbitary Channel Mapping

Using the ImmersionRC Tools, the servo outputs of the EzUHF 4 channel Rx may be arbitrarily remapped to suit the target model.

Multicopter wiring may be greatly simplified using a single PPM cable, easily configured using the tools. Need PWM outputs to drive Pan/Tilt servos?, no problem using the tools.





Uplink Status (UPSTAT)

All uplink status is available in the single-cable PPM stream for use by supported OSDs. The XuGong v2/Pro, or the upcoming XuGong Vortex both take advantage of this method to show critical uplink status on-screen.

The received signal strength (RSSI) of the receiver’s antenna, along with the link quality, are captured by the OSD, and displayed with appropriate alarms to indicate marginal conditions.

NOTE: EzUHF Firmware v1.51 or later required to support single-cable UPSTAT.






Simple Failsafe

Setting the failsafe on the EzUHF is as simple as pressing a button on the back of the transmitter during flight.

Set your model into a gentle turn, drop the throttle, and set the failsafe. In the unlikely situation where the uplink is lost, the model will safely glide to the ground.

On a multicopter, the UHF failsafe will trigger the flight controller’s failsafe, and for most systems will start the RTH (Return to Home).



SPECIFICATIONS & SUPPORT FILES

Essential Specs, User Manuals, Firmware & Downloads








PRODUCT SPECIFICATIONS

R/C Channels: Maximum of 12 PPM, 4 servo outputs (future upgrade to 16 PPM channels)
RF Impedance: 50 ohms
Modulation: GFSK
Hopping: 20 of 40 slots, 2MHz, or 20MHz frequency spread (Extreme Hopping)
Frequency Band (Std. Firmware): 431-433MHz, 433-435MHz, 435-437MHz, 436-438MHz, 430-450MHz (Extreme Hopping)
Frequency Band (UK Firmware): 459MHz
Length: 67mm
Width: 23mm
Height: 7mm
Weight: 7g (uncased), TBD g (cased)
Power Requirements: 4-6v DC
