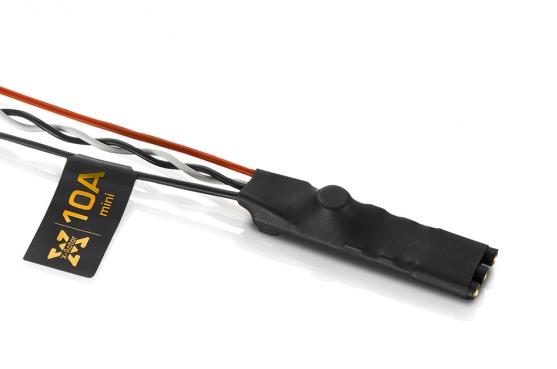

HobbyWing XRotor 10A Mini ESC

  1 Features: 1.1 Special core program for multi-rotor controllers greatly improves throttle response. 1.2 Specially optimized software for excellent compatibility with disc-type motors. 1.3 All settings except the "Timing" are preset, making usage simple, highly intelligent and adaptive. 1.4 The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable. 1.5 Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals) . 1.6 Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components. 1.7 MOSFET with extra-low resistance brings high performance and great current endurance.

Model	Con. Current	Peak Current ¡]10s¡^	BEC	LiPo	Programmable Item	Weight	Size	Typical Applications* (For reference¡^
XRotor-10A-Mini-3S	10A	15A	No	2-3S	Timing ¡]High/Intermediate)	7g	44.2x12.2x9.2 mm	250 Class Quadcopter
Note: The "Typical Application" in the above form only refers to quadcopter (with 4 motors). When the ESCs are installed on multi-Rotors with 6/8/16 motors, the applicable axle distance can be larger than the value listed in the above form.
