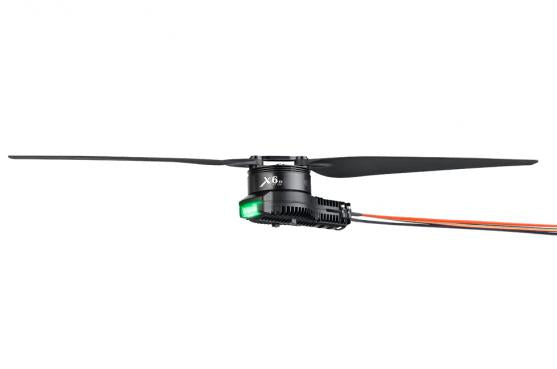

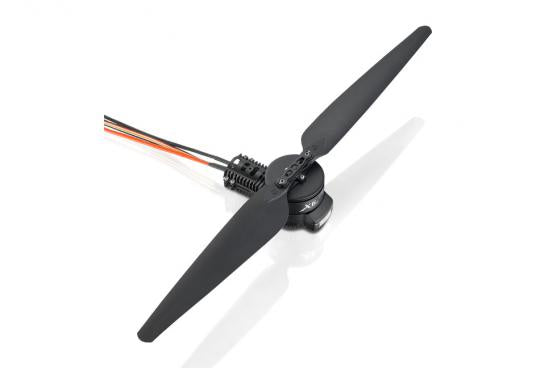

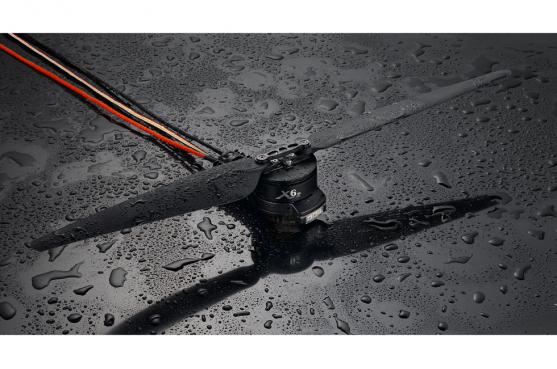

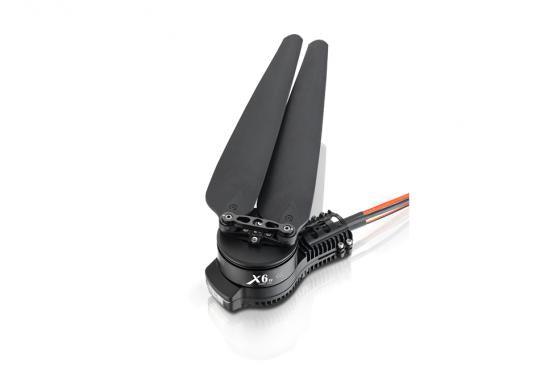

Hobbywing X6 Power System for Agricultural Drones CW

Hobbywing X6 Power System for Agricultural Drones CW

Rs. 16,465.38
Rs. 16,465.38
Tax included. Shipping calculated at checkout.

Low stock

Ask a question

The fields marked * are required.

SKU: 4380

Specifications

Product Name

X6 Power System Combo

Specifications

Max. Thrust

12kg/Axis (48V, Sea Level )

Recommended LiPo Battery

12S LiPo

Recommended Takeoff Weight

3-5kg/Axis(48V，Sea Level)

Combo Weight

720g

Waterproof Rating

IPX7

Operating Temperature

-20℃~50℃

Motor

Outer Diameter

70mm

KV Rating

180KV

O.D of Carbon Fiber Tube

φ30mm/φ28mm (*Tube Adapter will be Needed)

Bearing

Imported Bearing

ESC

Recommended LiPo Battery

6-12S LiPo

PWM Input Signal Level

3.3v/5v (Compatible )

Throttle Signal Frequency

50-500Hz

Operating Pulse Width

1100~1940μs (Fixed or cannot be Programmed )

Max. Input Voltage

52.2V

Max. Input Current (Cont.)

80 A(w/ Good Heat Dissipation )

Max. Peak Current (10s)

100 A (w/ Good Heat Dissipation )

BEC

No

Nozzle Mounting Holes

φ28.4mm-2*M3

Propeller

Diameter×Pitch

2388

Weight

91g (w/ Propeller Adpater, Single Blade: 36g)
