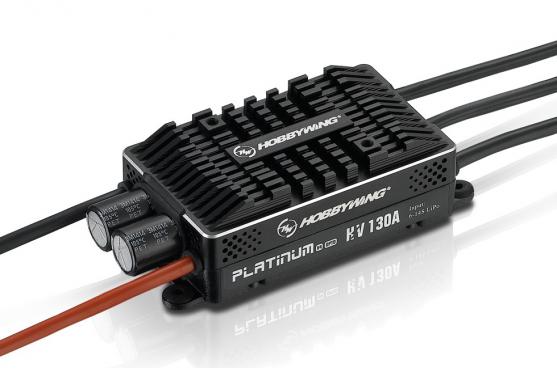

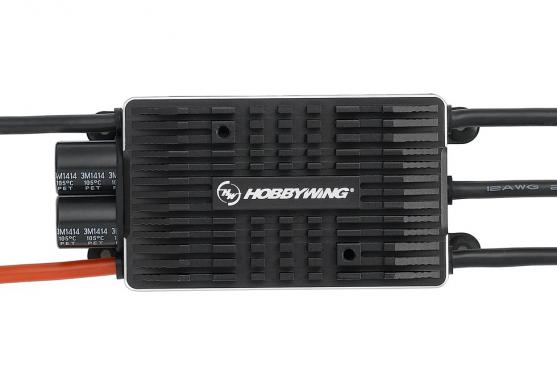

HobbyWing Platinum HV 130A OPTO V4 ESC

HobbyWing Platinum HV 130A OPTO V4 ESC

Rs. 21,789.60
Rs. 21,789.60
Tax included. Shipping calculated at checkout.
  • Estimated delivery: May 27 - May 31

Ask a question

The fields marked * are required.

    Specifications

Product Name

Platinum HV 130A OPTO V4

Product Number

30209201

Type

Brushed/Brushless

BL

High Voltage/Regular

High Voltage

Specifications

Cont./Peak Current

130A/160A

Input Voltage

6-14S LiPo

BEC Output

No

Wires & Connectors

Input Wires

Red-12AWG-150mm*1/Black-12AWG-150mm*1

Output Wires

Black-12AWG-100mm*3

Input Connectors

No

Output Connecotors

No

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via

Transmitter

Not Supported

LED Program Card

Not Supported

LED Program Box

Not Supported

LCD Program Box

Supported

WiFi Module

Supported

Program Port

Separate Program Port

Firmware

Firmware Upgrade

Supported

Size & Weight

Size

101.0x45.5x27.0mm

Weight

154g

Applications

550-600 Class Heli (Main Blade: 550-690mm)
.90-.140 Class Fixed-wing Airplane, 2m FAIF3A & 3D
EDF (with Diameter≦105mm)
