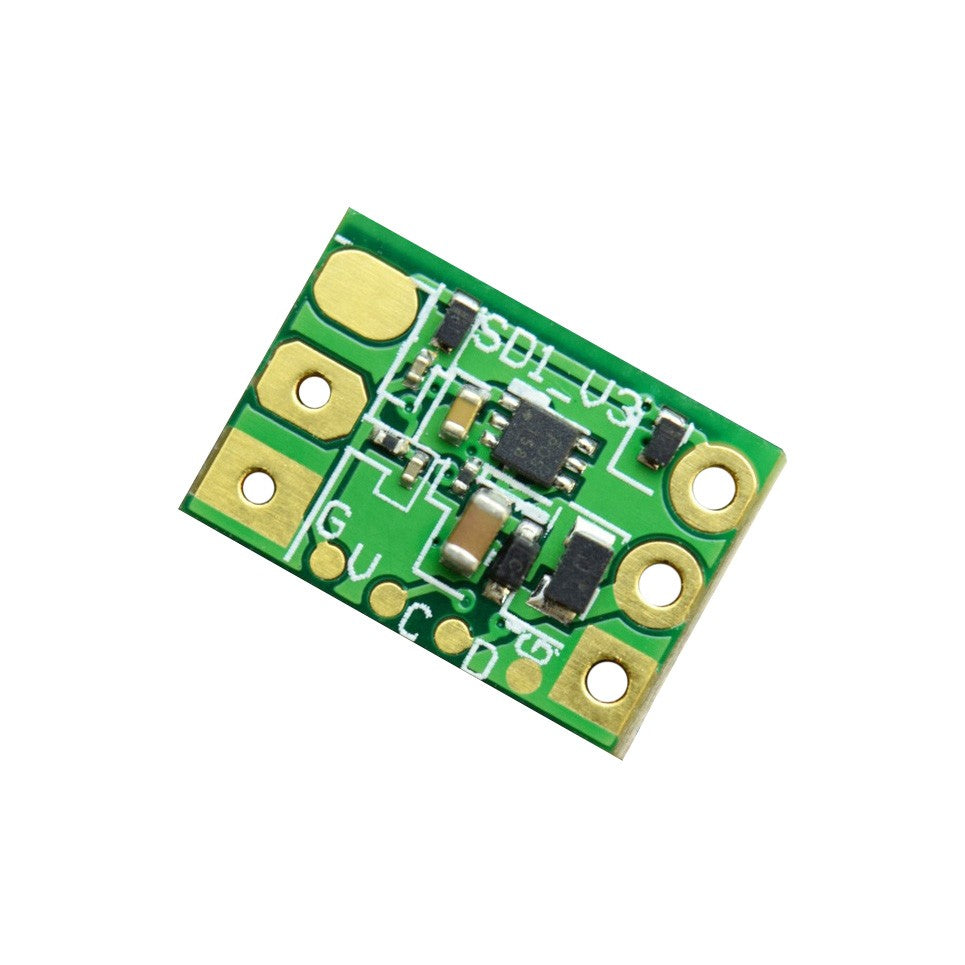

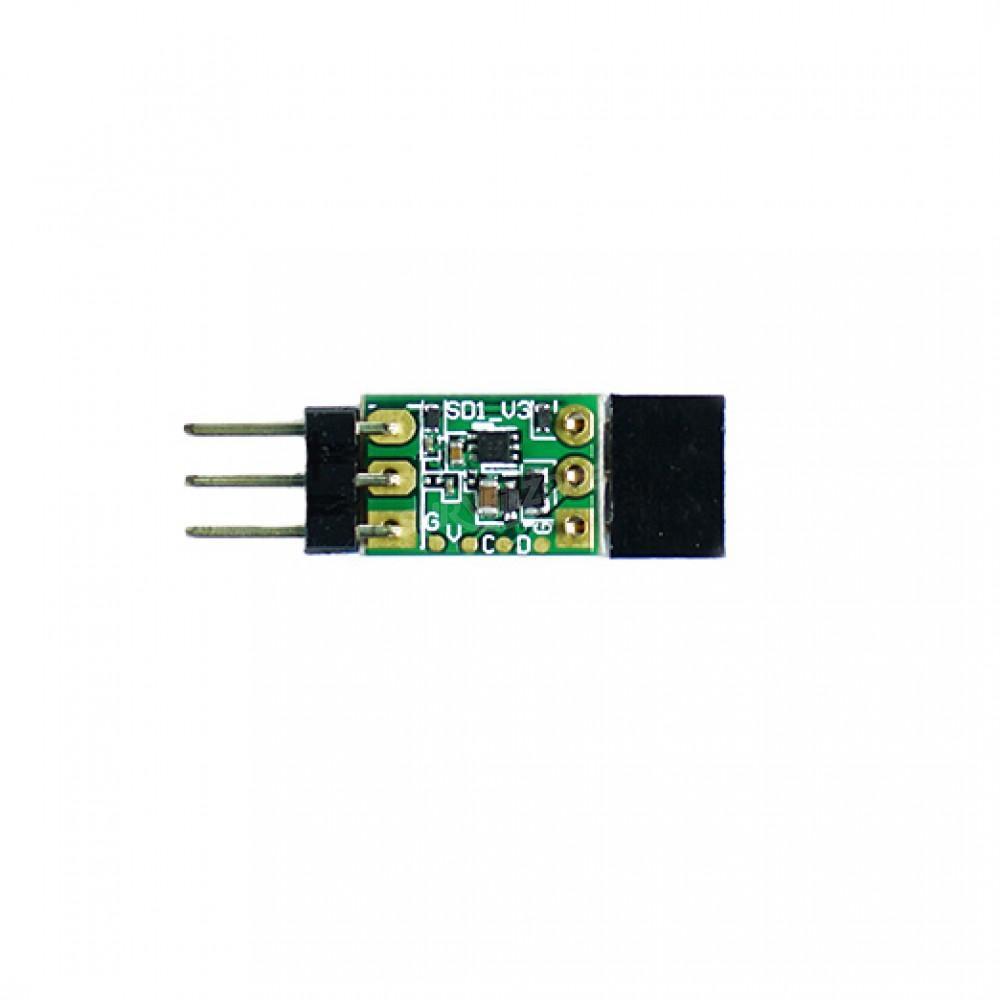

FrSky SD1 - SBUS Decoder

SD1 can be used as SBUS decoder to convert SBUS signal for use of a conventional servo (other than use SBUS compatible servo directly) with SBUS system.

Features

• Convert SBUS to PWM signal
• Multiple methods to set the output channel (FrSky SCC/ FreeLink/ X7/ X7S/ X9D Plus/ X9D Plus SE/ X9E)

Specifications

• Dimension: 8mm*12mm*3.1 mm (L*W*H)
• Weight: 0.45 g
• Operating Voltage Range: 3.5V~10V
• Operating Current: 24mA@5V
• PWM Output Rate: 18ms/55Hz
