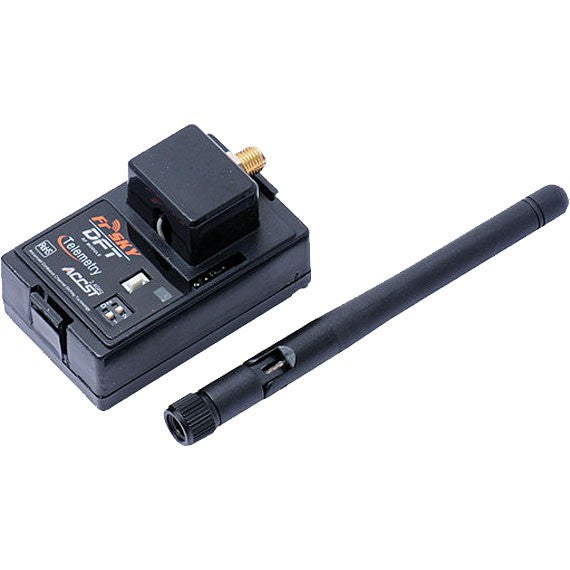

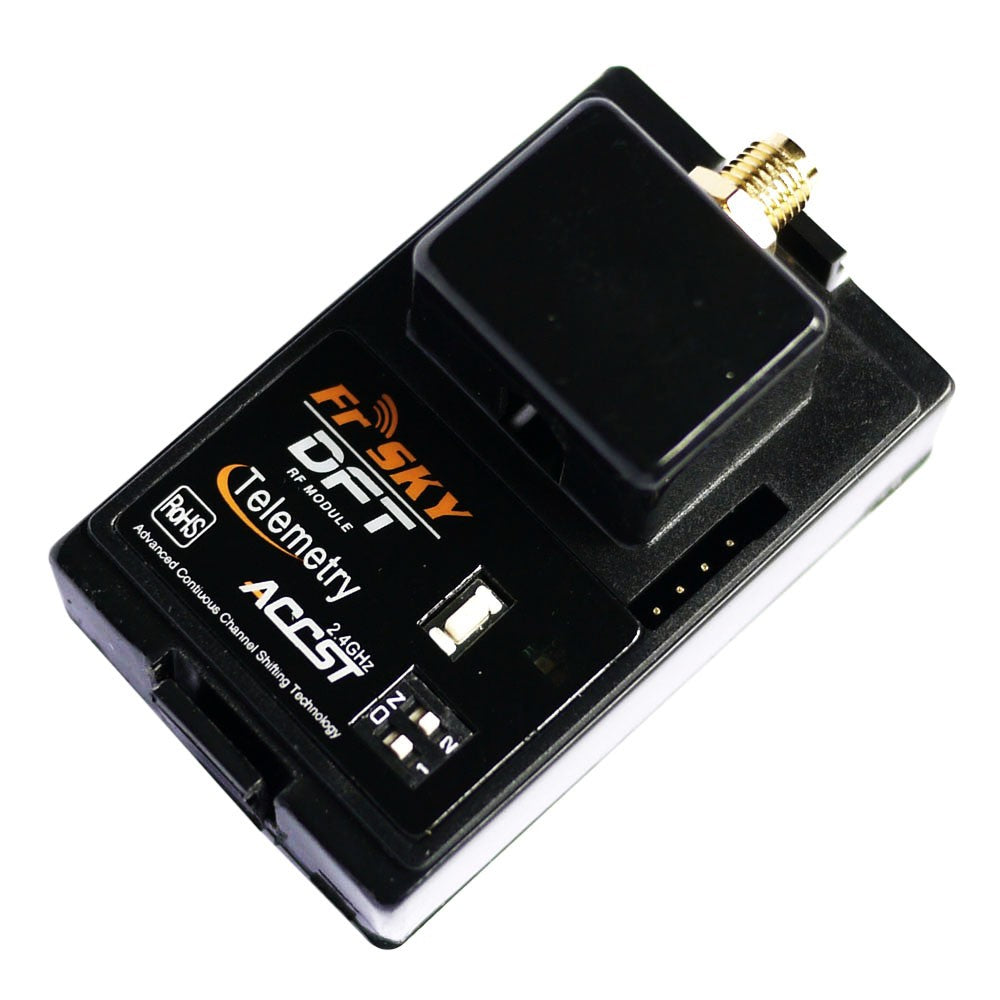

FrSky DFT 2.4Ghz Transmitter Module
FrSky DFT 2.4Ghz Transmitter Module
Share this product
Description:
FrSKY ACCST technology is proven, approved by many model associations, tested and reviewed as the leading Chinese 2.4Ghz R/C Technology. If you think DSM2 or FASST is the best, think again!
New FrSKY ACCST (Advanced Continuous Channel Shifting Technology) gives you secure radio communicatios in 2.4Ghz band. ACCST 2.4GHz system shifts 80 channels around hundred times per second in the 2.4GHz band. This means that the system is completely resistant to interference in that band.
Specification:
Brand Name: Frsky
Item Name: DFT transmitter
DFT Module specification:
Operating voltage: 6.0V-13.0V (can handle 3S!)
Power consumption: 50mA
Output Power:: 60mW
Resolution: 3072 (11bit)
Dimensions: 58.5x37.5x22mm
Compatible Transmitter:
- Futaba: 3PM, 3PK, 7U, 8U,8J, 9C, 10C, 9Z, FN-Series, T10C, FC-18, FC-28.
- Hitec: Optic 6, Eclipse 7, Prism 7
- WFLY: WFT09, WFT-08
Instruction Manual for TelemetryModules
|
Switch 1 |
Switch 2 |
Mode of Module |
Compatibility |
|
OFF |
OFF |
Two-way Mode |
Two way telemetry receivers (D8R, D8RSP, D6FR, D4FR, D4R) |
|
OFF |
ON |
V8 Mode |
V8 receivers (V8FR-HV,V8R7-HV,V8R7-SP,V8R4) |
1.2 Specifications:
Model: DFT/DJT/DHT
Operating Voltage Range: 6.0V-13.0V Operating Current: 50mA
Output Power: 60mW
Resolution: 3072
1.3 Compatibility:
-
1) DFT is compatible with the following transmitters:
Futaba: 3PM, 3PK, 7U, 8U, 8J, 9C, 9Z, 10C, FN series, T10C, FC-18, FC-28 Hitec: Optic 6, Eclipse 7, Prism 7
WFLY:WFT09, WFT08 -
2) DJT is compatible with the following transmitters:
JR: 347/388/783/U8/PCM10/PCM10S/PCM10SX/PCM10IIS/8103/J9303/PX/9XII/11XZERO -
3) DHT is compatible with all transmitters with PPM output.
