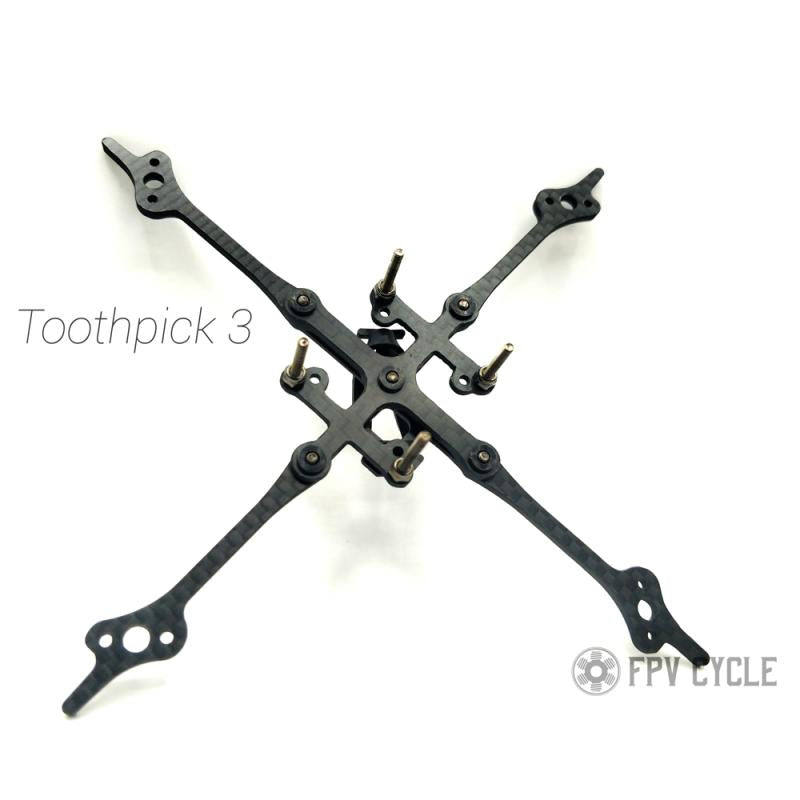

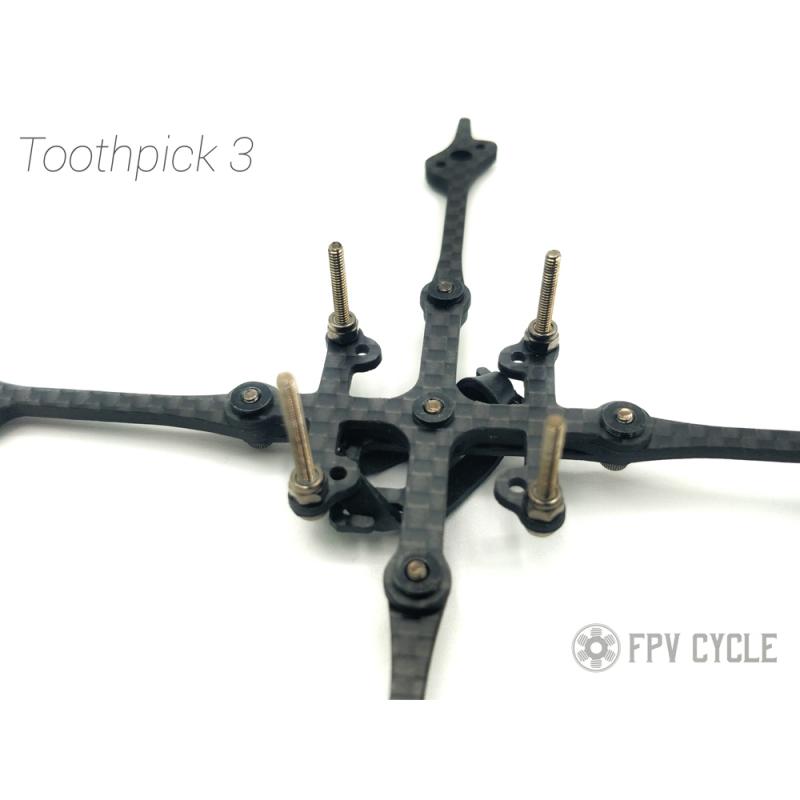

FPVCYCLE TP3 FRAME

FEATURES:

• Multi Unit design
• T700 carbon in 0.5mm laminate thickness (thinner is better, typical is 1.5mm)
• ~9-10g built frame base with hardware (some variation)
• 1.5mm body plates, 2.5mm arms
• Accepts 1”x1” typical whoop mounting platform
• Good quality carbon but no chamfers to keep costs down
• Made to be used. Not a shelf ornament.
• Every line on this design is very delicately crafted for optimization

MULTI UNIT DESIGN BENEFITS:

• Repairability when you smash it
• Skinnier arms for less thrust deflection and rotational drag
• Similar weight to a monobody of the same or lesser durability
• Cheaper to maintain
• Easier to repair and maintain
• Doesn’t ruin your flying day due to a crash

INCLUDED PARTS:

• 5x arms
• 1x lower body plate
• 1x top and FC mounting plate
• About ~10x rubber bands
• NO MORE TPU CENTER!

HARDWARE:

• 5x M2x6mm steel 10.9 hardness socket cap
• 4x M2x16mm steel 10.9 hardness socket cap
• 4x M2x20mm steel 10.9 hardness socket cap
• 5x M2 steel locknut
• 5x M2 press nuts (installed)

RECOMMENDATIONS:

• Under 109g AUW with 3S 450mah
• Under 95g on 2S 450mah
• No smaller or larger than 450mah cells in 3S or 2S
• Press fit props on a 2mm prop shaft motor
• No more than ~7g per motor
• NO TPU SHOES ON THE ARMS!
