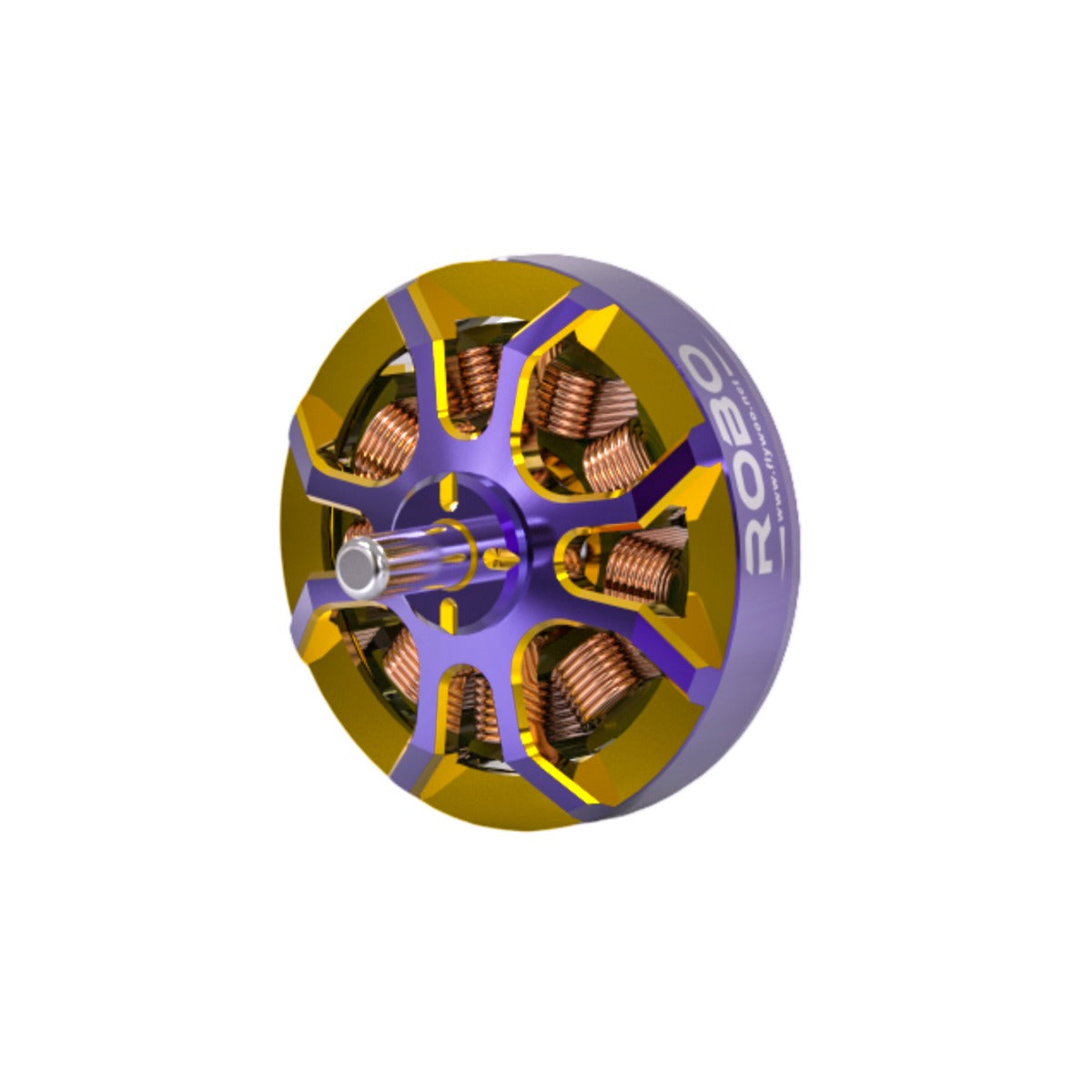

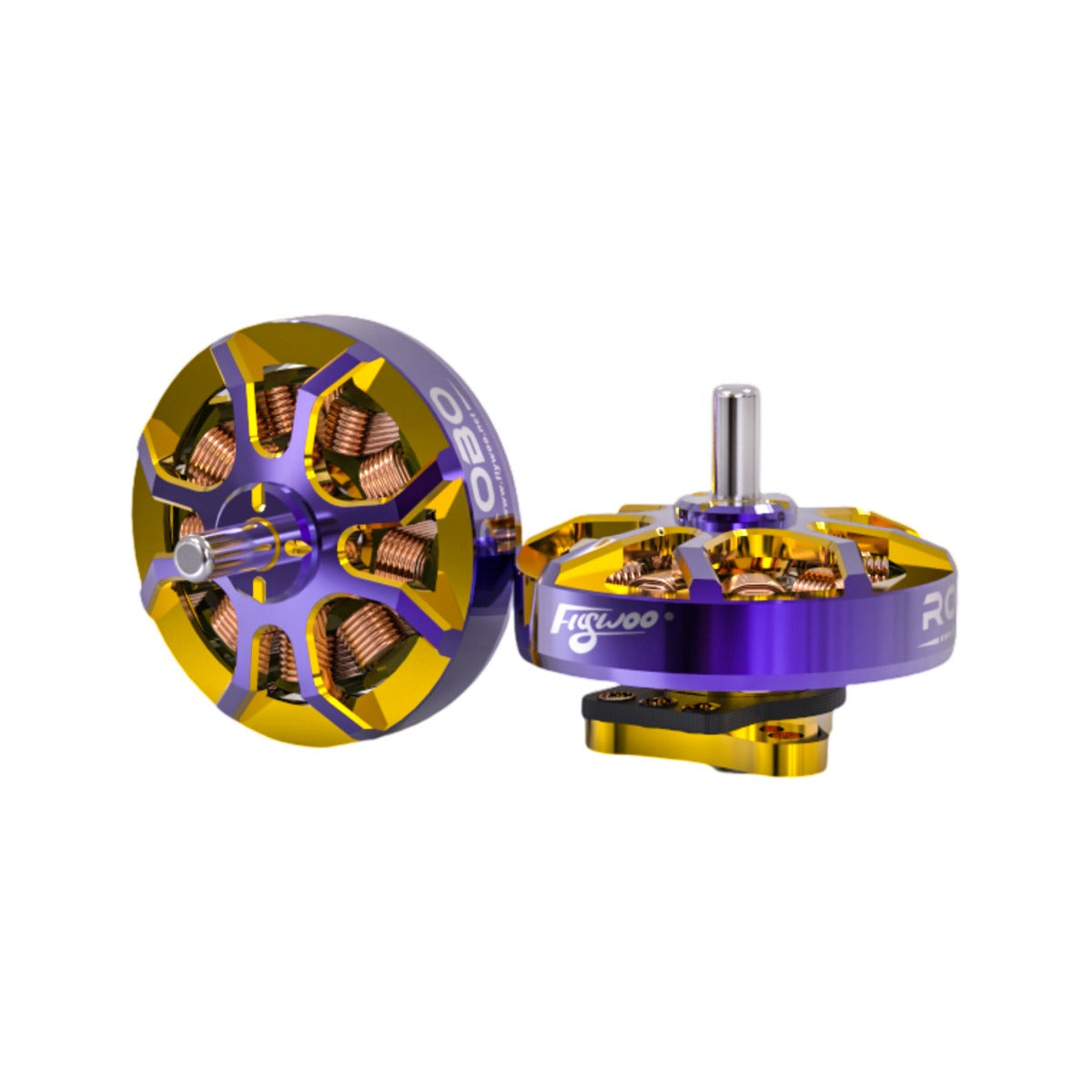

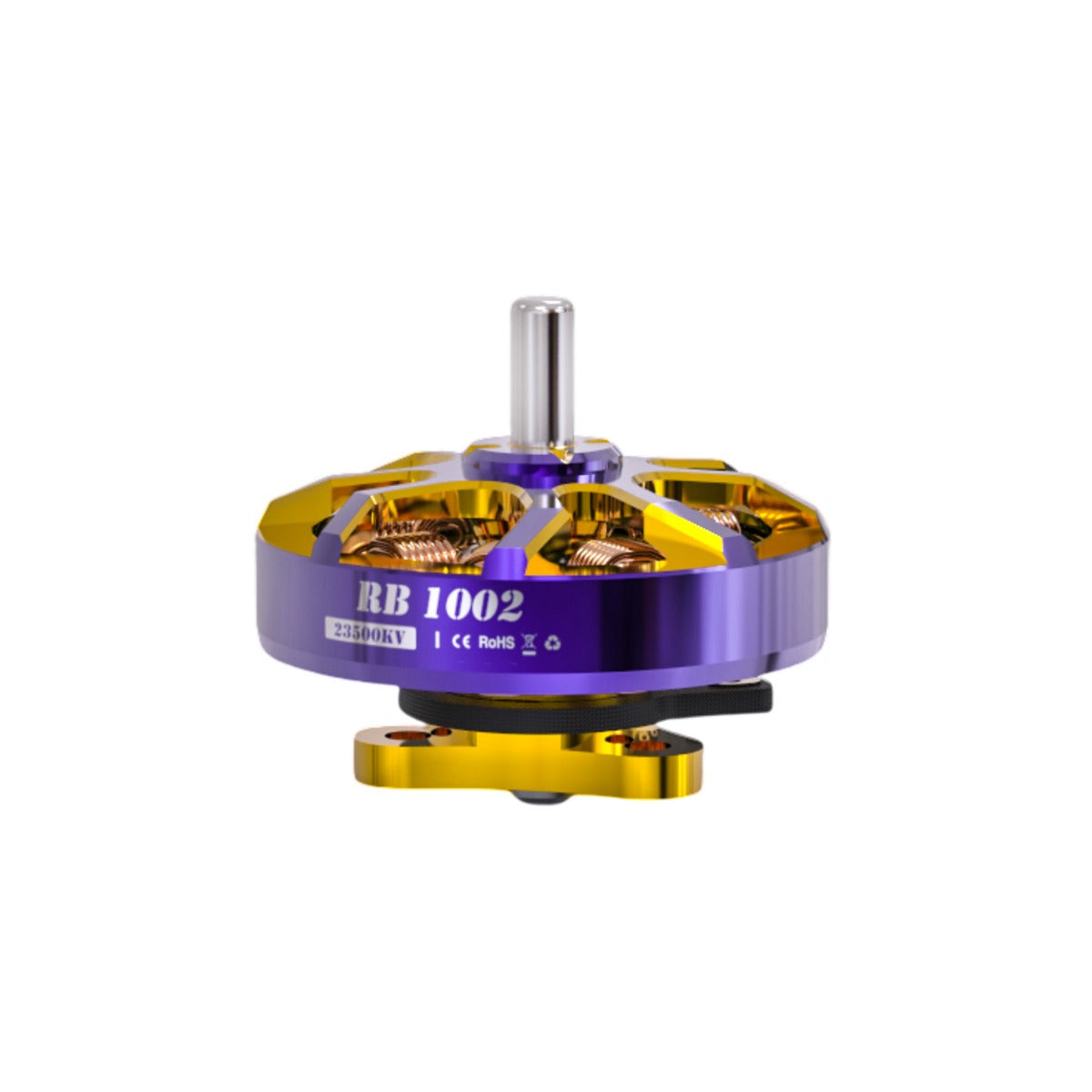

Flywoo ROBO 1002 23500KV Fpv Motor (New Version)

Flywoo ROBO 1002 23500KV Fpv Motor (New Version)

Rs. 1,075.00
Rs. 1,075.00
Tax included. Shipping calculated at checkout.

Low stock

Ask a question

The fields marked * are required.

SKU: 5180



Product Description

Description:

The FLYWOO RB1002 motor adopts a new structural design with a dual bearing design. This dual bearing design enables better control of shaft movement, reducing noise and vibration. It enhances stability and is more power-efficient. The motor is made of 7075 aviation aluminum material, features a high-efficiency magnetic circuit design, has a dual-color oxidation appearance, a wire soldering pad design, offers efficient power, smooth operation, and stable control. It is very suitable for whoop and toothpick models.

Specification

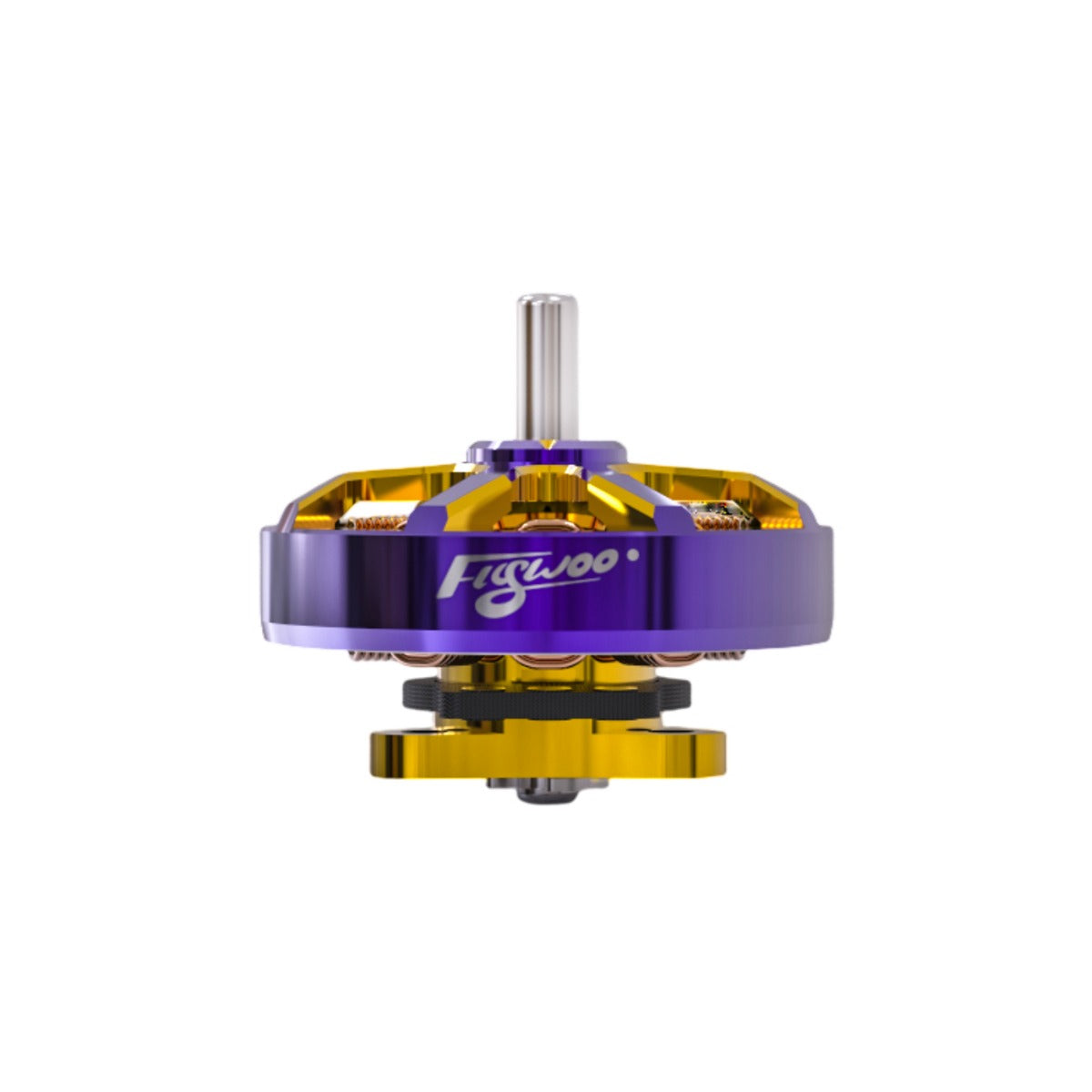

Flywoo ROBO 1002 19800KV Fpv Motor:

  • Configuration: 9N12P
  • Stator Diamter: 10mm
  • Stator Length: 2mm
  • Shaft Diameter: 1.5mm
  • Motor Dimension(Dia.*Len): Φ13.5*7.75mm
  • Weight(g): 2.5(5cm wire)
  • Idle current(5)@5V(A): 1.3
  • No.of Cells(Lipo): 1S
  • Max Continuous Power(W)3S: 44
  • Internal Resistance: 89mΩ
  • Max Current(3S): 11.8A
  • Max Efficiency Current: (2-4A)>84%

Flywoo ROBO 1002 23500KV Fpv Motor:
  • Configuration: 9N12P
  • Stator Diamter: 10mm
  • Stator Length: 2mm
  • Shaft Diameter: 1.5mm
  • Motor Dimension(Dia.*Len): Φ13.5*7.75mm
  • Weight(g): 2.5(5cm wire)
  • Idle current(5)@5V(A): 1.5
  • No.of Cells(Lipo): 1S
  • Max Continuous Power(W)3S: 52
  • Internal Resistance: 75mΩ
  • Max Current(3S): 14A
  • Max Efficiency Current: (2-4A)>84%

Package

  • 1 * Flywoo ROBO 1002 19800KV / 23500KV Fpv Motor
  • 1 * Pack of M1.4*3 Screws

19800KV FPV Motor Data


23500KV FPV Motor Data
