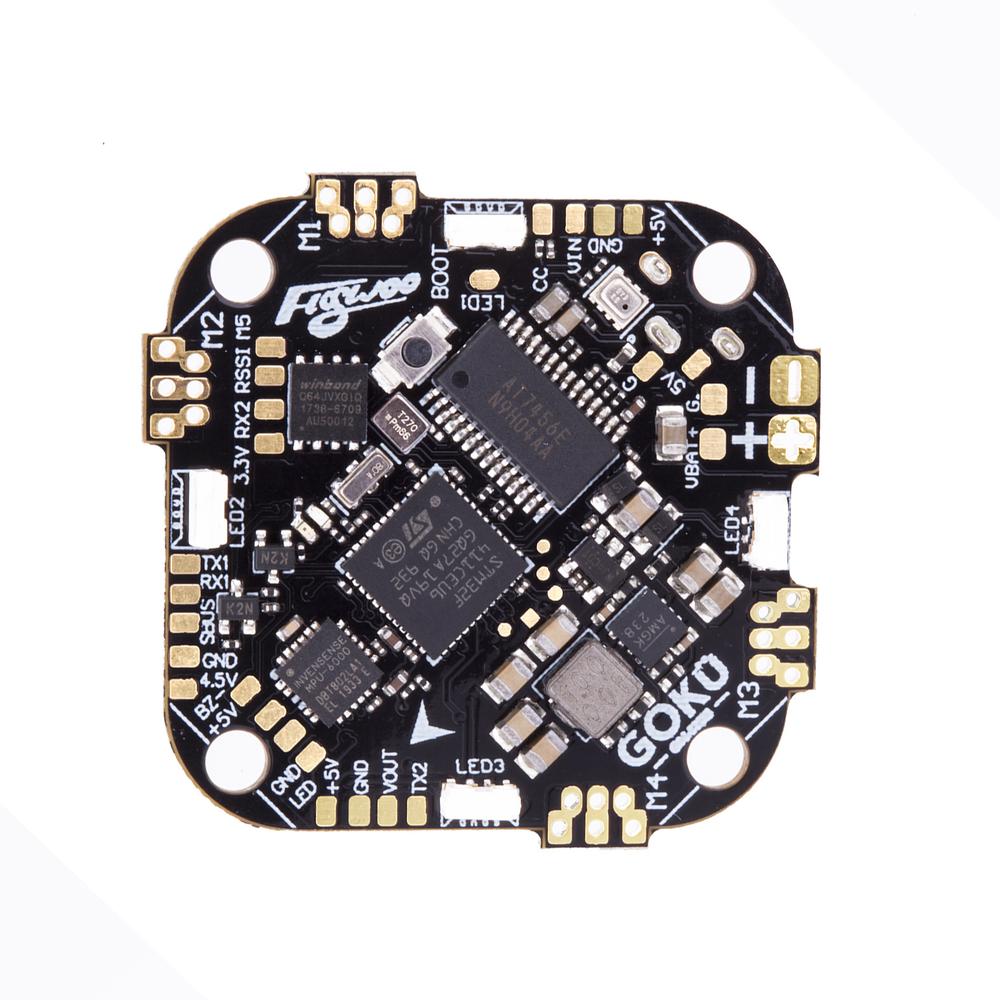

FLYWOO GOKU GN413S F411 F4 Flight Controller AIO OSD BEC & 13A BL_S 2-4S 4In1 ESC for RC Drone FPV Racing

FLYWOO GOKU F411 FC INAV Firmware Download

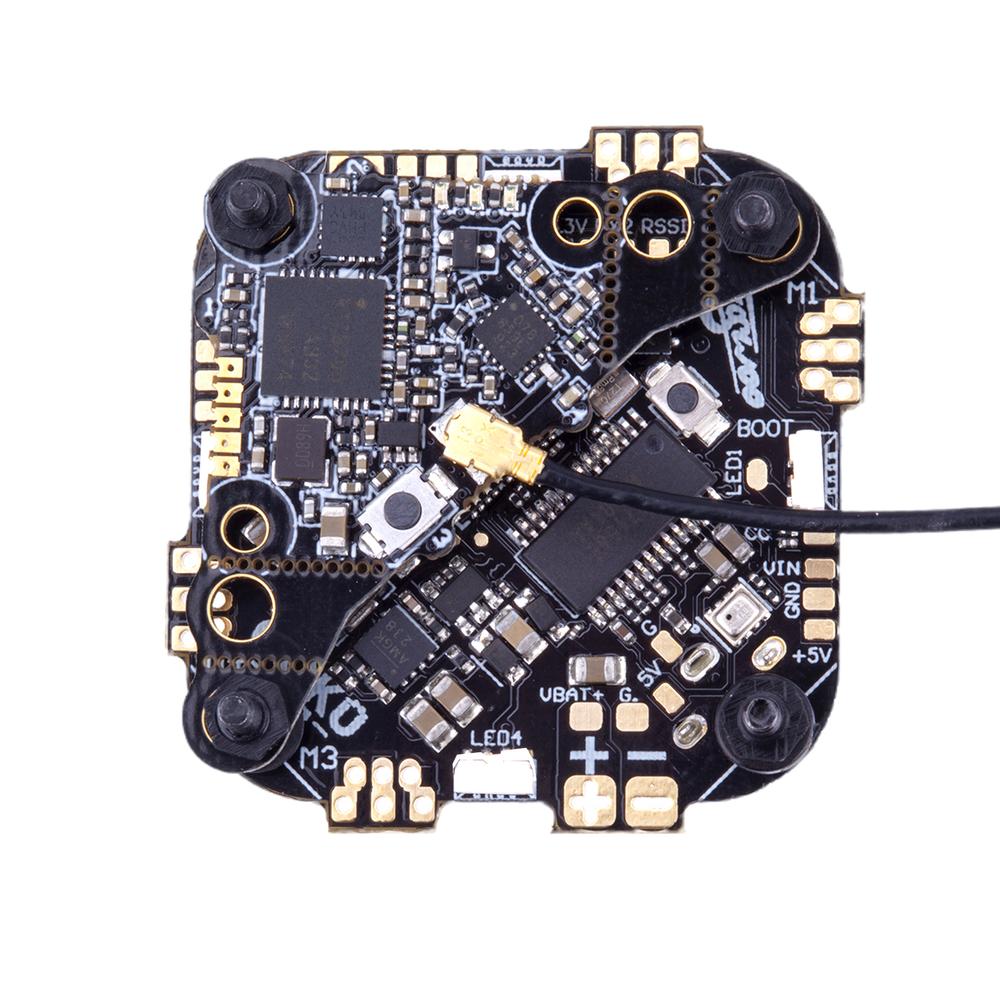

AIO Toothpick 13A (25.5*25.5mm)
Specification:
Model: GOKU GN413S
MCU: STM32F411
IMU: MPU6000 gyro/accelerometer (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
Baro: BMP280
black box: 8M

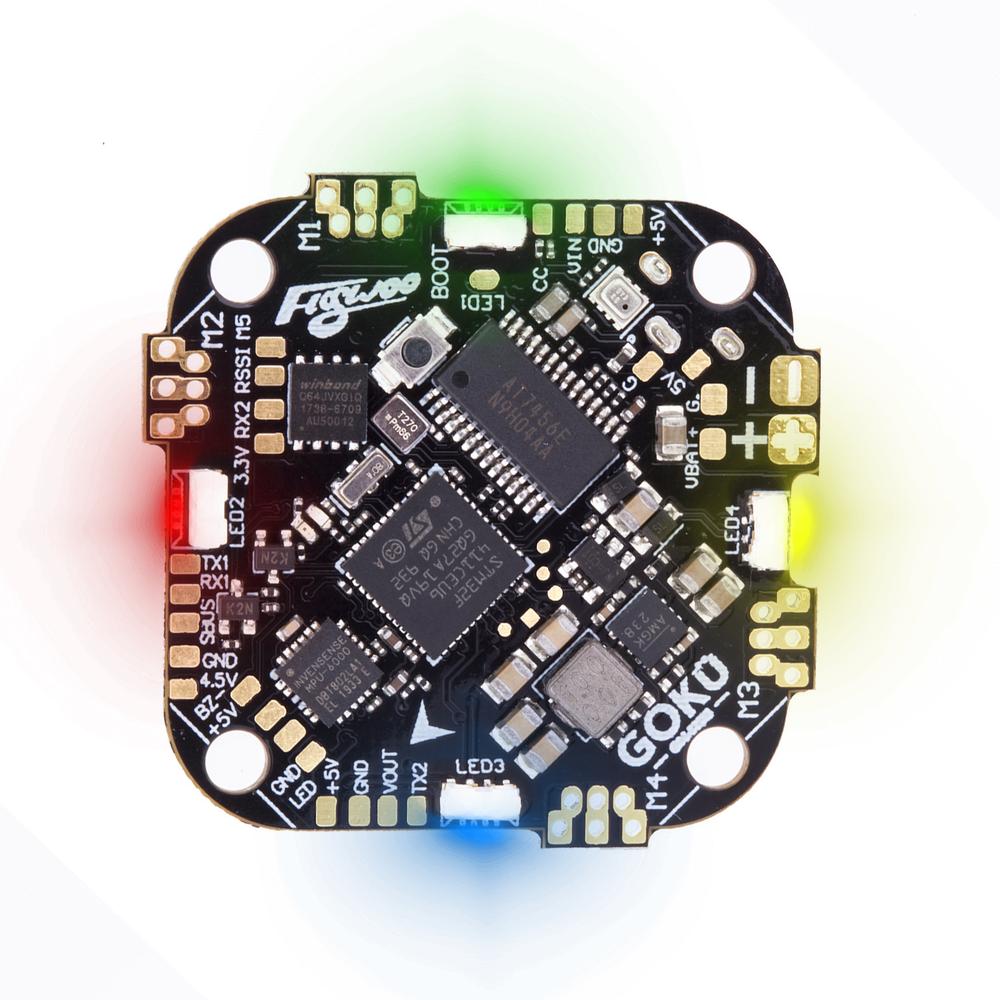

LED：4*WS2812
BEC Output: 5V@2A
Integrated LC Filter
Firmware target: FLYWOOF411
ESC MCU: BB21F16G
Continuous current: 13A
Input:2-4s lipo
Supports Dshot600 ,Oneshot,Multishot
Size: 34×34mm board,25.5mm mounting holes (M2)
Weight: 6g
