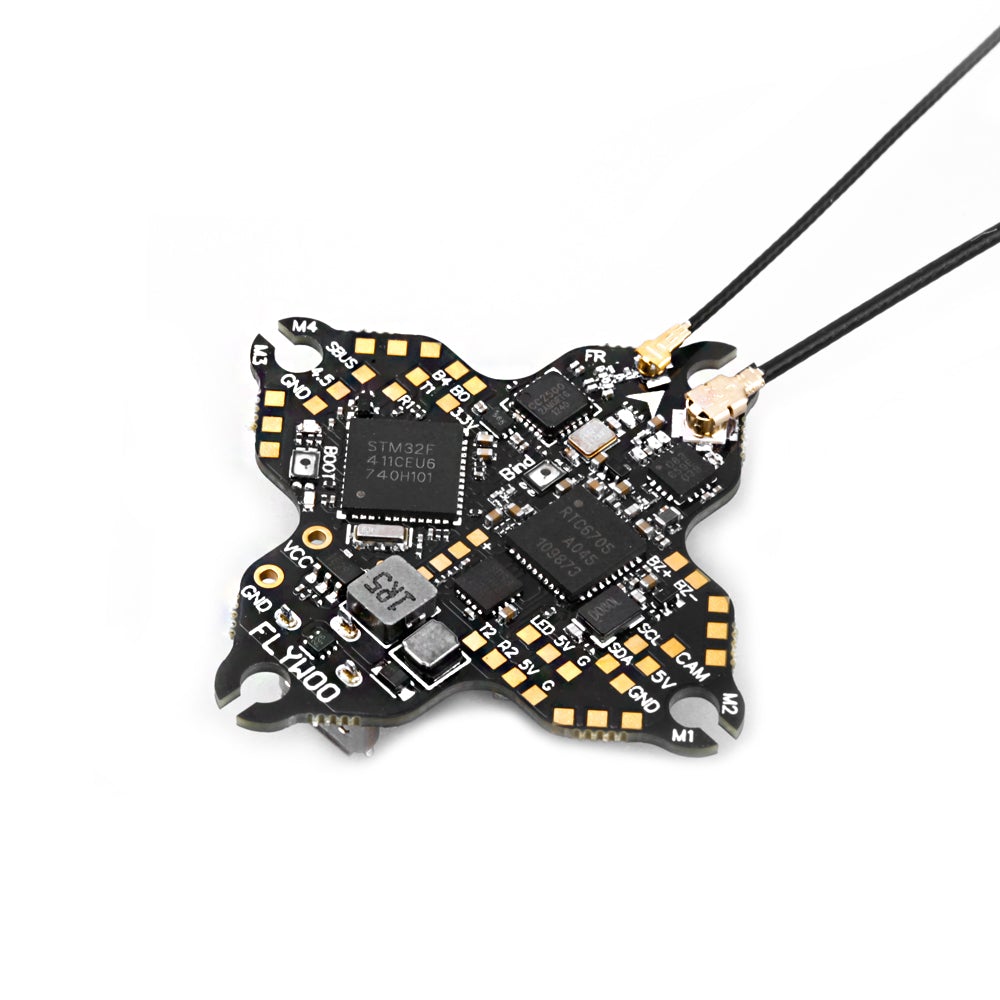

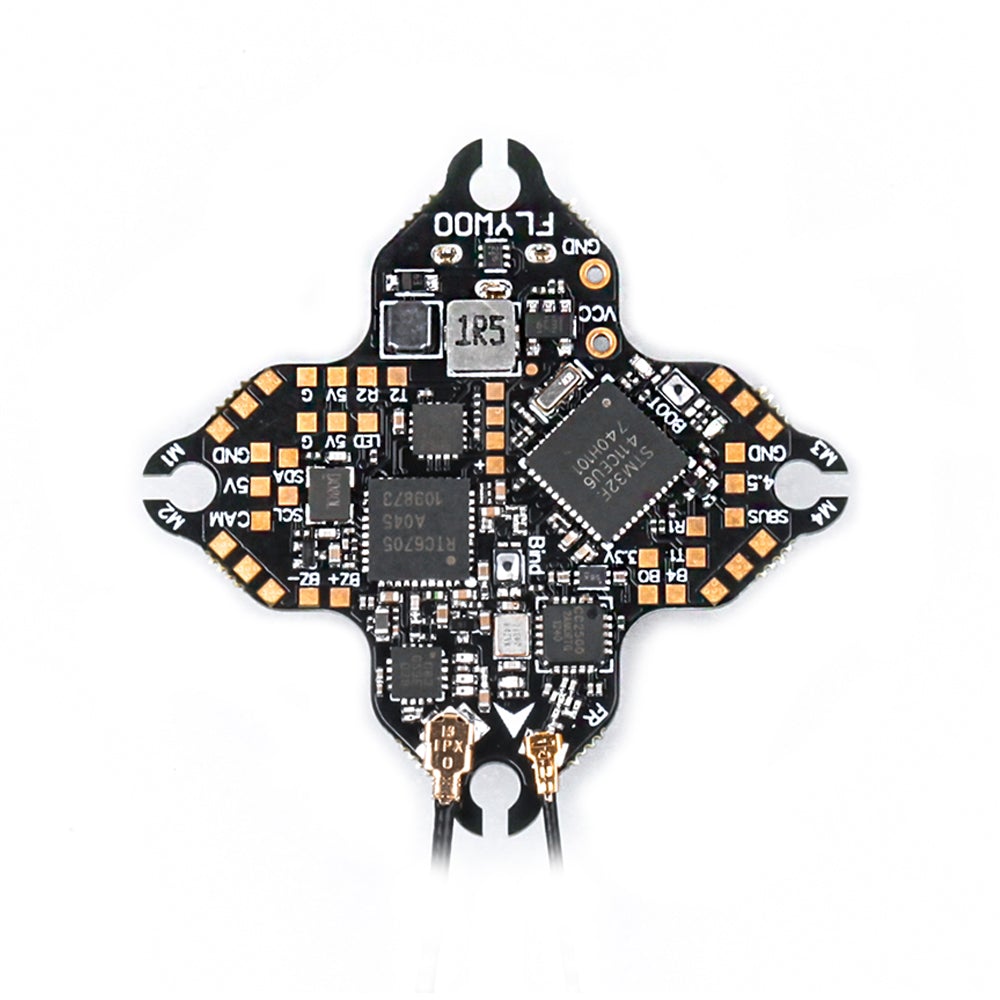

Flywoo GOKU Versatile F4 5-IN-1 1S AIO W/250mw VTX , OSD , 25.5X25.5 ( without rx)

The GOKU Versatile F4 5-IN-1 AIO is another versatile and highly integrated circuit board in the GOKU Versatile series! Built-in 250mw VTX ，1S 5A ESC， OSD, 3 serial ports， I2C functionality and 2XWS2812 LEDs . Reasonable layout makes it easier for you to build . You only need to choose the motor, frame, camera, propeller ， everything else all packed into a compact whoop board.

Highlights :

1. Built-in 250mw vtx, 1S 5A ESC, OSD
2. Opened 3 serial ports and 12C functionality

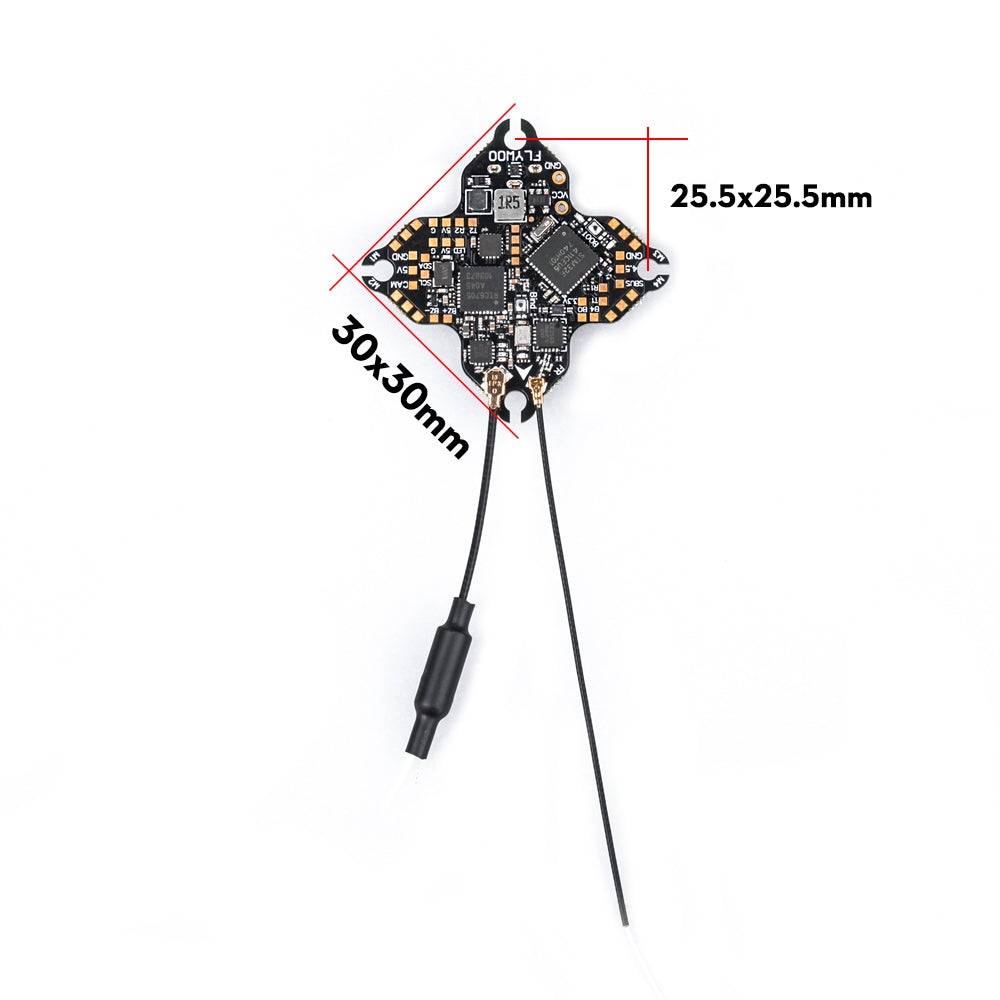

3. Mounting Pattern: 25x25mm, M2
4. Ultra light weight 4g

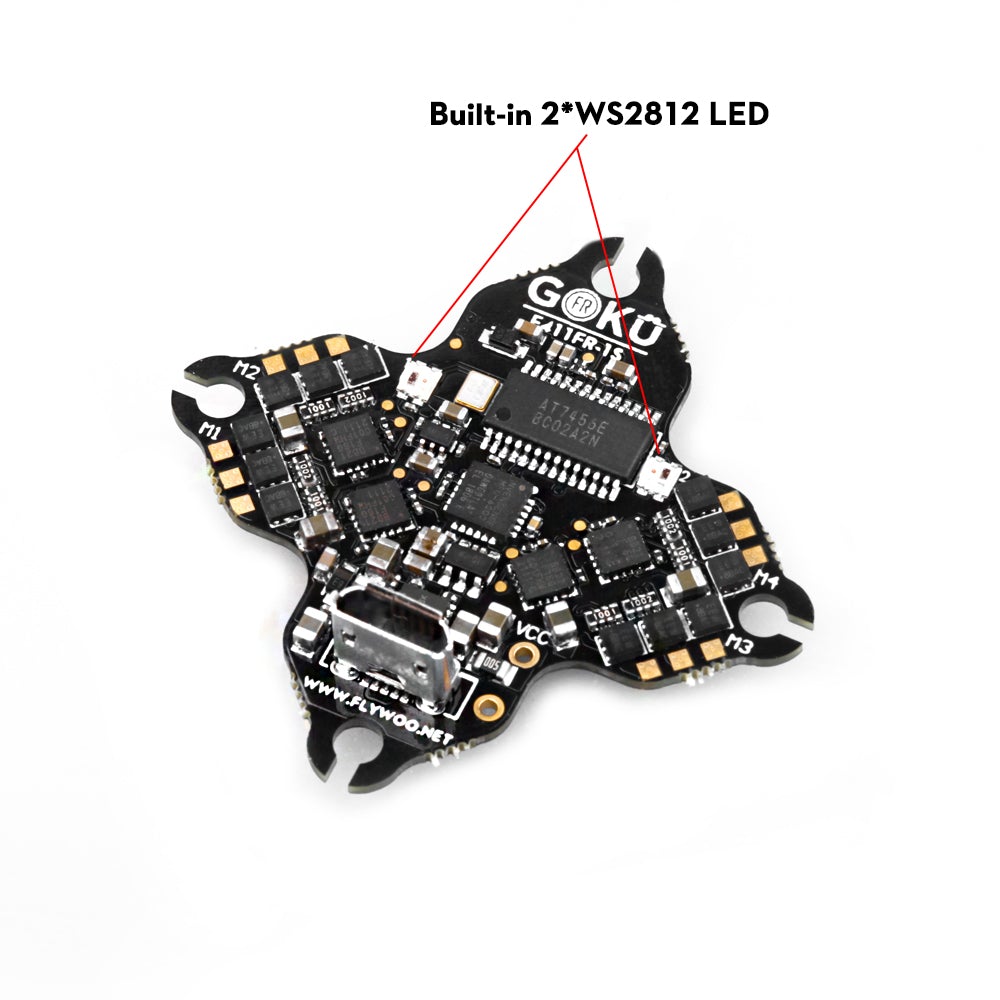

5. Built-in 2XWS2812 LEDs
6. Reasonable layout , easy to build
7. Can work with different RX at the same time

Specifications
Flight Controller

• MCU: STM32F411CEU6
• GYRO: MPU6000
• UARTS: 1/2
• Soft serial port：1
• I2C: SCL/SDA
• BEC: 5V
• Input Voltage: 1S ( <4.35v)
• Firmware: FLYWOOF411FR
• Mounting: 25x25mm, M2

Onboard 4in1 ESC

• MCU: EFM8BB21
• Power supply: 1S LiPo/LiPo HVCurrent: 5A
• Firmware: BLHeli_S
• Factory firmware: O_H_5_REV16_8.HEX
• Default protocol: DSHOT 150/300/600

Onboard 5.8g VTX

• Output power: 25mw~250mw switchable
• Frequency: 40CH
• Frequency: 5.8GHz 5 bands 40 channels(include Race band) IRC ready
