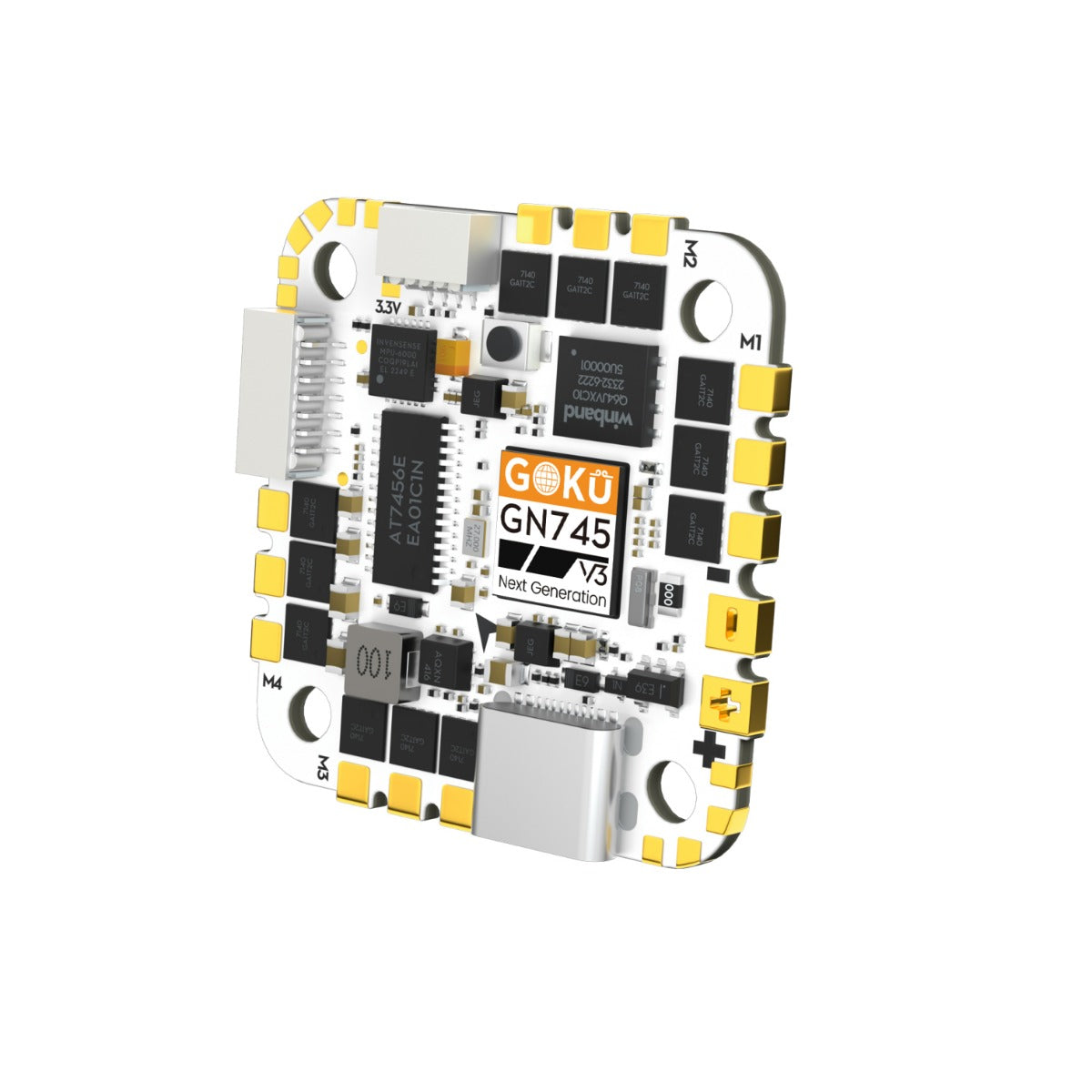

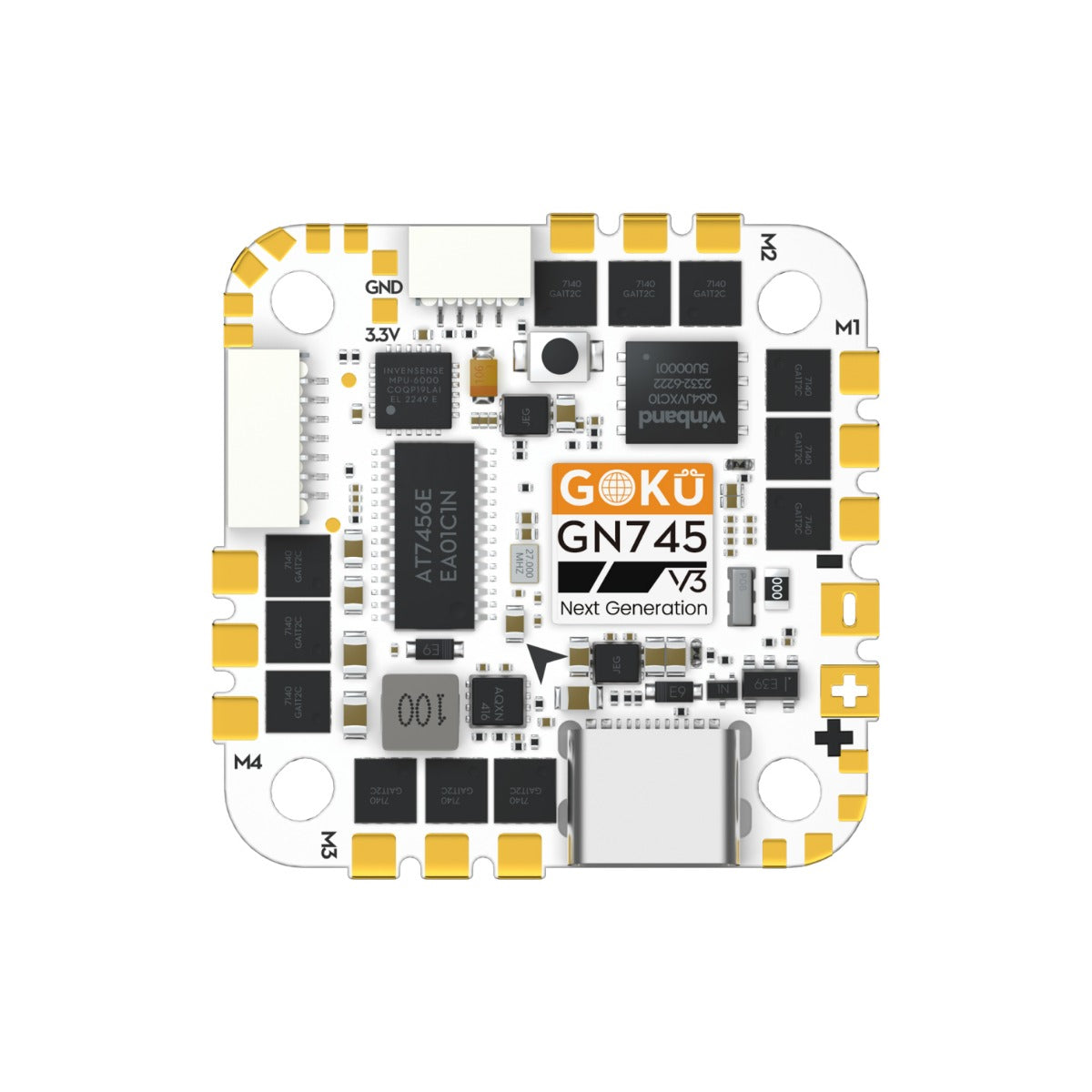

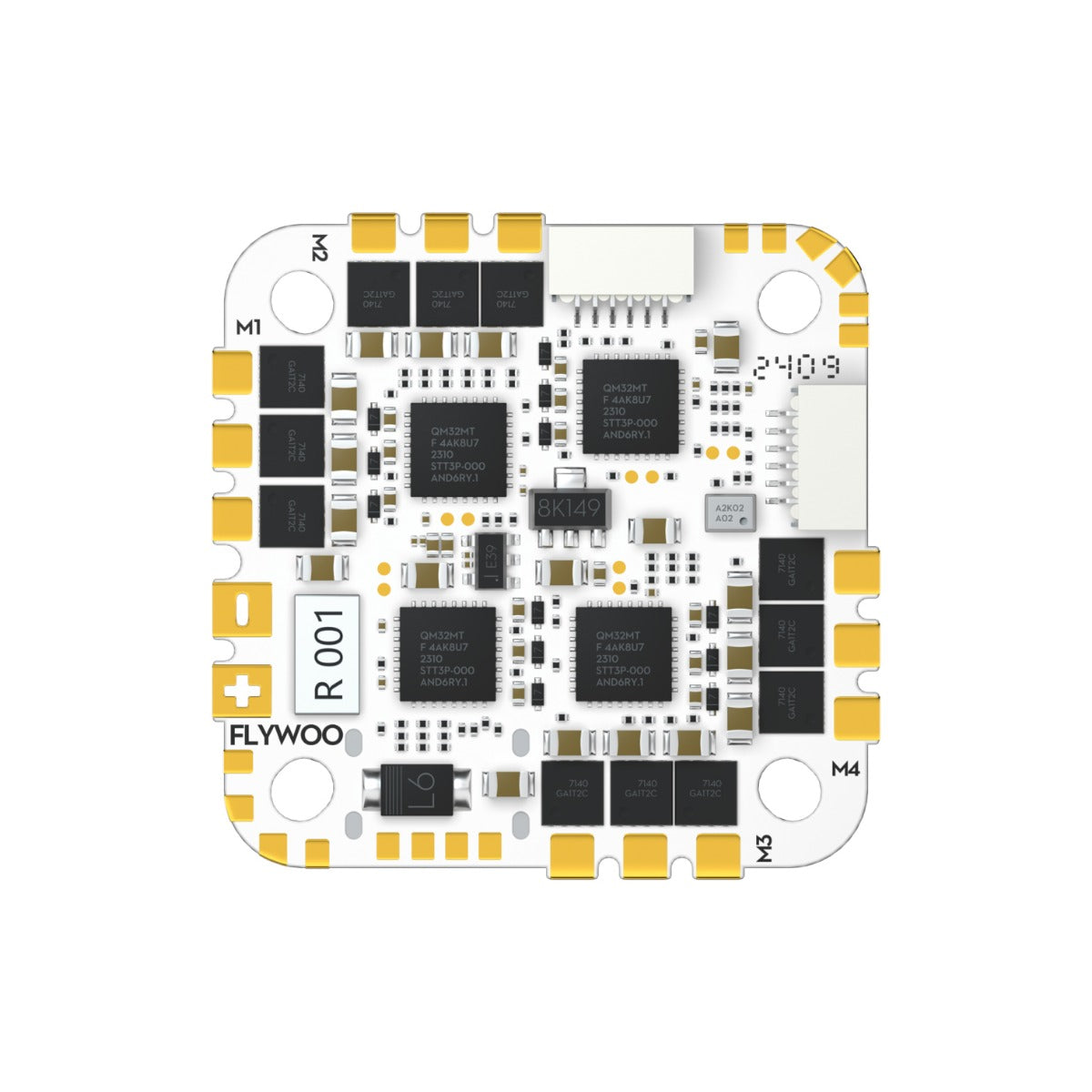

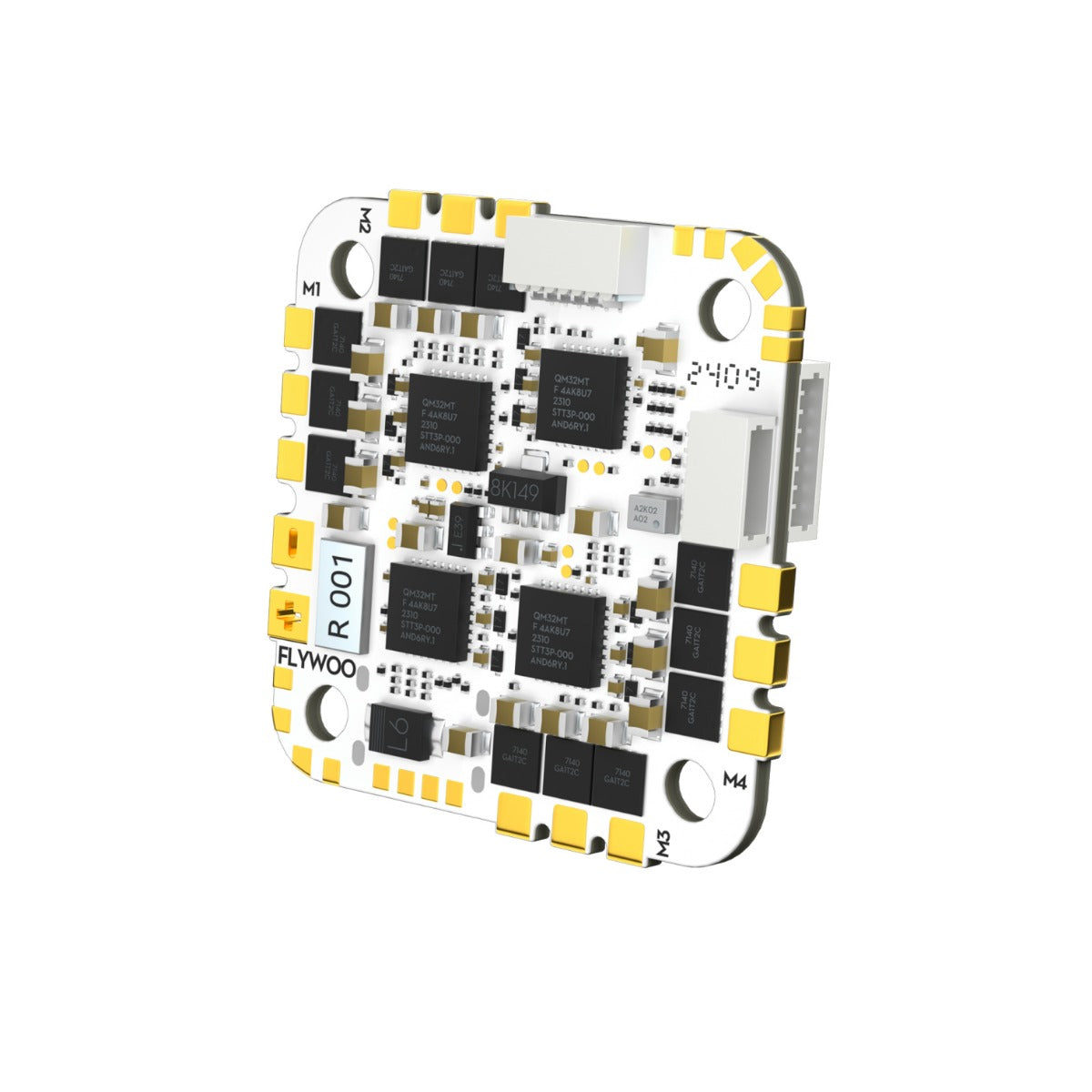

Flywoo GOKU GN745 45A AIO AM32 Flight Controller (MPU6000 V3)
Flywoo GOKU GN745 45A AIO AM32 Flight Controller (MPU6000 V3)
Out of stock
Share this product
Since its launch, the GOKU GN745 AIO has stood as Flywoo's top-tier AIO product, earning widespread acclaim from Betaflight, INAV, and Ardupilot enthusiasts. Now, we're excited to introduce the latest upgrade in this series—the V3 version! The V3 boasts a new ESC two-in-one drive solution, enhancing the continuous current capacity to 45A and improving the overcurrent protection capability of the motor pads, resulting in a more powerful overall performance. Furthermore, the V3 version significantly advances in terms of convenience, featuring 4 new direct-plug Uart ports and adopting a Type-C interface for easier connectivity.
Highlights：
-
Performance: Utilizes STM32F745 chip, AM32 firmware, and MPU6000 gyro, with dual BEC, barometer, black box, supports 7 serial ports and I2C.
-

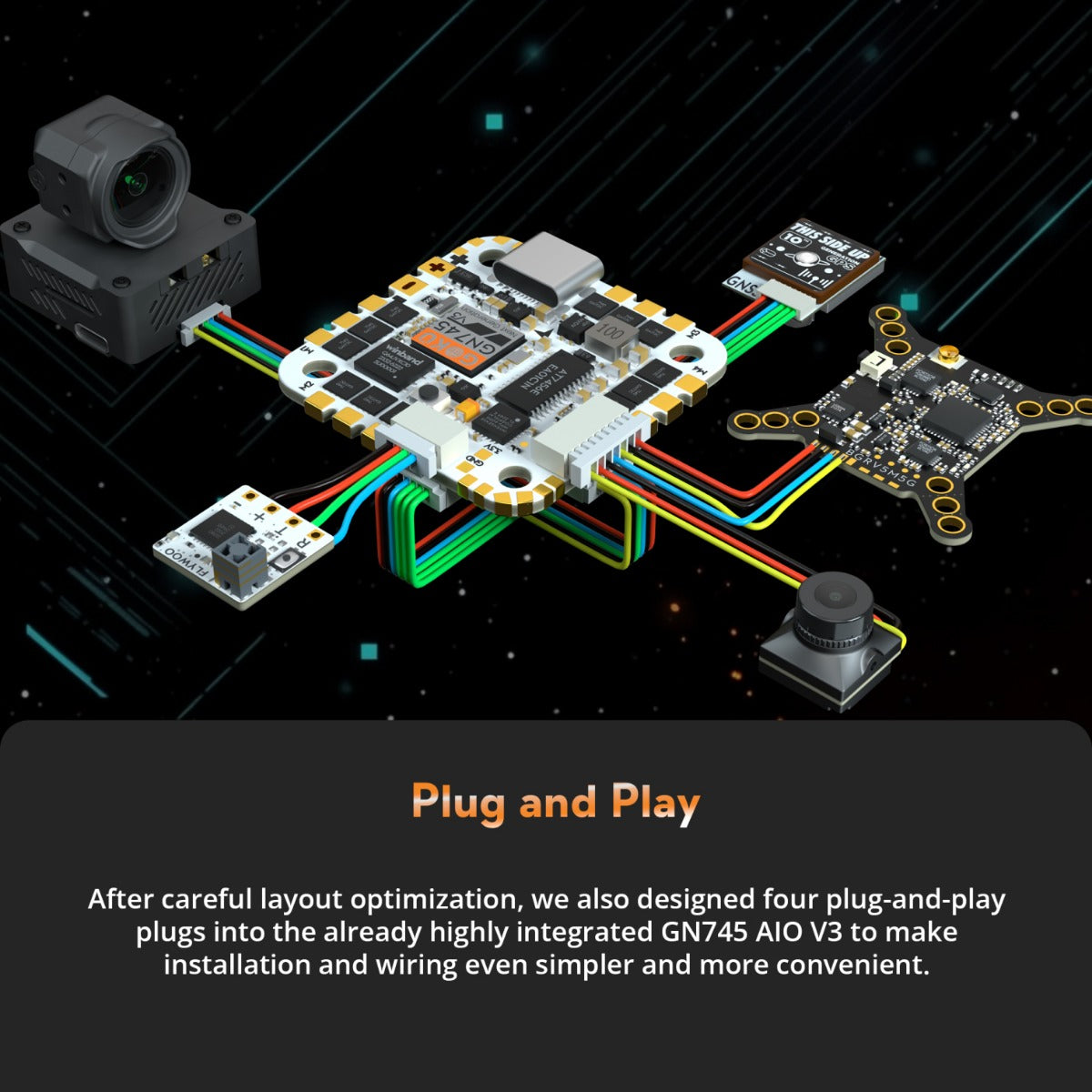

Plug & Play: Compatible with O3 air unit, GPS, Camera, Analog VTX, and Receiver without the need for soldering.
-

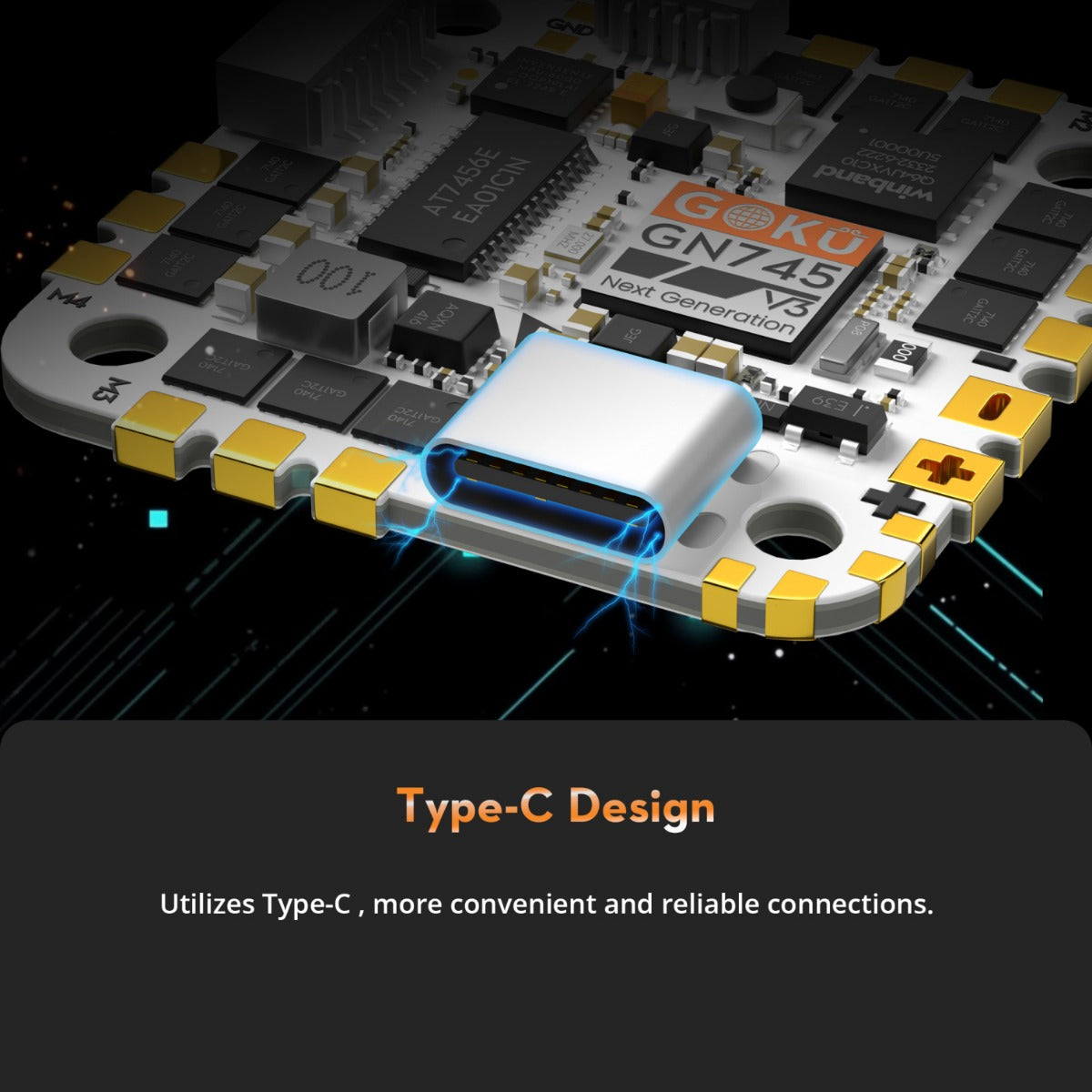

Type-C Interface: Features a Type-C interface for improved compatibility and easier connection.
-
Compatibility: Supports BF, INAV, and Ardupilot platforms.
-

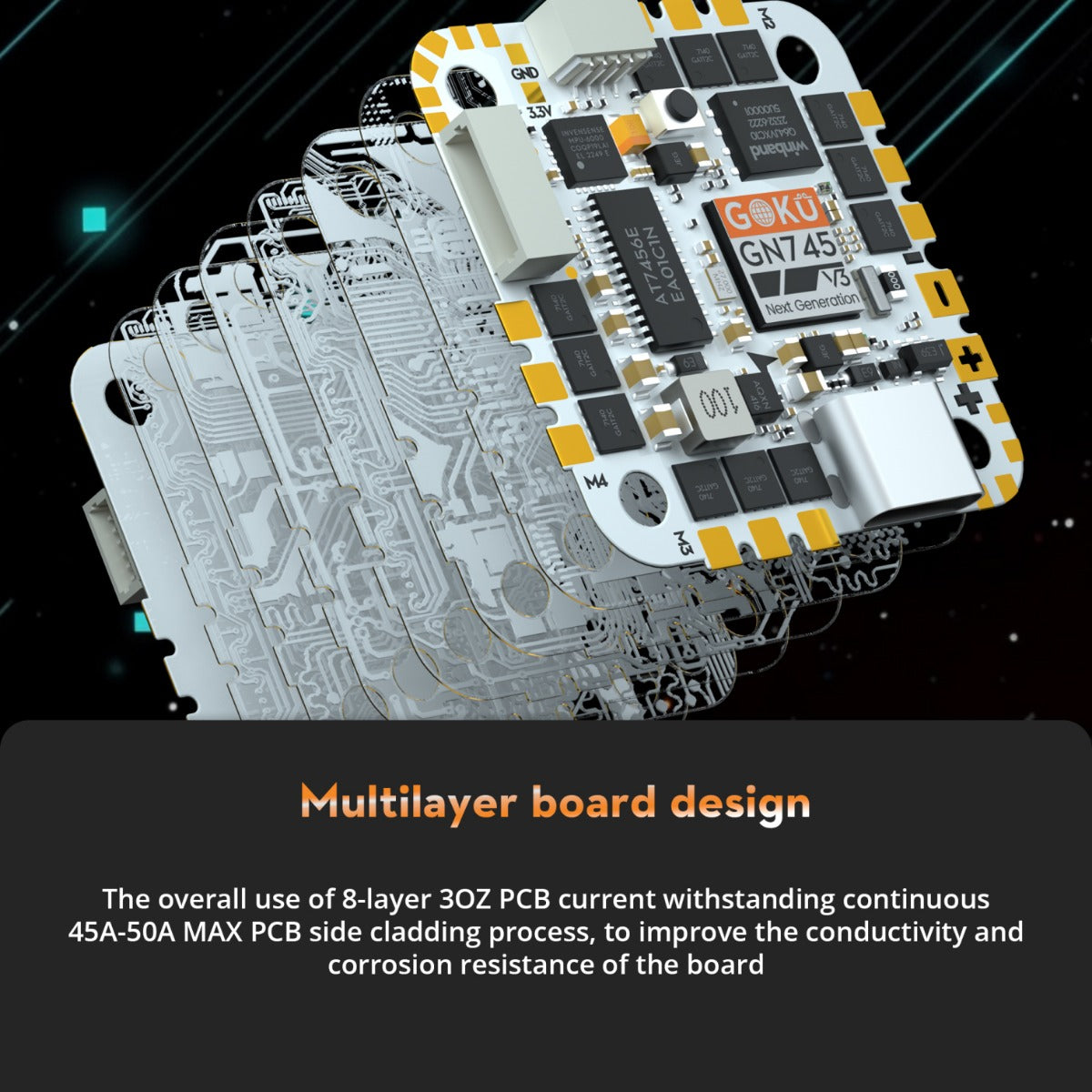

New Layout: New ESC two-in-one drive solution, with a continuous current up to 45A.
-

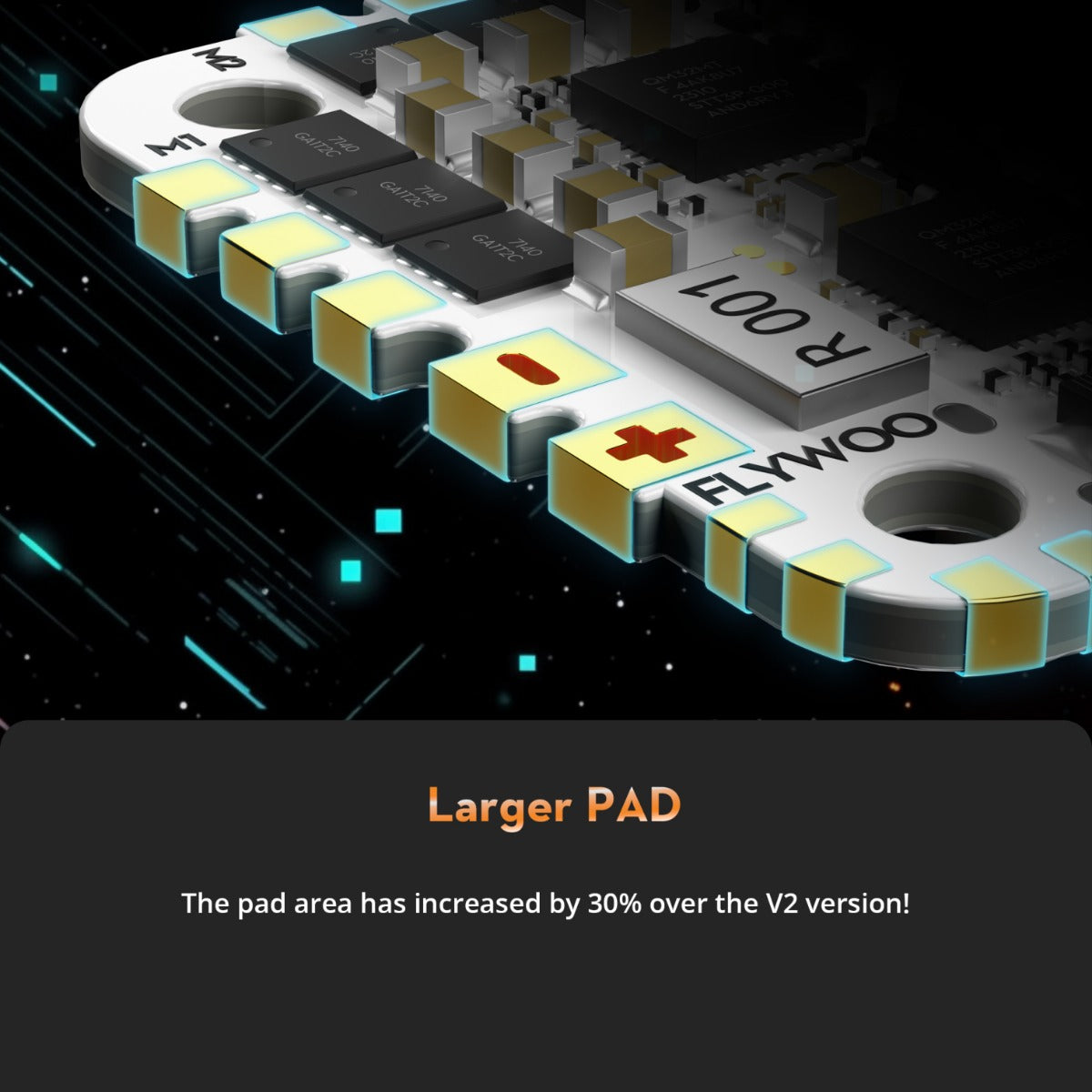

Better Protection: Larger motor pad area with improved overcurrent protection.
 GOKU GN745 45A AIO 32bit (MPU6000 ) V3
|
 GOKU GN745 45A AIO 32bit (MPU6000 ) V1.2
|
|
|
Firmware:
|
STM32F745 BGA
|
STM32F745 BGA
|
|
Continuous Current:
|
45A-50A MAX
|
40A-45A MAX
|
|
BEC:
|
5V 2A
|
5V 2A/9V 2A
|
|
ESC
|
32bit
|
32bit
|
|
Flash:
|
1MB
|
1MB
|
|
Black Box
|
16mb
|
16mb
|
|
Barometer:
|
DPS310/SPL06
|
DPS310/SPL06
|
|
Gyro:
|
MPU6000
|
MPU6000
|
|
Motor:
|
M1-M4 OUTPUT I2C: SCL/SDA
|
M1-M4 OUTPUT I2C: SCL/SDA
|
|
Uarts:
|
1,2,3,4,5,6,7
|
1,2,3,4,5,6
|
|
Plug Uart ports
|
YES
|
\
|
|
connector：
|
Type-C
|
Micro
|
|
OSD:
|
AT7456E
|
AT7456E
|
|
Hole:
|
25.5*25.5-3mm
|
25.5*25.5-3mm
|
|

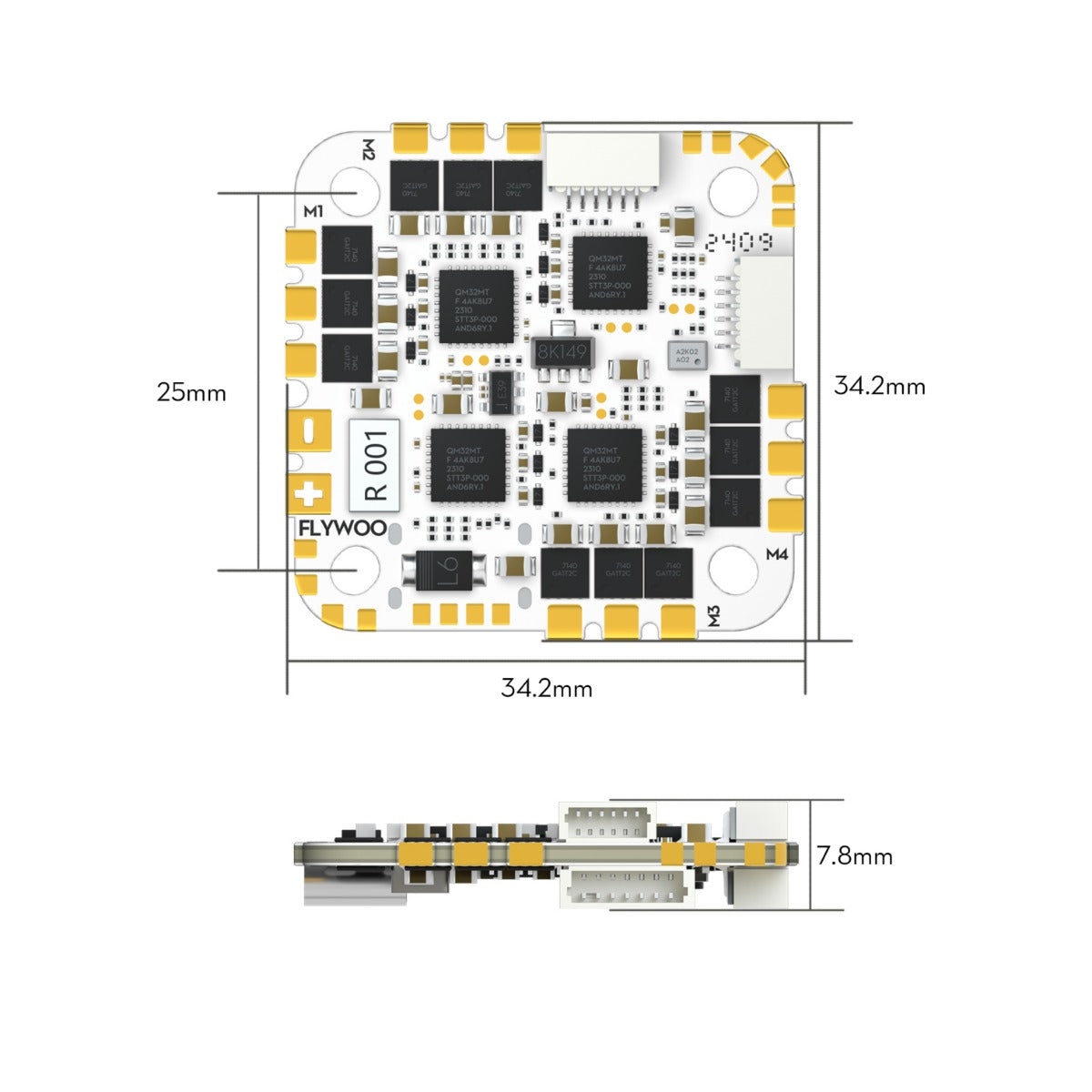

Size:
|
33.5x33.5mm
|
33.5x33.5mm
|
|

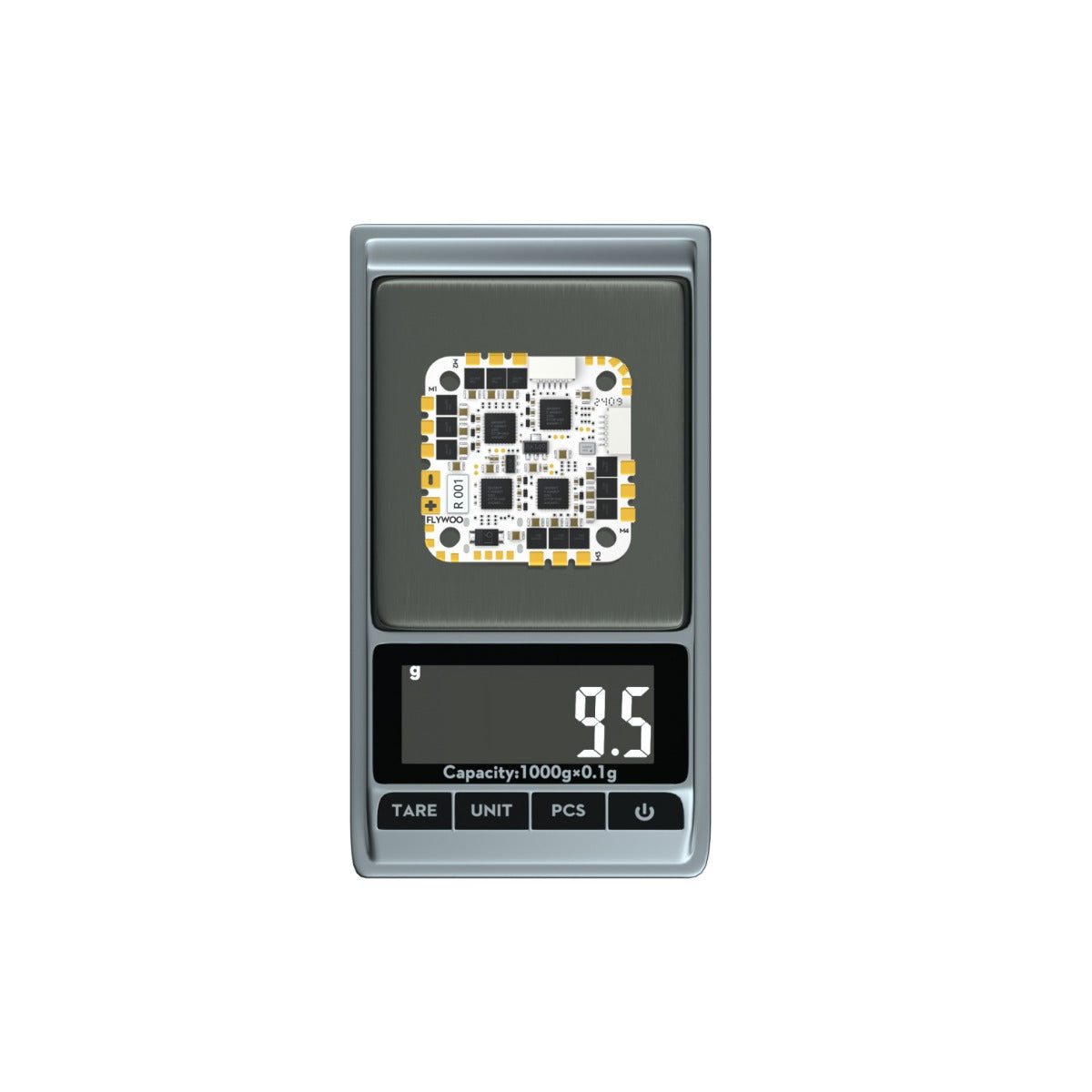

Weight:
|
9.4g
|
8.5g
|
Specifications：
- BF Flight Controller Firmware: FLYWOOF745AIO
- INAV Firmware: FLYWOOF745
- Ardupilot Firmware: FLYWOOF745

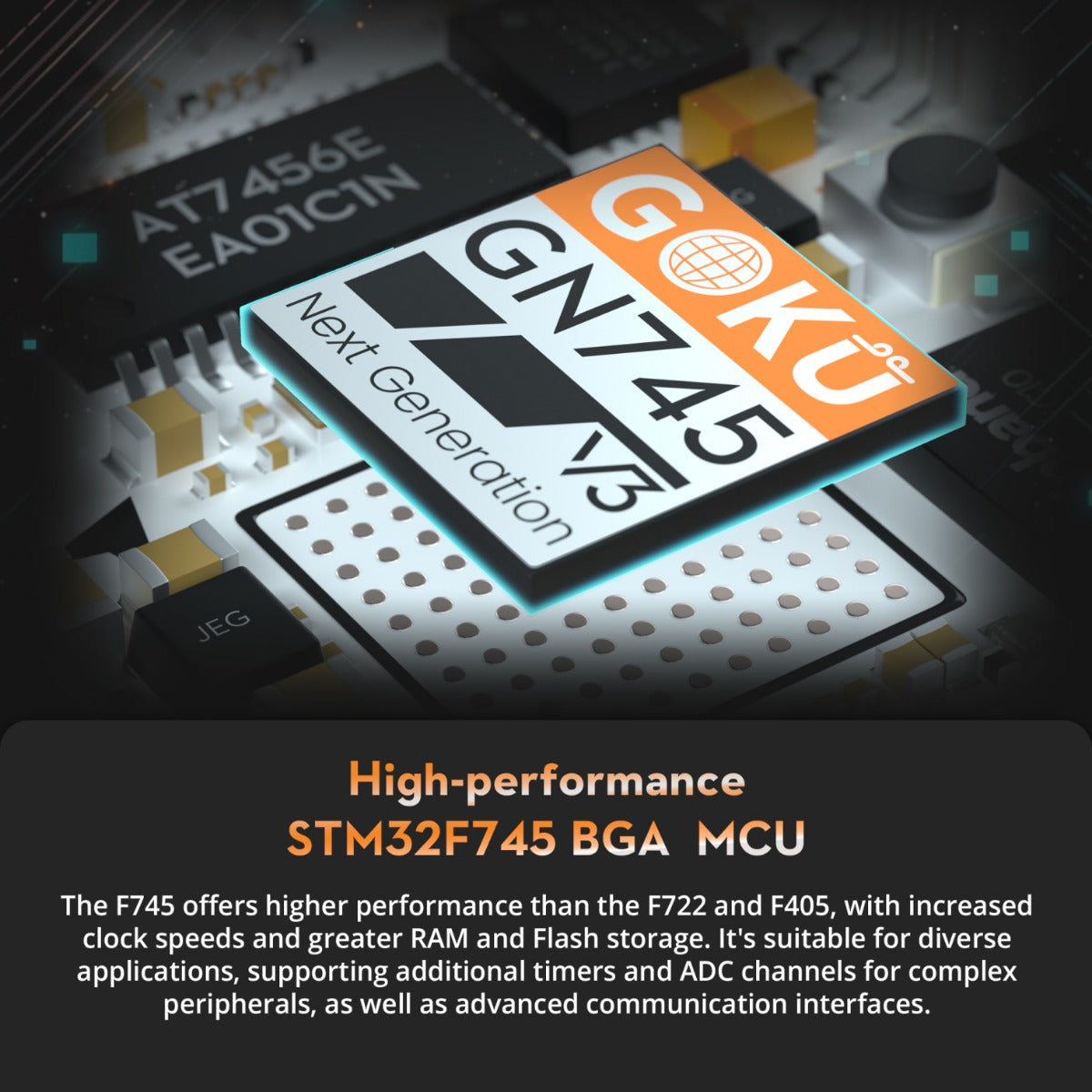

- MCU: STM32F745 32-bit processor,216MHz, 1MB Flash
- IMU: MPU6000 (SPI)
- Barometer: SPL06
- USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
- 7 hardware UARTS (UART1,2,3,4,5,6,7)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
- PPM and PWM receivers are not supported.
- Onbord 16Mbytes for Blackbox logging
- 5V Power Out: 2.0A max
- 3.3V Power Out: 0.5A max
- Dimensions: 33.5x33.5mm
- Mounting Holes: Standard 25.5/26.5mm square to center of holes
- Weight: 9.4g

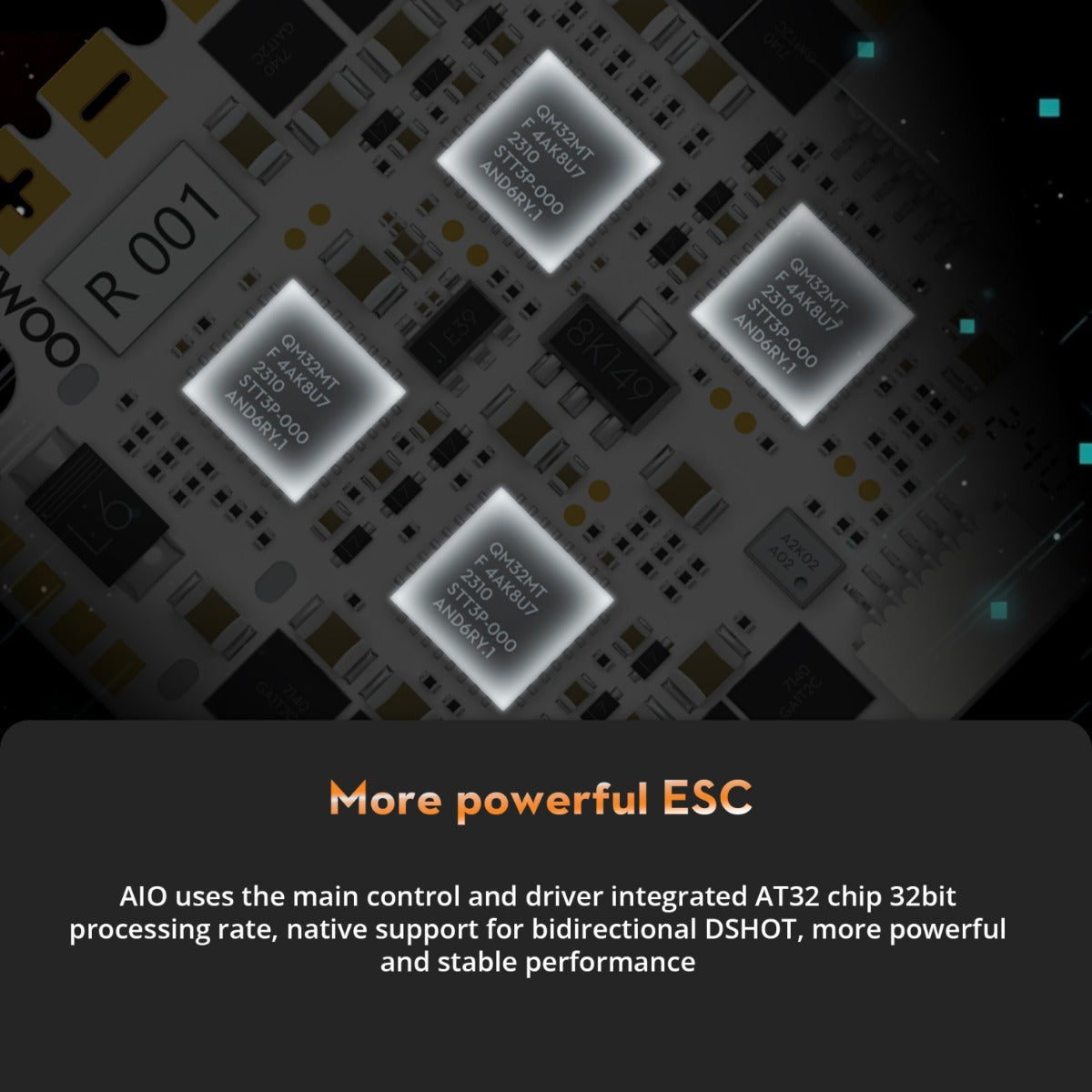

Onboard 4in1 ESC
- Support AM32
- Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600,Dshot1200
- Input Voltage: 2-6S Lipo
- Continuous Current: 45A
- Firmware: GOKU_F4A32_PRO
In the Box
- 1x UNICON UPL Capacitor 25V 470UF
- 4x M2x6.6 Shock-Absoring Ball
- 4x M2 Rubber Ring
- 1x XT30 Power Cable
- 1x DJI O3 Connection Cable
- 1x VTX & Camera Connection Cable
- 1x Receiver Connection Cable
- 1x GPS Compass Connection Cable
