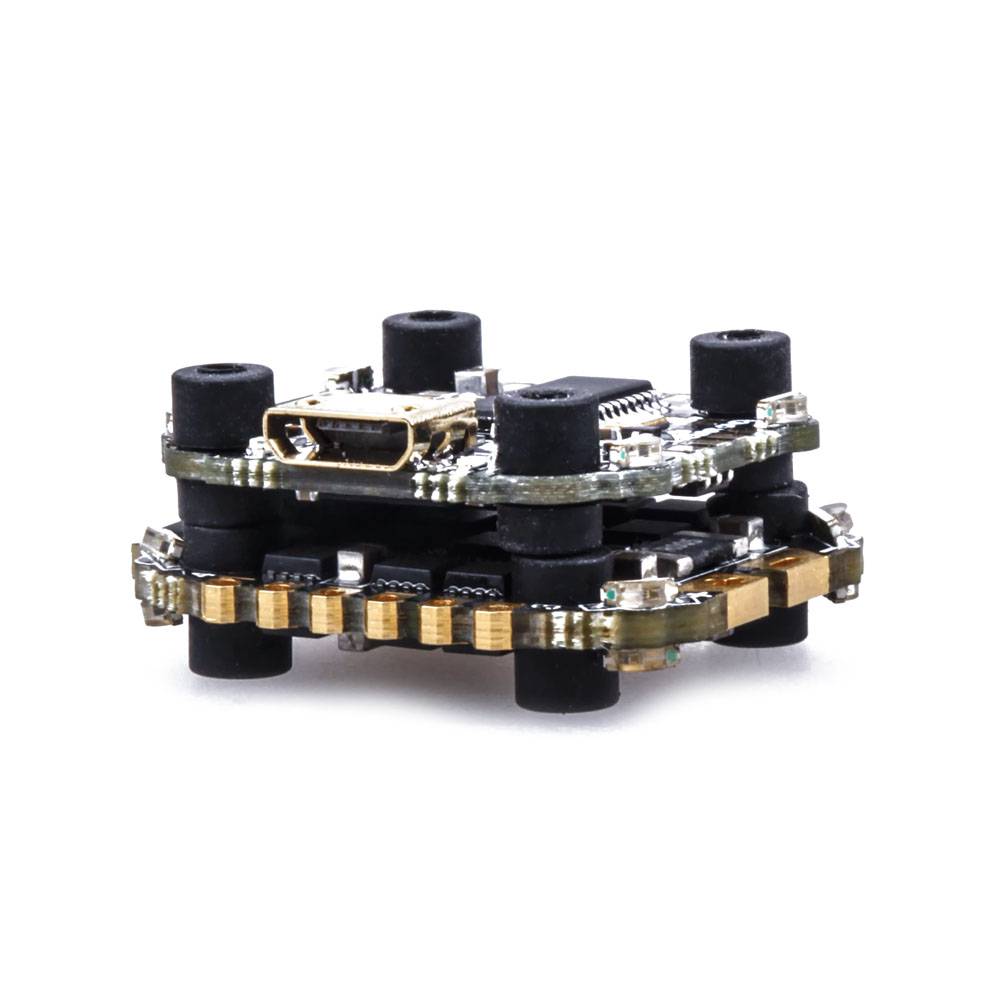

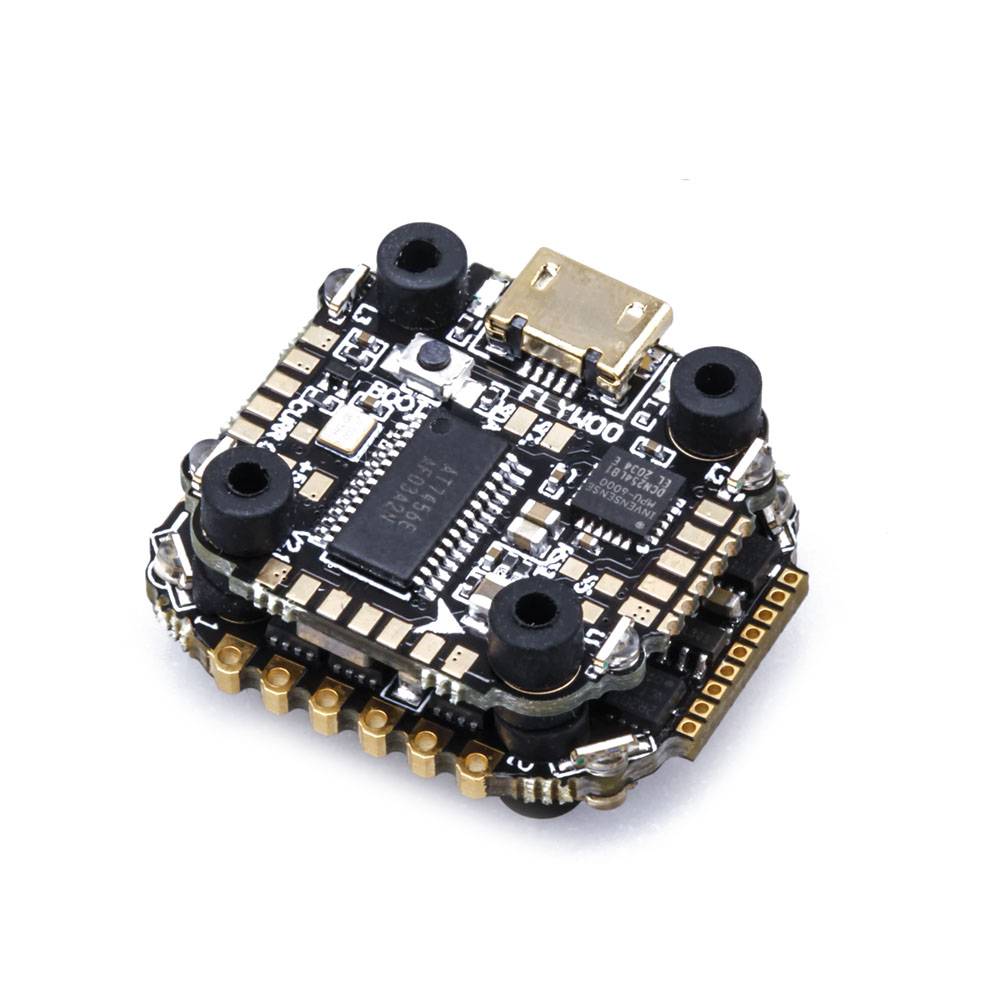

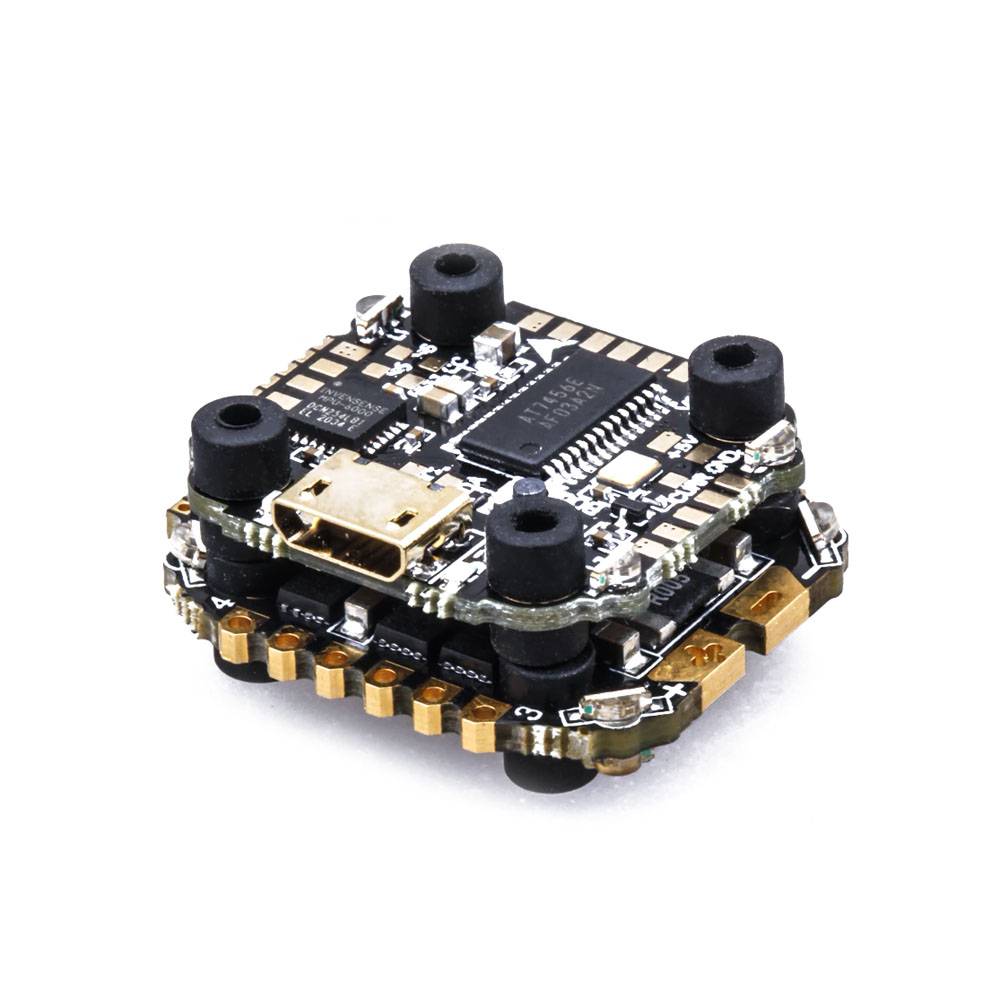

Flywoo GOKU F411 V2.2 16×16 Stack (FC + ESC)

The Flywoo GOKU F411 Stack (FC + ESC) (MPU6000) features 2 hardware UARTS, MPU6000 (SPI) IMU, STM32F411 MCU, and supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.

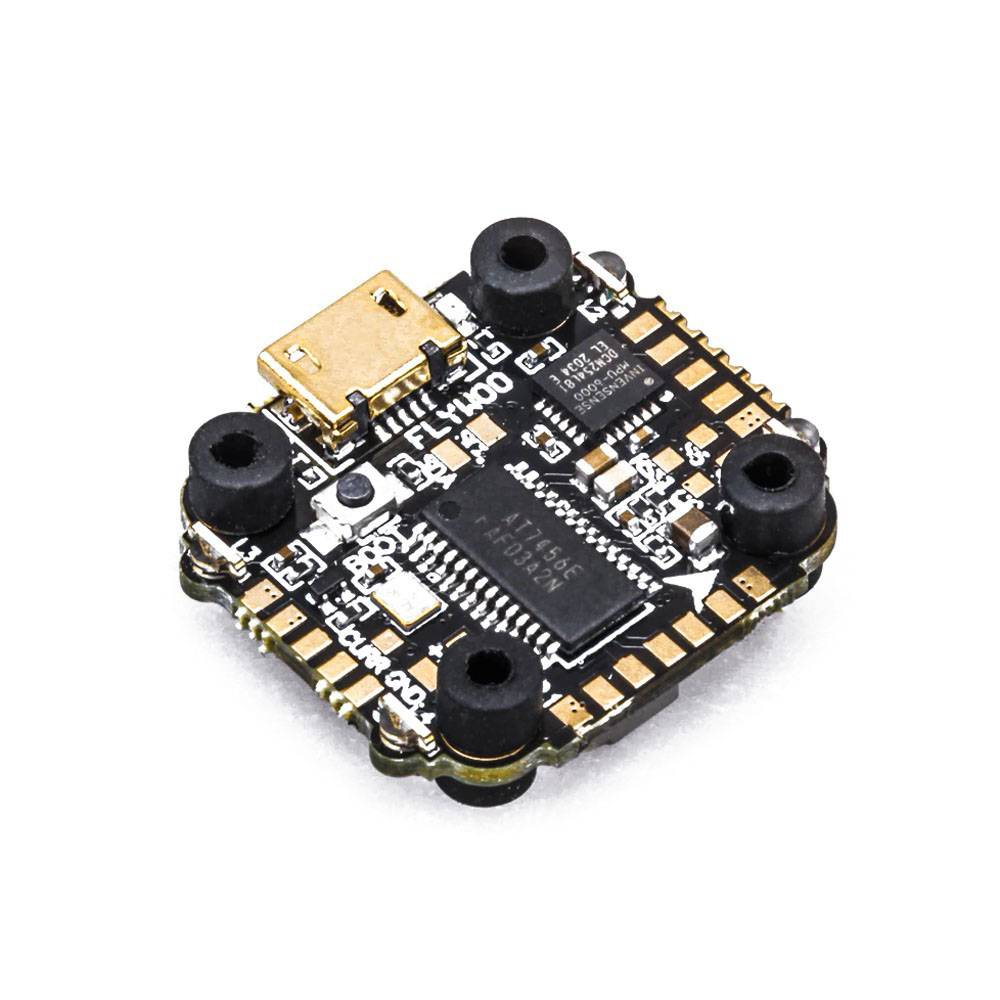

Specifications of FC

• MCU: STM32F411
• IMU: MPU6000 (SPI)
• USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
• 2 hardware UARTS (UART1,2)
• 2 Software serial port
• 1 I2C port for compass/baro
• Onboard LED：WS2812*8(FC*4/ESC*4)
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
• PPM and PWM receivers are not supported.
• Onbord 8Mbytes for Blackbox logging
• 5V Power Out: 2.0A max
• 3.3V Power Out: 0.5A max
• Dimensions: 23.5×23.5mm
• Mounting Holes: Standard 16mm square to the center of holes
• Weight: 6.5g

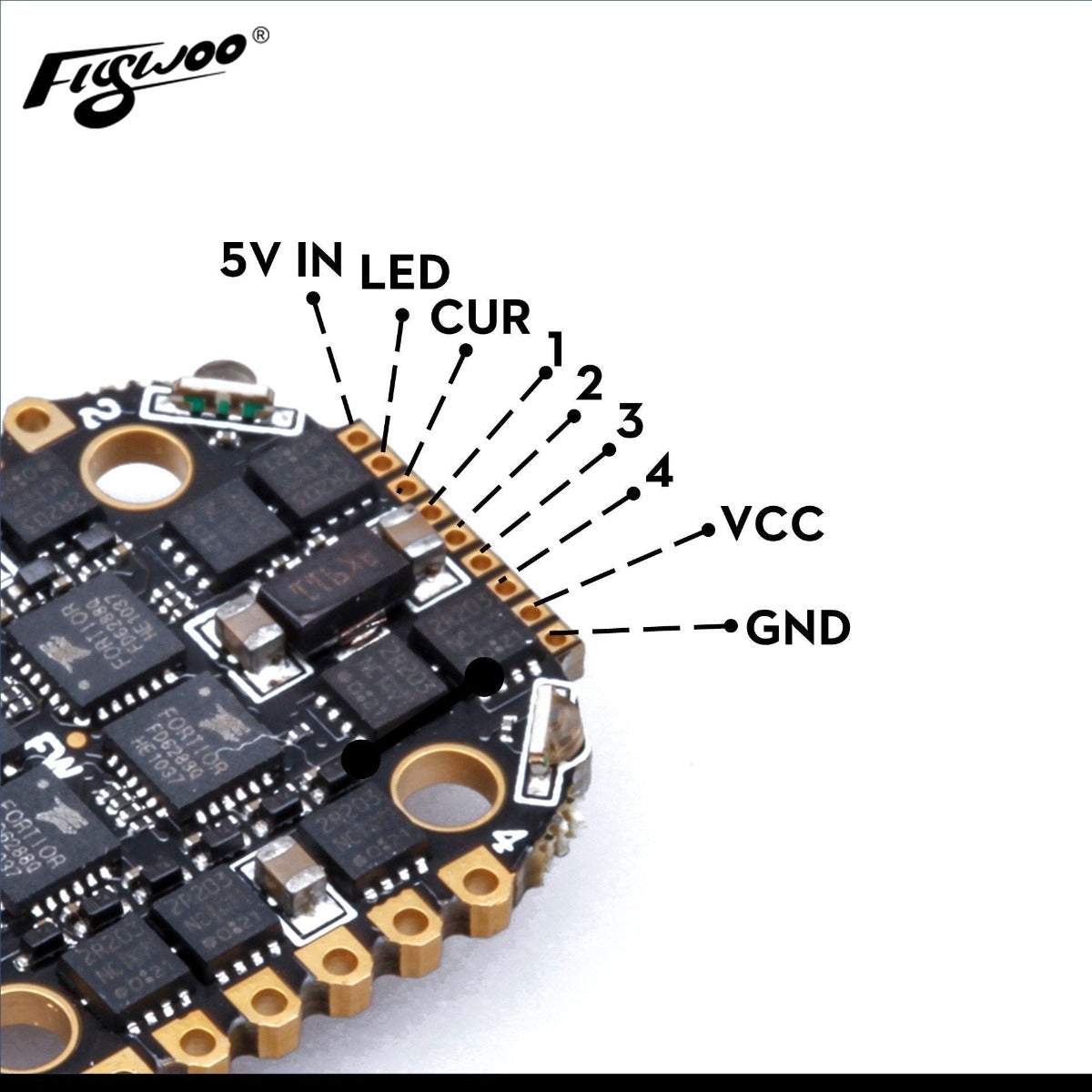

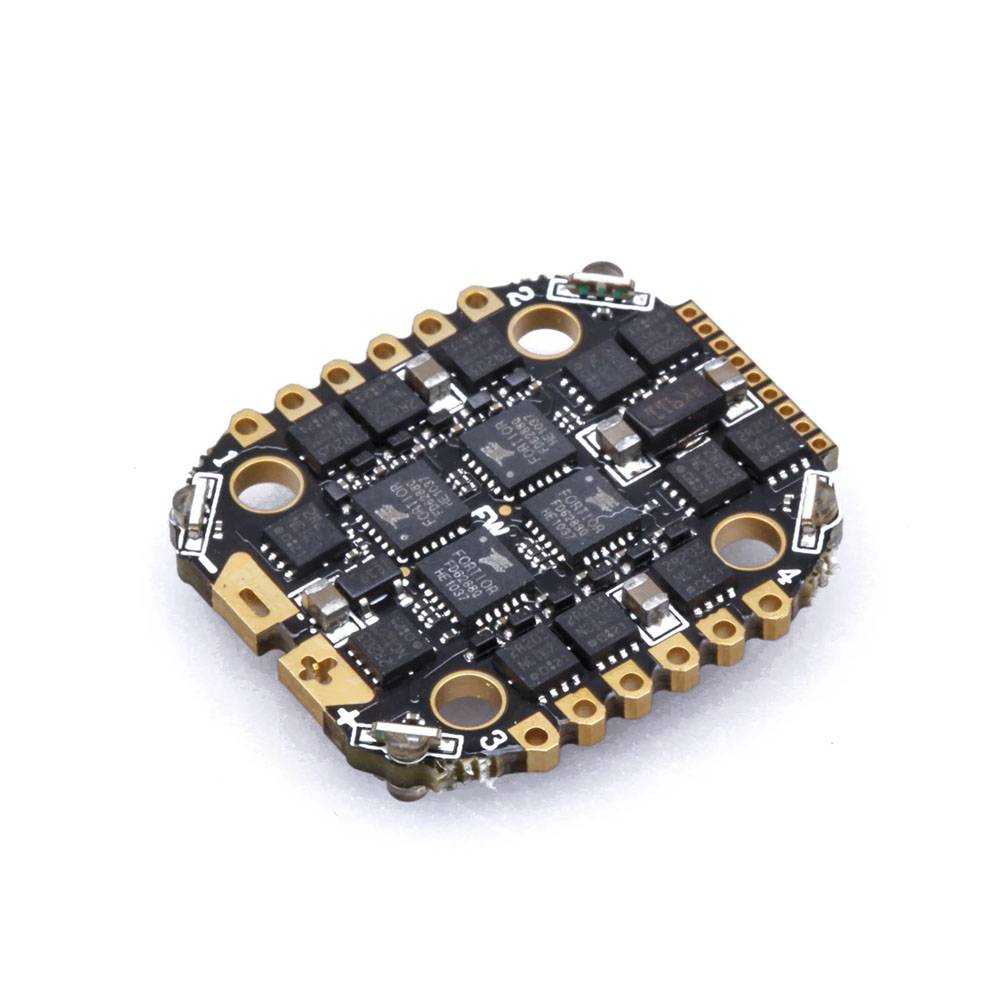

Specifications of ESC

• Built-in 35A BL_S 4in1 ESC
• Support BLheli / BLHELI_S
• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Input Voltage: 2-4S Lipo
• Continuous Current: 35A
• Firmware: BLHELI_S
