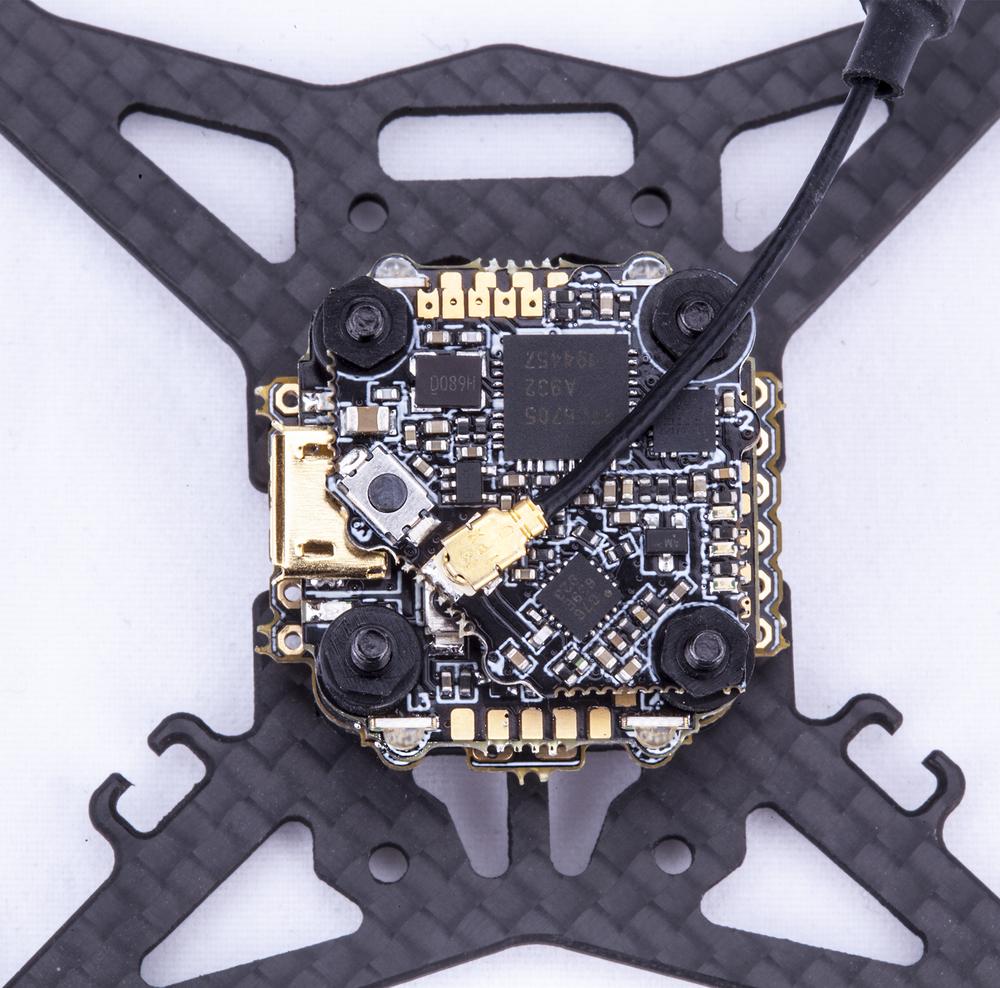

GOKU F411 FC:

Model: GOKU F411 FC
MCU: STM32F411
IMU: MPU6000 gyro/accelerometer (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
Baro: no
black box: 8M

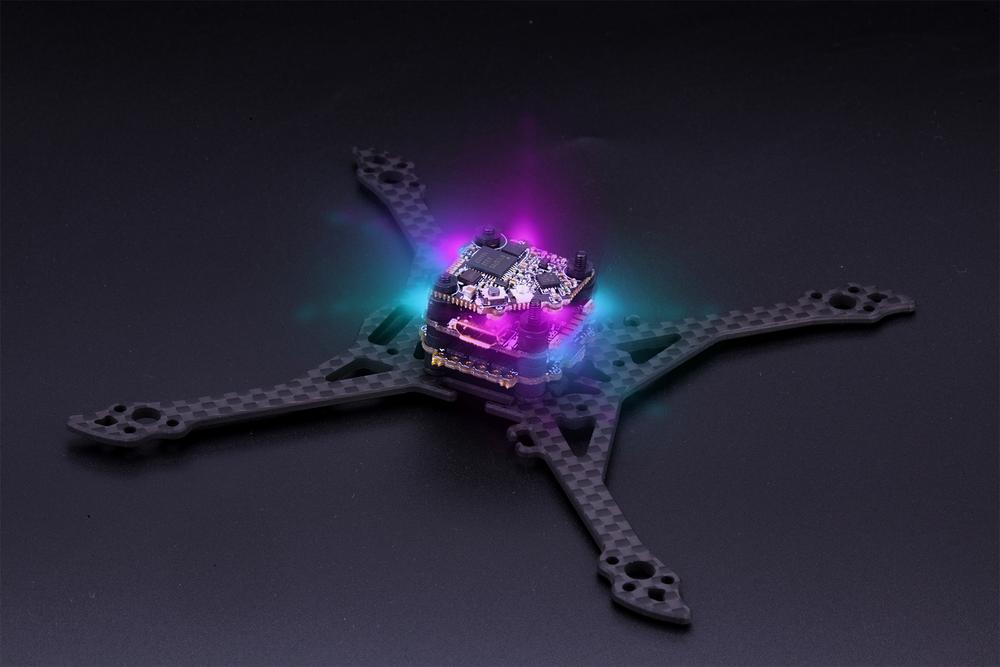

LED：8*WS2812
BEC Output: 5V@2A
Integrated LC Filter
Firmware target: FLYWOOF411
Size: 24×24mm board,16mm mounting holes (M3)
Weight: 2.6g

GOKU BS13A ESC:

Model: GOKU BS13A ESC
ESC MCU: BB21F16G
Continuous current: 13A
Input:2-4s lipo
Supports Dshot600 ,Oneshot,Multishot
Size: 24×24mm board,16mm mounting holes (M3)
Weight: 2.6g

GOKU VTX625

Output Power: PIT/25mW/50mW/100mW/200mW/450mW Switchable
Control Mode: BFOSD Control(RX)/Button
BAT: 5V
LED: 4*WS2812LED
Video System: NTSC/PAL
Antenna: IPEX
Size: 31MM*31MM
hole: 16*16mm/20*20mm/25.5*25.5mm
Weight: 3g
