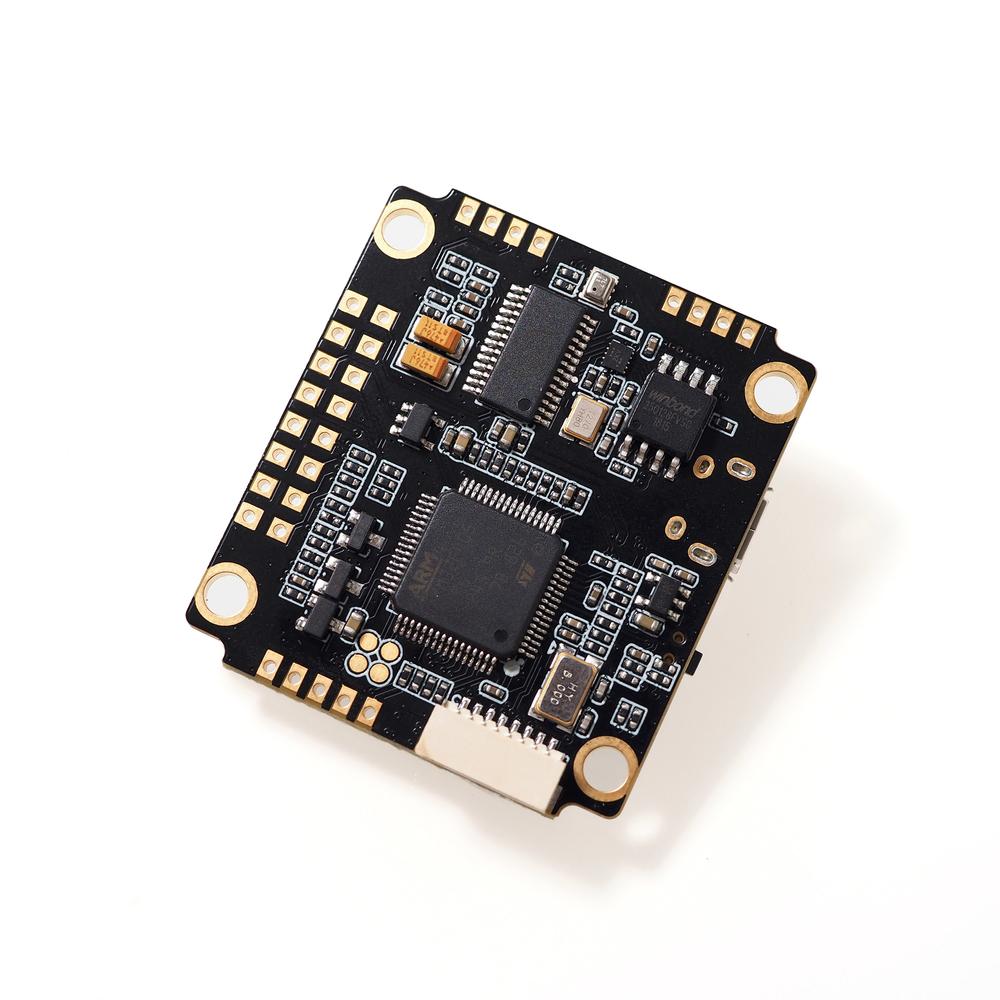

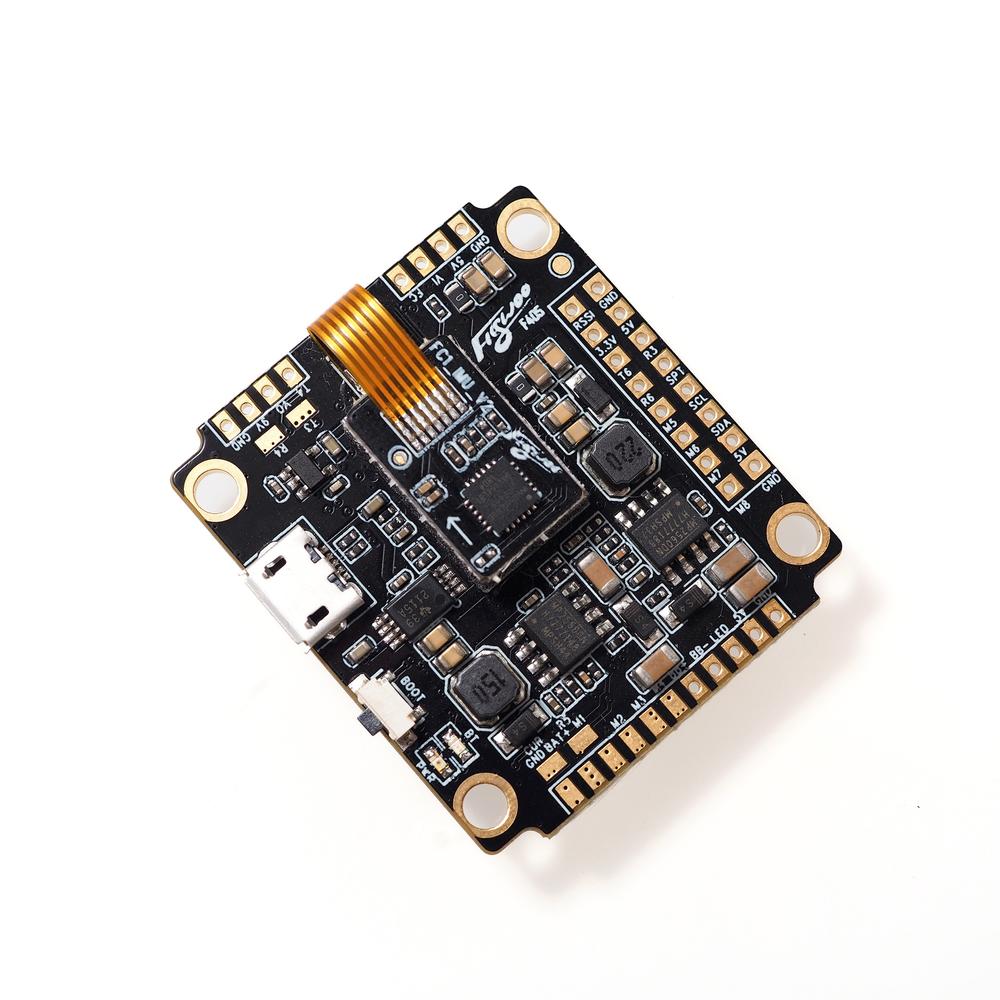

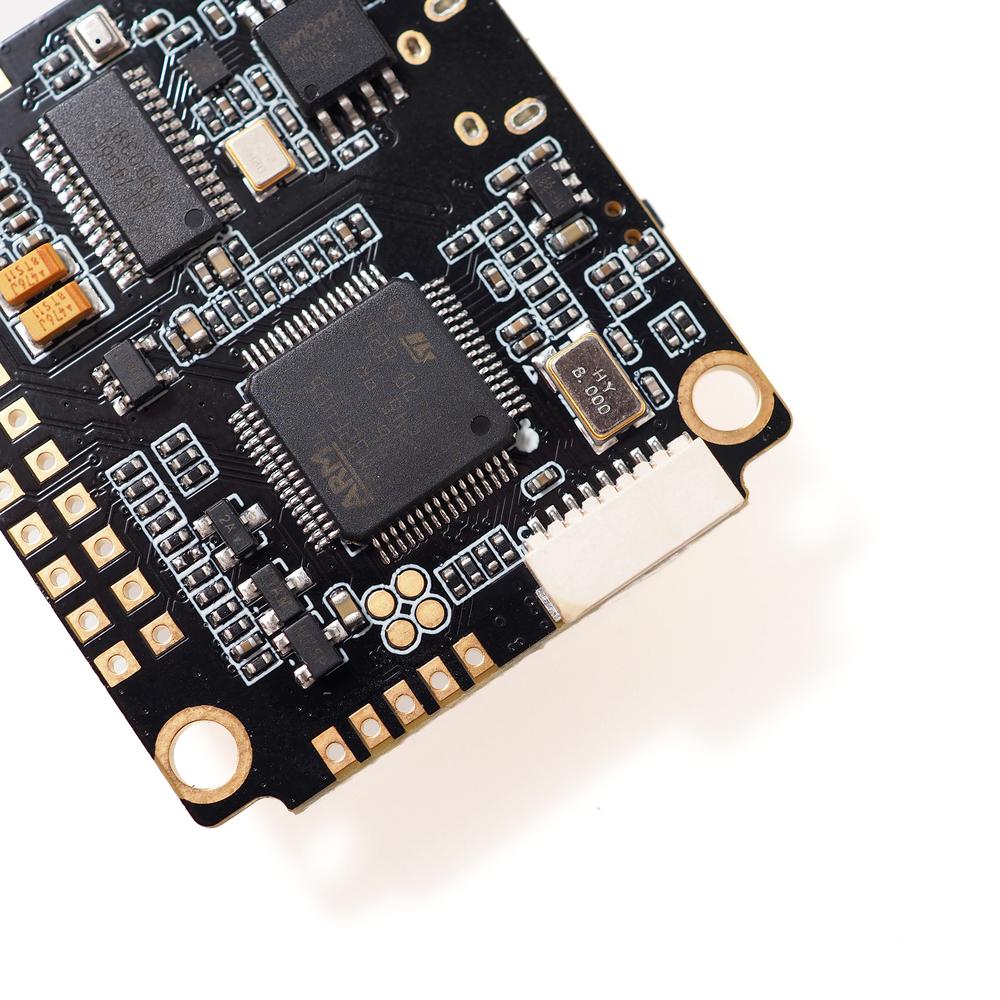

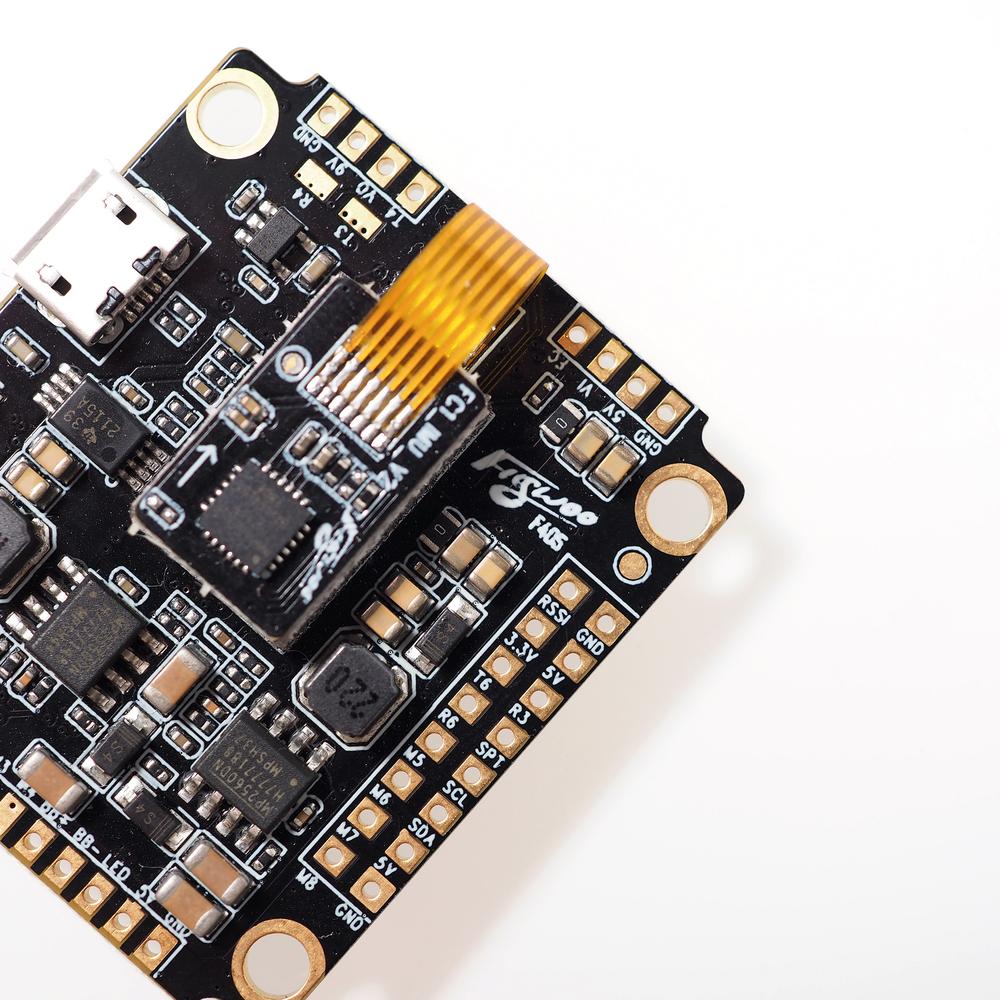

FLYWOO F405 Flight Controller (MPU 6000)

FLYWOO F405 flight controller uses STM32F405 high performance processor and ICM20689 32KHZ ultrahigh frequency gyroscope with built-in OSD,FLASH 5V and 9V BEC. The image in large current flight is very clear and steady due to well-designed hardware and high performance components. With special dual shock absorption device, FLYWOO F405 can adapt to any frame or installation method, and it makes flight steady with 32KHZ. What’s more, all UARTS are open to users so that you can extend its function. We hope FLYWOO F405 will bring you satisfying experience with humanized design and simple installation.

TECHNICAL PARAMETER

• SIZE: 36*40mm
• Hole: 30.5*30.5-3mm
• Weight: 8.3g
• MCU: STM32F405RGT6
• GYRO: MPU6000
• BARO: BMP280
• FLASH: 16M
• BEC: 5V 1.5A/9V 1.5A
• Input Voltage: 3-8s
• Firmware: FLYWOOF405

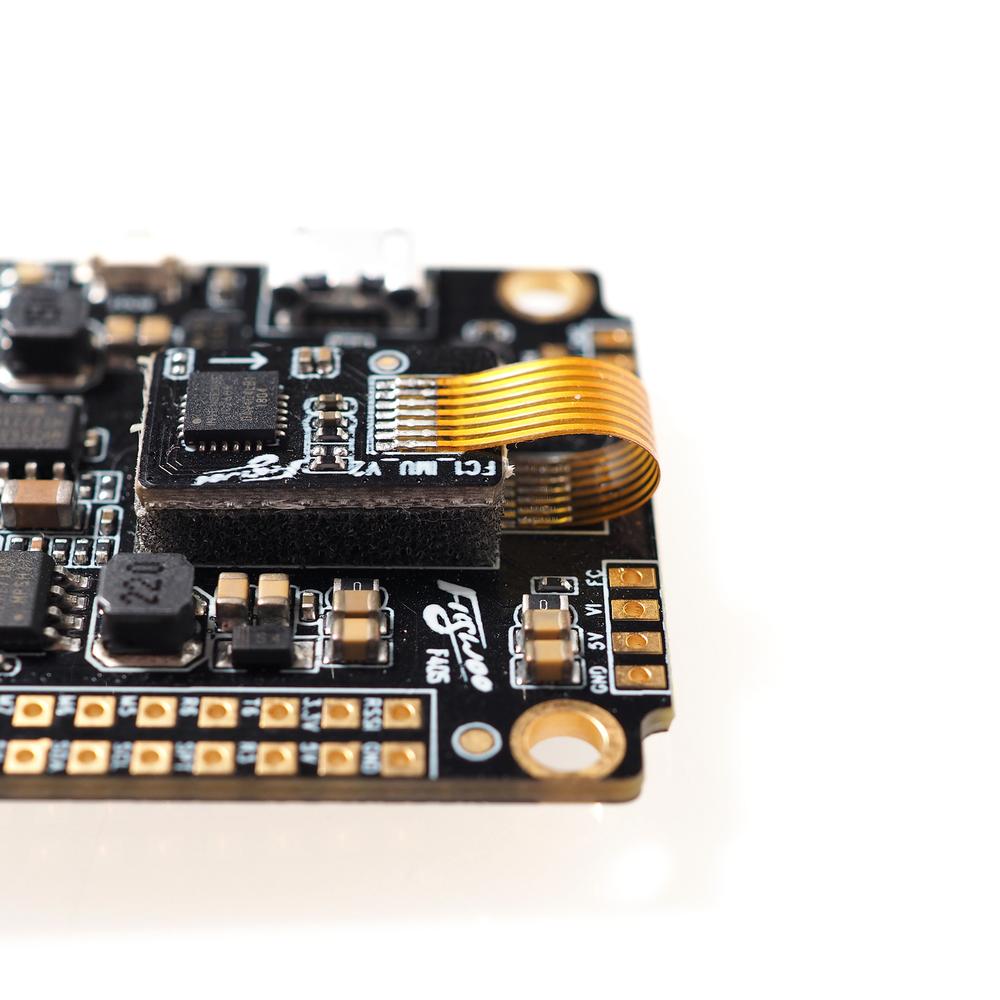

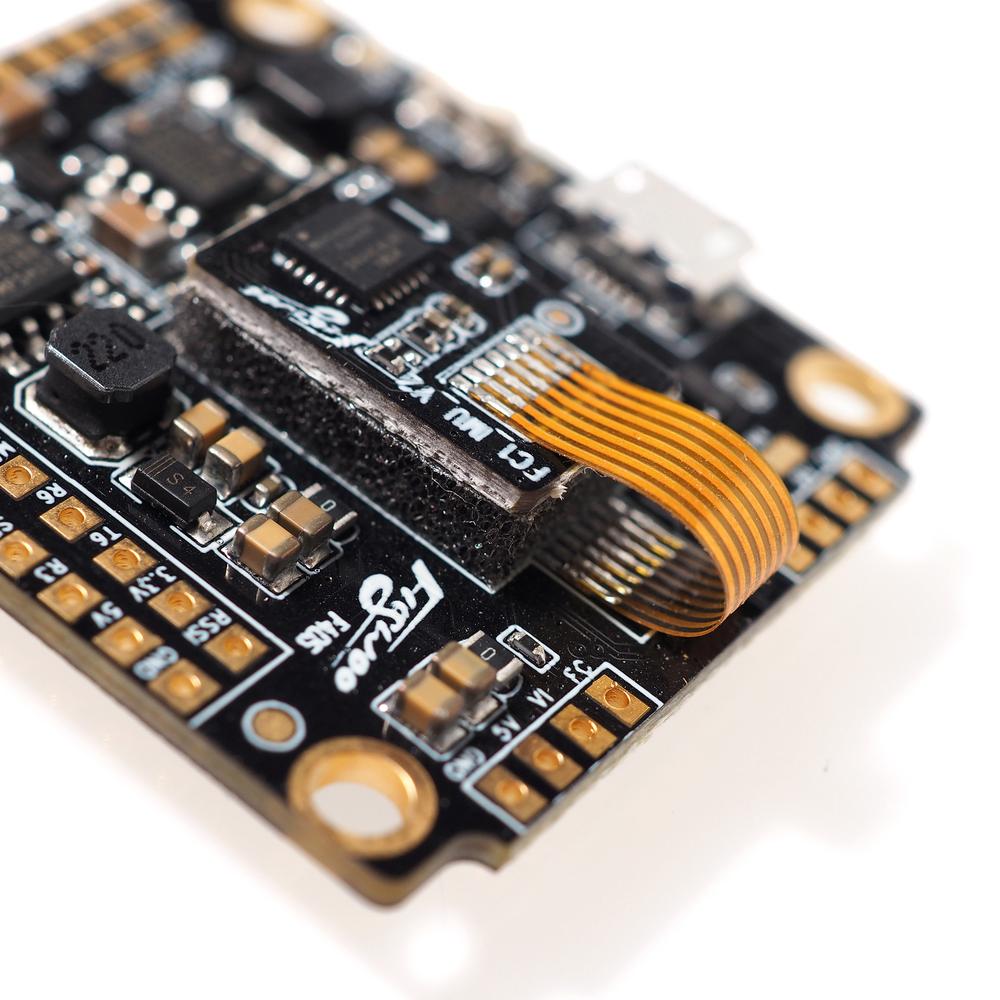

• dual shock absorption device (3M Sponge & Absorbing Screws)
• 32KHZ ultrahigh frequency gyroscope
• Support Camera Menu Settings
• 5V&9V BEC output
• Max voltage 42V input

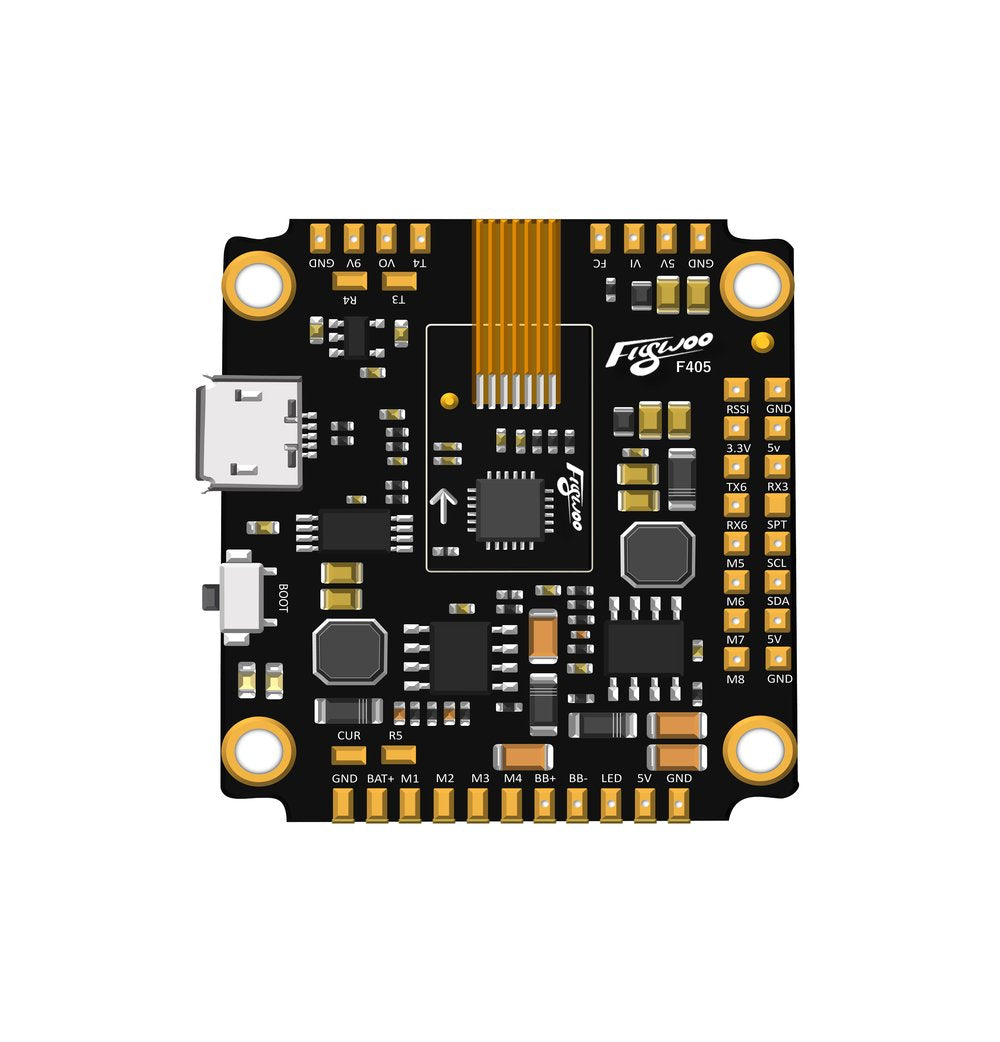

• 5 Functional UARTS (UART1,3,4,5,6)
• Max 8 motor output
• Support SBUS, iBus, Spektrum, Crossfire Receiver

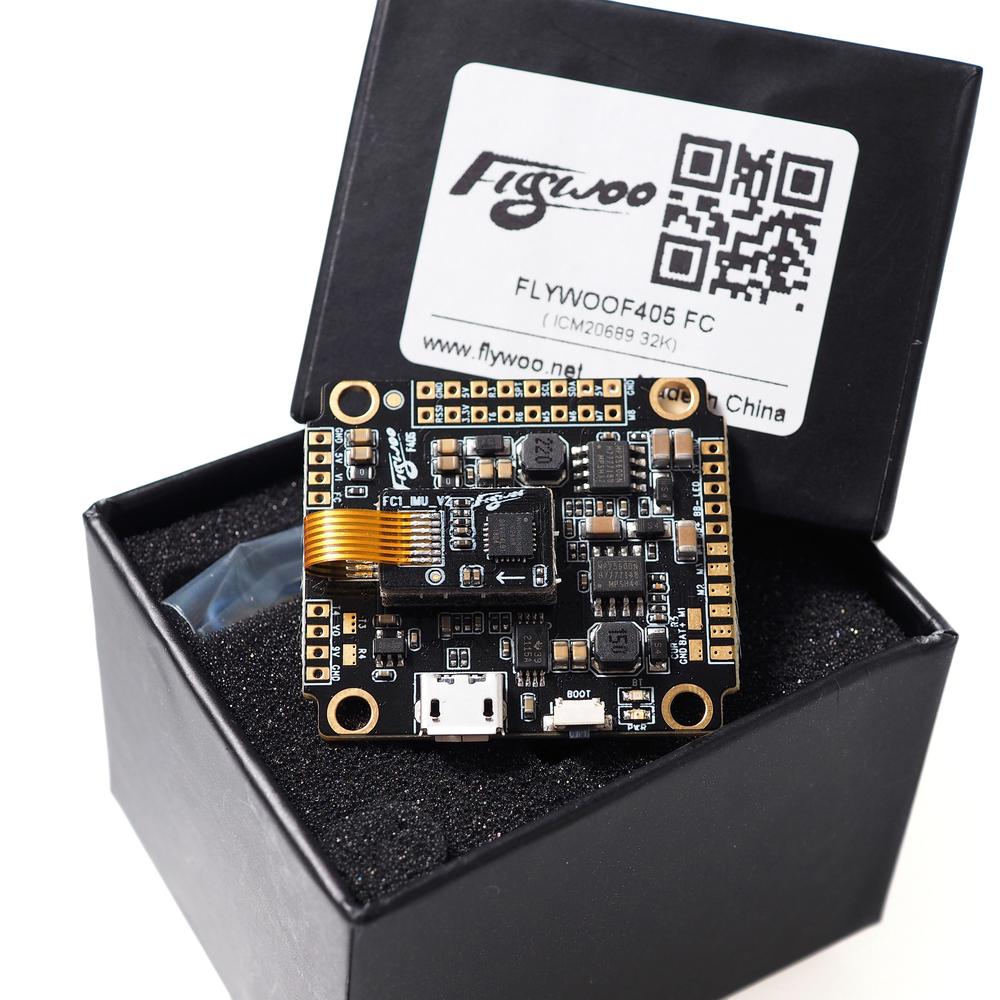

ACCESSORIES

• FLYWOOF405 FC *1
• FPC Connector*1
• 3M Absorbing Sponge *1
• 8PIN SH1.0 Connector *1
• Absorbing Screws *4
