Flywoo ATOMIC 5.8GHz RHCP FPV Antenna For Analog FPV

DESCRIPTION
Custom tube Durable 5.8G antenna for Analog FPV

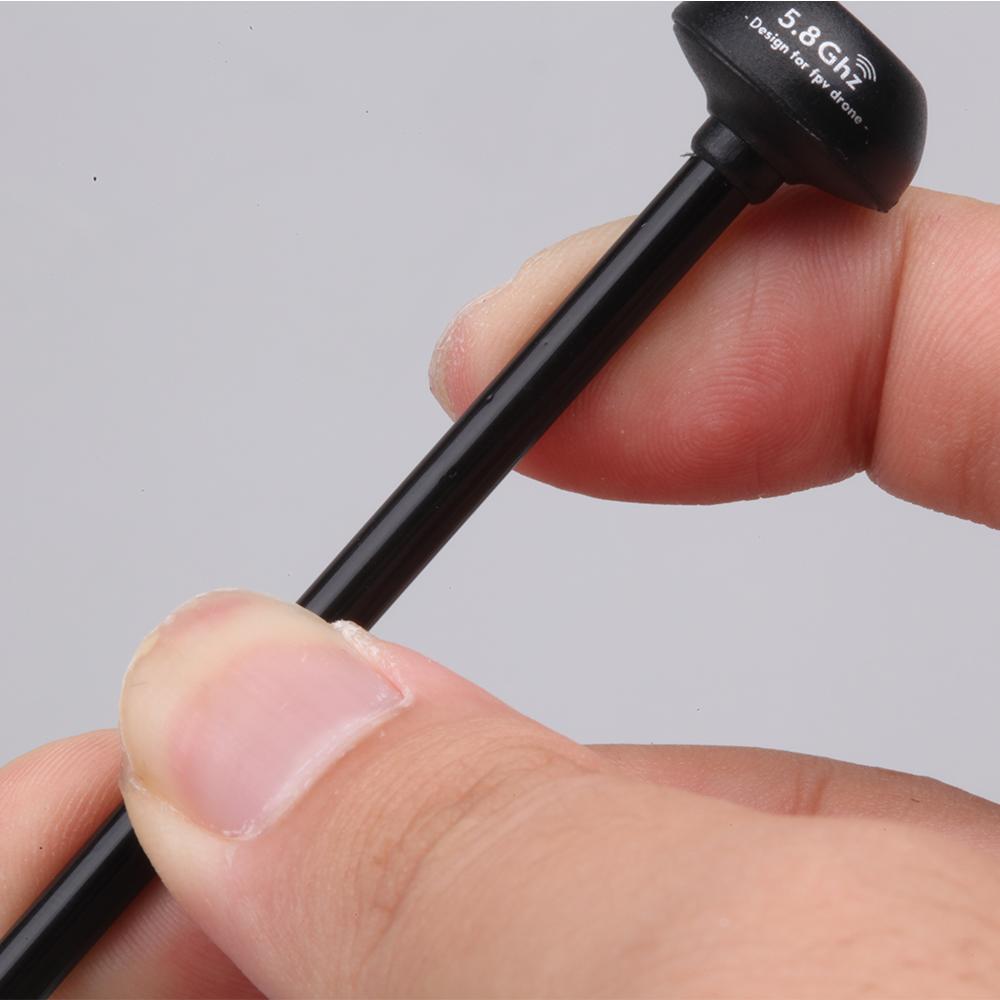

Custom tube. Strong hardness, not easy to bend. Tube Can effectively resist wind force in flight


Use RHCP (Right Hand Polarization) for Analog FPV! Default antennas are RHCP and Goggle Antennas are RHCP, both sides need to match!

SPECIFICATION
Model: 5.8GHz RHCP FPV Antenna
Frequency range: 5500-6000MHz
Gain: 3dbi
Axial Ratio: 0.7
Cable：RG1.37
Length: 30mm/60mm/100mm

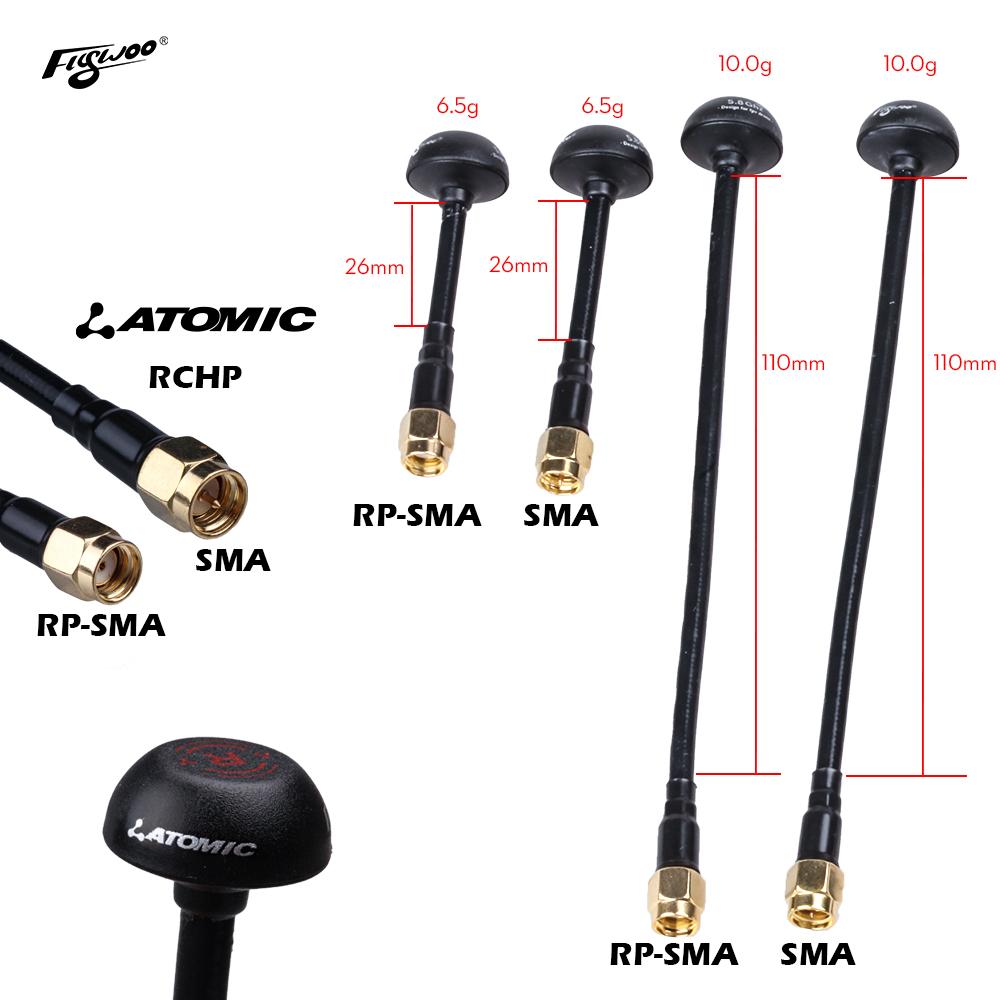

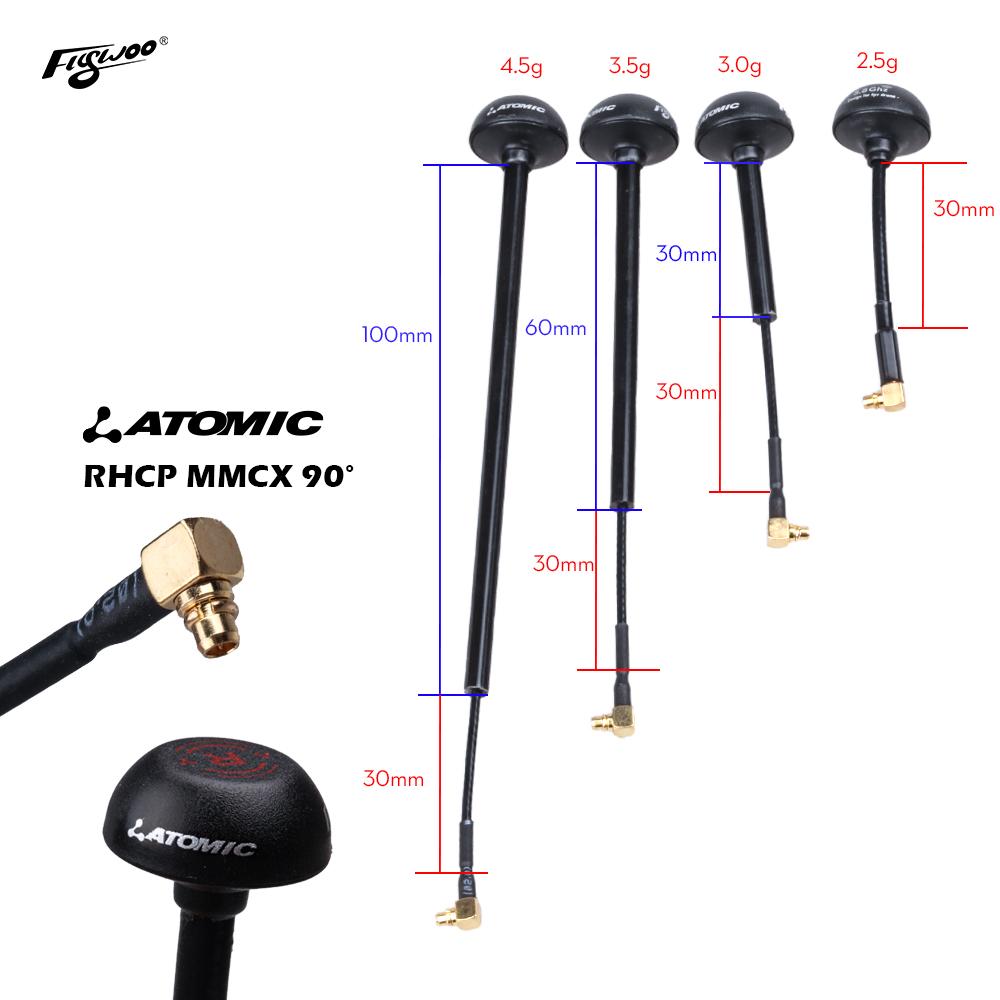

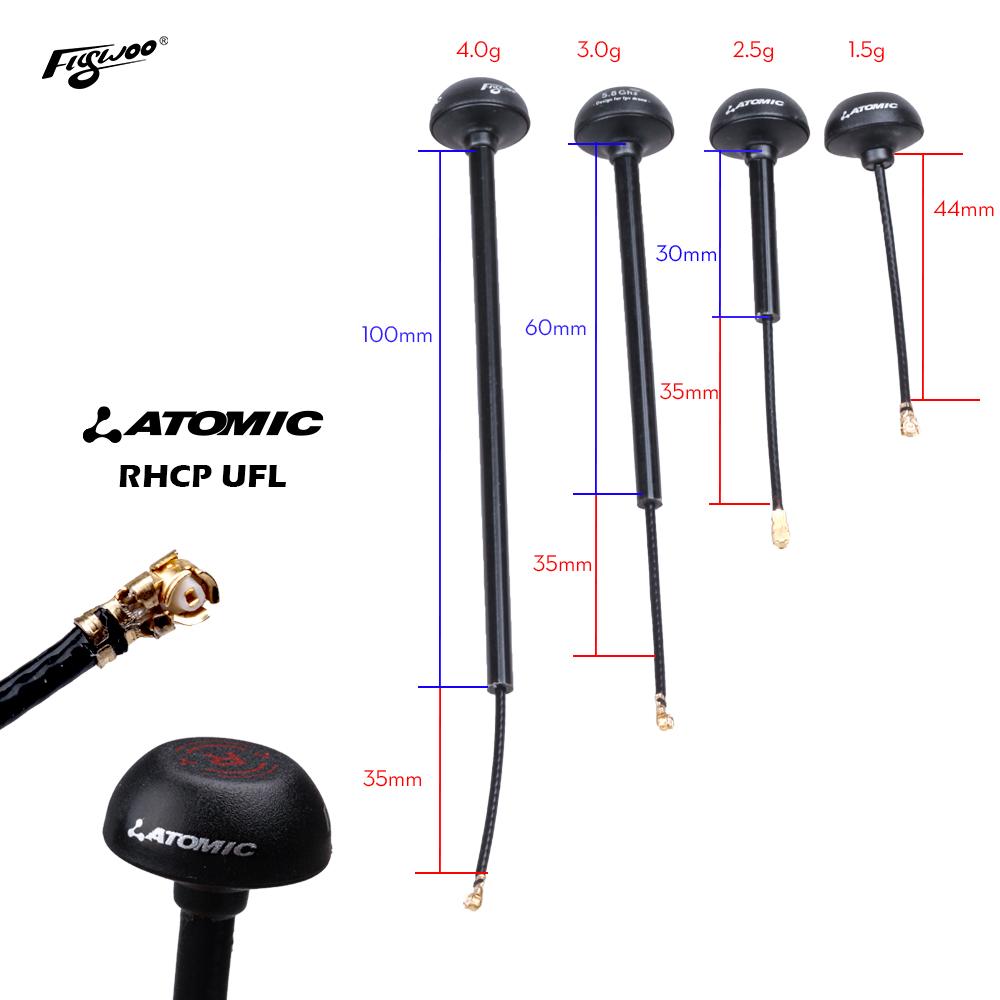

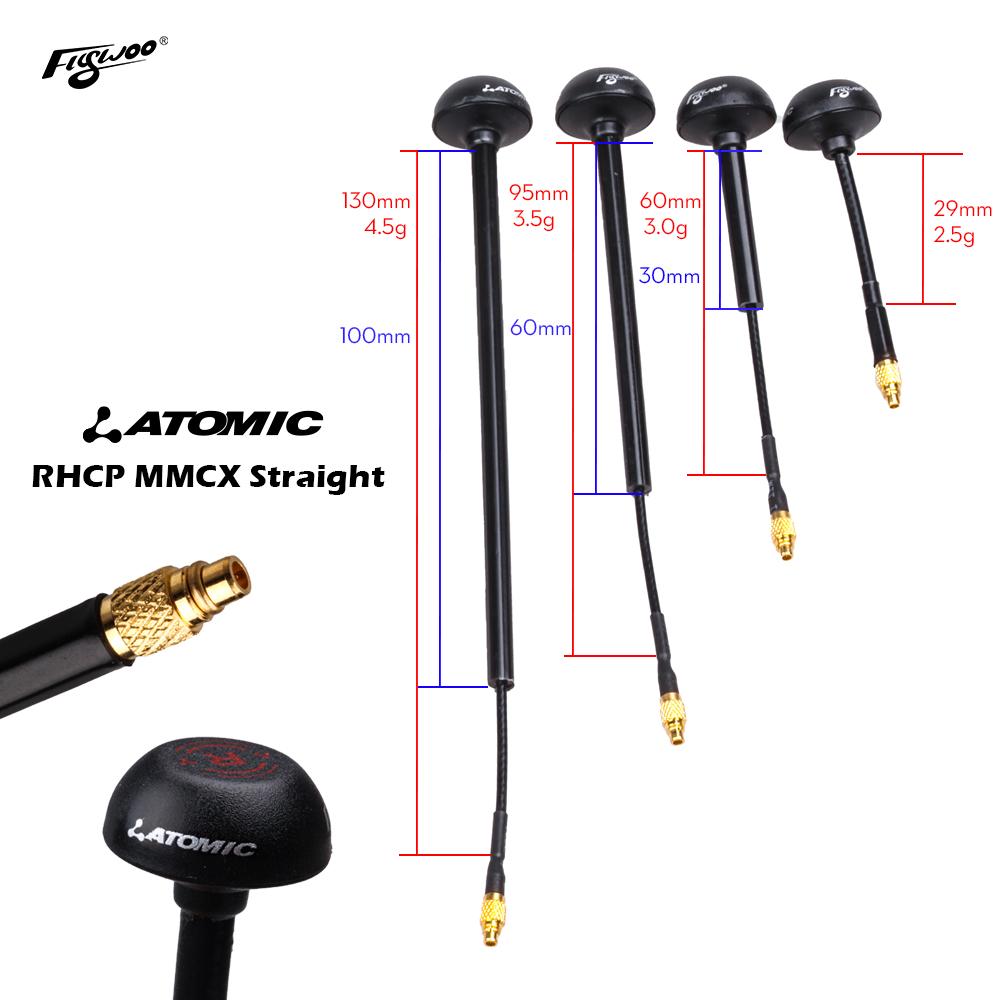

Interface: MMCX straight / 90° / UFL IPX / SMA / RP-SMA
Polarization: RHCP
SWR: ≤1.5 (ON 5.8GHz)

PACKAGE INCLUDED
1 x 5.8GHz RHCP FPV Antenna
