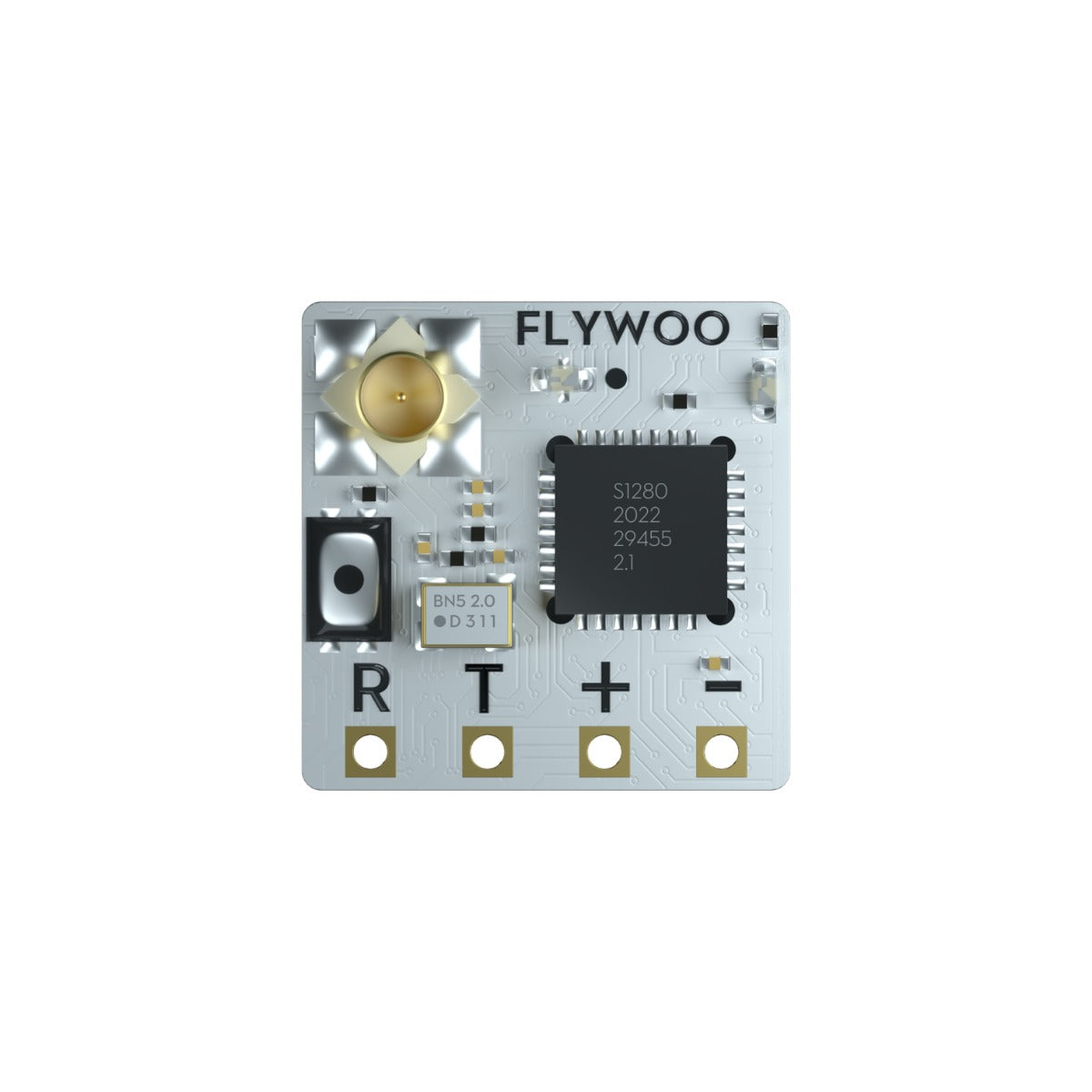

Flywoo 0.4g TCXO 2.4G ELRS EL24P

• Type: ISM2.4GHz
• ESP8285 MCU
• SX1280(SX1281)IMLTRT RF Module
• Frequency Range: 2400 MHz to 2500 MHz
• Receive refresh rate: 25HZ~500Hz
• Working voltage: 5v

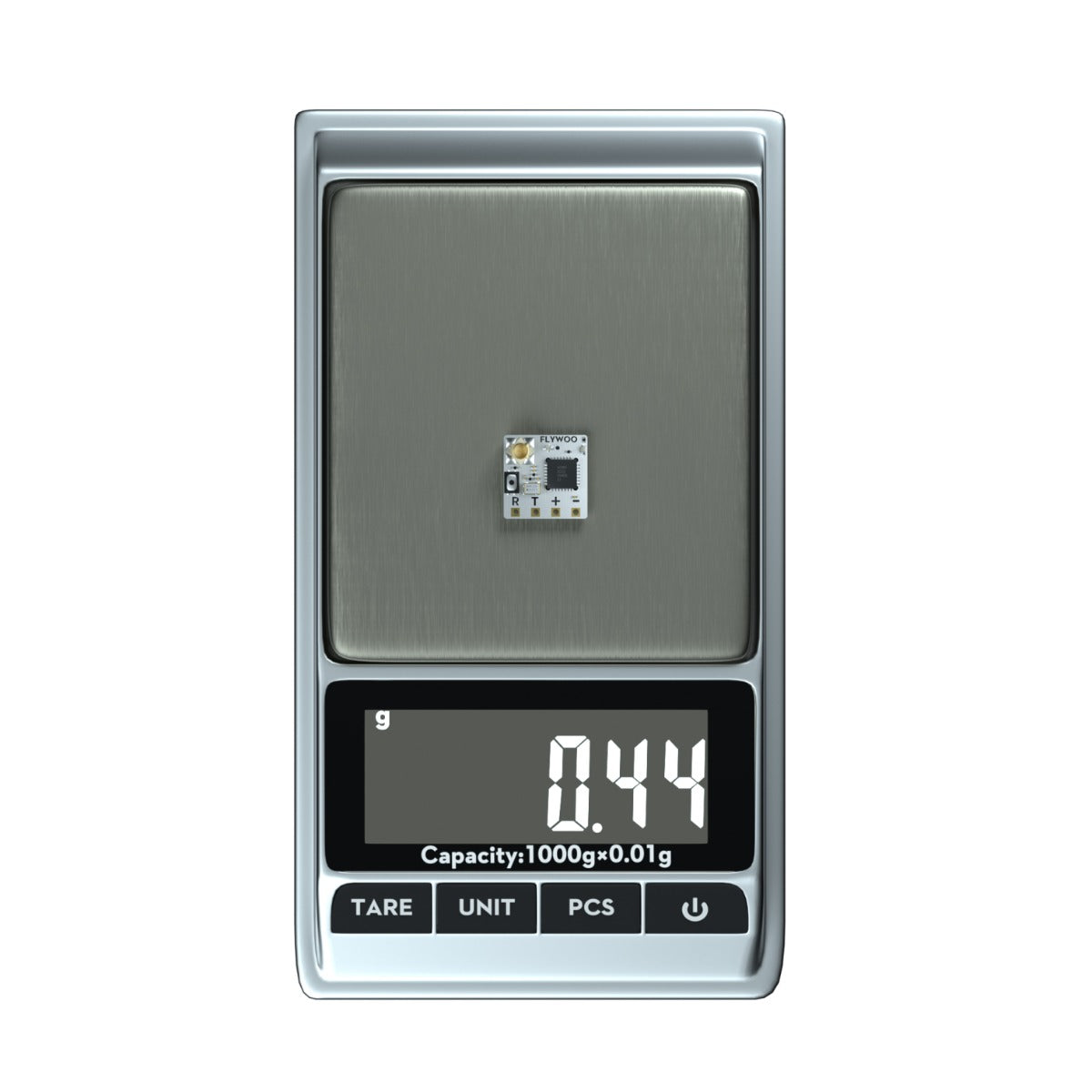

• Weight: 0.44 gram(without antenna)

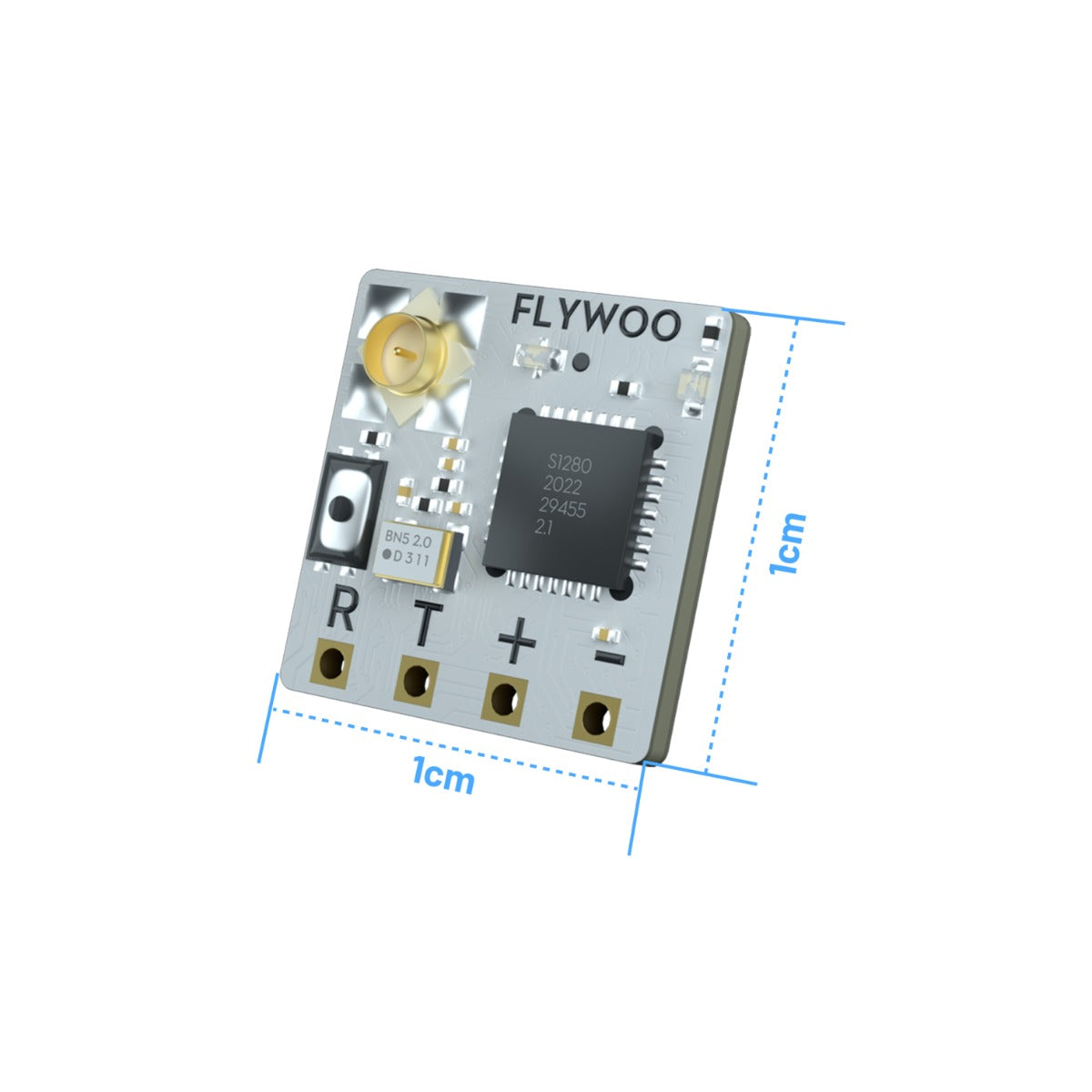

• Dimension: 10mm*10mm*6mm
• Communication Protocol: CRSF(Betaflight)
• Peak gain: 3.7dB

Firmware

• Default Firmware out of the factory: Flywoo EL24E 2.4GHz RX 3.X.X
• Built-in a TCXO (temperature-compensated crystal oscillator)

In The Box

• 1 x Flywoo TCXO 2.4G ELRS EL24P
• 1 x Silicone Cable
• 1 x Heat shrink tubing

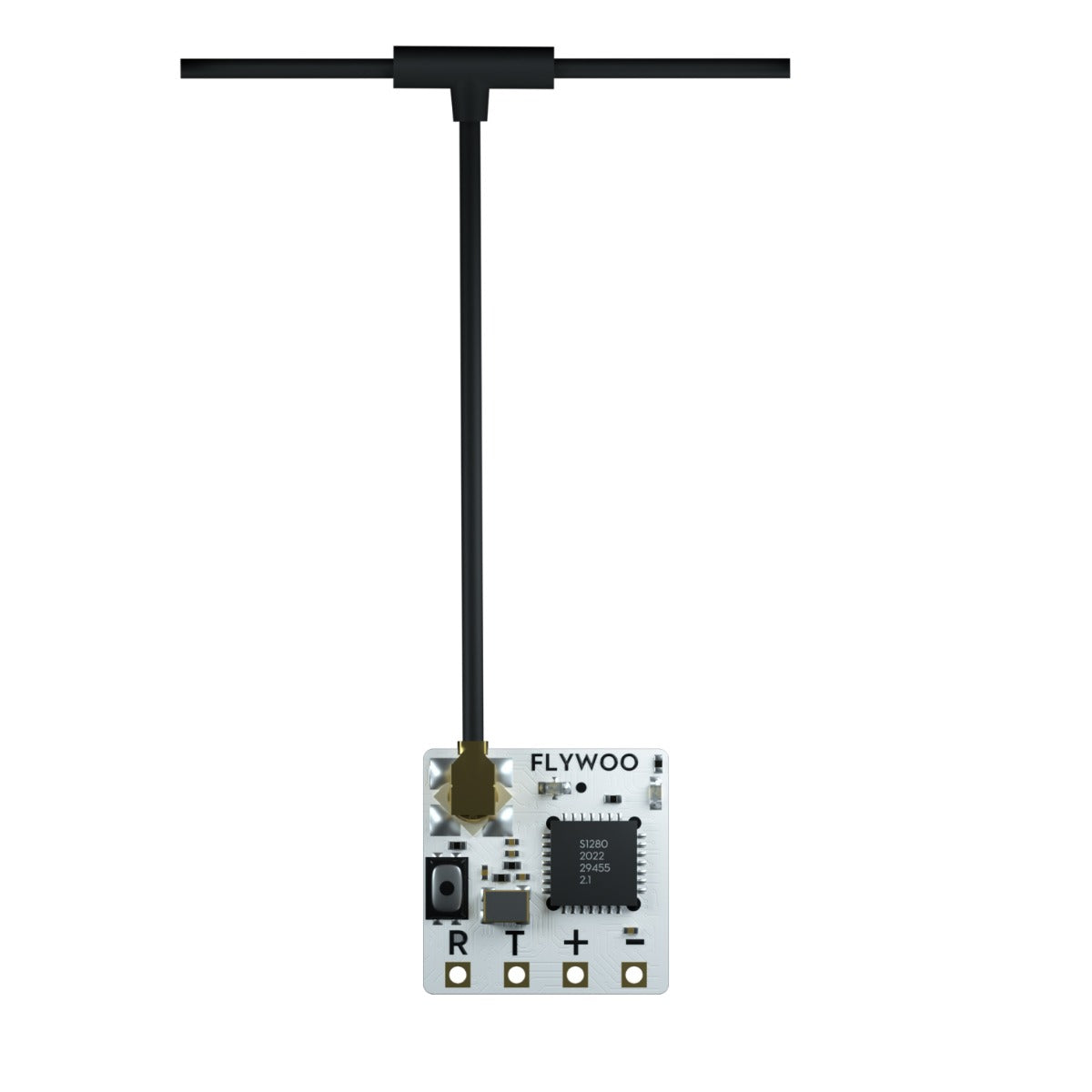

• 1 X T Antenns
