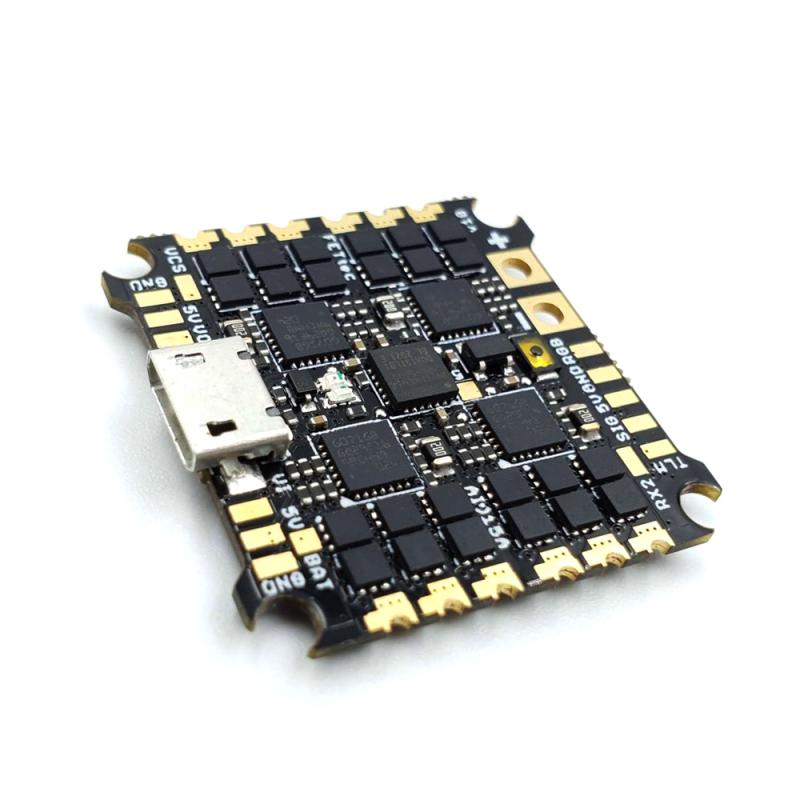

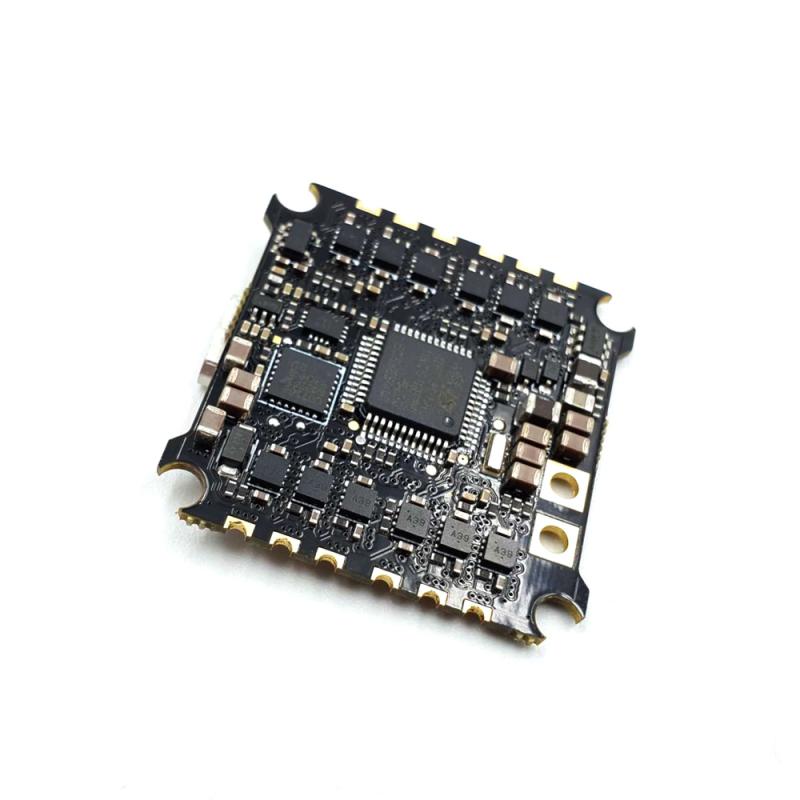

FETTEC MINI AIO 15A

FEATURES

• Full FETtec AIO with KISS FC Firmware
• 4 ESCs 15A
• 2-4s
• Graphical OSD with full KISS tuning

FC:

• STM32F303CCT6 @ 72MHz
• MPU6000
• Supply voltage 6-18V (2-4s LiPo)
• 1x 5V BEC (max 1A)
• Dshot 600

ESC:

• Active current limiting @ 15A
• Input voltage: 2s-4s
• High quality 30V MOSFETs
• STM32G071 @ 64MHz
• 128 kHz Motor PWM
• Automatic input signal detection
• Dshot
• PWM
• OneShot42/125

DIMENSIONS

• Size: 29 x 29 mm
• Mounting: 25,5 x 25,5 mm
• Weight: 3,41 g

SOFTWARE

• KISS Firmware - Softwareupdate via FETtec Configurator
• FETtec ESCs Firmware - Softwareupdate via FETtec Configurator
• FETtec OSD - Softwareupdate via FETtec Configurator

INCLUDES

• 1x FETtec Mini AIO 15A
• 1x Capacitor 35V 330µF
