FATSHARK ATTITUDE V6

SPECIFICATIONS

OPTICS:

• FOV (field of view): 39 degrees diagonal
• IPD (interpupillary distance): 54 to 74 mm (adjustable)
• Focus: +2 to -6 diopters (adjustable)

DISPLAY:

• Two citizen 0.4” LCOS displays
• Resolution 1280 X 960
• NTCS/PAL auto selecting
• AV Mode 4:3
• AV Mode 16:9
• HDMI Mode 16:9

AUDIO:

• Stereo

USER CONTROLS:

• Channel Selection
• Volume Control
• Mode Selection
• Display Control (Brightness and Contrast)
• DVR Control
• Power Button / Fan Control

ELECTRICAL:

• Power Supply: 7 – 13V input voltage (2S – 3S Supply)
• Power Consumption: 320mA @ 7.5V input power (no RX module)
• Analog DVR:MicroSD support to 32 GB
• Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
• File playback (native recording, no codec support)
• Upgradeable via SD card

BATTERY:

• 7.4V, 1.8A 18650 Battery Case

INTERFACE:

• 3.5mm AV in/out port
• Power input port
• 3.5mm 3p earphone port
• MicroSD
• RF Module Bay
• HT connector 3 pin internal connection
• Power Button

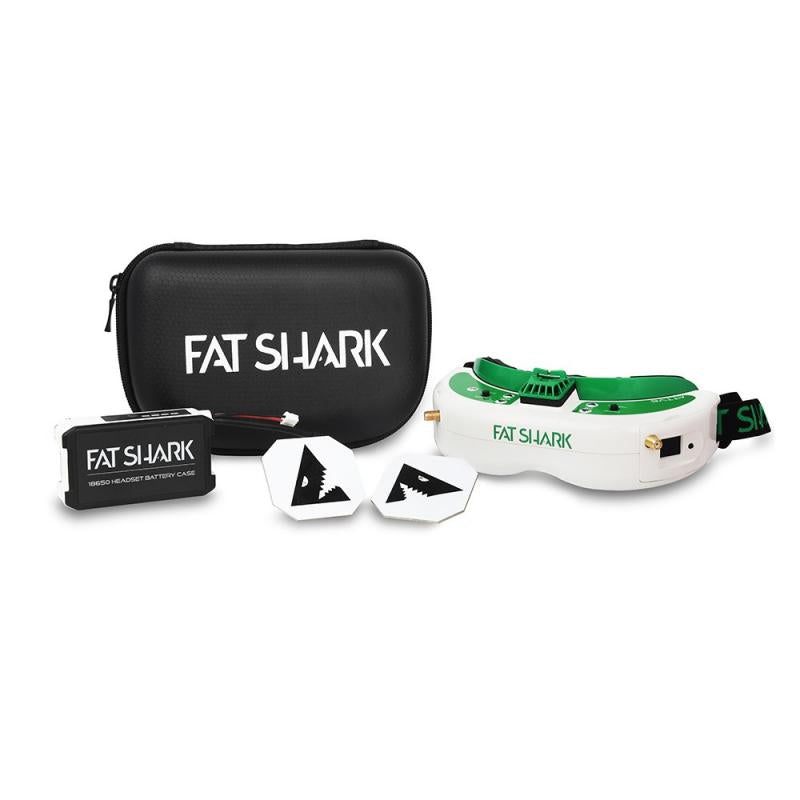

INCLUDES

• 1x Fat Shark Attitude V6 FPV Goggles
• 1x Carry Case
• 1x 18650 Headset Battery Case (batteries not included)
• 1x True Diversity OLED Receiver already installed in the headset
• 2x Patch Antennas
