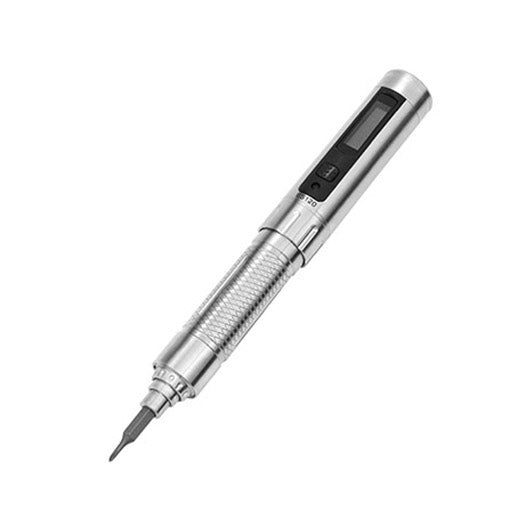

ES120 Mini Electric Screwdriver has set a new standard for electric screwdrivers. It is an electric screwdriver with a compact structure, smart and exquisite appearance, as well as the function of motion control recognition.

It has only the length of a Parker pen, while endowed with a comfortable design for holding, and a set of highly energy-efficient accessories. Through an OLED screen, the device displays parameters and rotation modes of motion-control recognition. Under these help, you are able to easily complete the disassembling and assembling of your digital devices.

ES120 includes a planetary gearbox and a high-speed electric motor, with excellent support from the STM32 embedded micro-processor and angular velocity sensor. It operates at a voltage range of DC3V to 5V, and with various hexagonal screwdriver bits, the device helps you with fast disengaging and engaging of electronic products.

Hardware Parameters

Body Material 304 Stainless steel/Copper alloy

Screen 16*96 OLED

Battery 300mAh 10440 Lithium-ion battery

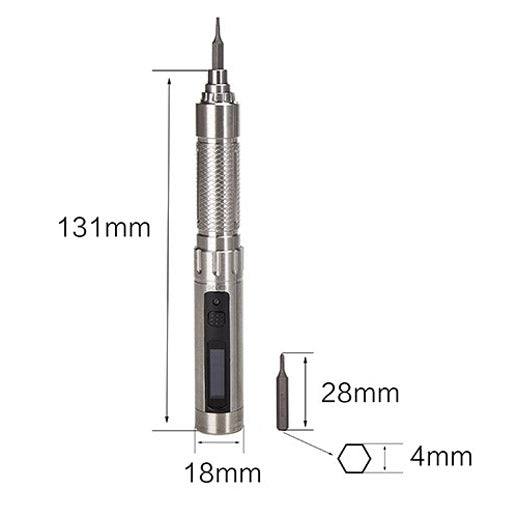

Lengh 131mm

Weight 107g(Steel)/114g(Pearl)

Rotor Bidirectional overrunning clutch

Gearbox 1:144 Integrated planetary gearbox

Motor 25,000 rpm brush motor

Main Chip STM32

Sensor Angular velocity sensor

Smart Functions

1.Battery low voltage reminder, low voltage protection mode;

2.User ustomized configuration parameters (such as torsion, torque, etc);

3.Open source application layer.

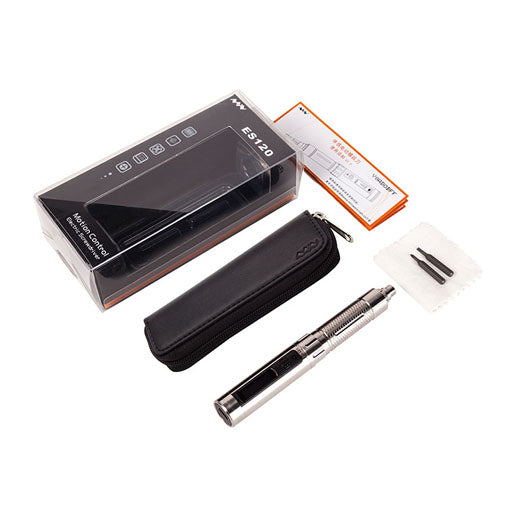

Includes :

Electric Screwdriver X 1

Bits X 2

ES-A7 Bits Kit X 1

ES-B7 Bits Kit X 1

Safety Instructions X 1
