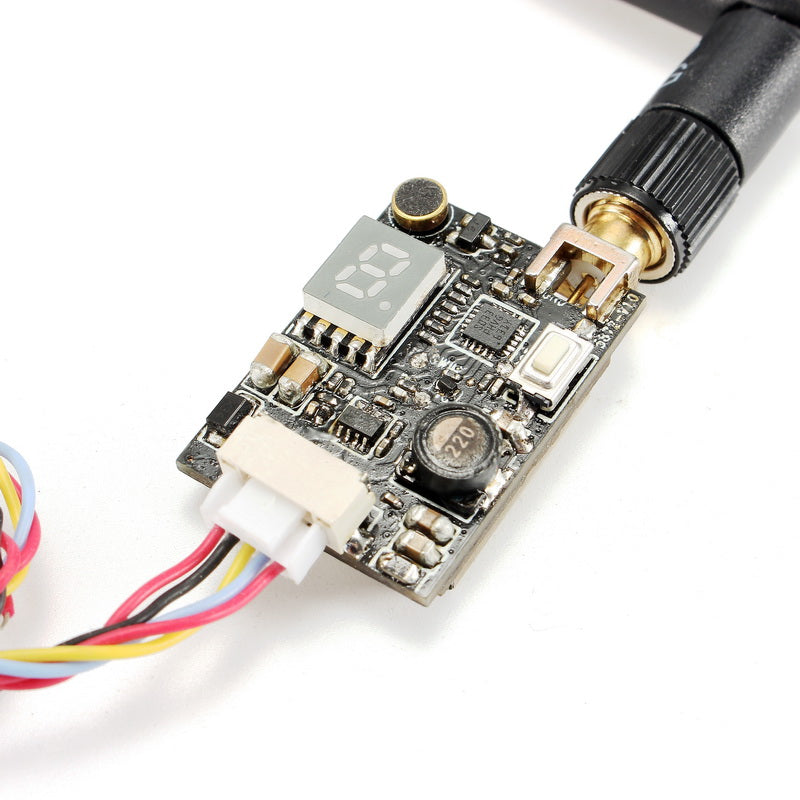

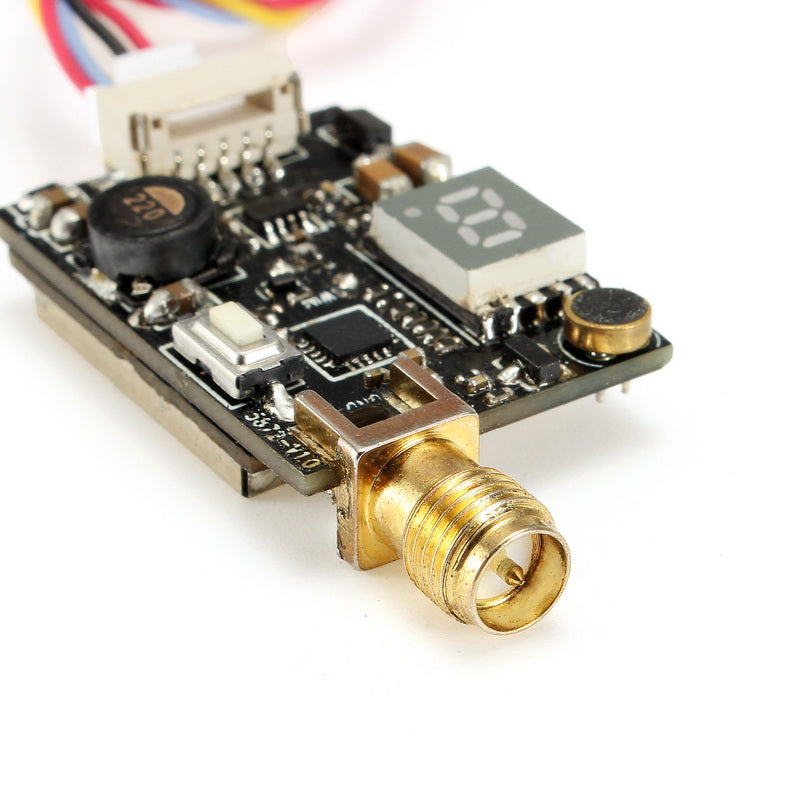

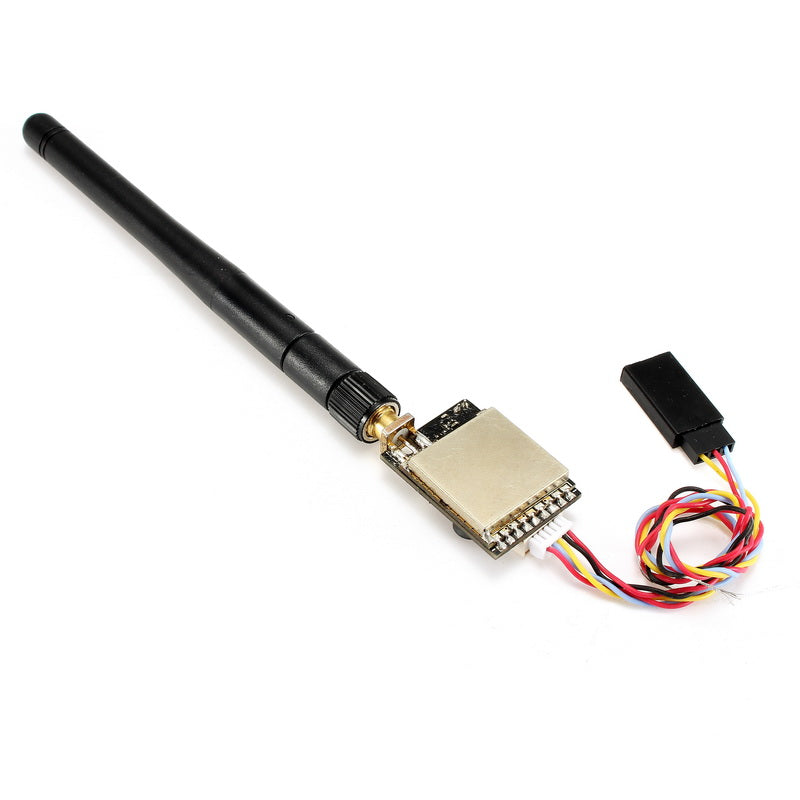

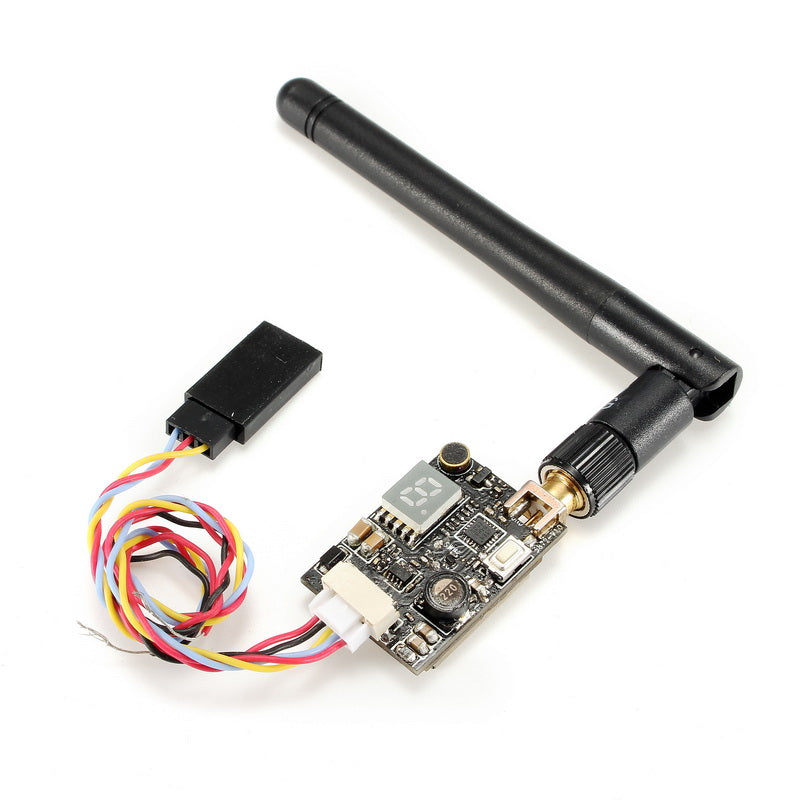

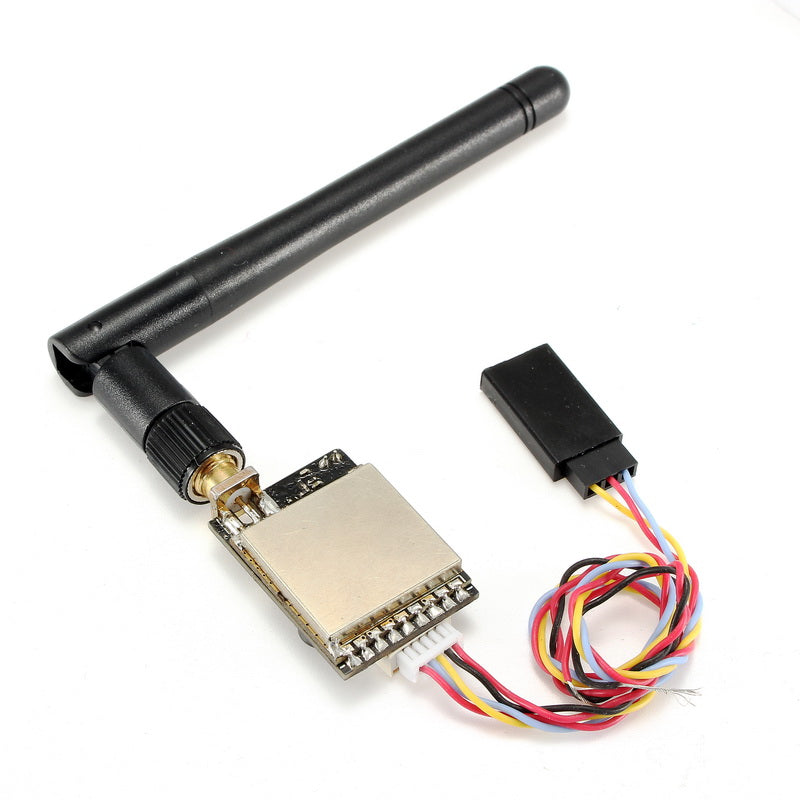

Eachine TX801 5.8G 72CH 0.01mW 5mW 25mW 50mW 100mW 200mW 400mW 600mW Switched AV VTX FPV Transmitter

Eachine TX801 5.8G 72CH 0.01mW 5mW 25mW 50mW 100mW 200mW 400mW 600mW Switched AV VTX FPV Transmitter

Rs. 1,315.69
Rs. 1,315.69 Rs. 1,554.91
Tax included. Shipping calculated at checkout.

Ask a question

The fields marked * are required.

SKU: 2059
Eachine TX801 5.8G 72CH 0.01MW/5MW/25MW/50MW/100MW/200MW/400MW/600MW Switchable AV VTX FPV Transmitter


Description :
Brand Name : Eachine
Item Name : TX801 Transmitter
Antenna Gain: 3Dbi

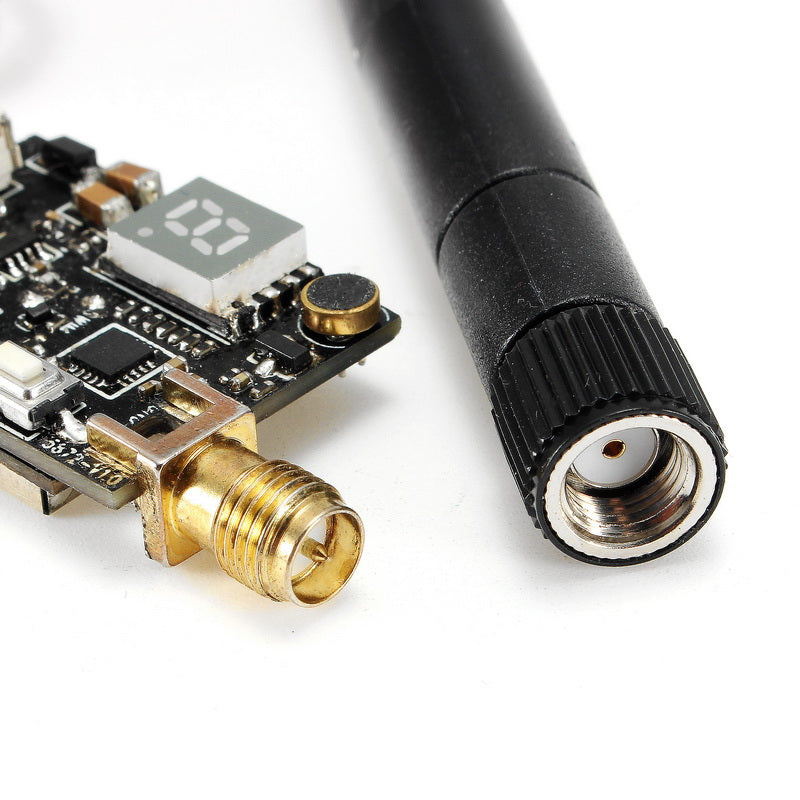

Antenna Conenctor : RP-SMA
Frequency:5325-5945MHZ
Channel : 72CH
Transmitting Power: 0.01MW/5MW/25MW/50MW/100MW/200MW/400MW/600MW Switchable
Video Format:NTSC/PAL
Working Current: (MAX)7V-550mA
;12V-300mA
;24V-160mA"
Audio Bandwidth : 6.5MHZ
Video Bandwidth: 18MHZ
Audio Carrier : 1Vp-p(1KHZ)
AF Input Impedance : 10KΩ
Working Voltage : 7-24V
Output Voltage : 5V
Weight :7.3g
Size :28*20*8MM

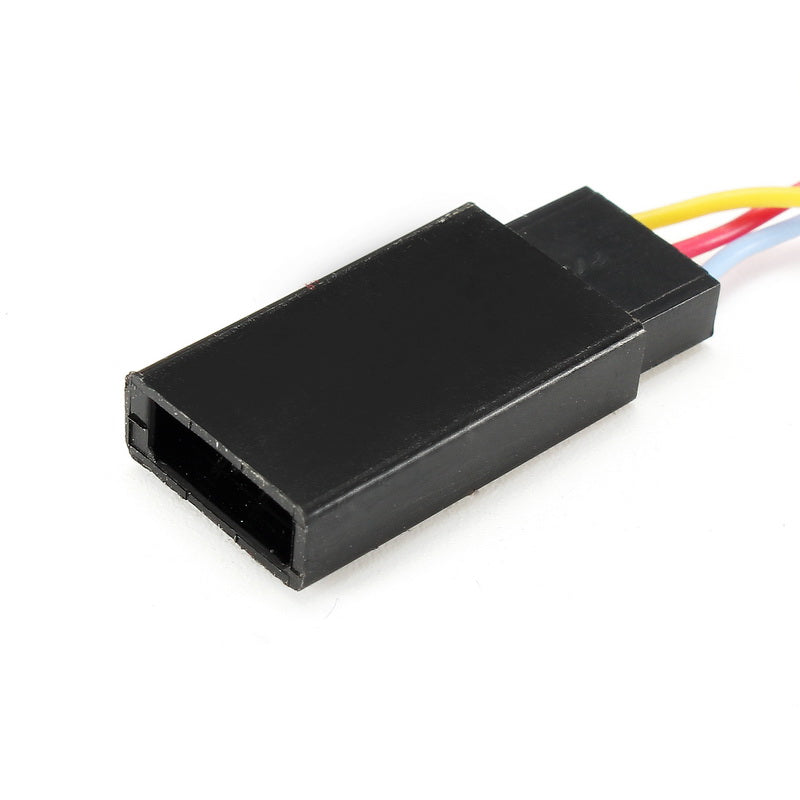

Cable :
Blue : GND
Yellow : Video
Red : Output Voltage

Features :
8 power levels switchable: 0.01MW/5MW/25MW/50MW/100MW/200MW/400MW/600MW
72 channels, cover all 5.8G frequency.
With Microphone, support audio transmission
5V output, max working current 550mA
Multi-channel synchronization does not interfere with each other

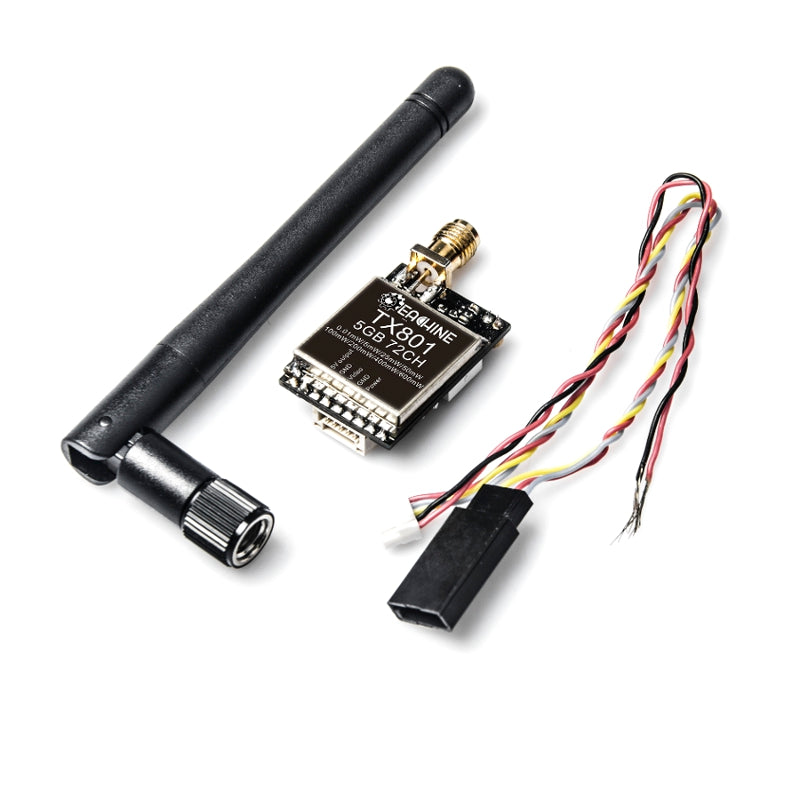

Package Included :

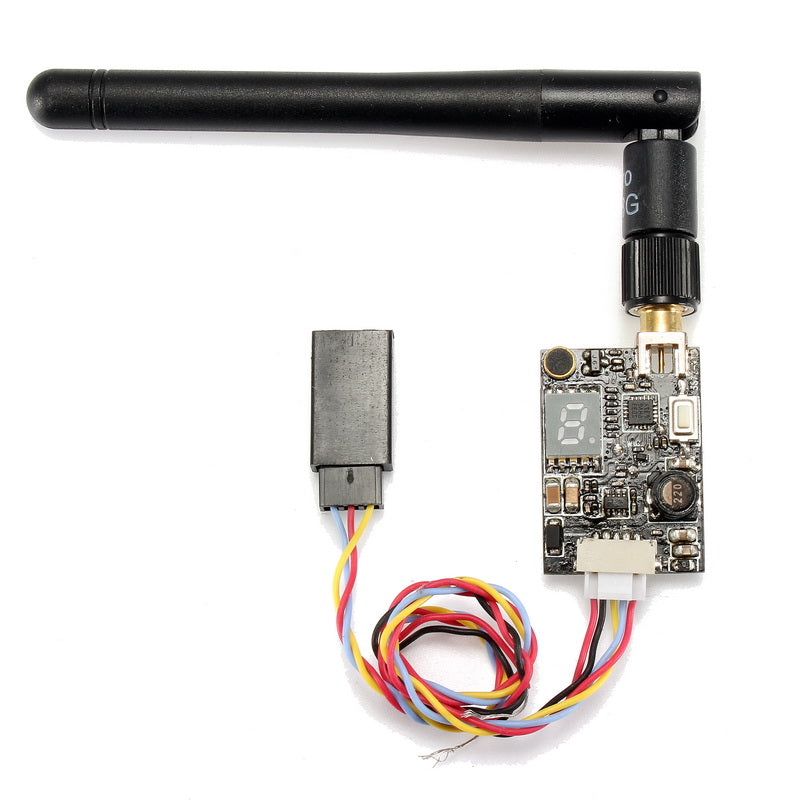

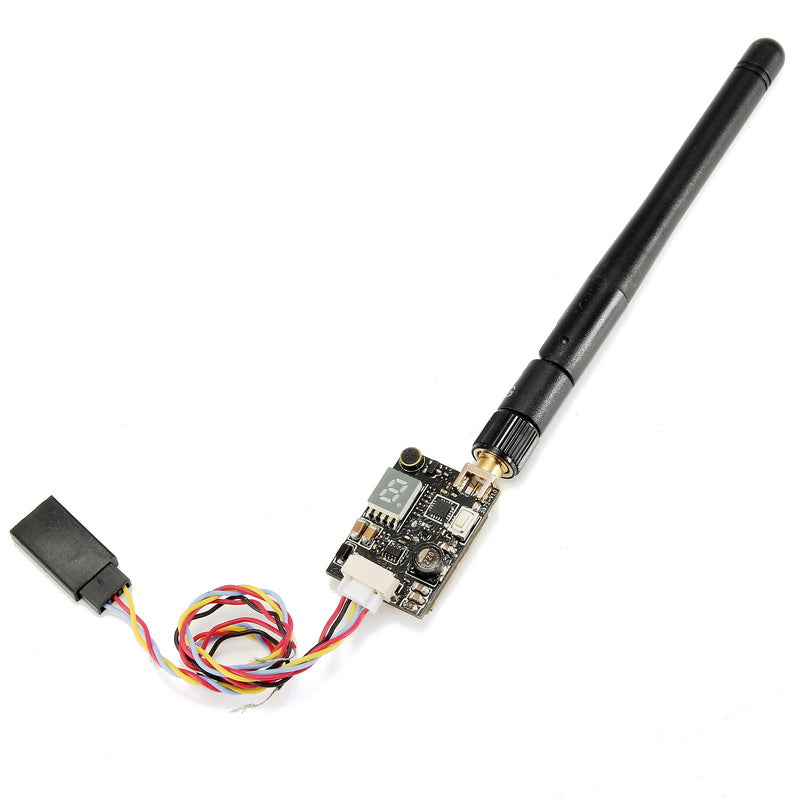

1 x TX801 Transmitter

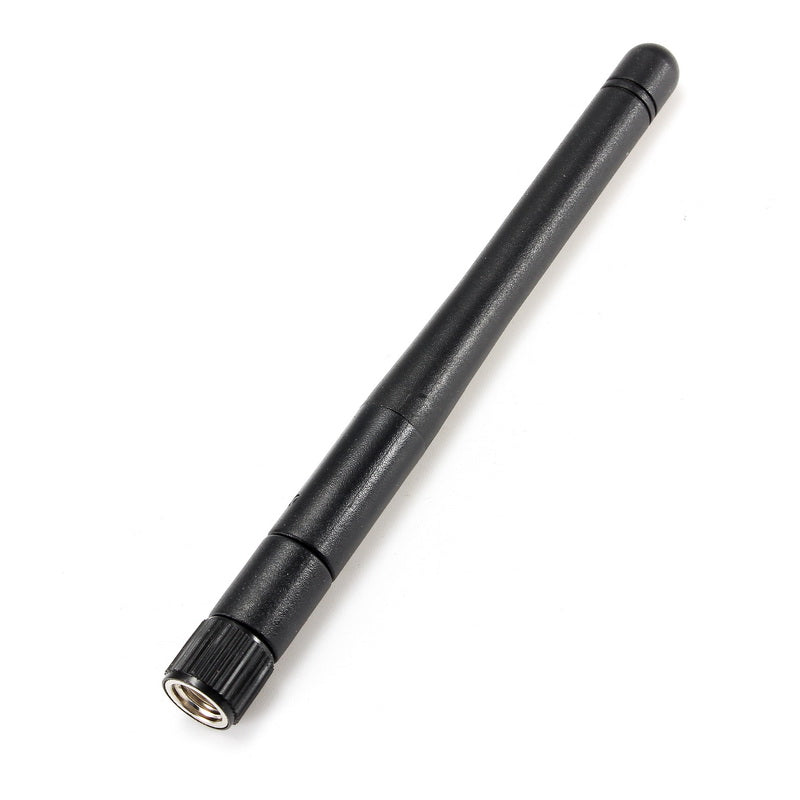

1 x Antenna

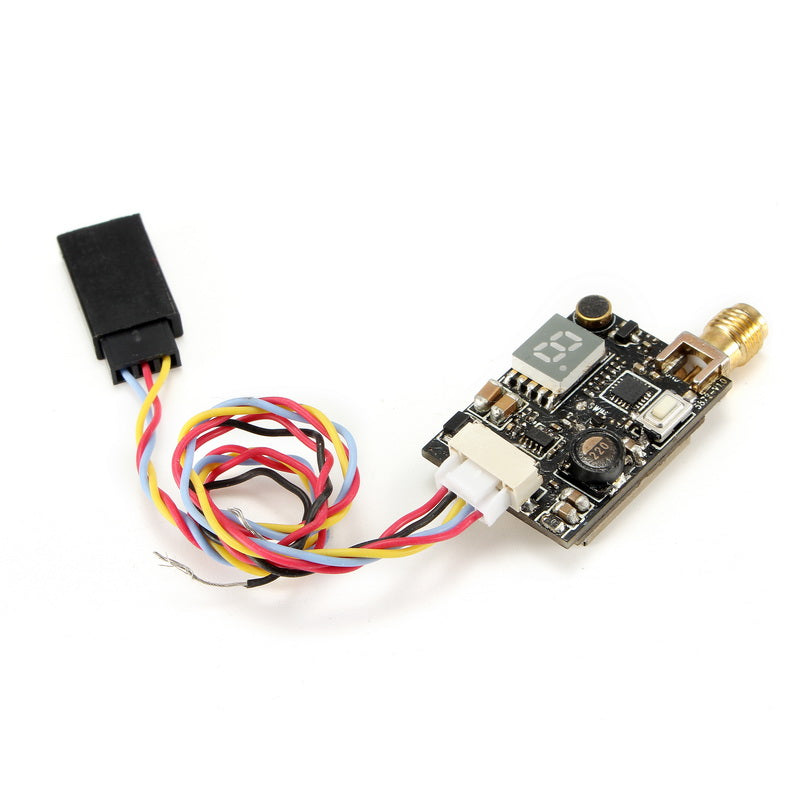

1 x Power AV Cable
