Eachine EF01 AIO 5.8G FPV Camera
Eachine EF01 AIO 5.8G FPV Camera
Regular price
Rs. 1,999.99
Sale price
Rs. 1,999.99
Regular price
Rs. 2,749.60
Tax included.
Shipping calculated at checkout.
Share this product
SKU: 1041

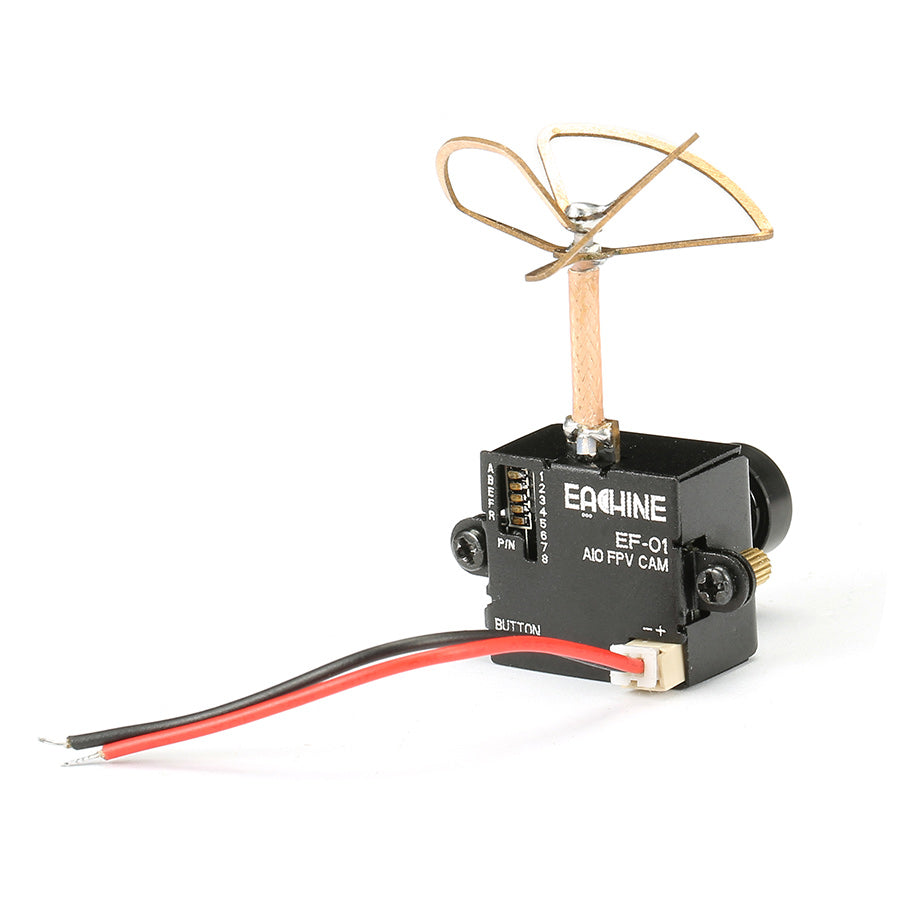

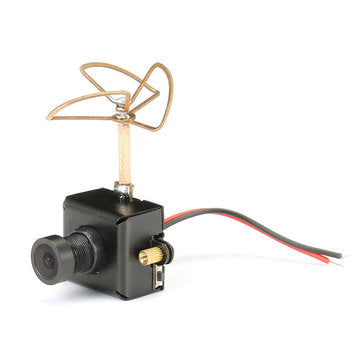

Eachine EF-01 AIO 5.8G 40CH 25MW VTX 800TVL 1/3 Cmos FPV Camera
| Specification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Brand name | Eachine | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Item name | EF-01 AIO FPV Camera | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| FPV Camera | Sensor: 1/3 "CMOS Lens: M8 800TVL Lens Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective Format: NTSC / PAL (switchable) Resolution: NTSC: 960X480/ PAL:960X480 Power consumption: 380mA @ 3.7V Power: 3.6-5.5V Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Transmitter |
Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW
Wireless Channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz
Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Body | Weight: 8g Size: 26x20x18mm (without antenna) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Feature: AIO FPV camera, transmitter , atnenna all 3 functions in one limit size and weight 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective Five bands 40 channels with Raceband
Package Included: 1 X EF-01 AIO FPV Camera 1 X Cable 1 X User Manual
