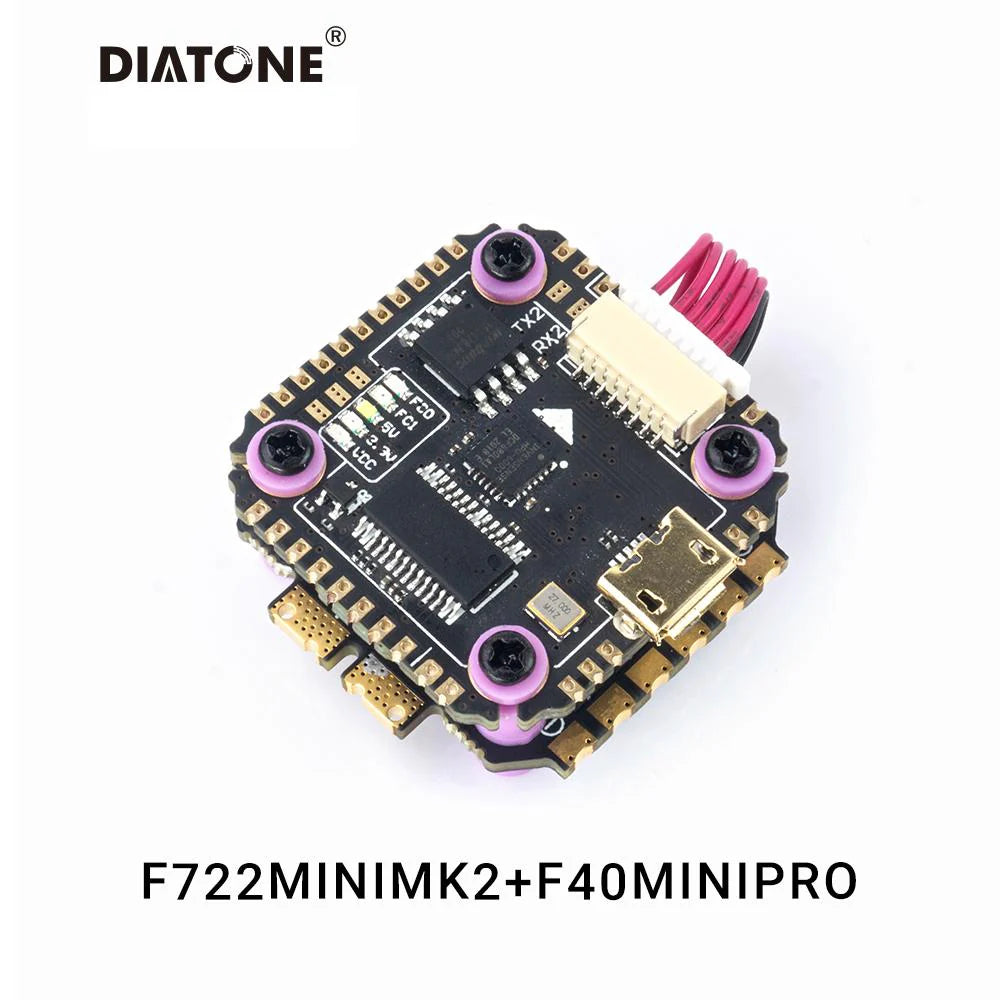

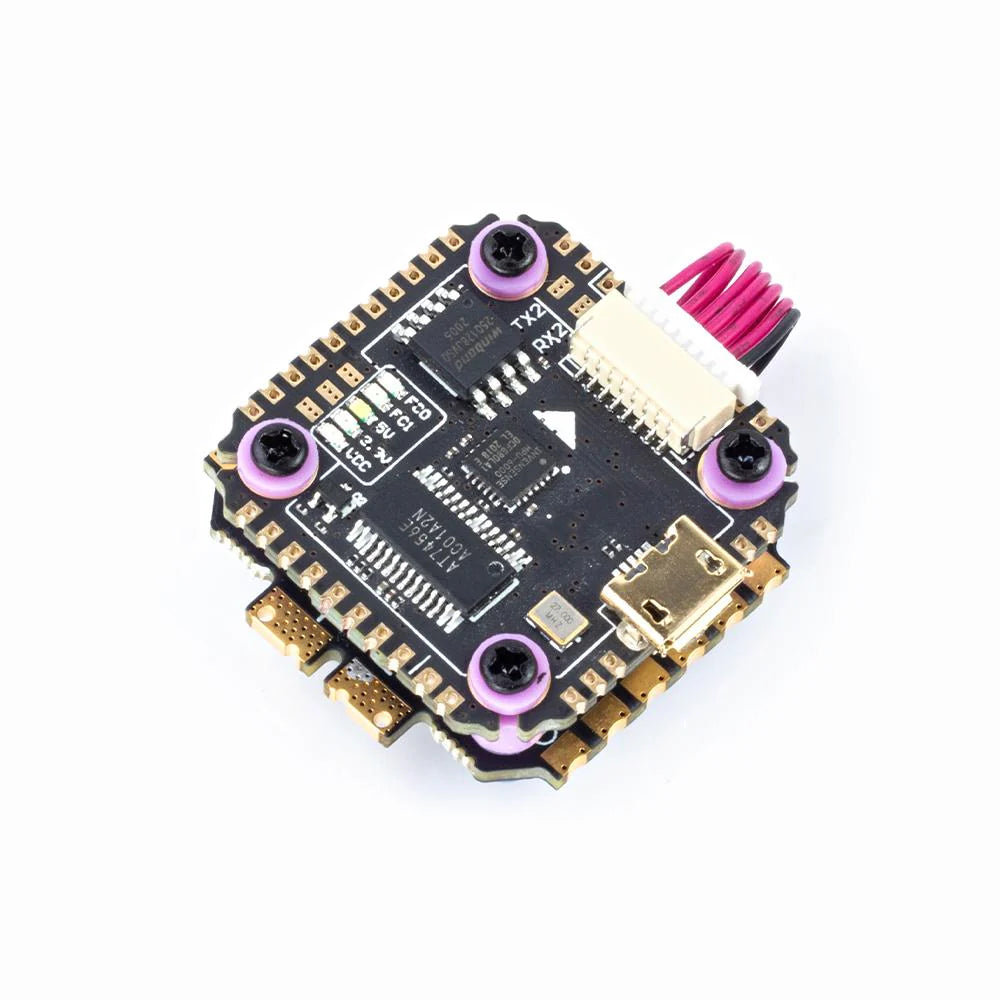

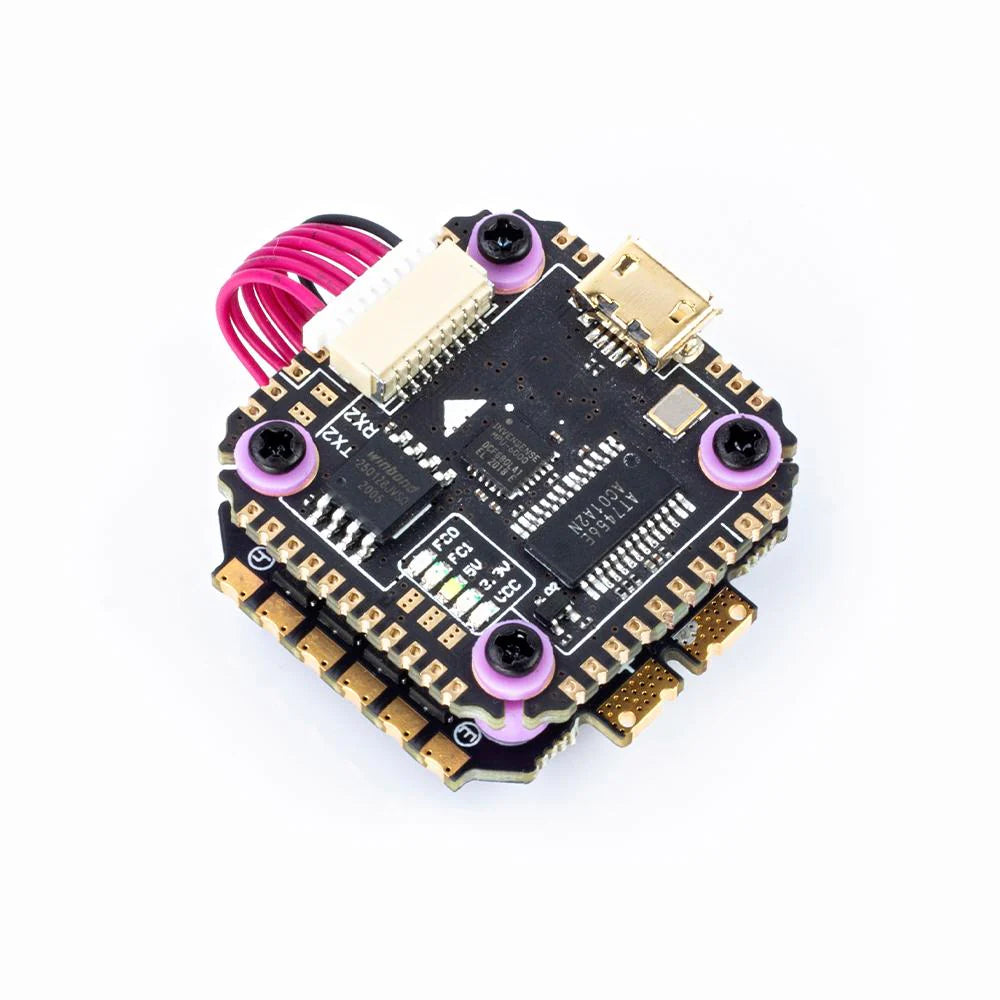

Diatone Mamba Stack F722 MINI MK2 FC + ESC F40 MINI PRO BLHELI-32 6S
Diatone Mamba Stack F722 MINI MK2 FC + ESC F40 MINI PRO BLHELI-32 6S
Regular price
Rs. 7,583.54
Sale price
Rs. 7,583.54
Regular price
Tax included.
Shipping calculated at checkout.
In stock
Share this product
SKU: OK03881

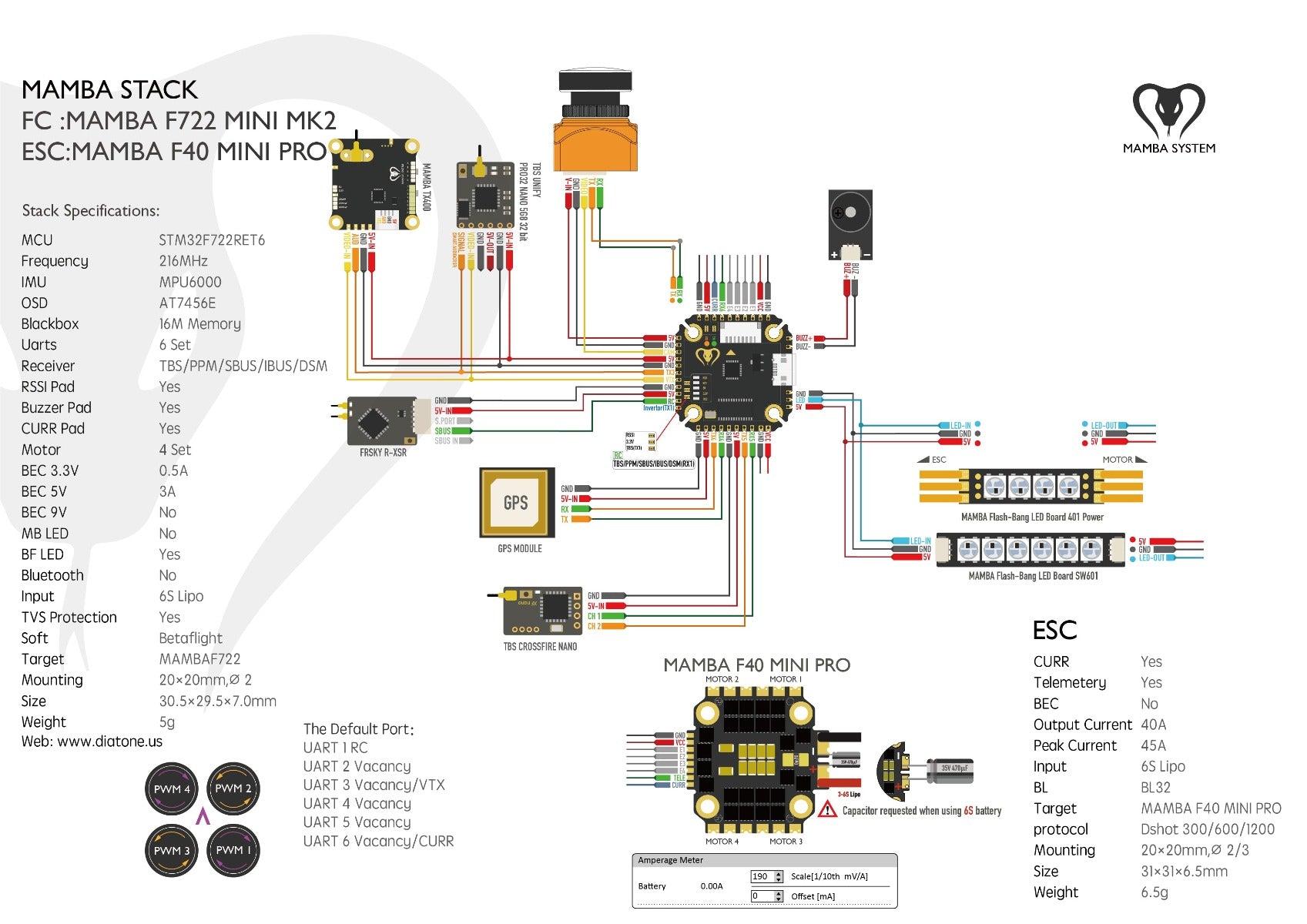

SPEICIFICATION OF MAMBA F722 MINI MK2/F40 MINI PRO
Note：STM32F722 heats up easily， please leave at least 5mm interspace at both sides of the FC with nothing covered for airflow and heat dissipation.
FIRMWARE TARGET ： MAMBA F722
FC Specifications
MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Black Box: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX2
LED: Blue Orange for FC Status,,White 5V,Red 3.3V
WS2812 LED Control: BF LED Control
Smartaudio: Yes
RSSI: Yes
Buzz: Yes
Input: 2~6S Lipo (8.4~25V)
VTS Protection: Yes
BEC: 5V 2A (Max 3A)
Mamba F40MINIPRO ESC
Item name: Mamba F40MINI PRO ESC
Input voltage: 3-6S LIPO (12.5- 25V)
Burst Curr :40X4 A
MAX:45A(10S)
BEC: NO
Mounting Size: 20mm/M2/M3
Size:31×31×6.5mm
Mounting Hole: M2 M3
Weight: 7g
Package Included:
1 x Mamba F722 Mini MK2 Flight Controller
1 x Mamba F40 MINIPRO 6S HV ESC
