In stock
FC Specifications
MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Uarts: 6Set
ESC Soft: Dshot300/600/
LED: Blue&Orange for FC Status,,White 5V,Red 3.3V
WS2812 LED Control: BF LED Control
Smartaudio: Yes
RSSI: Yes
Buzz: Yes
Input: 2~6S Lipo (8.4~25V)
VTS Protection: Yes
UARTS:6 Ports
DJI PORT SUPPORT
BEC: 5V 2A&9V 1.5A
FC Firmware
BetaFlight
Target: MAMBA F722
Mounting: 20×20mm,Φ2
Dimensions: 30×36.5×13.5mm
Weight: 3.9g
Package Included:

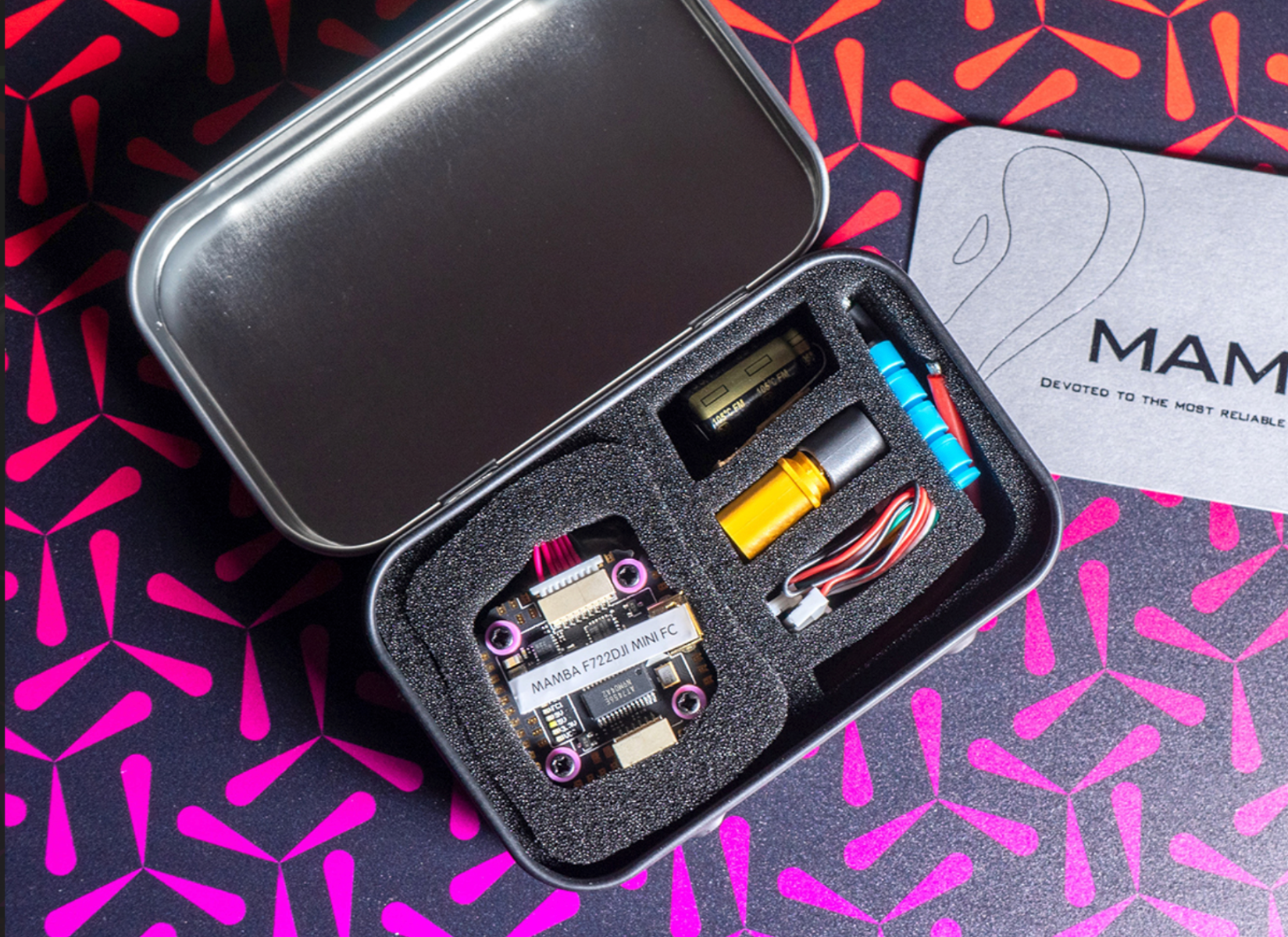

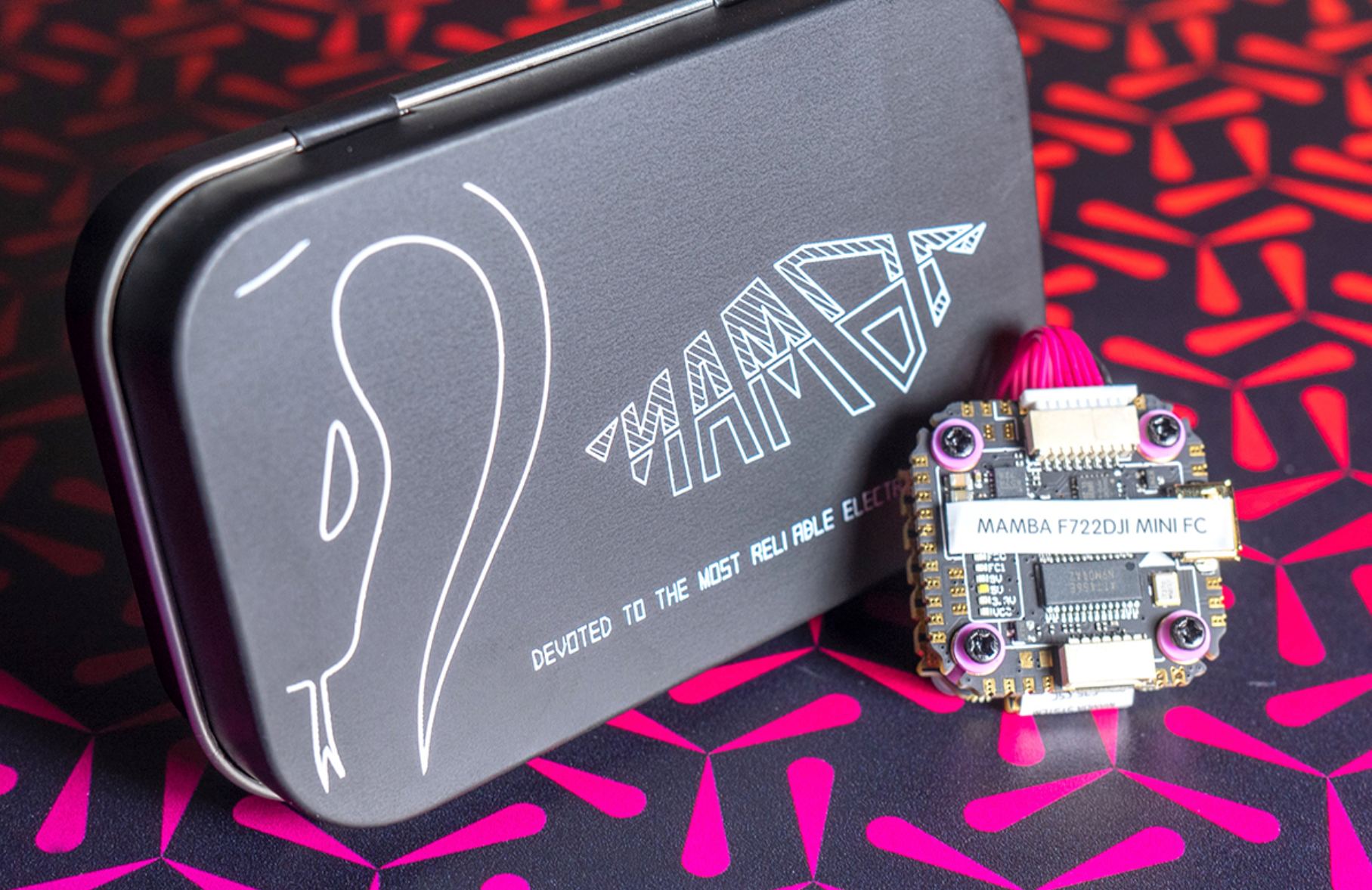

1 x Mamba F722 Mini DJI Betaflight Flight Controller
1 x Mamba F40 40A 6SHV ESC
Note: Because STM32F722 heats up, please leave at least 5mm space at both sides of the FC with nothing covered for good air circulation
