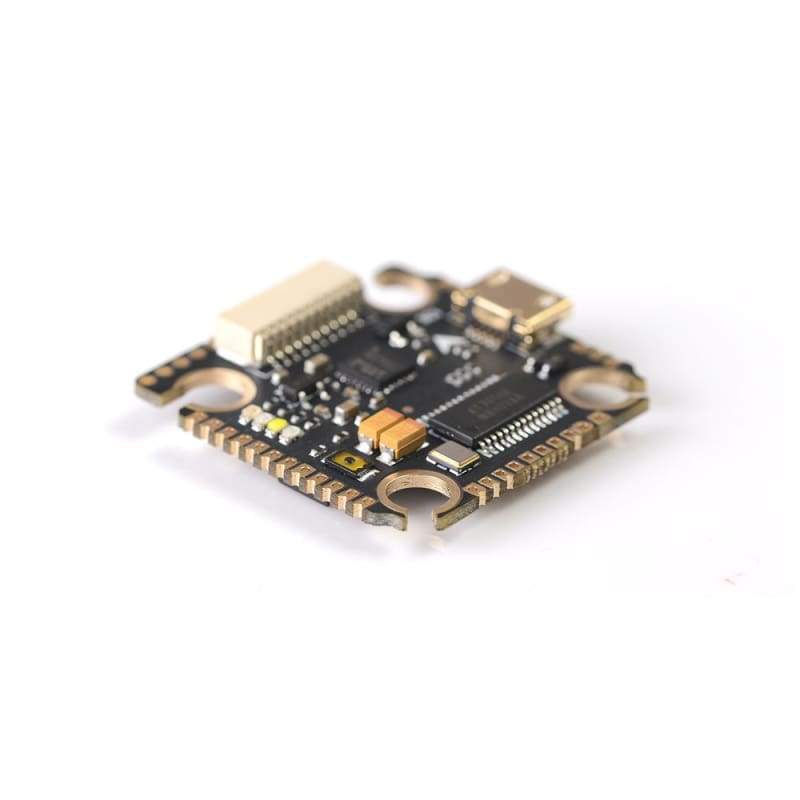

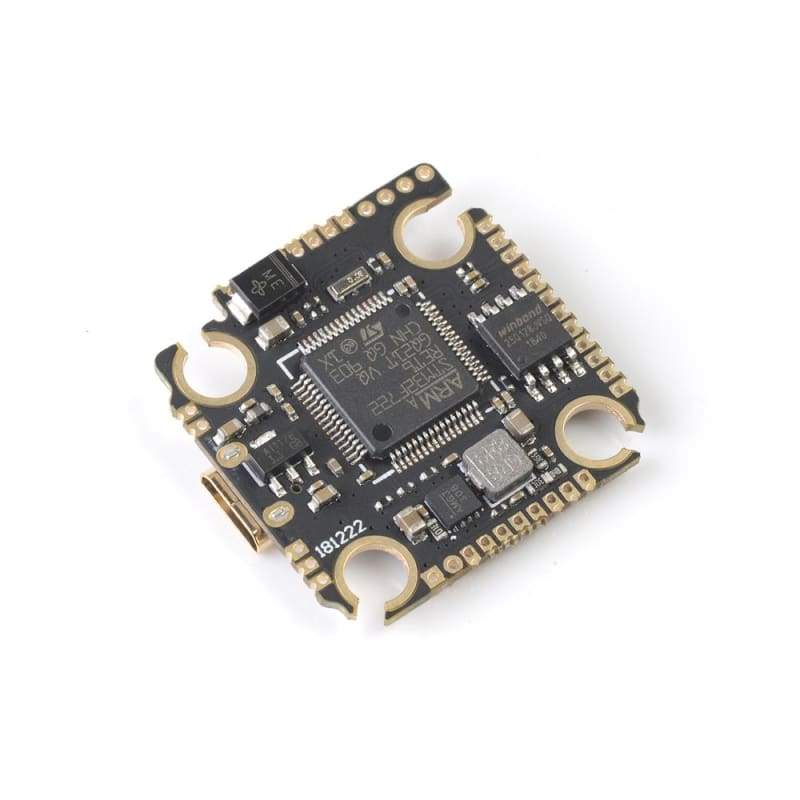

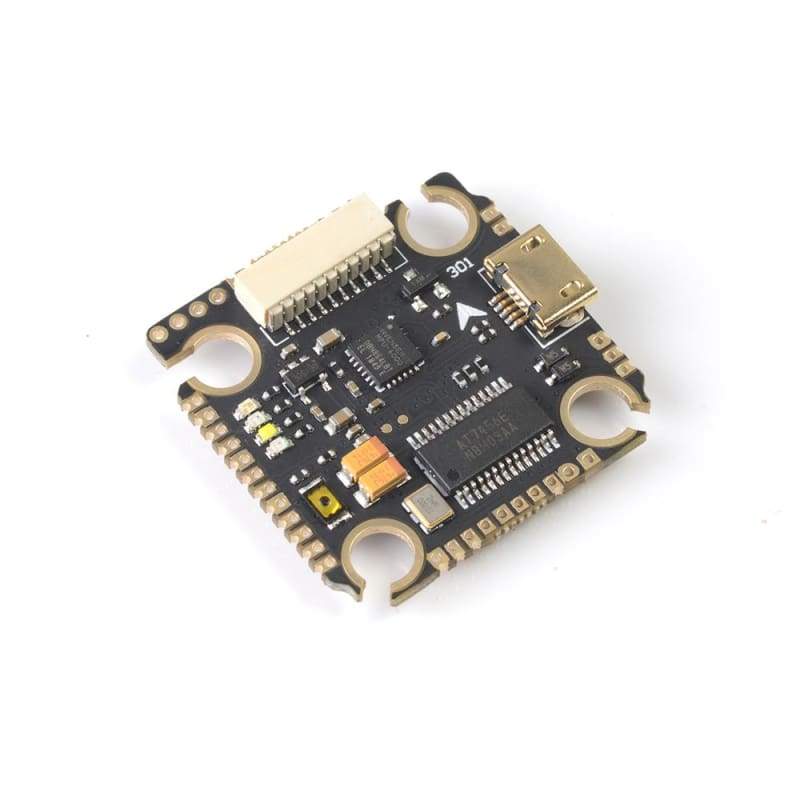

DIATONE MAMBA F722 MINI FLIGHT CONTROLLER

FC Specifications

MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Blacbox: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX2
LED: Blue&Orange for FC Status,,White 5V,Red 3.3V

WS2812 LED Control: BF LED Control
Smartaudio: Yes
RSSI: Yes
Buzz: Yes


Input: 2~6S Lipo (8.4~25V)
VTS Protection: Yes
BEC: 5V 2A (Max 3A)

FC Firmware
BetaFlight
Target: MAMBA F722 （uploading.....）

Download Link

Mounting: 20×20mm,Φ2
Dimensions: 30×36.5×13.5mm
Weight: 3.9g


Including
1×FC MAMBA F722MINI
