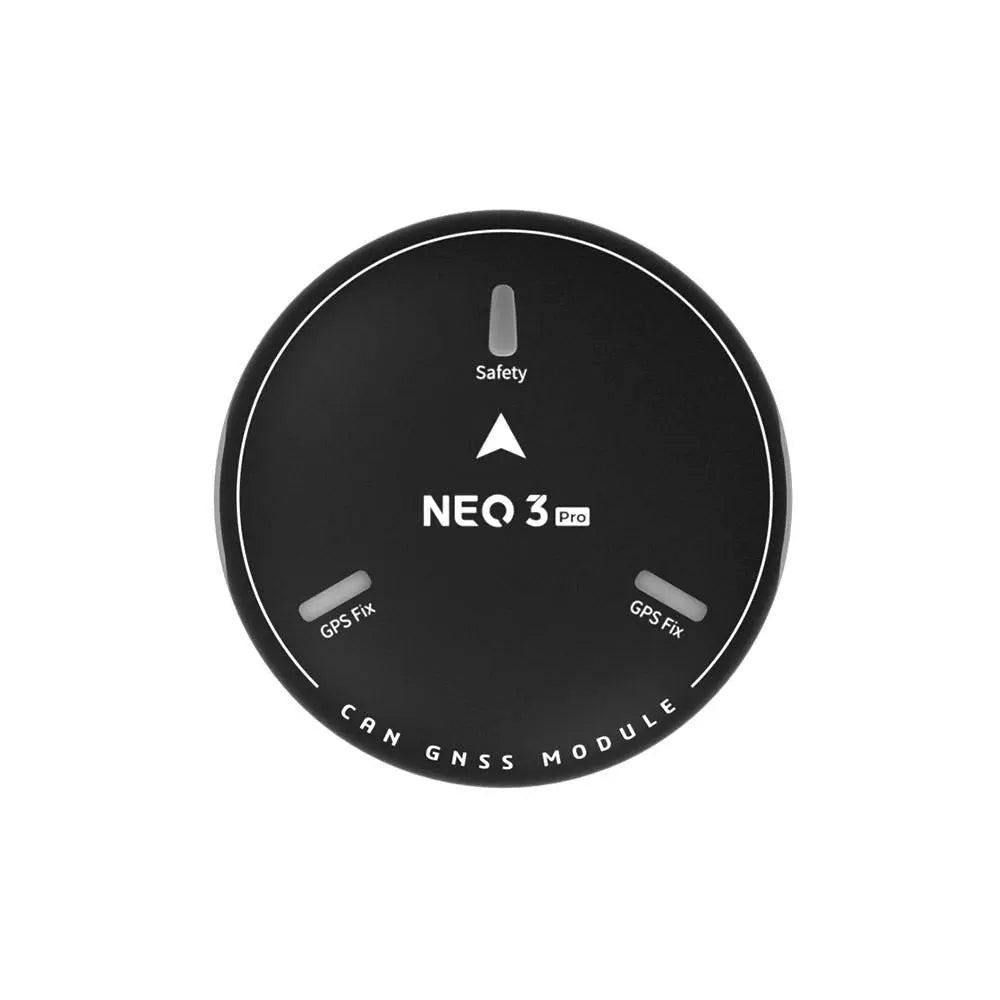

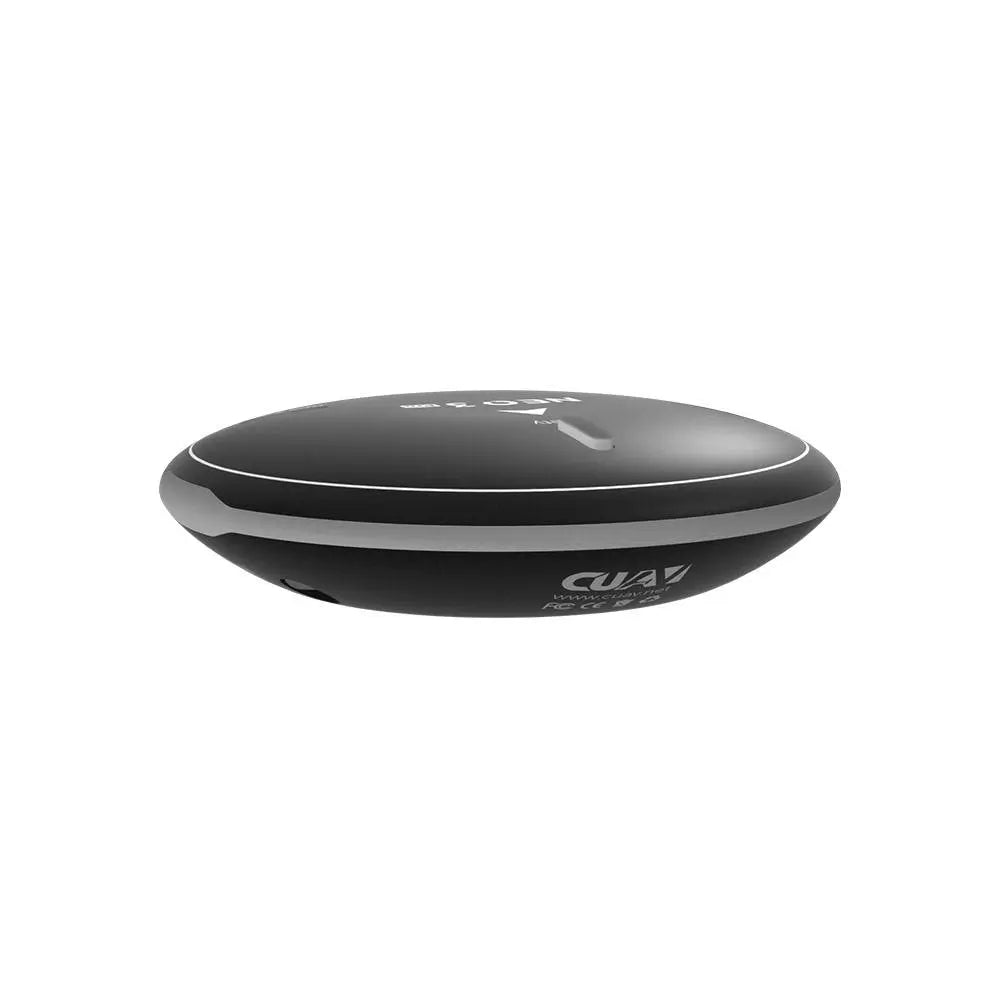

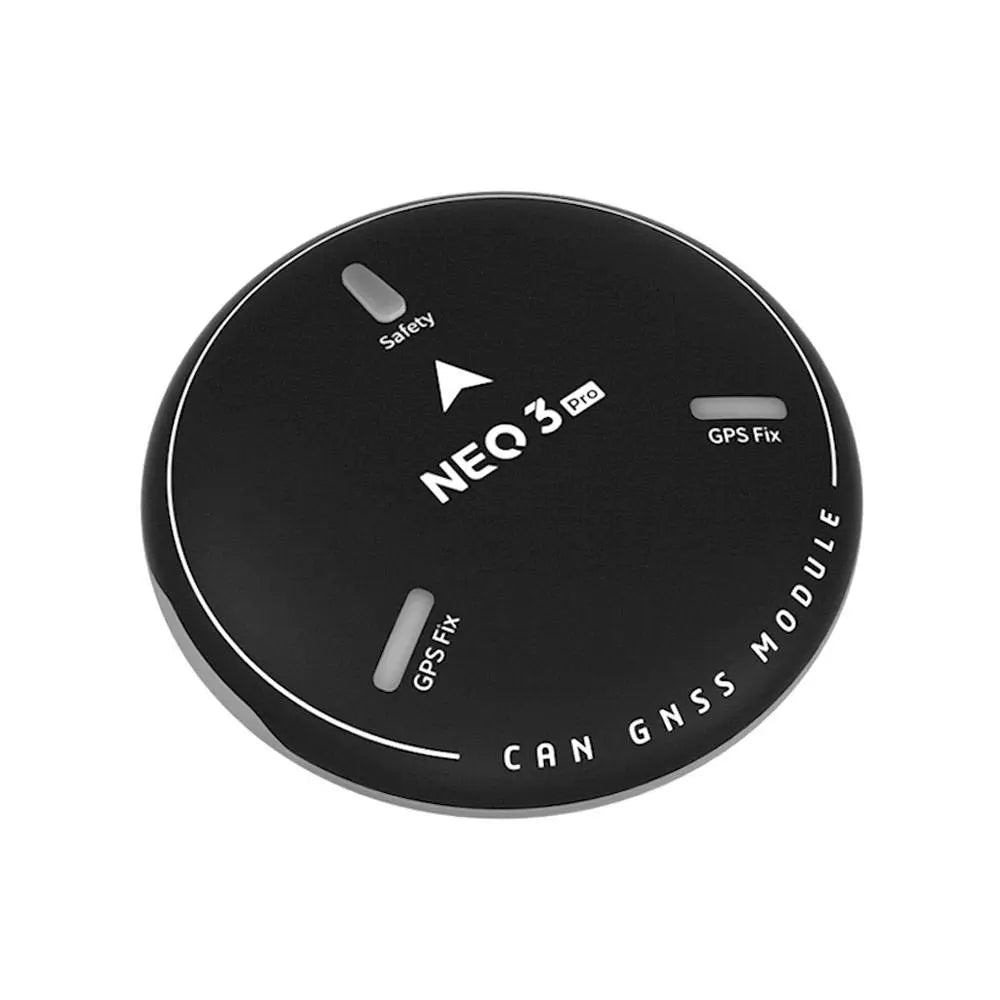

CUAV NEO 3 Pro GPS Module

The CUAV NEO 3 Pro continues the hardware design of NEO V2, upgrades the GNSS module to Ublox NEO M9N, and supports Beidou, Galileo, GLONASS, and GPS at the same time. The horizontal positioning accuracy is up to 0.7M. The NEO 3 is Integrated with a safety switch, buzzer, and RGB light.

VIDEO: Why the Neo 3 Pro is the Way a Standalone Should Be!

• Industrial-Grade Electronic Compass
• RGB Surround Light
• Buzzer Prompt
• Safety Switch
• Barometer
• CAN BUS

• Support Flight control type: Ardupilot/PX4*(PX4 is still working hard to adapt to the clock)
• Anti-Electromagnetic/radio frequency interference: EMI+RFI
• Supported flight controller: CUAV series, Pixahwk series
• GNSS: Beidou, Galileo, GLONASS, GPS
• Operating temperature: -10~70℃
• GNSS receiver: UBLOX NEO M9N
• GNSS Augmentation System:
  • SBAS:WAAS,EGNOS,MSAS
  • QZSS: L1s(SAIF)
  • other： RTCM3.3
• Sensitivity:
  • Tracking and nav-167dBm
  • Reacquisition: -160dBm
  • Cold start: -148dBm
  • Hot start: -148dBm
• Number of satellites(MAX): 32+
• Wave filtering: SAW+LNA+SAW
• Number of concurrent GNSS: 4
• Safety switch: Physical button
• Nav. update rate: 25Hz(Max)
• Upgrade firmware: support
• Horizontal accuracy: 2.0M
• Speed accuracy: 0.05M/S
• Buzzer: Passive buzzer
• Port Type: GHR-04V-S
• RGB drive: NCP5623C
• Acquisition:
  • Cold start： 24S
  • Hot start： 2S
  • Aided start: 2s
• Frequency band:
  • GLONASS: L10F
  • Galileo: E1B/C
  • GPS: L1C/A
  • Beidou: B1I
• Barometer: MS5611

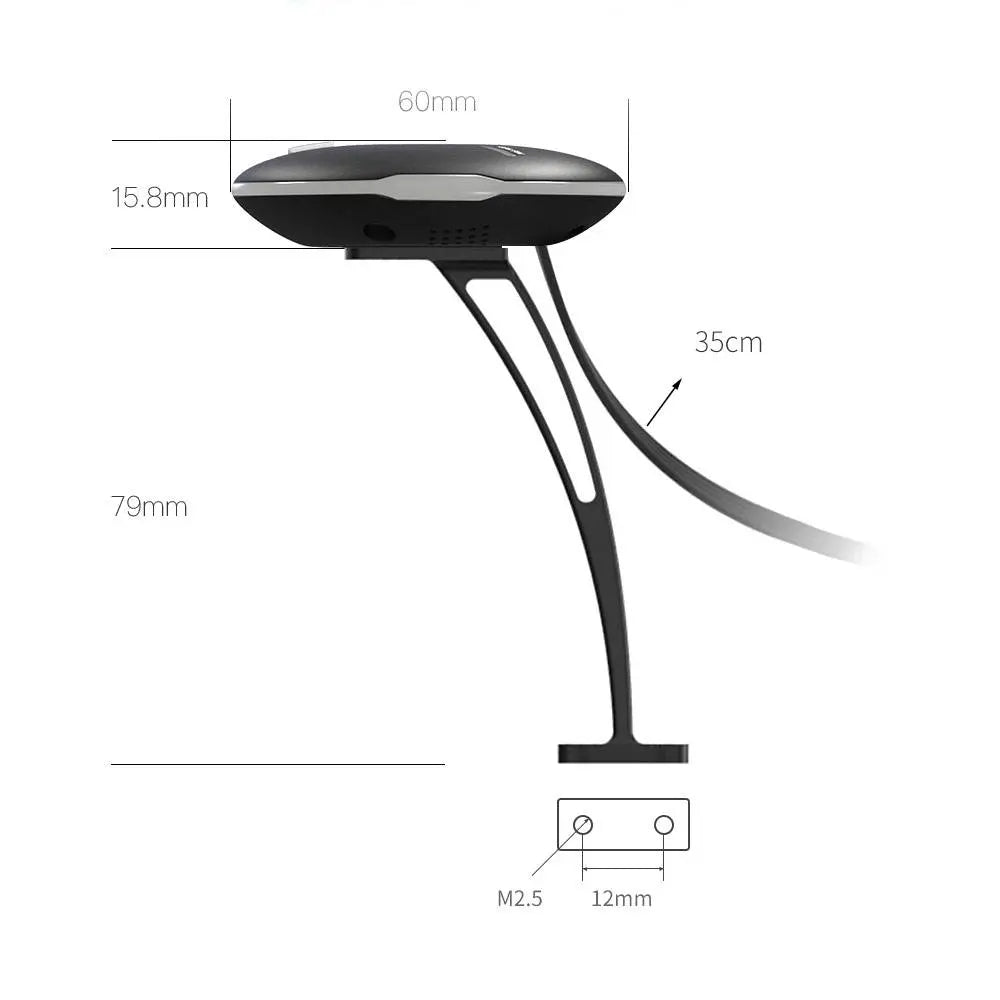

• Size: 60*60*16MM
• Protocol: UAVCAN
• Input voltage: 5V
• Weight: 33g

IMPORTANT NOTES

• NEO 3 Pro supports RTCM3.3 injection, but does not support RTCM output; it can achieve pseudorange differential (meter-level positioning) but does not support carrier phase differential (RTK), and it needs a base station that supports RTCM3.3 output.
• NEO 3 Pro level accuracy when the SBAS enhancement system is turned on, the nominal accuracy is 1.5m (default); when the SBAS enhancement system is turned off, it is 2.0m

• CUAV Neo 3 Pro Manual

• 1x CUAV Neo 3 Pro Module
• 1x CAN Connection Cable

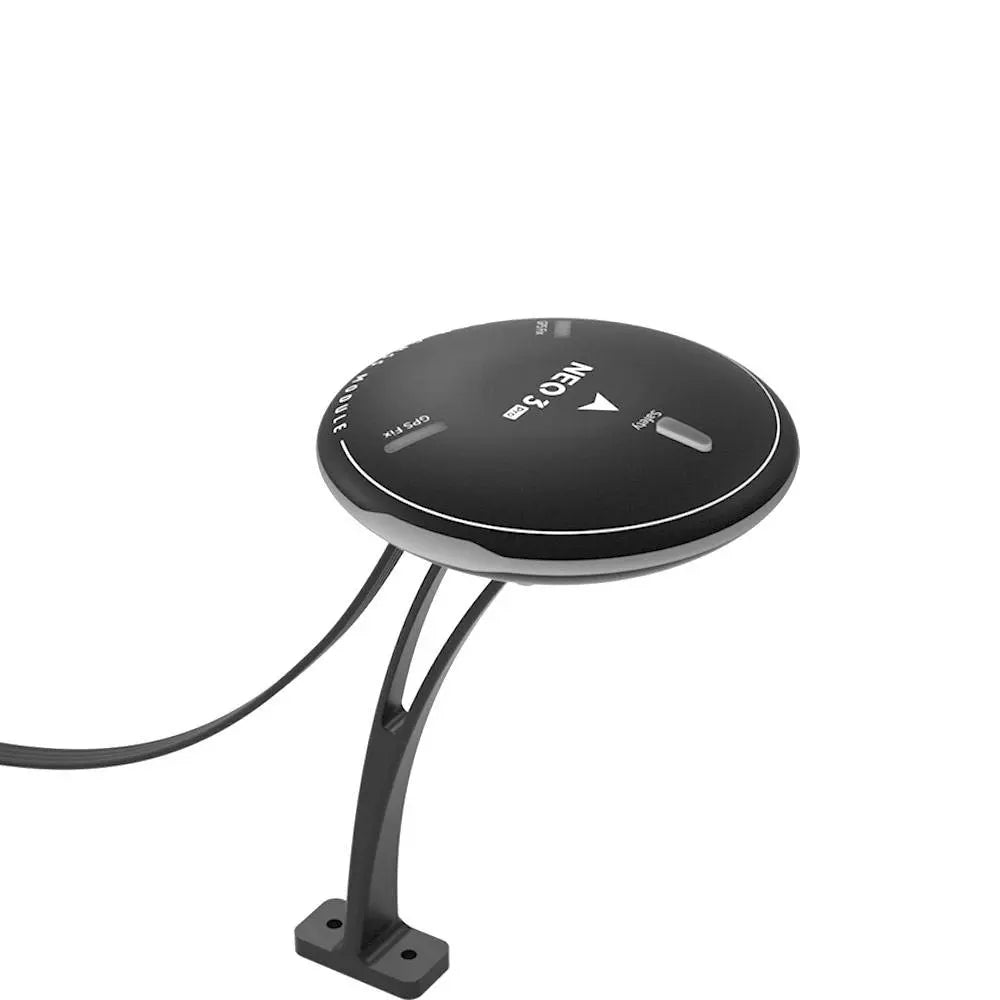

• 1x GPS Stand
