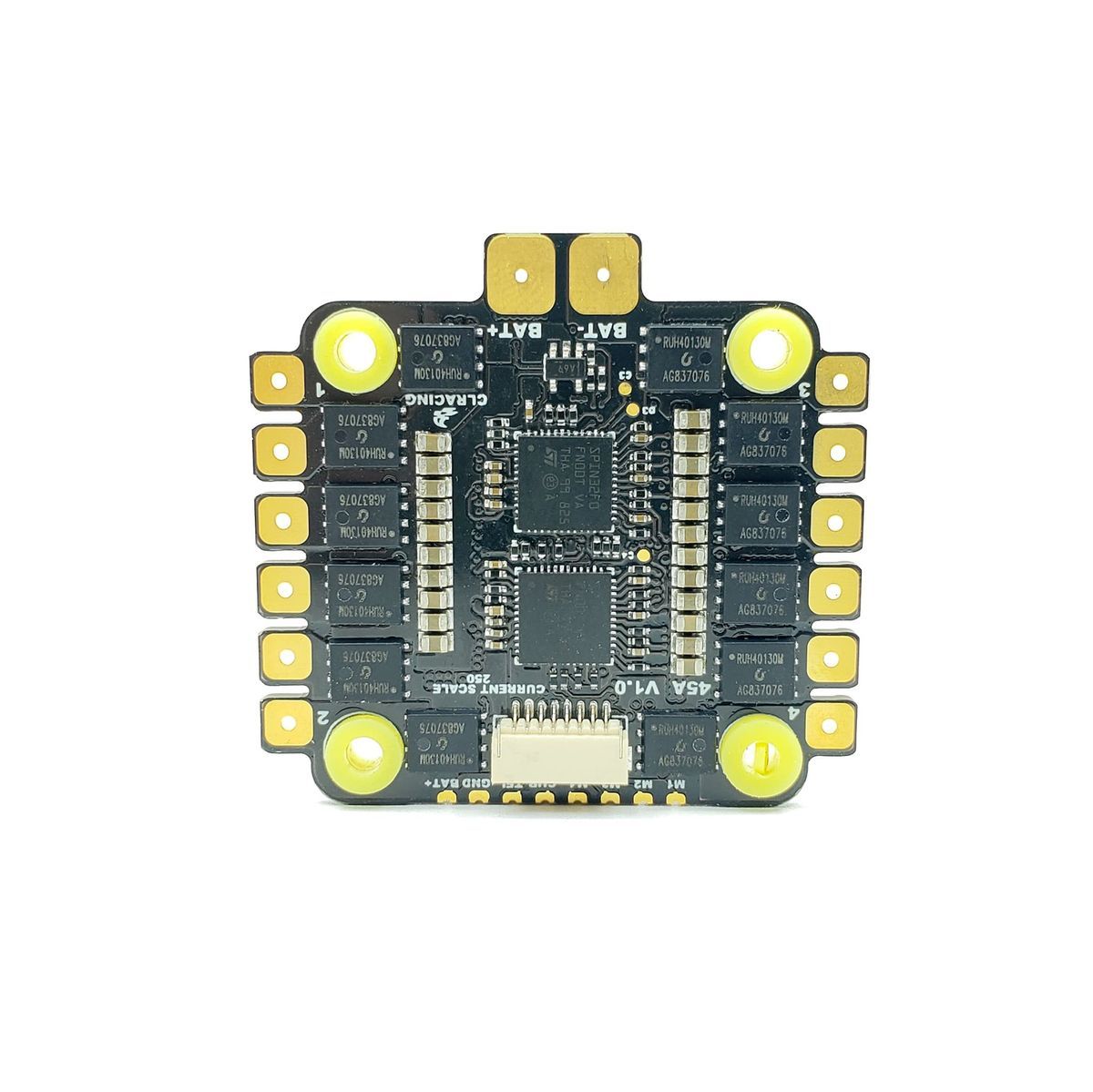

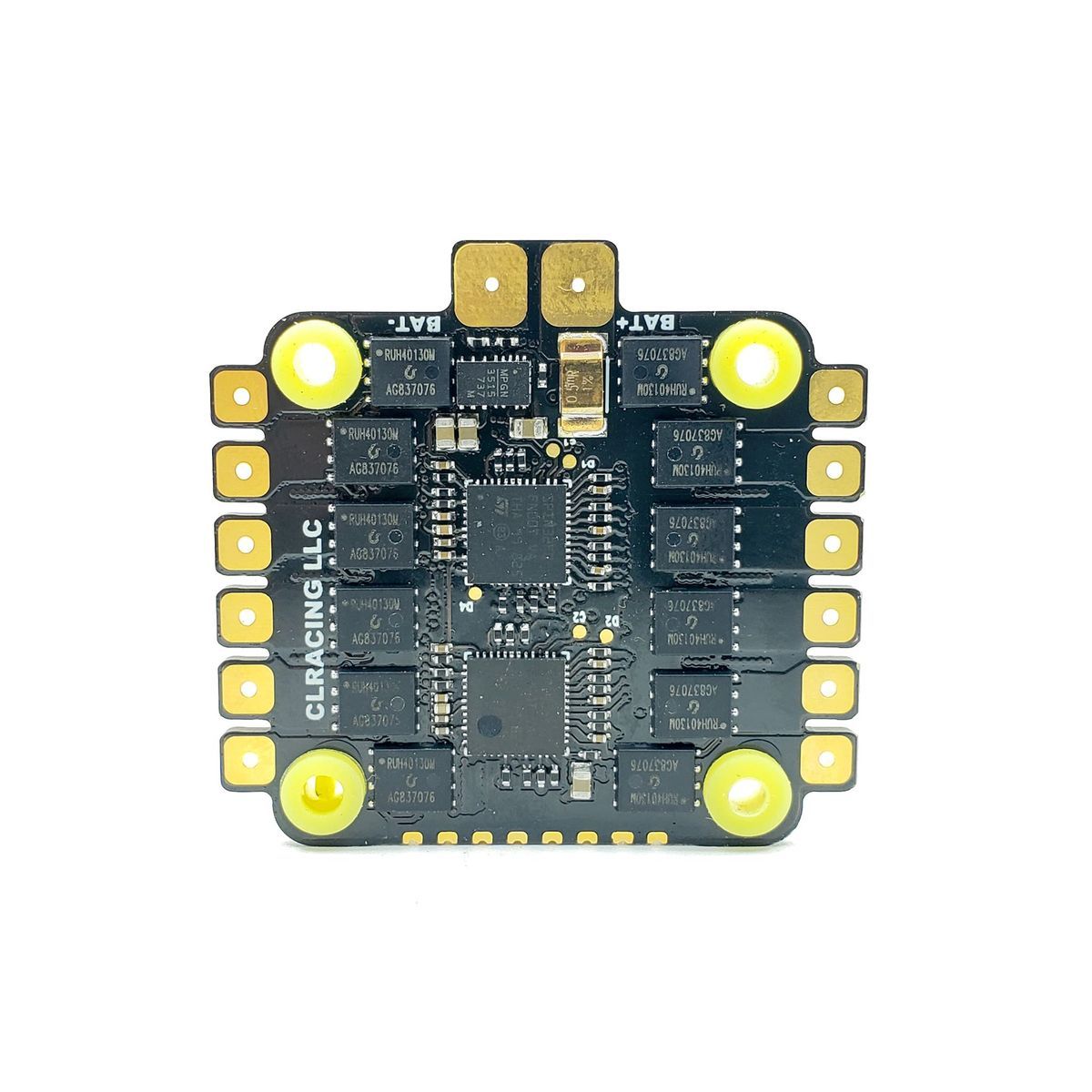

CLRACING 4IN1 45A 32BIT ESC

Replacement ESC for the CLRACING F7/4in1 stack combo.
Can also be used with other flight controllers.
If used with other flight controller please make sure you have the correct harness pinout to avoid damging your flight controller.

Main ESC Features
LIPO: 2-6S LIPO
Weight:13.5g
Firmware: Blheli_32
Size : 43.5mm x 46.5mm
Mounting : 30.5mm x 30.5mm / ID 4mm
Con.Current:45A, Peak 55A @10s
Support: Dshot300-1200/MultiShot/OneShot/ProShot/PMW
Connection: PNP with CLRACING F7 FC, with JST1.0 8 pin connector or soldering pads
Current scale: 250
Accessory:
10 x M3*5mm nylon thread through spacers
5 x M3*25mm nylon screws
5 x M3 nylon nuts
5 x Yellow Grummits
2 x 14 AWG 80mm Silicone wires
1 x connection cable
1 x Amass XT60
1 x Rubycon 1000uf 35v ZLH capacitor
