CADDX Firefly

CADDX Firefly

Rs. 1,918.25
Rs. 1,918.25 Rs. 2,168.46
Tax included. Shipping calculated at checkout.

Out of stock

Ask a question

The fields marked * are required.

SKU: 3640

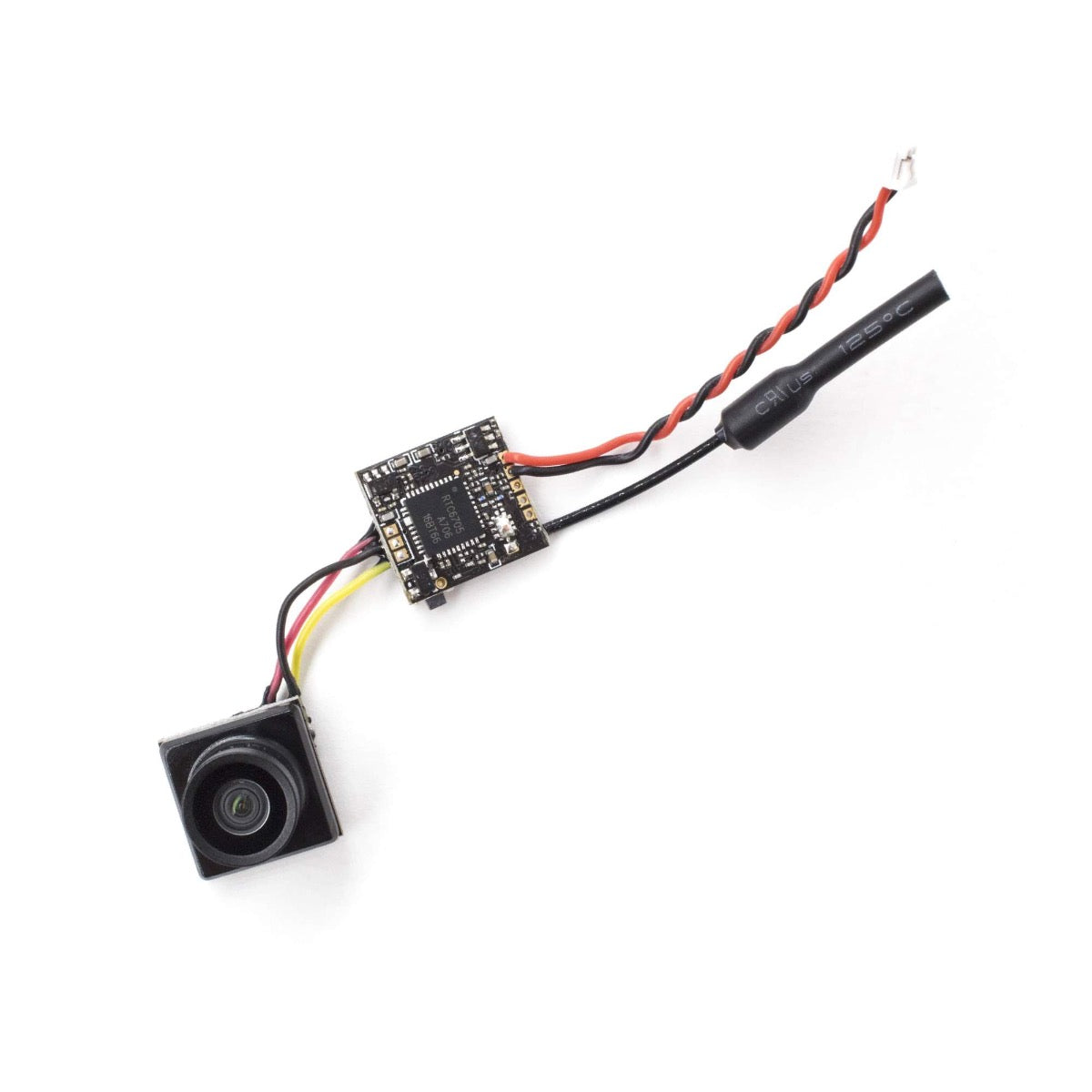

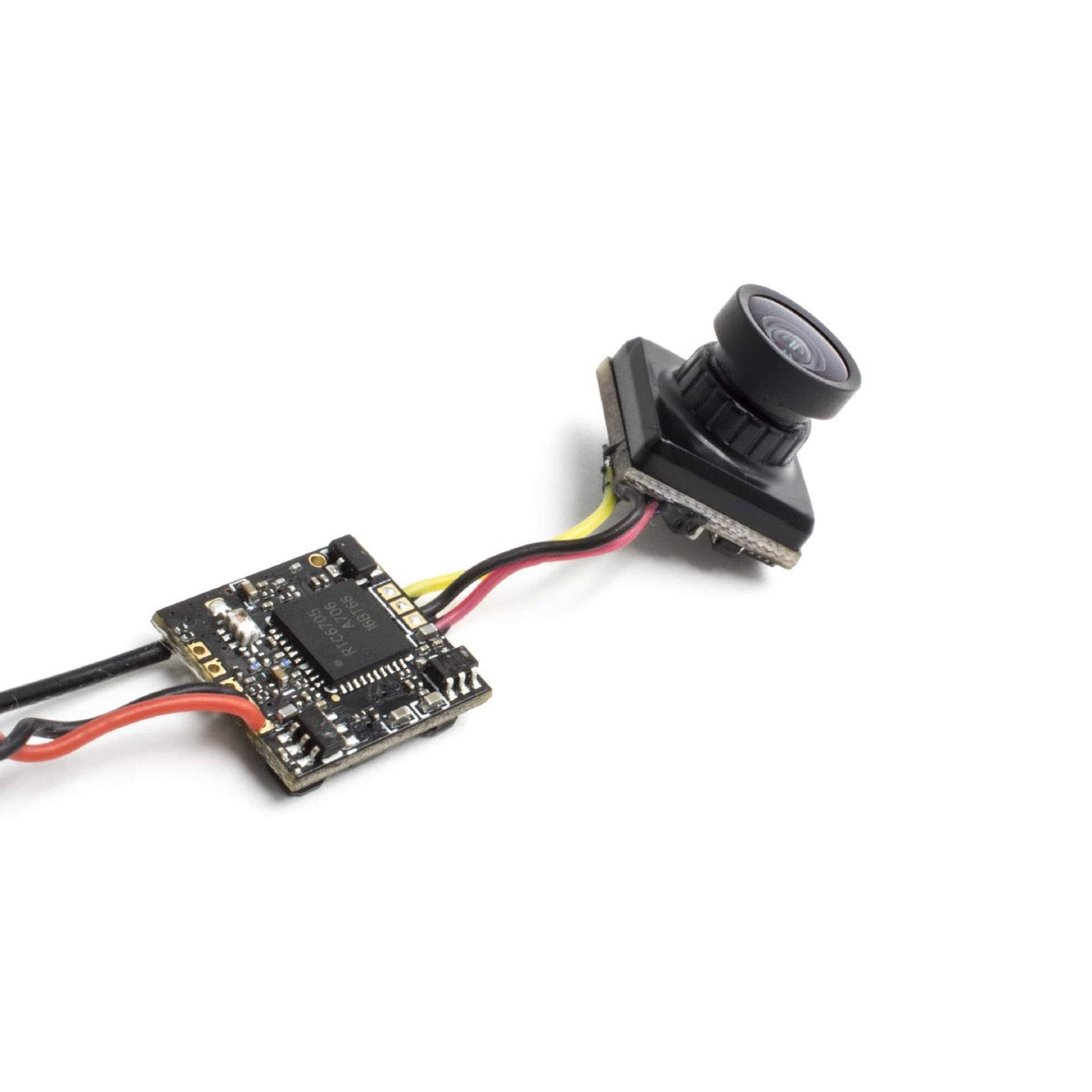

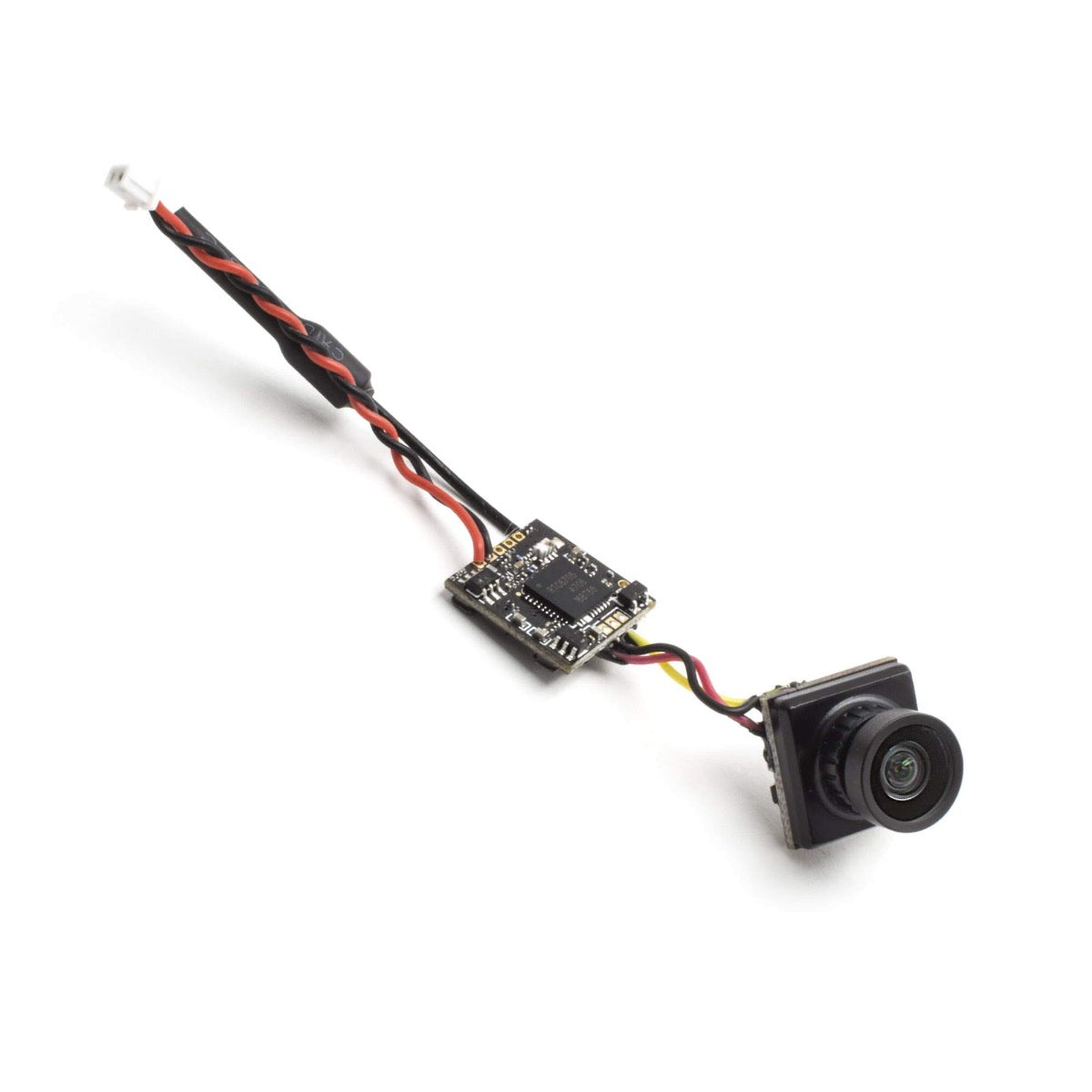

  • Caddx Firefly 14mm Nano VTX Camera

    This is the first camera with 1/3" CMOS Sensor, VTX built in, high Resolution 1200TVL, 16:9 / 4:3 aspect ratio,Gobal WDR, 5362MHz-5945MHz frequencies and only at 4.2grams.

    Model FireFly + VTX1
    Camera: Turbo FireFly
    Image Sensor 1/3" CMOS Sensor
    Horizontal Resolution 1200 TVL
    TV System NTSC / PAL optional
    IMAGE 16:9 / 4:3 optional
    Synchronization Internal
    Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000
    S/N Ratio >52dB (AGC OFF)
    Video Output CVBS
    Lens 2.1mm
    Min. Illumination 0.001Lux@F1.2
    Auto Gain Control YES
    BLC YES
    WDR Global WDR
    DNR 2 DNR
    Dimensions 14mm*14mm*16mm
    Wide Power Input DC 3.3-6V
    Work Temperature -20℃~+60℃
    Work Humidity 20%~80%
    Weight 4.1g (Camera + VTX)
    VTX1
    Frequency band 5362~5945MHz
    Channel customer 48
    Modulation type FM
    Channel SEL. Touch Switch
    Channel Indicate CH1~CH8 Channel indication with 8LEDS and A~F frequency group Indicate with 6 LEDS
    Transmit power 13±1dBm
    Frequency control PLL
    All harmonic Max -50dBm
    Frequency Stability ±100KHz (Typ.)
    Frequency precision ±200KHz (Typ.)
    Channel Carrier error 1dB
    Antenna Port 50 Ω
    Power consumption 140±20MA@5V DCIN
    Supply Voltage 2.9-5.5v
    Operating Temperature -10℃~+60℃
    Profile dimension 15mmX14mm
