Save 24%
Boscam 350mw FPV Kit with Circular Polarized Antenna
Boscam 350mw FPV Kit with Circular Polarized Antenna
Regular price
Rs. 3,500.00
Sale price
Rs. 3,500.00
Regular price
Rs. 4,631.00
Tax included.
Shipping calculated at checkout.
-
Estimated delivery: May 27 - May 31
Share this product

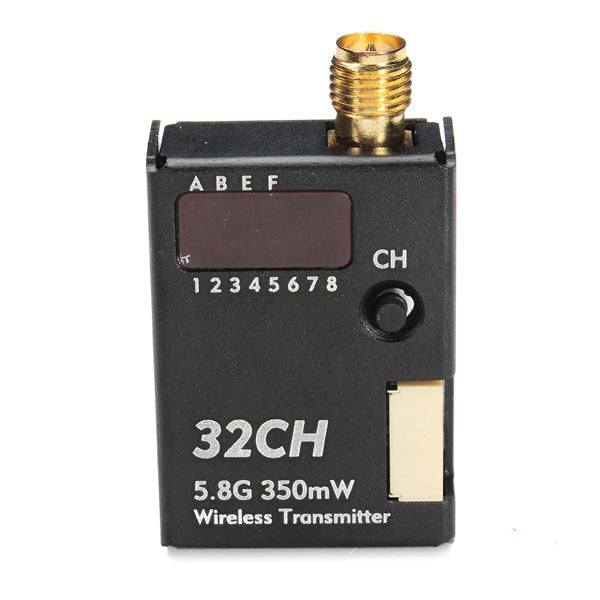

Boscam 32CH 5.8G 350mW Wireless Transmitter
Description:
Boscam 32CH 5.8G 350mW Wireless Transmitter - Black
Model No:Boscam 350
Frequencies: 5.8G 32 Channels
Antenna Connector: RP-SMA
Power Supply: 7-19V DC
Power: 350mW
Supply Current:250mA 12V
Dimension:31X23X11mm
Weight :14g
RC805 5.8Ghz AV Receiver
The RC805 5.8Ghz AV Receiver features a digital channel display and jumperless, one press channel selection. This receiver also includes an additional AV output for video recording while using FPV goggles. Specs. Receiving sensitivity: < -90dBm Receiving frequency: ISM 5.8GHz 8CH Antenna port: 50ohm RP-SMA Antenna: Gain: 2dBi Power supply: DC12V 220mA Video output level: 1Vp-p @ 75ohm Audio output level: 1Vp-p @ 10Kohm Dimensions: 72.5x54.2x15.5mm Weight: 52g (w/antenna) Channels 5.8G : 5705,5685,5665,5645,5885,5905,5925,5945MHZCircular Polarized Antenna

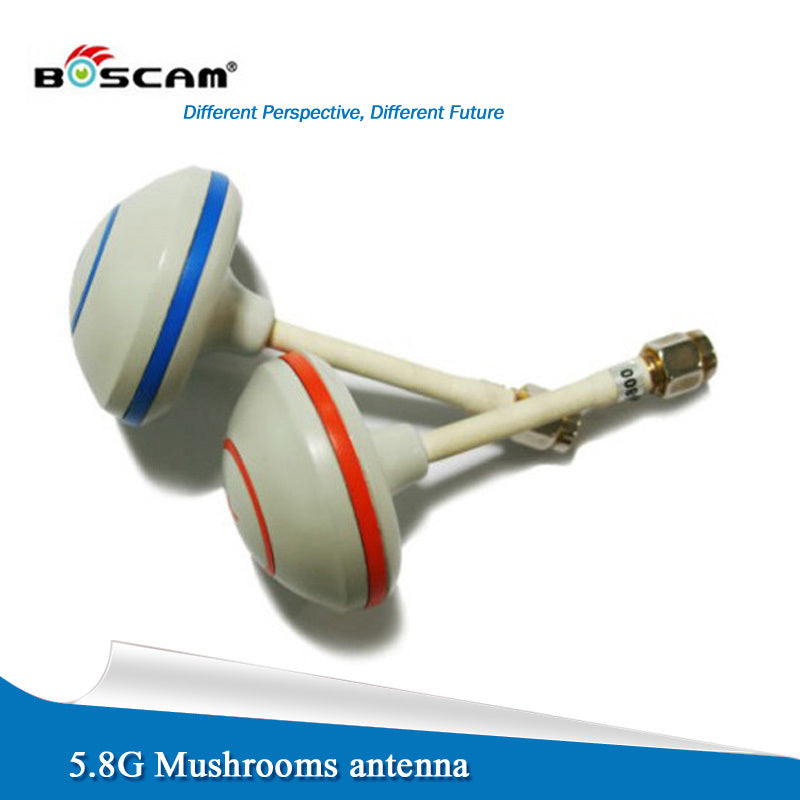

Basic Information：
Frequency: 5.8G
TX: Transmitter usage
RX: Monitor and receiver usage
Antenna gain: TX: 1.1dBi, RX: 1.4dBi
SWR：1.2 : 1
Antenna interface: SMA / RP - SMA
Circularly polarized antenna gain effect, increasing the range of high-quality, rigid cable
TxA is a circular-polarized omni antenna with three lobes
RxA is a circular-polarized omni antenna with four lobes
Gain: T x A 1.1dBi, R x A 1.4dBi SWR: 1.2.:1, it tuned for 5645 - 5945Mhz
Polarization: RHCP ( Right hand circular polarization )
Connector: Straight SMAProduct:
Cloud Spirit Antennas ( T x A and R x A, a pair in one set )
Warm Tips:
This Antenna Set can be sold separately
Specifications
| General | FPV Equipments : FPV Accessories |
|---|---|
| Dimension and Weight | Package weight: 0.082 kg Package size (L x W x H): 13.5 x 8.5 x 4.5 cm / 5.31 x 3.34 x 1.77 inches |
Package included for Boscam FPV 32CH 5.8G 350mW Wireless Transmitter
BOS350 x 1
Antenna x 1
Cable for gopro x 1
Cable x 1
Package Included for Boscam RC805 5.8Ghz AV Receiver:
1 x RC805 Receiver
1 x Antenna
1 x AV ouput
1 x Power cable (JST)
Package Included for Boscam Circular Polarized Antenna
Package Contents : 2 x Antenna
