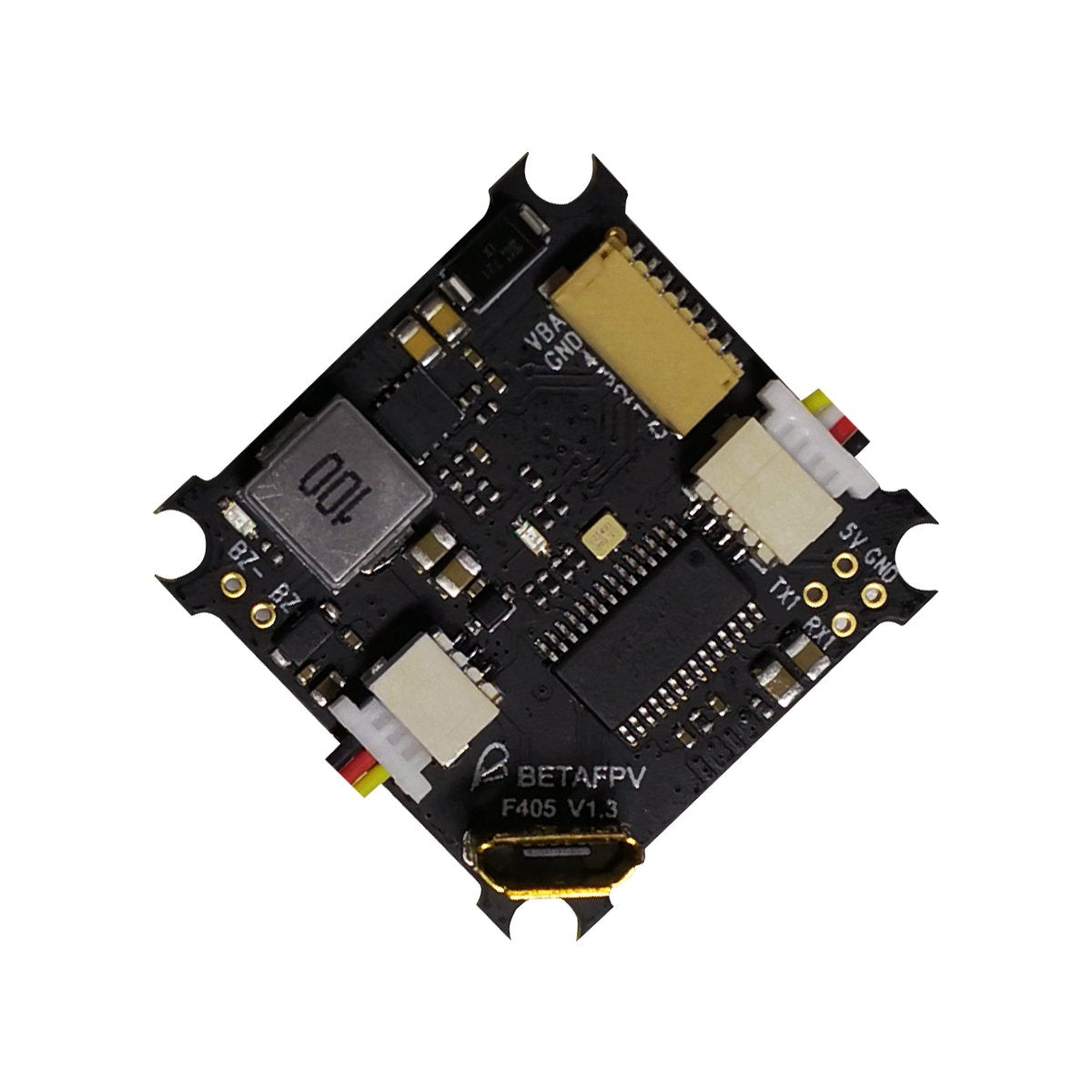

BetaFPV 4S F405 Brushless Flight Controller

PECIFICATIONS OF FC

• CPU: STM32F405 (Overclock to 240MHz)
• Six-Axis: MPU6000
• Size: 26mm x 26mm, whoop mounting pattern
• Firmware version: Betaflight OMNIBUSF4SD (OBSD)
• OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
• RX3 and TX3 are with auto inverter, supporting all RX including TBS Micro RX
• TX01 and RX01 ports are available for Frsky F-Port, DSM2/DSMX
• Buzzer solder pads
• Support programable LED like WS2812 etc
• Weight: 4.2g

DIAGRAM FOR F405 4S FC

PACKAGE

• 1 * F405 4S Brushless Flight Controller
• 1 * 4P Cable for RX
• 1 * 3P Cable for LED board
• 4 * M1.4x4mm screws
• 4 * 1.2mm Anti-vibration ruber dampers
