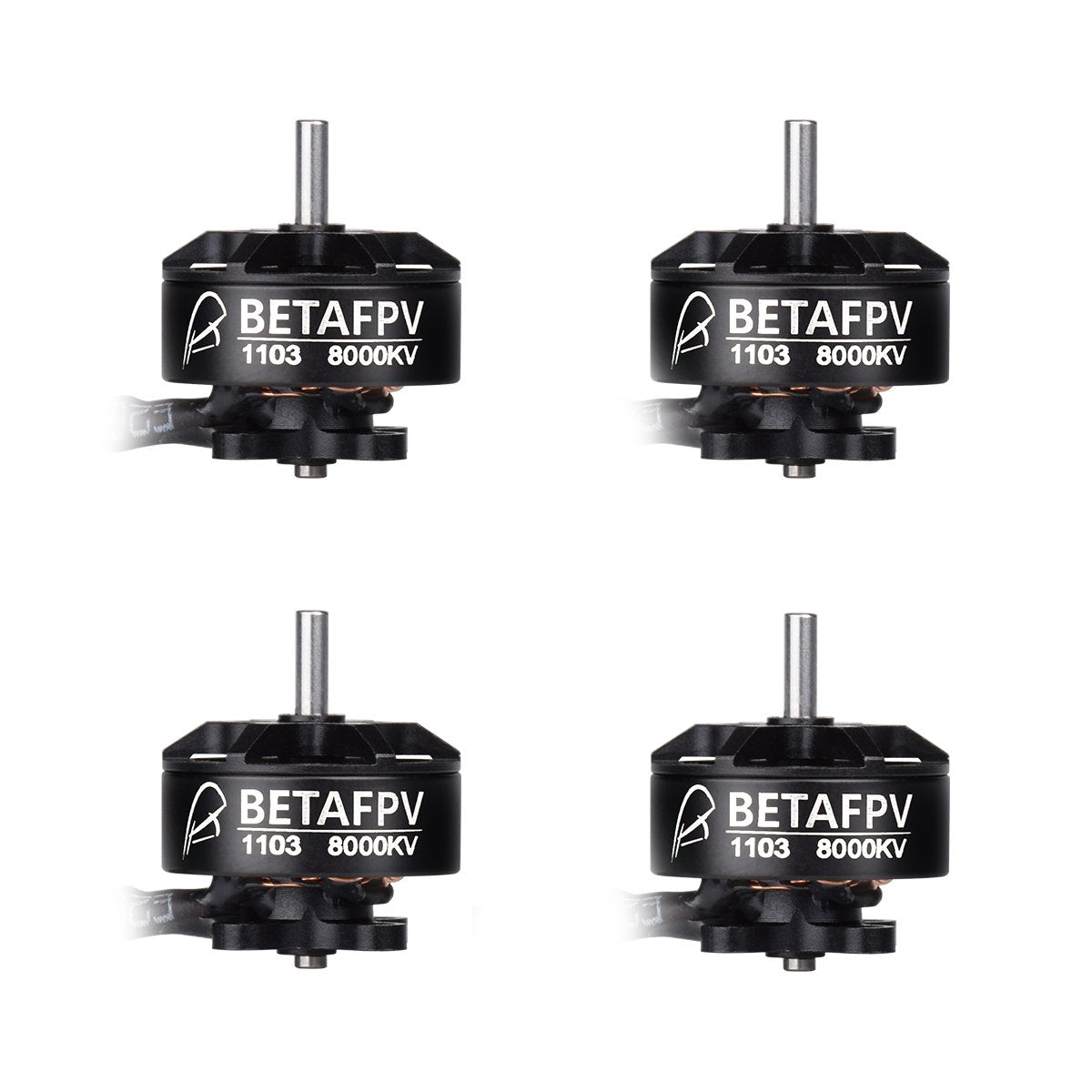

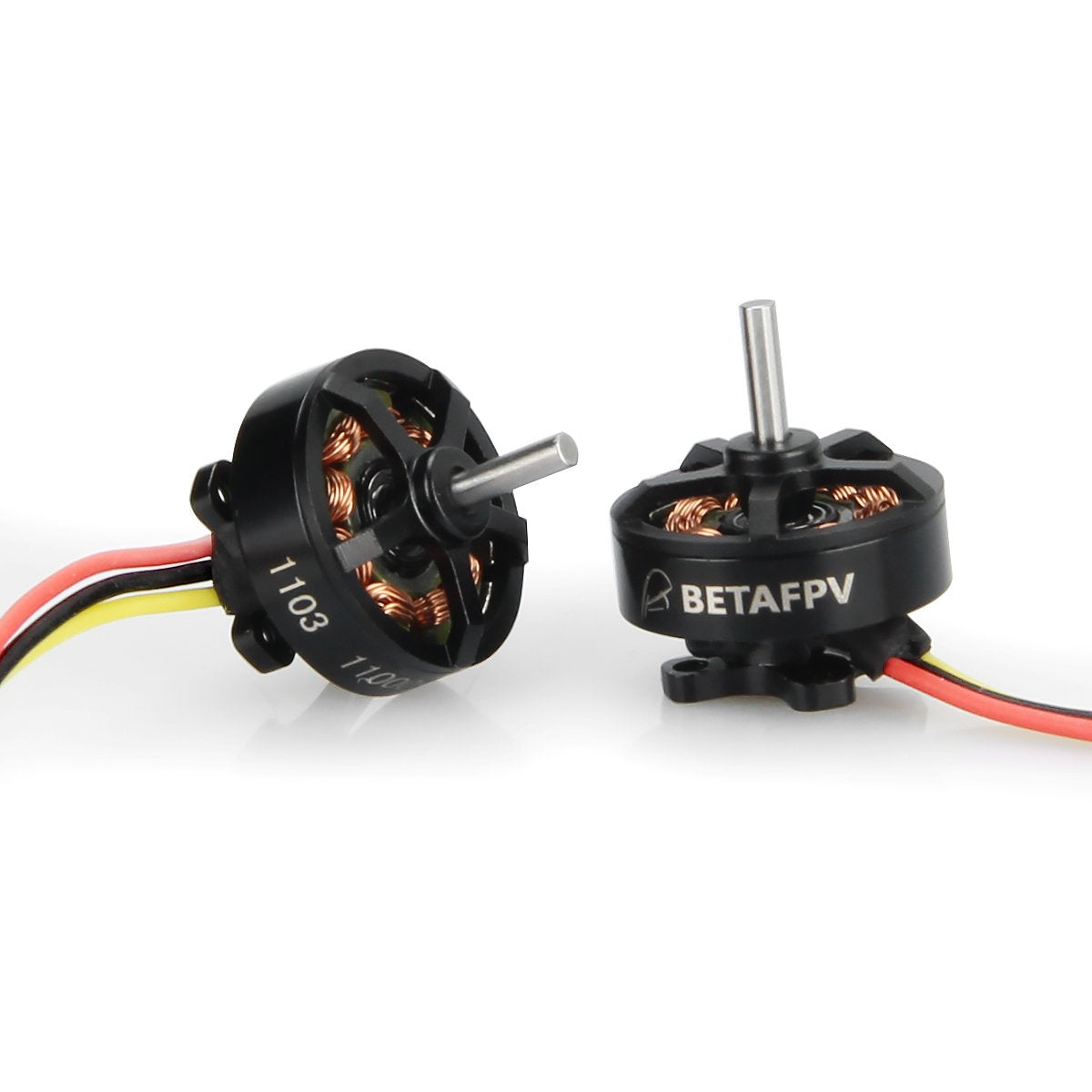

BetaFPV 1103 8000KV Brushless Motors (4PCS)

• With strengthened cable, it is thicker which will not easy to break off, specially lengthened motor wires are suitable for toothpick drones
• Shaft diameter is 1.5mm, convenient installation with Micro JST-1.25 3-pin connector
• Extensive and rough testing ensures its ability to withstand some of the worst crashes, offers incredible power, efficiency, and torque

• Built from the High-quality Aviation Aluminum Alloy, Sintered NdFeB N48H High-temperature Magnets, and Japanese Kawasaki Silicon Steel Sheets Iron Core

Comparison of 1103 Brushless Motors

Note: DO NOT recommend the 1103 11000KV motors for 3S power. If you try this combo, the motors will overheat and burn (maybe the ESC). As a result, it will cause permanently damage to the motor or ESC.

Recommended Parts

1103 8000KV / 11000KV Motor:

• Propellers: 40mm 4-blade props / 3020 2-Blade Props / 3030 3-Blade Props
• Frame: Beta75X frame
• FC & ESC: F4 2-4S AIO Brushless FC 12A

1103 15000KV Motor:

• Propellers: 40mm 4-blade props / 65mm 2-blade props

• FC & ESC: Toothpick F4 2-4S AIO Brushless FC 12A

Specification

• Height: 14mm
• Shaft: φ1.5mm
• Motor Mount Holes: M1.6 on Dia 8.5mm
• KV (rpm/V): 8000 / 11000 / 15000
• Plug: Micro JST-1.25 3-pins connector

Package

• 4 * BETAFPV 1103 Brushless Motors 8000KV
• 1 * Spare pack of M1.6*4 screws
