AIKON F7 FC V2 HD

What makes the Aikon F7 amazing?

• 216mhz F7 processor
• 7 Software invertable hardware UARTS
• Onboard OSD and blackbox

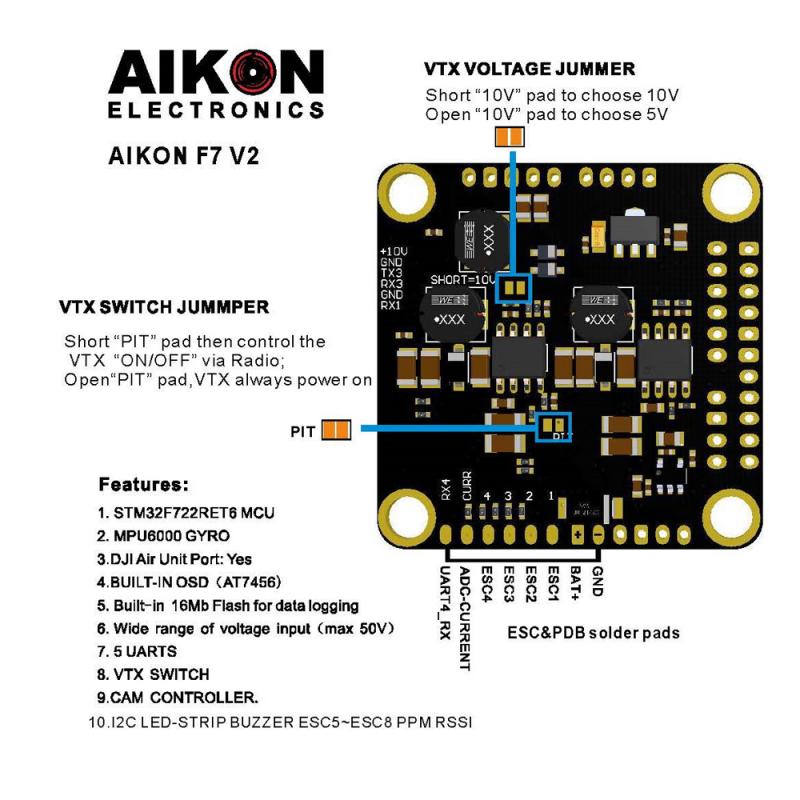

• Software controlled VTX power switch
• LED and buzzer outputs (LED input doubles as PPM)
• Quick connection cable for 4-in-1 ESCs
• Quick connection cable for DJI HD system
• On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)
• 10v 1.5A voltage regulator for DJI HD system
• USB Type C connector for easy programming.

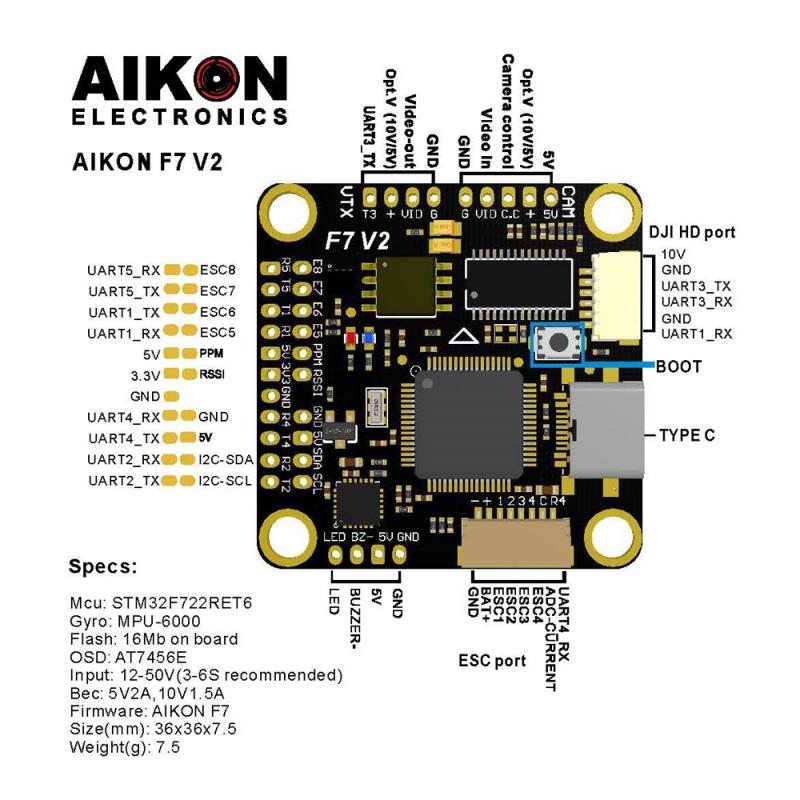

SPECIFICATIONS

• Battery 2-6s
• Mount Holes 30.5*30.5mm
• Firmware Betaflight AIKONF7 Target
• MCU STM32F722
• IMU MPU6000 (interrupt pin connected)
• Blackbox SPI 16MB
• Weight 12g
